10089715-017000LF datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 10089715-017000LF

Preview

10089715-017000LF: DescriptionBoard Connector, 17 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, LEAD FREE; CategoryThe connector The connector; File Size114KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

10089715-017000LF Overview

Board Connector, 17 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, LEAD FREE

10089715-017000LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN
Contact completed and terminated	MATTE TIN (100) OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	10089715
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	17
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

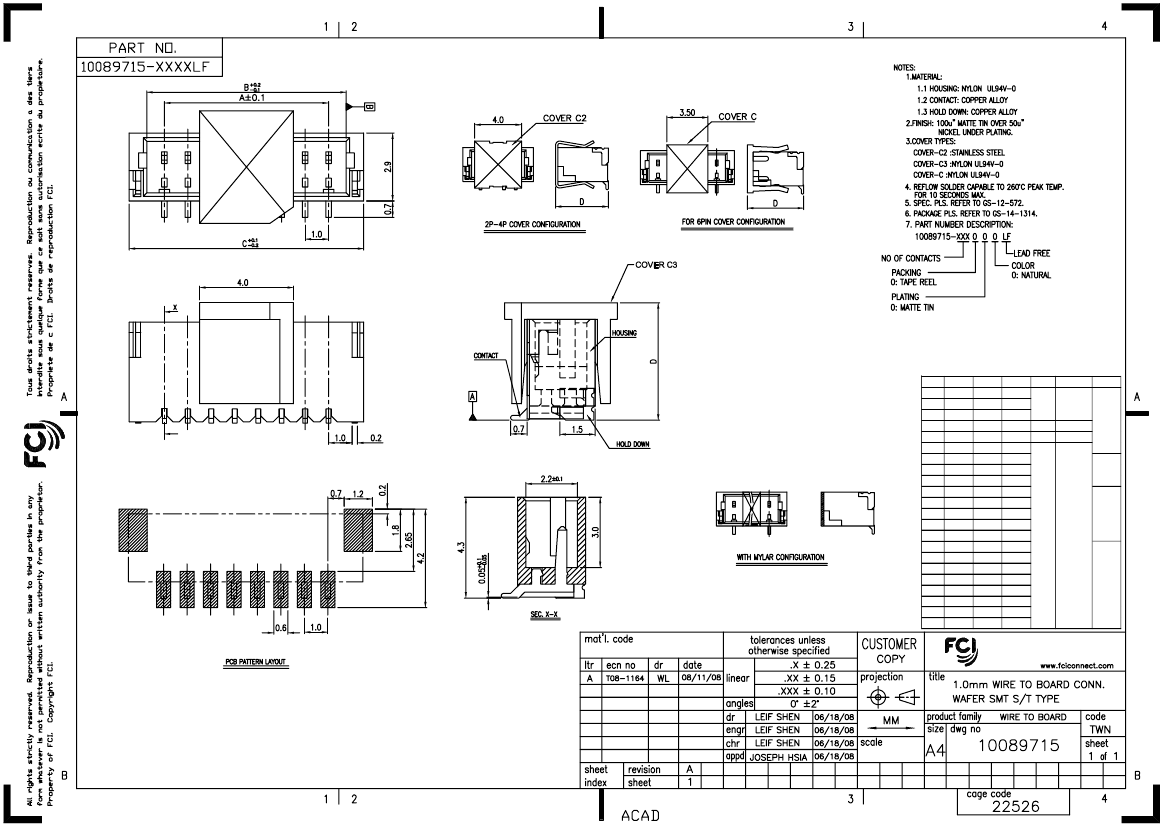

CKT Dim A

2

1.0

3

2.0

4

3.0

5

4.0

6

5.0

7

6.0

8

7.0

9

8.0

10

9.0

11

10.0

12

11.0

13

12.0

14

13.0

15

14.0

16

15.0

17

16.0

18

17.0

19

18.0

20

19.0

22

21.0

24

23.0

26

25.0

Dim B

2.4

3.4

4.4

5.4

6.4

7.4

8.4

9.4

10.4

11.4

12.4

13.4

14.4

15.4

16.4

17.4

18.4

19.4

20.4

22.4

24.4

26.4

DimC

4.0

5.0

6.0

7.0

8.0

9.0

10.0

11.0

12.0

13.0

14.0

15.0

16.0

17.0

18.0

19.0

20.0

21.0

22.0

24.0

26.0

28.0

DimD

4.5

5.0

4.8

C/Size

87212-C2

87212-C3

87212-C

M/Size

W3T12

W6T12

WAT12

5.0

87212-C3

WFT12

PDM: Rev:A

STATUS:

Released

Printed: Oct 02, 2008

.
