1N1200RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N1200RC

1N1200RC: Description12A, 100V, SILICON, RECTIFIER DIODE, DO-203AA; CategoryDiscrete semiconductor diode; File Size125KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

1N1200RC Overview

12A, 100V, SILICON, RECTIFIER DIODE, DO-203AA

1N1200RC Parametric

Parameter Name	Attribute value
package instruction	O-MUPM-D1
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JEDEC-95 code	DO-203AA
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	400 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
Maximum output current	12 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	1000 µA
Maximum reverse recovery time	5 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

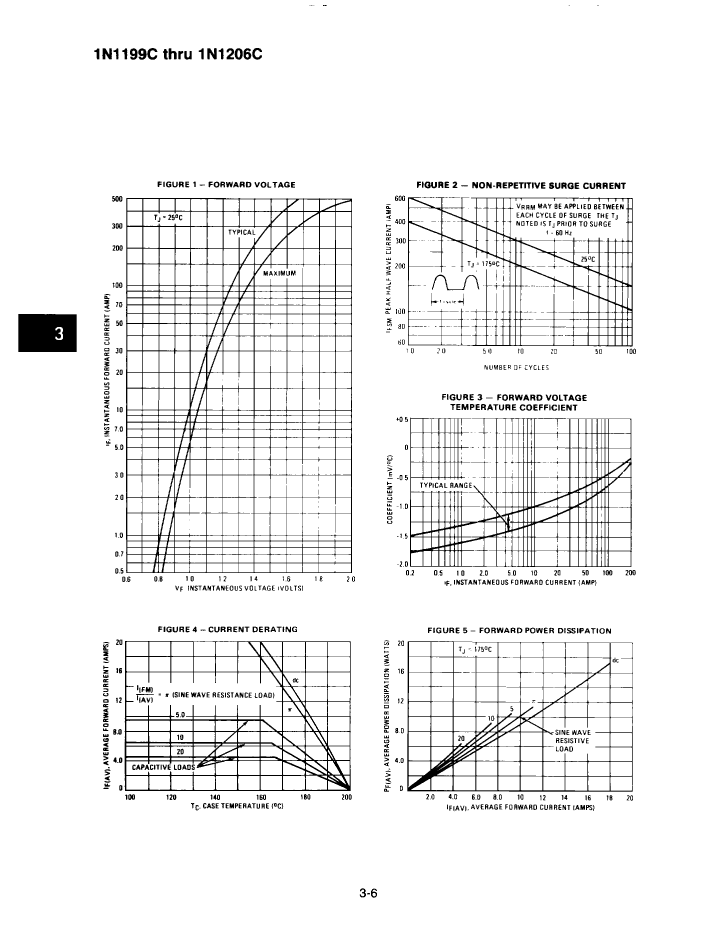

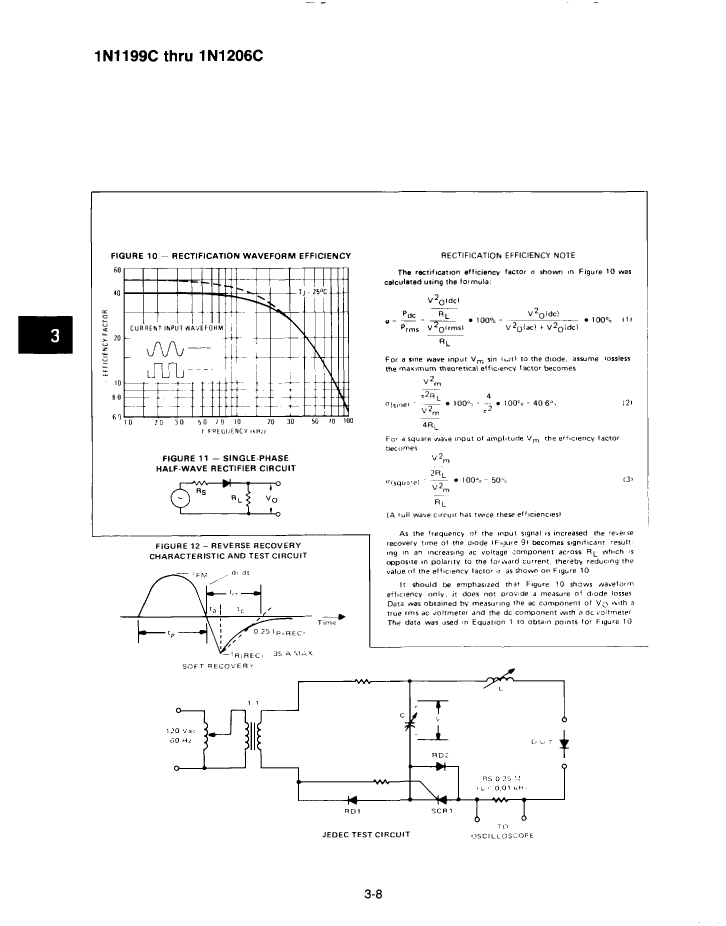

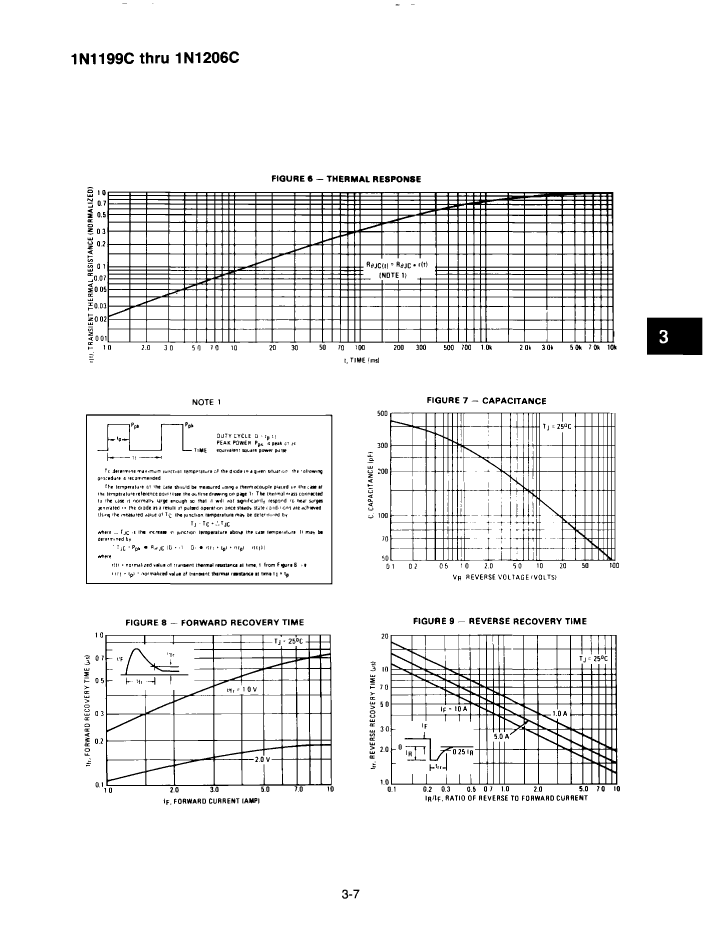

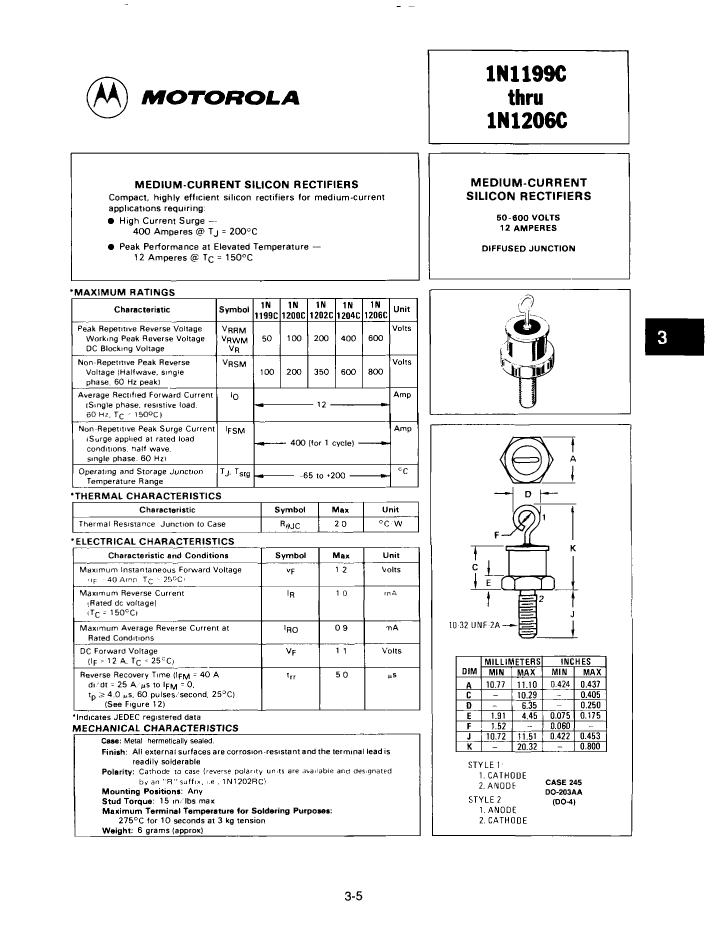

Preview

Download Datasheet

View All

1N1200RC Related Products

	1N1200RC	1N1199C	LM3S6730-IBZ20-A2T	1N1206C	LM3S8730-IBZ25-A2T	1N1199RC	1N1202RC	1N1204RC	1N1206RC
Description	12A, 100V, SILICON, RECTIFIER DIODE, DO-203AA	12A, 50V, SILICON, RECTIFIER DIODE, DO-203AA	Stellaris LM3S6730 Microcontroller	12A, 600V, SILICON, RECTIFIER DIODE, DO-203AA	Stellaris® LM3S8730 Microcontroller	12A, 50V, SILICON, RECTIFIER DIODE, DO-203AA	12 A, 200 V, SILICON, RECTIFIER DIODE, DO-203AA	12A, 400V, SILICON, RECTIFIER DIODE, DO-203AA	12A, 600V, SILICON, RECTIFIER DIODE, DO-203AA
package instruction	O-MUPM-D1	O-MUPM-D1	-	O-MUPM-D1	-	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Reach Compliance Code	unknown	unknown	-	unknown	-	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	-	EAR99	-	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ANODE	CATHODE	-	CATHODE	-	ANODE	ANODE	ANODE	ANODE
Configuration	SINGLE	SINGLE	-	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	-	SILICON	-	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	-	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	-	1.1 V	-	1.1 V	1.1 V	1.1 V	1.1 V
JEDEC-95 code	DO-203AA	DO-203AA	-	DO-203AA	-	DO-203AA	DO-203AA	DO-203AA	DO-203AA
JESD-30 code	O-MUPM-D1	O-MUPM-D1	-	O-MUPM-D1	-	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	400 A	400 A	-	400 A	-	400 A	400 A	400 A	400 A
Number of components	1	1	-	1	-	1	1	1	1
Phase	1	1	-	1	-	1	1	1	1
Number of terminals	1	1	-	1	-	1	1	1	1
Maximum operating temperature	200 °C	200 °C	-	200 °C	-	200 °C	200 °C	200 °C	200 °C
Minimum operating temperature	-65 °C	-65 °C	-	-65 °C	-	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	12 A	12 A	-	12 A	-	12 A	12 A	12 A	12 A
Package body material	METAL	METAL	-	METAL	-	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	-	ROUND	-	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	-	POST/STUD MOUNT	-	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	-	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	50 V	-	600 V	-	50 V	200 V	400 V	600 V
Maximum reverse current	1000 µA	1000 µA	-	1000 µA	-	1000 µA	1000 µA	1000 µA	1000 µA
Maximum reverse recovery time	5 µs	5 µs	-	5 µs	-	5 µs	5 µs	5 µs	5 µs
surface mount	NO	NO	-	NO	-	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	-	SOLDER LUG	-	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	-	UPPER	-	UPPER	UPPER	UPPER	UPPER
Base Number Matches	1	1	-	1	-	1	1	1	1
