8-147739-2: Description64 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT; CategoryThe connector The connector; File Size121KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

8-147739-2 Overview

64 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT

8-147739-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2059277079
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (300) OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	147739
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	64
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

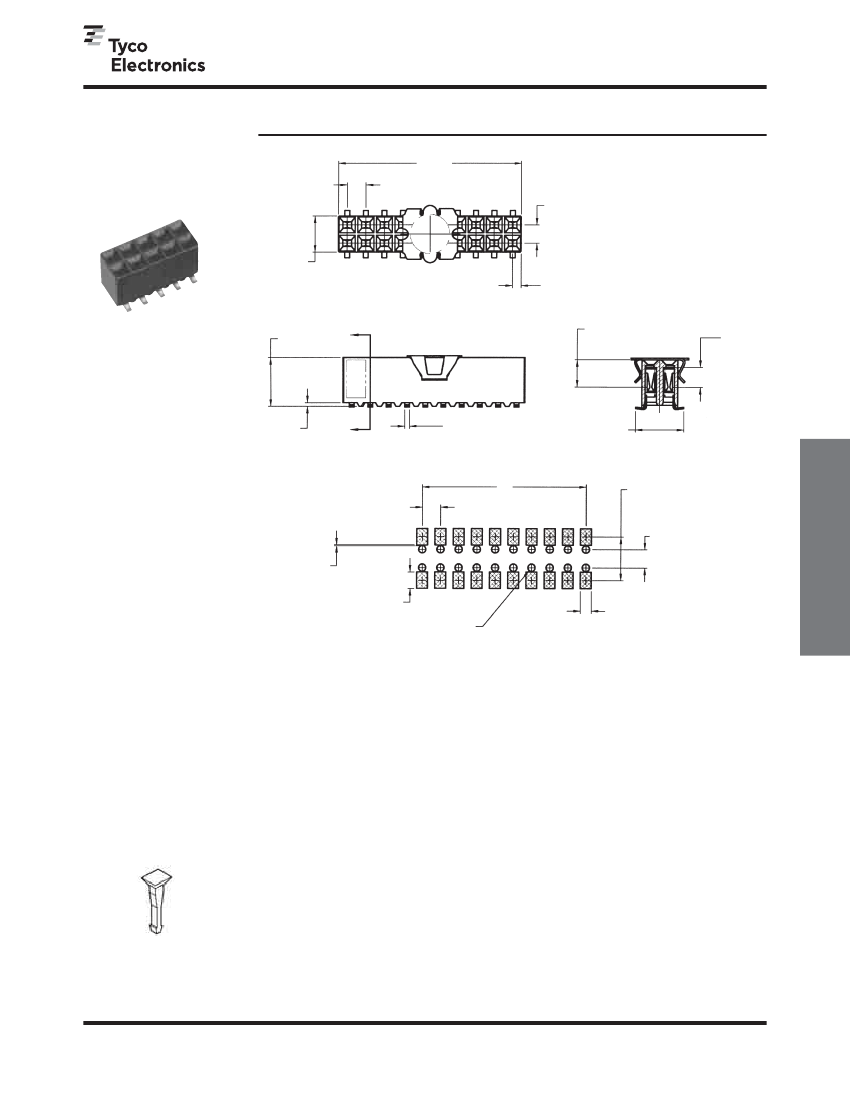

AMPMODU Interconnection System

Mod IV Surface Mount Receptacle Assemblies, Double-Row,

.100 x .100 [2.54 x 2.54] Centerline

Surface Mount,Double Row,

Dual Entry

End to End Stackable

.100

[2.54] Typ.

.100

[2.54] Typ.

.198±.002

[5.03±0.05]

.050

[1.27]

Max.

Material and Finish

Housing

— Glass-filled thermoplastic,

black, 94V-0 rated

Contacts

— Phosphor bronze, plated

as follows:

Plating A

— Duplex .000030 [0.00076]

gold on contact area, .000150-.000300

[0.00381-0.00762] matte tin on solder

area all over .000050 [0.00127] nickel

Plating B

— Duplex .000010

[0.000254] gold on contact area,

.000150-.000300 [0.00381-0.00762]

matte tin on solder area all over .000050

[0.00127] nickel

Plating C

— .000150-.000300

[0.00381-0.00762] tin-lead over

.000050 [0.00127] nickel

.265

[6.73]

Typ.

.148

Point of

[3.76] Contact

.107

[2.72]

(Localized Gold

Plate Area)

.020

[0.51]

Typ.

.027±.002

Typ.

[0.69±0.05]

.266

[6.75]

Surface Mount Receptacle

Assemblies

.100

[2.54]

Typ.

.238

[6.05]

Typ.

.100

[2.54]

Typ.

.004

[0.10]

Typ.

.090

[2.29]

.040

Typ.

[1.02]
