140R-JUXK-G-T(LF)(SN) datasheet, PDF

Datasheet> All Categories > The connector> The connector> 140R-JUXK-G-T(LF)(SN)

140R-JUXK-G-T(LF)(SN): DescriptionBoard Connector, 140 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size210KB，2 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric View All

140R-JUXK-G-T(LF)(SN) Overview

Board Connector, 140 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle, ROHS COMPLIANT

140R-JUXK-G-T(LF)(SN) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.6 mm
Termination type	SURFACE MOUNT
Total number of contacts	140
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

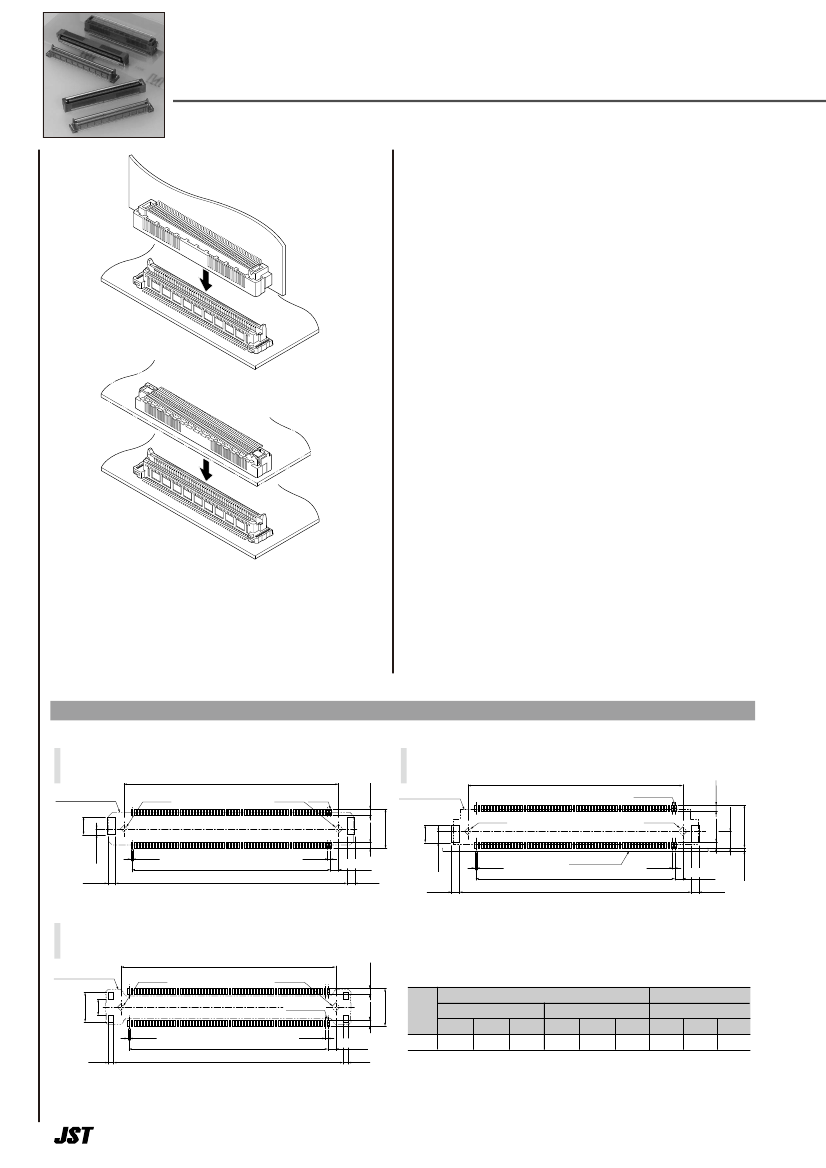

JUX

CONNECTOR

0.6mm pitch/Board-to-board connectors

• With guide system for mating

• Outstanding click feeling when mating

• Space saving

• Vertical and horizontal mounting

Specifications –––––––––––––––––––

• Current rating: 0.5A AC, DC

• Voltage rating: 50V AC, DC

• Temperature range:

25˚C to

85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/50m

Ω

max.

After environmental testing/100m

Ω

max.

• Insulation resistance: 50M

Ω

min.

• Withstanding voltage: 100V AC/minute

• Applicable PC board thickness: 1.6mm max.

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

This connector is small 0.6mm pitch

double-row board-to-board connector for

high density mounting.

This plug is available in top and side entry

type to choose either connection type

depending on its usage.

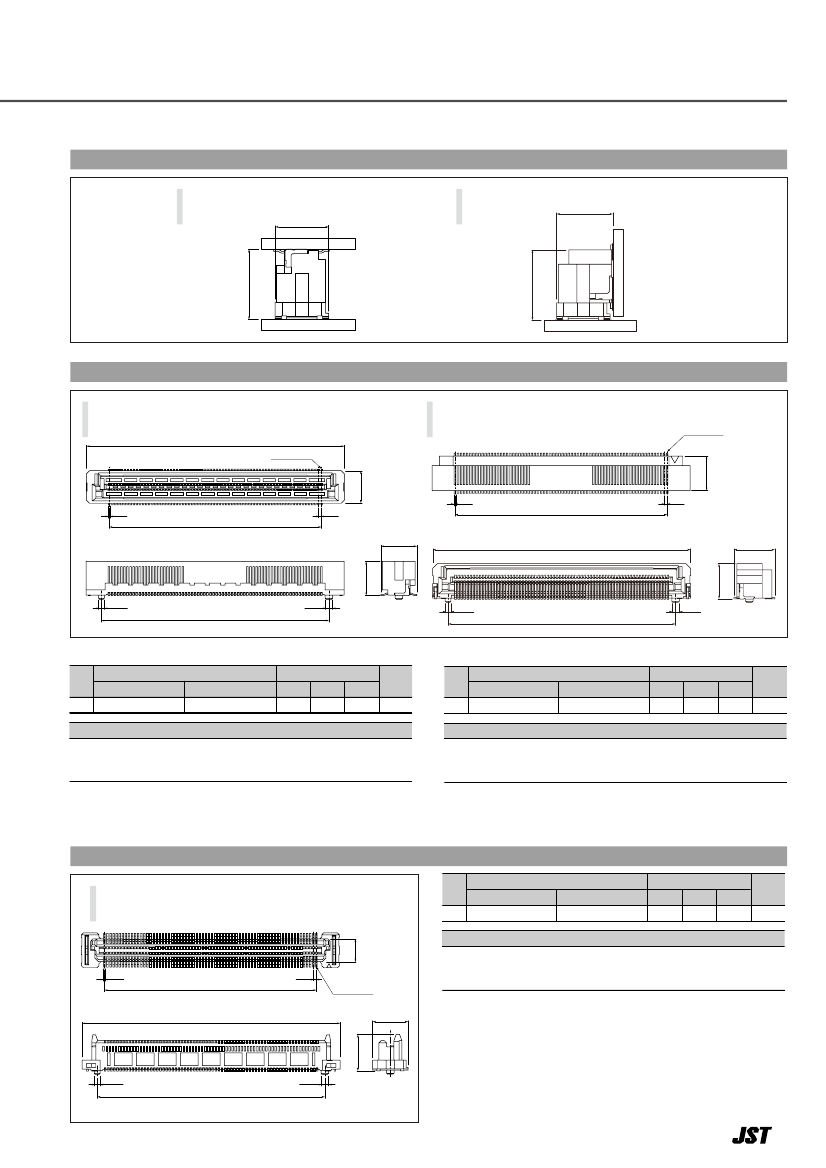

PC board layout (viewed from component side)

Plug

Top entry type

Circuit

No.1

1.2

±0.05

Connector outline

3.4

±0.05

φ1.3

＋0.05

φ1.7

＋0.05

Side entry type

Connector outline

7.6

±0.05

φ1.3

＋0.05

Circuit No.1

φ1.7

＋0.05

1.3

±0.05

3.3

±0.03

±0.05

1.2

±0.05

3.4

±0.05

1.5

±0.05

1.5

±0.05

1.5

±0.05

±0.03

±0.05

1.55

±0.02

1.5

±0.05

Receptacle

Top entry type

1.2

±0.05

Connector outline

5.7

±0.05

3.2

±0.05

φ1.3

＋0.05

φ1.7

＋0.05

7.2

Circuit No.1

1.2

±0.05

Plug

Circuits

140

Receptacle

Side entry type

41.4

Top entry type

44.5

Top entry type

41.4

0.4

±0.02

±0.05

±0.03

±0.05

0.6

±0.02

1.55

±0.02

±0.05

47.9

44.5

47.9

44.5

47.3

41.4

Note: 1. Tolerances are non-cumulative:

0.03mm for all centers.

2. The dimensions above should serve as a guideline. Contact JST for details.

0.6

±0.03

1.55

±0.02

0.4

±0.02

PC board edge

0.6

±0.02

±0.05

0.4

±0.02

0.6

±0.02

2.2

±0.05

1.15

1.3

±0.05

8.4

±0.05
