69153-024ELF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 69153-024ELF

69153-024ELF: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Latch, Black Insulator; CategoryThe connector The connector; File Size97KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

69153-024ELF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	69153-024ELF	-	-	View	Buy Now

69153-024ELF Overview

Board Connector, 26 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Latch, Black Insulator

69153-024ELF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	5 weeks 3 days
body width	0.327 inch
subject depth	0.7 inch
body length	1.406 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	2 mΩ
Contact style	SQ PIN-SKT
Durability	1000 Cycles
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYPHELYNENE
Manufacturer's serial number	69153
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
polarization key	POLARIZED HOUSING
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	26
Maximum wire diameter	22 AWG
Minimum wire diameter	36 AWG
Base Number Matches	1

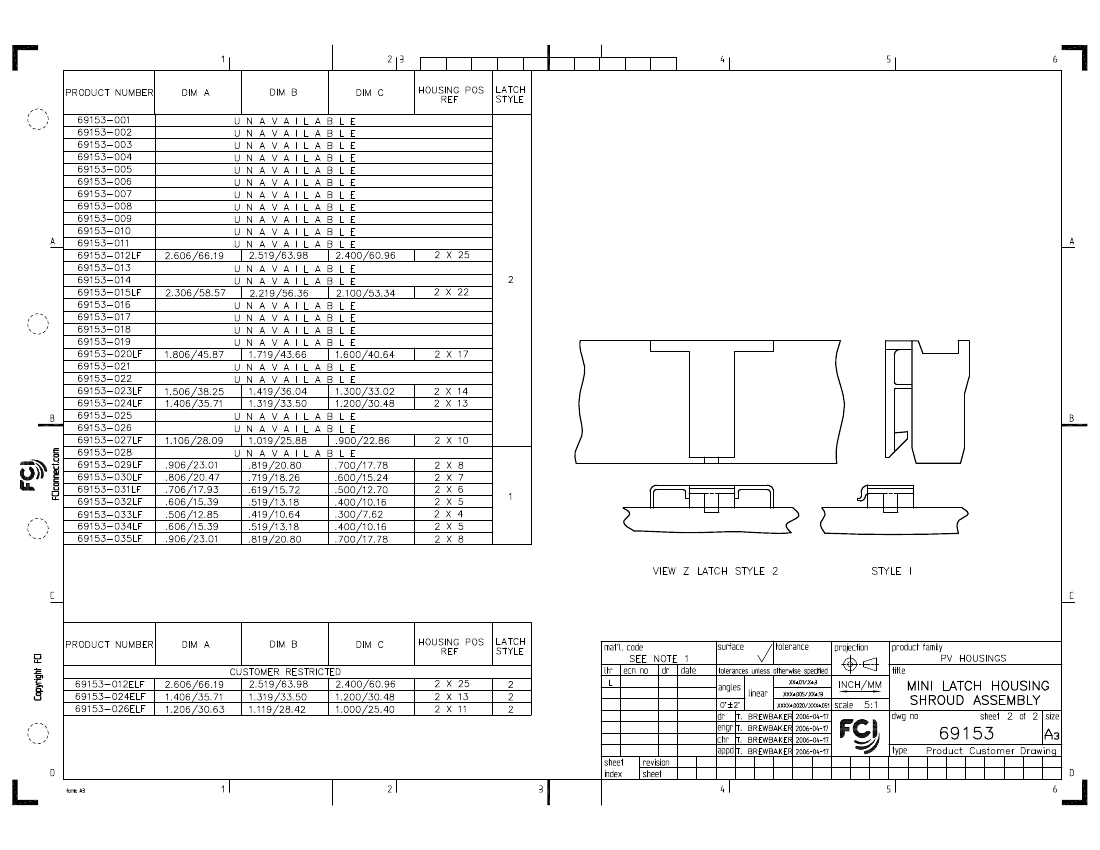

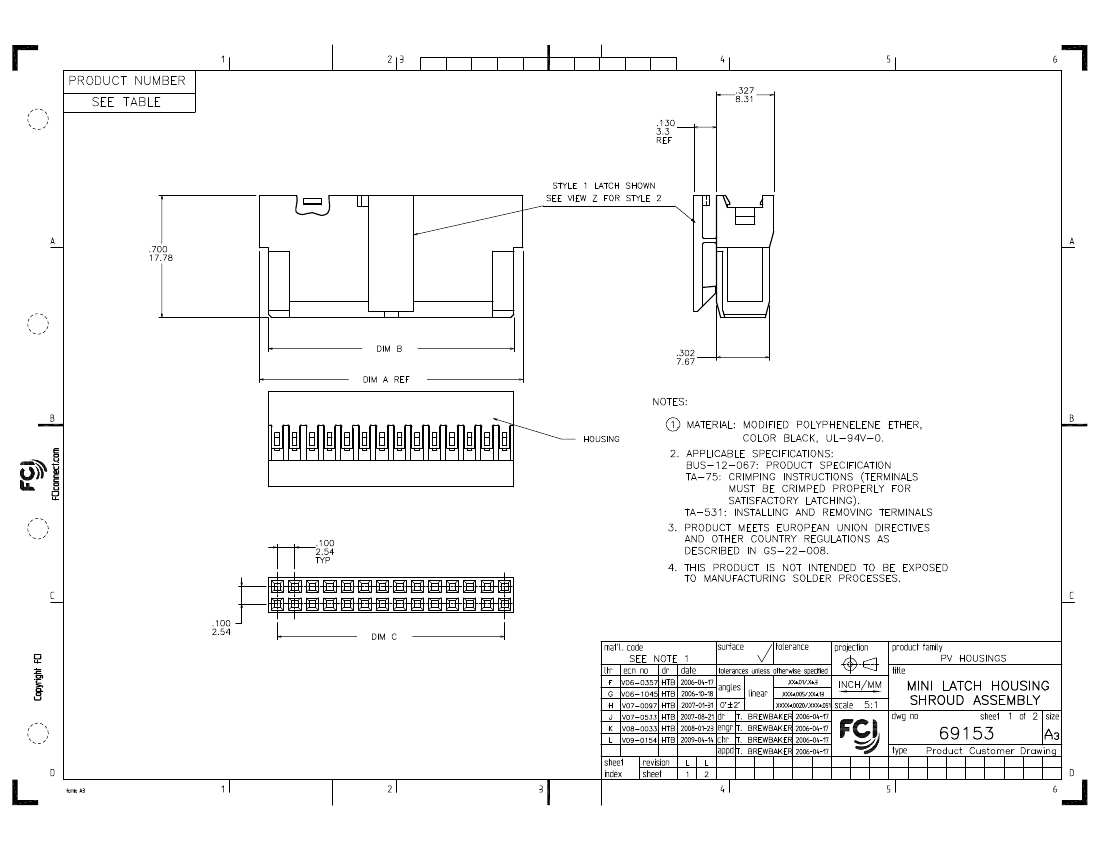

Preview

Download Datasheet

View All

PDM: Rev:L

STATUS:

Released

Printed: May 06, 2009

69153-024ELF Related Products

	69153-024ELF	FCS40US12	69153-035LF	69153-031LF	69153-032LF	69153-024LF	69153-027LF	69153-029LF	69153-030LF	69153-034LF
Description	Board Connector, 26 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Latch, Black Insulator	AC-DC Power Supplies	Board Connector, 16 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Latch, Black Insulator, LEAD FREE	Board Connector, 12 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Latch, Black Insulator, LEAD FREE	Board Connector, 10 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Latch, Black Insulator, LEAD FREE	Board Connector, 26 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Latch, Black Insulator, LEAD FREE	Board Connector, 20 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Latch, Black Insulator, LEAD FREE	Board Connector, 16 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Latch, Black Insulator, LEAD FREE	Board Connector, 14 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Latch, Black Insulator, LEAD FREE	Board Connector, 10 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Latch, Black Insulator, LEAD FREE
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Amphenol	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	-	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	-	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	5 weeks 3 days	-	5 weeks 3 days	5 weeks 3 days	6 weeks	6 weeks	6 weeks	6 weeks	6 weeks	5 weeks 3 days
body width	0.327 inch	-	0.327 inch	0.327 inch	0.327 inch	0.327 inch	0.327 inch	0.327 inch	0.327 inch	0.327 inch
subject depth	0.7 inch	-	0.7 inch	0.7 inch	0.7 inch	0.7 inch	0.7 inch	0.7 inch	0.7 inch	0.7 inch
body length	1.406 inch	-	0.906 inch	0.706 inch	0.606 inch	1.406 inch	1.106 inch	0.906 inch	0.806 inch	0.606 inch
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	-	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact point gender	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
contact mode	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	2 mΩ	-	2 mΩ	2 mΩ	2 mΩ	2 mΩ	2 mΩ	2 mΩ	2 mΩ	2 mΩ
Contact style	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Durability	1000 Cycles	-	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles
Insulation resistance	5000000000 Ω	-	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	-	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	POLYPHELYNENE	-	POLYPHELYNENE	POLYPHELYNENE	POLYPHELYNENE	POLYPHELYNENE	POLYPHELYNENE	POLYPHELYNENE	POLYPHELYNENE	POLYPHELYNENE
Plug contact pitch	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LATCH	-	LATCH	LATCH	LATCH	LATCH	LATCH	LATCH	LATCH	LATCH
Installation option 2	LOCKING	-	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	-	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	-	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	-	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
polarization key	POLARIZED HOUSING	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL, CSA	-	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	-	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	26	-	16	12	10	26	20	16	14	10
Maximum wire diameter	22 AWG	-	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG
Minimum wire diameter	36 AWG	-	36 AWG	36 AWG	36 AWG	36 AWG	36 AWG	36 AWG	36 AWG	36 AWG
Base Number Matches	1	-	1	1	1	1	1	1	1	1
package instruction	-	-	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Other features	-	-	LATCHED, SHROUDED	LATCHED, SHROUDED	LATCHED, SHROUDED	LATCHED, SHROUDED	LATCHED, SHROUDED	LATCHED, SHROUDED	LATCHED, SHROUDED	LATCHED, SHROUDED
Contact to complete cooperation	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact material	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	-	-	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	-	-	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	-	-	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	-	-	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	-	-	NO	NO	NO	NO	NO	NO	NO	NO
Options	-	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
UL Flammability Code	-	-	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Is it lead-free?	-	-	-	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	-
