31086105 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 31086105

31086105: DescriptionRIACON Direct Solder Terminal Block, Type 086, 5 POLE 3.81MM; CategoryThe connector terminals; File Size115KB，1 Pages; ManufacturerMETZ CONNECT; Websitehttp://www.metz-connect.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

31086105 Overview

RIACON Direct Solder Terminal Block, Type 086, 5 POLE 3.81MM

31086105 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	METZ CONNECT
Reach Compliance Code	compliant
Other features	STANDARD: UL 94V-0, PA66
Fastening method	SCREW
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	5
Rated voltage	250 V
safety certificate	CUL; SEV; UL
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Conductor cross section	1.5 mm2
Wire gauge	16 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

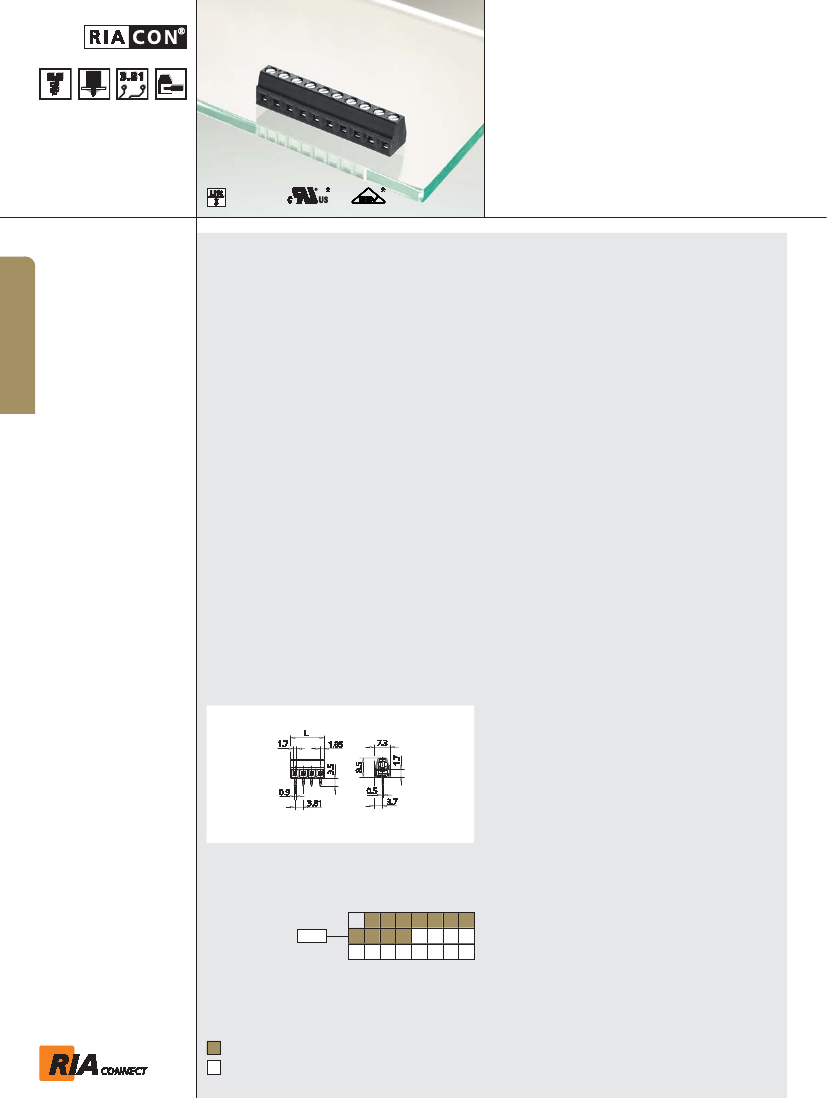

Type 086

Screw type terminal block, solderable, centerline

3.81 mm / 0.150 inches, horizontal wire entry, lift

system

Technical Data

0.12 - 1.5 mm² 130 V / 2,5 kV / 12 A

Insulation co-ordination according to EN 60664-1

Clearance and creepage distances min. 2 mm

Insulating material class

CTI 600

Overvoltage category

III

Pollution degree

Rated voltage

160

400

Rated test voltage

2.5

Protection category according

to IEC 529

IP00

Tightening torque UL

1.3 lb-in max.

Min. insul. strip length

5 mm

Solder pin dimension

0.5 x 0.9 mm

Recommended pc board hole

dia.

Ø 1.1 mm

Solder pin length

3.5 mm

Pole size

2 - 24

Color

black

Dimensions in mm

1 mm = 0.0394 in.

L = (pole size - 1) x centerline + 3.81 mm / 0.150 inches

Part numbers (P/N)

Type 086

centerline 3.81 mm / 0.150 inches

(information: page 56)

Complete the part number by

adding the pole size.

02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24

P/N

310861

* approval pending

Standard pole sizes

Available on demand. Minimum order quantity 5000

pieces per item.

31086105 Related Products

	31086105	31086104	PR065A	31086112	31086108	31086102	31086106	31086110
Description	RIACON Direct Solder Terminal Block, Type 086, 5 POLE 3.81MM	RIACON Direct Solder Terminal Block, Type 086, 4 POLE 3.81MM	SIDACTOR	RIACON Direct Solder Terminal Block, Type 086, 12 POLE 3.81MM	RIACON Direct Solder Terminal Block, Type 086, 8 POLE 3.81MM	RIACON Direct Solder Terminal Block, Type 086, 2 POLE 3.81MM	RIACON Direct Solder Terminal Block, Type 086, 6 POLE 3.81MM	RIACON Direct Solder Terminal Block, Type 086, 10 POLE 3.81MM
Is it Rohs certified?	conform to	conform to	-	conform to	conform to	conform to	conform to	conform to
Maker	METZ CONNECT	METZ CONNECT	-	METZ CONNECT	METZ CONNECT	METZ CONNECT	METZ CONNECT	METZ CONNECT
Reach Compliance Code	compliant	compliant	-	compliant	compliant	compliant	compliant	compliant
Other features	STANDARD: UL 94V-0, PA66	STANDARD: UL 94V-0, PA66	-	STANDARD: UL 94V-0, PA66	STANDARD: UL 94V-0, PA66	STANDARD: UL 94V-0, PA66	STANDARD: UL 94V-0, PA66	STANDARD: UL 94V-0, PA66
Fastening method	SCREW	SCREW	-	SCREW	SCREW	SCREW	SCREW	SCREW
Installation type	BOARD	BOARD	-	BOARD	BOARD	BOARD	BOARD	BOARD
Number of layers	1	1	-	1	1	1	1	1
Rows	1	1	-	1	1	1	1	1
Number of channels	5	4	-	12	8	2	6	10
Rated voltage	250 V	250 V	-	250 V	250 V	250 V	250 V	250 V
safety certificate	CUL; SEV; UL	CUL; SEV; UL	-	CUL; SEV; UL	CUL; SEV; UL	CUL; SEV; UL	CUL; SEV; UL	CUL; SEV; UL
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	-	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK
Conductor cross section	1.5 mm2	1.5 mm2	-	1.5 mm2	1.5 mm2	1.5 mm2	1.5 mm2	1.5 mm2
Wire gauge	16 AWG	16 AWG	-	16 AWG	16 AWG	16 AWG	16 AWG	16 AWG
Base Number Matches	1	1	-	1	1	1	1	1
