CM1610H32768DZCT datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> CM1610H32768DZCT

CM1610H32768DZCT: DescriptionParallel - Fundamental Quartz Crystal, 0.032768MHz Nom, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size601KB，2 Pages; ManufacturerCITIZEN; Websitehttp://ce.citizen.co.jp/e/index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

CM1610H32768DZCT Overview

Parallel - Fundamental Quartz Crystal, 0.032768MHz Nom, SMD, 2 PIN

CM1610H32768DZCT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CITIZEN
package instruction	SMD, 2 PIN
Reach Compliance Code	unknown
Ageing	3 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	0.5 µW
frequency stability	0.0129%
frequency tolerance	20 ppm
load capacitance	9 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	0.032768 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	1.6mm x 1mm x 0.5mm
Series resistance	90000 Ω
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

TUNING FORK CRYSTAL UNIT

RoHS compliant / Pb free

(SMD

・

Ceramic Package)

CM1610H

■

FEATURES

5,000pcs/reel

●

Ultra-lightweight microminiature TF Crystal units

SMD type

● Frequency range : 32.768kHz

● External dimensions (mm)

　 L : 1.6 x W : 1.0 x H : 0.5

● Applications

　　Small communication devices

■

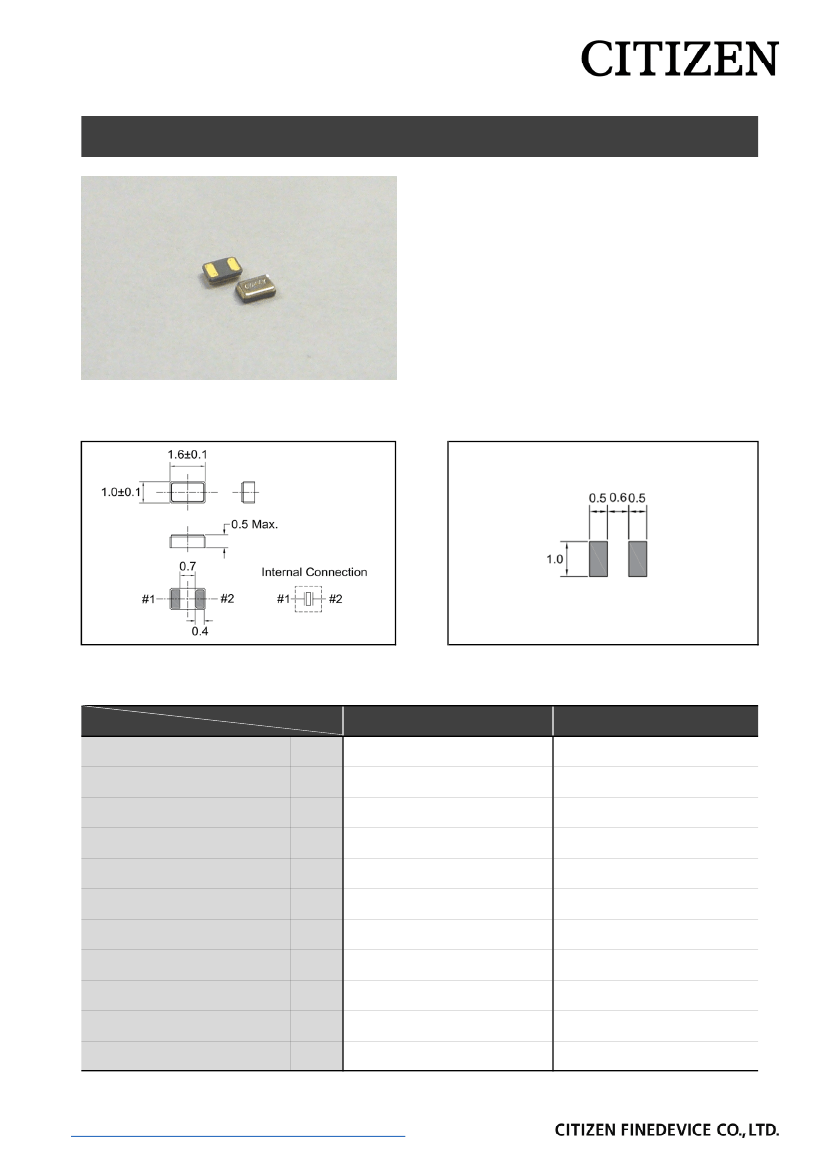

DIMENSION

[mm]

■

SOLDER PAD LAYOUT

[mm]

Do not design any patterns under CM1610H.

■

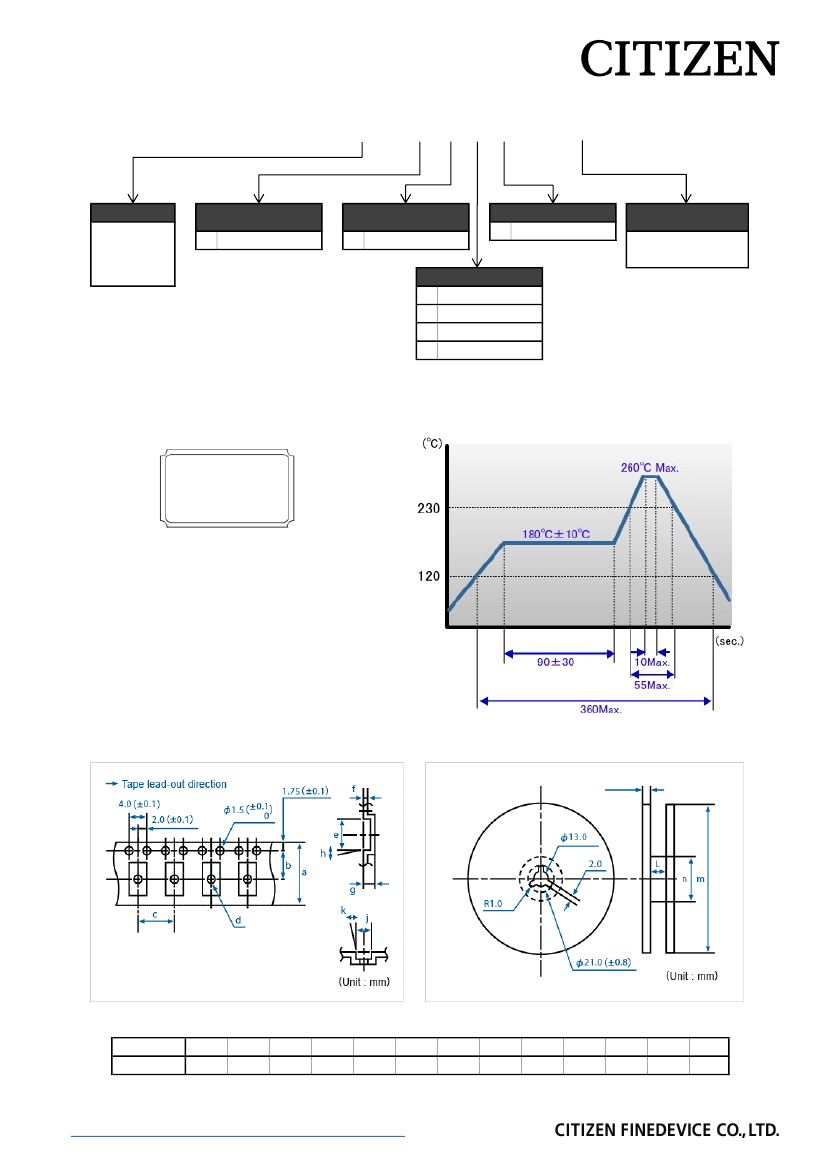

STANDARD SPECIFICATIONS

Item

Model

CM1610H

32.768kHz

±20ppm

6.0pF / 7.0pF / 9.0pF / 12.5pF

-40℃ ½ +85℃

-55℃ ½ +125℃

25℃±5℃

(-0.036±10%) ppm/℃

90KΩ Max.

0.5μW Max.

±3ppm Max.

1.2pF Typ.

Conditions

Nominal Frequency

Frequency Tolerance

Load capacitance

Operating Temperature Range

Storage Temperature Range

Turnover Temperature

Temperature Coefficient

Motional (series) resistance

Level of drive

Aging (first year)

Shunt capacitance

Δf/f

OPR

STR

Δf/f

at 25℃

Please specify your requirement

at 25℃

25℃±3℃

http://cfd.citizen.co.jp/english/prod-tech/product/cvo_top.html

CM1610H32768DZCT Related Products

	CM1610H32768DZCT	CM1610H32768DZYT	CM1610H32768DZBT	CM1610H32768DZFT
Description	Parallel - Fundamental Quartz Crystal, 0.032768MHz Nom, SMD, 2 PIN	Parallel - Fundamental Quartz Crystal, 0.032768MHz Nom, SMD, 2 PIN	Parallel - Fundamental Quartz Crystal, 0.032768MHz Nom, SMD, 2 PIN	Parallel - Fundamental Quartz Crystal, 0.032768MHz Nom, SMD, 2 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	CITIZEN	CITIZEN	CITIZEN	CITIZEN
package instruction	SMD, 2 PIN	SMD, 2 PIN	SMD, 2 PIN	SMD, 2 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown
Ageing	3 PPM/FIRST YEAR	3 PPM/FIRST YEAR	3 PPM/FIRST YEAR	3 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	0.5 µW	0.5 µW	0.5 µW	0.5 µW
frequency stability	0.0129%	0.0129%	0.0129%	0.0129%
frequency tolerance	20 ppm	20 ppm	20 ppm	20 ppm
load capacitance	9 pF	7 pF	6 pF	12.5 pF
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	0.032768 MHz	0.032768 MHz	0.032768 MHz	0.032768 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
physical size	1.6mm x 1mm x 0.5mm	1.6mm x 1mm x 0.5mm	1.6mm x 1mm x 0.5mm	1.6mm x 1mm x 0.5mm
Series resistance	90000 Ω	90000 Ω	90000 Ω	90000 Ω
surface mount	YES	YES	YES	YES
Base Number Matches	1	1	1	1
