SMT inductors
SIMID series, SIMID 2220-T
Series/Type:
Date:
B82442T
July 2016
a~í~=pÜÉÉí
EPCOS AG 2016. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS’ prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
SMT inductors, SIMID series
SIMID 2220-T
Size 2220 (EIA) or 5650 (IEC)
Rated inductance 1 ... 10000 µH
Rated current 46 ... 3510 mA
Construction
■
Ferrite drum core
■
Laser-welded winding
■
Flame-retardant molding
B82442T
Features
■
■
■
■
■
Temperature range up to +150 °C
Very high current handling capability
High L values
Qualified to AEC-Q200
Suitable for lead-free reflow soldering
as referenced in JEDEC J-STD 020D
■
RoHS-compatible
■
Halogen-free
Applications
■
■
■
■
■
■
Filtering of supply voltages, coupling, decoupling
DC/DC converters/switch-mode power supplies
Automotive electronics
Telecommunications
Consumer electronics
Industrial electronics
Terminals
■
Base material CuSn6
■
Layer composition Ni, Sn (lead-free)
■
Electro-plated
Marking
■
Marking on component:
Manufacturer, letter "T", L value (in H),
tolerance of L value (coded), date of manufacture (YWWD)
■
Minimum data on reel:
Manufacturer, ordering code, L value, quantity, date of packing
Delivery mode and packing unit
■
12-mm blister tape, wound on 330-mm
■
Packing unit: 1500 pcs./reel
reel
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
07/16
SMT inductors, SIMID series
SIMID 2220-T

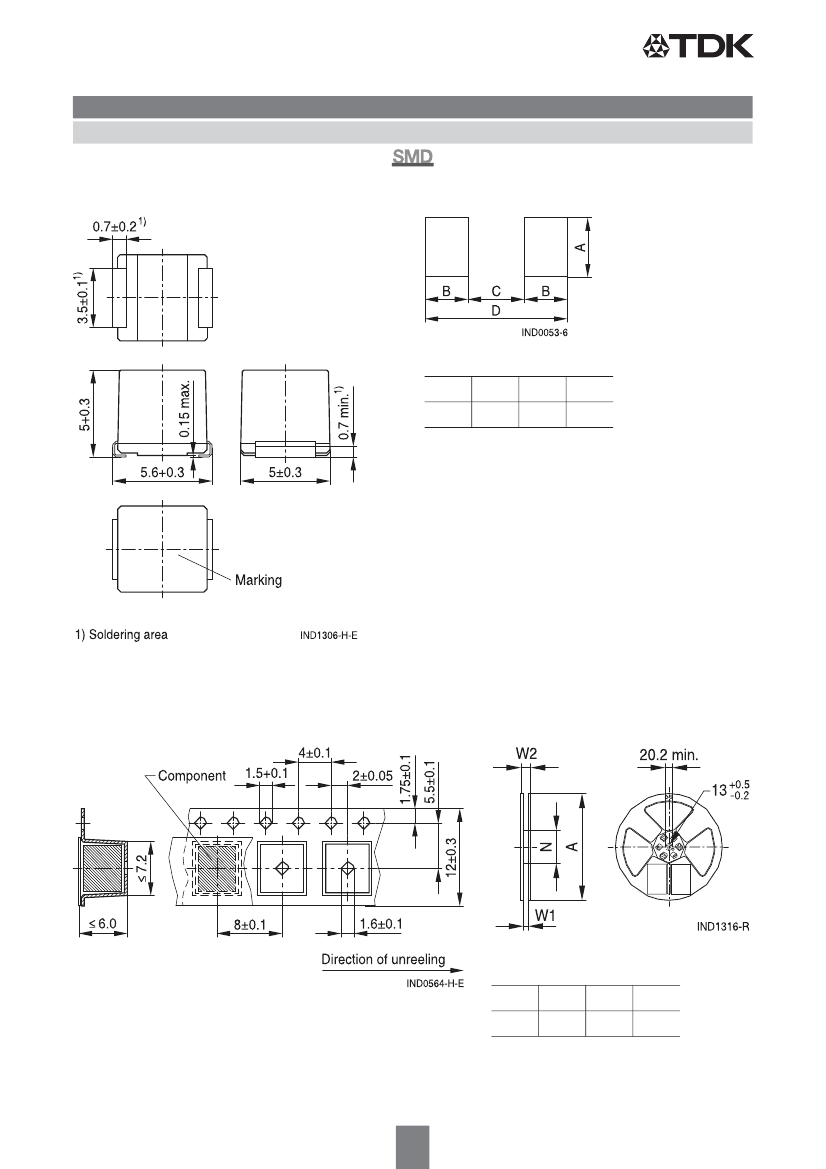

Dimensional drawing and layout recommendation
B82442T
A
4.5
B
2.0
C
4.0
D
8.0
Dimensions in mm
Taping and packing
Blister tape
Reel
W1
Dimensions in mm
12.4
W2
18.4
A
330
N
100
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
07/16
SMT inductors, SIMID series
SIMID 2220-T
Technical data and measuring conditions
Rated inductance L
R
Q factor Q
min
Rated temperature T
R
Rated current I
R
Saturation current I
sat
Self-resonance frequency f
res,min
DC resistance R
max
Solderability (lead-free)
B82442T
Measured with impedance analyzer Agilent 4294A
at frequency f
L
, 0.5 V, +23 5 °C
Measured with impedance analyzer Agilent 4294A
at frequency f
Q
, 0.5 V, +23 5 °C
+85 C
Maximum permissible DC with temperature increase
of 65 K at rated temperature
Maximum permissible DC with inductance decrease
L/L
0
10%, at +23 5 °C
Measured with impedance analyzer Agilent 4294A / E4991A
at
+23 5 °C
Measured at +23 5 °C
Sn95.5Ag3.8Cu0.7: +(245 5) °C, (5 0.3) s
Wetting of soldering area 90%
(based on IEC 60068-2-58)
+260 C, 40 s (as referenced in JEDEC J-STD 020D)
55/150/56 (to IEC 60068-1)
Mounted: –55 °C … +150 °C
Packaged: –25 °C … +40 °C, 75% RH
Approx. 0.4 g
Resistance to soldering heat
Climatic category
Storage conditions
Weight
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
07/16
SMT inductors, SIMID series
SIMID 2220-T
Characteristics and ordering codes
L
R
H
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
10%
^
B82442T
Tolerance
K
Q
min
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
20
20
20
20
20
20
20
20
20
20
20
20
30
f
L
; f
Q
MHz
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.796
0.252
I
R
mA
3510
3090
3020
2770
2710
2530
2460
2170
1950
1850
1680
1510
1420
1380
1260
1090
1040
880
840
720
700
600
570
540
510
440
410
350
330
290
280
260
240
220
210
170
150
I
sat
mA
7330
6030
5480
4890
4820
3980
4010
3310
3450
2780
2770
2330
2280
2160
1870
1780
1590
1400
1380
1190
1120
1010
900
830
760
670
610
550
500
450
430
390
350
320
300
270
246
R
max
0.025
0.028
0.033
0.035
0.038
0.042
0.046
0.057
0.073
0.078
0.106
0.118
0.132
0.141
0.190
0.210
0.238
0.307
0.360
0.456
0.519
0.679
0.781
0.832
0.99
1.29
1.50
1.96
2.21
2.95
3.29
3.70
4.73
5.21
5.87
7.86
9.5
f
res,min
MHz
111
75
60
55
46
36
36
33
30
28
23
21
19
19
16
14
13
11
11
9.0
8.0
7.5
7.0
6.6
6.1
5.3
4.6
4.2
3.9
3.5
3.4
3.0
2.6
2.4
2.3
2.2
1.8
Ordering code
B82442T1102K050
B82442T1122K050
B82442T1152K050
B82442T1182K050
B82442T1222K050
B82442T1272K050
B82442T1332K050
B82442T1472K050
B82442T1472K050
B82442T1562K050
B82442T1682K050
B82442T1822K050
B82442T1103K050
B82442T1123K050
B82442T1153K050
B82442T1183K050
B82442T1223K050
B82442T1273K050
B82442T1333K050
B82442T1393K050
B82442T1473K050
B82442T1563K050
B82442T1683K050
B82442T1823K050
B82442T1104K050
B82442T1124K050
B82442T1154K050
B82442T1184K050
B82442T1224K050
B82442T1274K050
B82442T1334K050
B82442T1394K050
B82442T1474K050
B82442T1564K050
B82442T1684K050
B82442T1824K050
B82442T1105K050
Please read
Cautions and warnings
and
Important notes
at the end of this document.
5
07/16
