SAW Components
Low Loss Filter
Data Sheet
B4050
1575.42 MHz
Ceramic package
DCC6D
Features
q
q
q
q
q
Low loss RF filter for GPS receivers
Usable passband 2,4 MHz
Low insertion attenuation, low amplitude ripple
Unbalanced to balanced operation
Ceramic package for
Surface Mounted
Technology
(SMT)
Terminals
q
Ni, gold-plated
Dimensions in mm, approx. weight 0,037 g
Pin configuration
2
4, 6
1, 3, 5
1, 3, 5
Input, unbalanced
Output, balanced
To be grounded
Case ground
Type
B4050
Ordering code
B39162-B4050-U510
Marking and Package
according to
C61157-A7-A68
Packing
according to
F61074-V8089-Z000
Electrostatic Sensitive Device
(ESD)
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
Source power
T
T
stg
V
DC
P
S
-40 / +85
-40 / +85
0
0
˚C
˚C
V
dBm
source impedance 50
Ω
2
Jul 4, 2000
SAW Components
Low Loss Filter
Data Sheet
B4050
1575.42 MHz
Characteristics
Operating temperature range:
Terminating source impedance:
Terminating load impedance:
T
= -40 ˚C to +85 ˚C
Z
S
= 50
Ω
Z
L
= 50
Ω
(balanced)
min.
Center frequency
typ.
1575,42
max.
—
MHz
f
C
—
Maximum insertion attenuation
α
max
1574,22 ...1576,62 MHz
Amplitude ripple
(p-p)
∆α
1574,22 ...1576,62 MHz

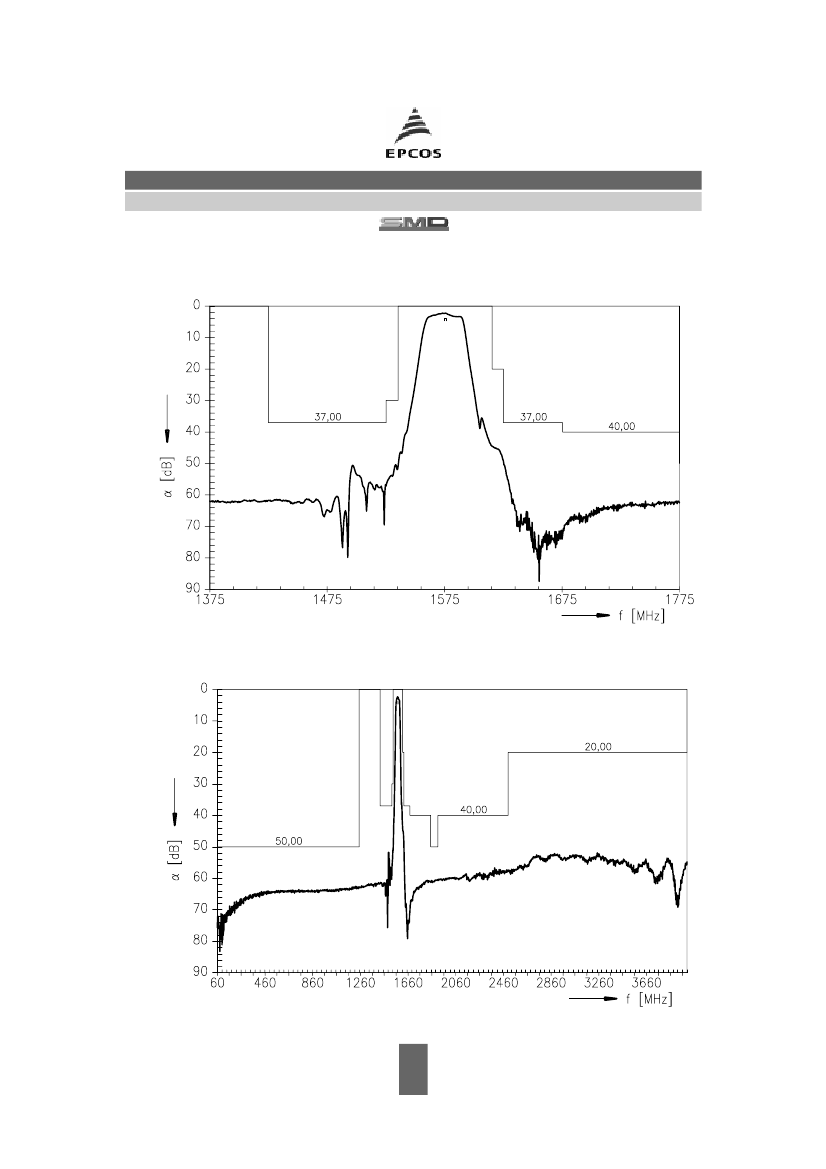

Attenuation
0,00
1425,00
1525,00
1615,42
1625,00
1675,00
1850,00
1910,00
2500,00
...1250,00
...1525,00
...1535,42
...1625,00
...1675,00
...1850,00
...1910,00
...2500,00
...4000,00
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
α
—
3,3
3,8
dB
—
0,3
1,0
dB
50,0
37,0
30,0
20,0
37,0
40,0
50,0
40,0
20,0
60,0
50,0
44,0
44,0
46,0
60,0
60,0
55,0
52,0
—
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
dB
3
Jul 4, 2000
SAW Components
Low Loss Filter
Data Sheet
B4050
1575.42 MHz
