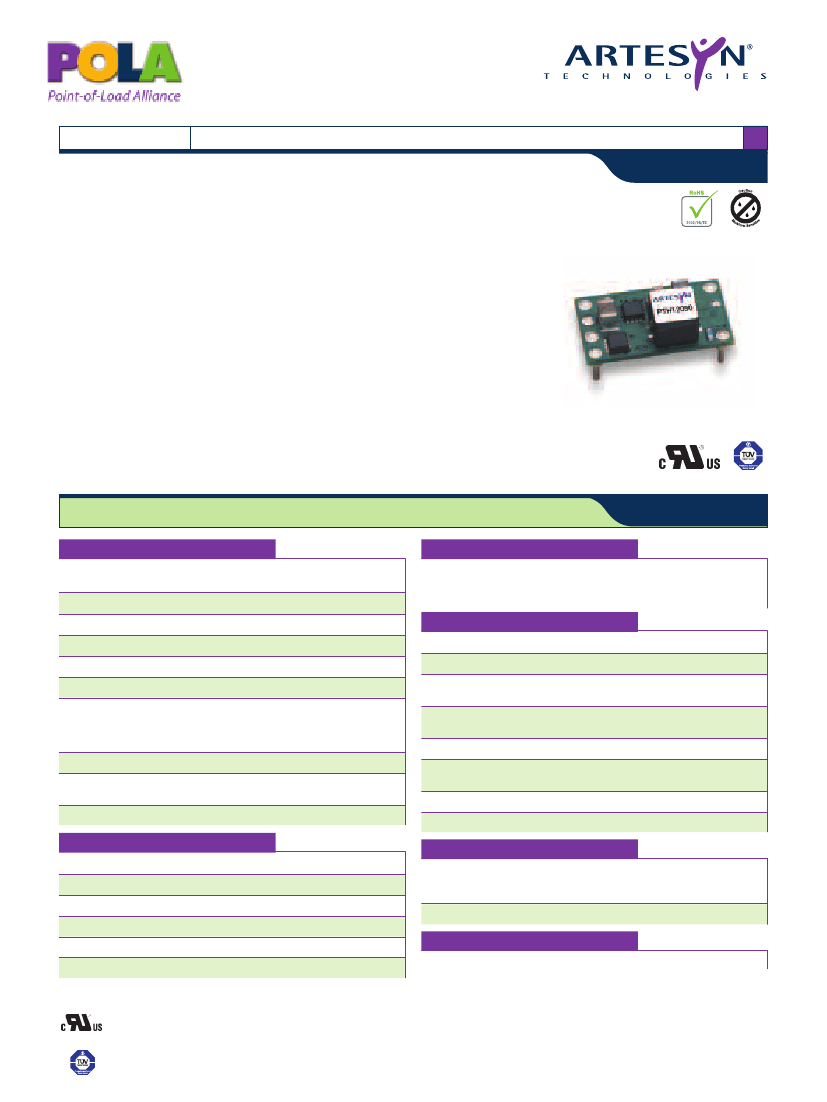

12 Vin single output
DC-DC CONVERTERS
POLA Non-isolated
NEW Product
1
•
6 A output current
•
12 V input voltage
•
Wide-output voltage adjust
•
1.2 Vdc to 5.5 Vdc for suffix ‘W’ and
0.8 Vdc to 1.8 Vdc for suffix ‘L’
•
Auto-track™ sequencing*
•
Pre-bias start-up
•
Efficiencies up to 93%
•
Output ON/OFF inhibit
•
Output voltage sense
•
Point-of-Load-Alliance (POLA) compatible
•
Available RoHS compliant
The PTH12050 is a next generation series of non-isolated dc-dc converters offering
some of the most advanced POL features available in the industry. The primary new
feature provides for sequencing between multiple modules, a function, which is
becoming a necessity for powering advanced silicon including DSP’s, FPGA’s and
ASIC’s requiring controlled power-up and power-down Other industry leading features
include efficiencies up to 93%. The PTH12050 has an input voltage of
10.8 Vdc to
13.2 Vdc
and offers a wide output voltage range adjustable with external trim resistor,
allowing for maximum design flexibility and a pathway for future upgrades.
All specifications are typical at nominal input, full load at 25 °C unless otherwise stated
C
in
= 100 µF, C
out
= 0 µF
OUTPUT SPECIFICATIONS
Voltage adjustability
(See Note 4)
Setpoint accuracy
Line regulation
Load regulation
Total regulation
Minimum load
Ripple and noise
20 MHz bandwidth
Suffix ‘W’
Suffix ‘L’
V
o
V
o
V
o
V
o
≤ 2.5 V
> 2.5 V
≤ 1.0 V
> 1.0 V
Suffix ‘W’
Suffix ‘L’
1.2-5.5 Vdc
0.8-1.8 Vdc
±2.0% Vo
±5 mV typ.
±5 mV typ.
±3.0% Vo
0A
25 mV pk-pk
1% V
o
20 mV pk-pk
30 mV pk-pk
±0.5% Vo
EMC CHARACTERISTICS
Electrostatic discharge
Conducted immunity
Radiated immunity
EN61000-4-2, IEC801-2
EN61000-4-6
EN61000-4-3
PTH12050
2 YEAR WARRANTY
SPECIFICATIONS
GENERAL SPECIFICATIONS
Efficiency
Insulation voltage
Switching frequency
Over V
in
and I
o
ranges
Approvals and
standards
Material flammability
Dimensions
Weight
MTBF
Telcordia SR-332
(L x W x H)
Suffix ‘W’
Suffix ‘L’
See Tables on Page 2
Non-isolated
320 kHz typ.
250 kHz typ.
EN60950
UL/cUL60950
UL94V-0
22.10 x 12.57 x 8.50 mm
0.870 x 0.495 x 0.335 in
2.9 g (0.10 oz)
7,092,000 hours
Temperature co-efficient -40 ºC to +85 ºC
Transient response
(See Note 5)
Margin adjustment
INPUT SPECIFICATIONS
Input voltage range
Input current
Remote ON/OFF
Start-up time
Undervoltage lockout
Track input voltage
Pin 8 (See Note 6)
(See Note 3)
No load
(See Note 1)
70 µs recovery time
Overshoot/undershoot 100 mV
±5.0% Vo
ENVIRONMENTAL SPECIFICATIONS
10.8-13.2 Vdc
10 mA typ.
Positive logic
1 V/ms
8.8-0.4 V typ.
±0.3 Vin
PROTECTION
Short-circuit
Auto reset
14 A typ.
Thermal performance
(See Note 2)
MSL (‘Z’ suffix only)
Operating ambient,
temperature
Non-operating
JEDEC J-STD-020C
-40 ºC to +85 ºC
-40 ºC to +125 ºC
Level 3
International Safety Standard Approvals
UL/cUL CAN/CSA-C22.2 No. 60950-1-03/UL 60950-1,
File No. E174104
TÜV Product Service (EN60950) Certificate No. B 04 06 38572 044
CB Report and Certificate to IEC60950, Certificate No.
US/8292/UL
*Auto-track™ is a trade mark of Texas Instruments
File Name: pth12050.pdf Rev: 6 Nov 2006
12 Vin single output
DC-DC CONVERTERS
POLA Non-isolated2
NEW Product
2
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
OUTPUT
POWER
(MAX.)
33 W
33 W
OUTPUT
CURRENT
(MIN.)
0A
0A
OUTPUT
CURRENT
(MAX.)
6A
6A
PTH12050
INPUT
VOLTAGE
10.8-13.2 Vdc
10.8-13.2 Vdc
OUTPUT
VOLTAGE
0.8-1.8 Vdc
1.2-5.5 Vdc
EFFICIENCY
(MAX.)
88%
93%
REGULATION
LINE
±5 mV
±5 mV
LOAD
±5 mV
±5 mV
MODEL
NUMBER
(9,10)
PTH12050L
PTH12050W
Part Number System with Options
PTH12050WAST
Packaging Options
No Suffix = Trays
T = Tape and Reel
(7)
Mounting Option
(9)
D = Horizontal Through-Hole (Matte Sn)
H = Horizontal Through-Hole (Sn/Pb)
S = Surface-Mount (63/37 Sn/Pb
pin solder material)
Z = Surface-Mount (96.5/3.0/0.5 Sn/Ag/Cu
pin solder material)
Pin Option
A = Through-Hole Std. Pin Length (0.140”)
A = Surface-Mount Tin/Lead Solder Ball
Output Voltage Code
W = Wide. L = Low Voltage
Product Family
Point of Load Alliance
Compatible
Input Voltage
12 = 12 V
Output Current
05 = 6 A
Mechanical Package
Always 0
Output Voltage Adjustment of the PTH12050 Series
The ultra-wide output voltage trim range offers major advantages to users who
select the PTH12050. It is no longer necessary to purchase a variety of modules
in order to cover different output voltages. The output voltage can be trimmed
in a range of 1.2 V to 5.5 V for suffix ‘-W’ and 0.8 V to 1.8 V for suffix ‘-L’.
When the PTH12050 converter leaves the factory the output has been adjusted
to the default voltage of 1.2 V for the PTH12050W and 0.8V for the
PTH12050L.
Notes
Remote ON/OFF. Positive Logic
Pin 3 open; or V > Vin - 0.5 V
ON:
OFF:
Pin 3 GND; or V < 0.8 V (min - 0.2 V).
2
See Figure 1 for safe operating curve.
3
A 100 µF electrolytic input capacitor is required for proper operation. The
capacitor must be rated for a minimum of 750 mA rms of ripple current.
C2 = 10 µF ceramic capacitor, required for output voltages of 3.3 V and
higher.
4
An external output capacitor is not required for basic operation. Adding
100 µF of distributed capacitance at the load will improve the transient
response.
5
1 A/µs load step, 50 to 100% Iomax, Cout = 100 µF.
6
If utilized Vout will track applied voltage by ±0.3 V (up to Vo set point).
7
Tape and reel packaging only available on the surface-mount versions.
8
The pk-pk output ripple voltage is measured with an external 10µF
ceramic capacitor. See Figure 3 Standard application schematic.
9
To order Pb-free (RoHS compatible) surface-mount parts replace the
mounting option ‘S’ with ‘Z’, e.g. PTH12050WAZ. To order Pb-free
(RoHS compatible) through-hole parts replace the mounting option ‘H’
with ‘D’, e.g. PTH12050WAD.
10
NOTICE: Some models do not support all options. Please contact your
local Artesyn representative or use the on-line model number search tool at
http://www.artesyn.com/powergroup/products.htm to find a suitable
alternative.
1
EFFICIENCY TABLE - PTH12050W (I
O
= 5 A)
OUTPUT VOLTAGE
Vo = 5.0 V
Vo = 3.3 V
Vo = 2.5 V
Vo = 2.0 V
Vo = 1.8 V
Vo = 1.5 V
Vo = 1.2 V
EFFICIENCY
93%
91%
89%
88%
87%
86%
84%
EFFICIENCY TABLE - PTH12050L (I
O
= 5 A)
OUTPUT VOLTAGE
Vo = 1.8 V
Vo = 1.5 V
Vo = 1.2 V
Vo = 1.0 V
Vo = 0.8 V
EFFICIENCY
88%
87%
85%
83%
81%
File Name: pth12050.pdf Rev: 6 Nov 2006
12 Vin single output
DC-DC CONVERTERS
POLA Non-isolated
NEW Product
3
For the most current data and application support visit www.artesyn.com/powergroup/products.htm

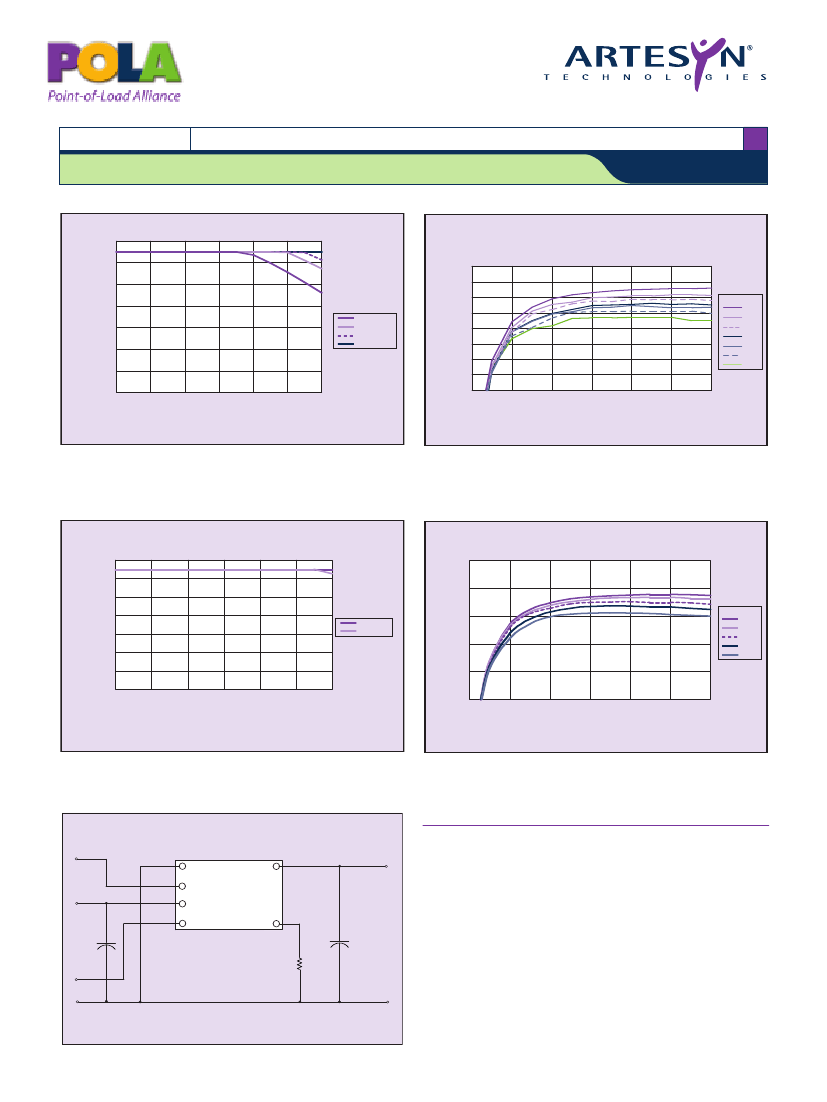

PTH12050W Characteristic Data
PTH12050
90
80
TEMPERATURE (ºC)
100
70
EFFICIENCY (%)
95
90
85
80
75
70
65
60
60
50
40
30
20
0
1
2
3
4
5
6
OUTPUT CURRENT (A)
Nat Conv
100 LFM
200 LFM
400 LFM
Vout
5.0V
3.3V
2.5V
2.0V
1.8V
1.5V
1.2V
0
1
2
3
4
5
6
OUTPUT CURRENT (A)
Figure 2 - Efficiency vs Load Current for PTH12050W
Vin = 12 V (See Note B)
Figure 1 - Safe Operating Area for PTH12050W
Vin = 12 V, Output Voltage = 3.3 V (See Note A)
PTH12050L Characteristic Data
90
TEMPERATURE (ºC)
100
90
EFFICIENCY (%)
80
70
60
50
40
30
20
0
1
2
3
4
5
6
Nat Conv
100 LFM
80
70
60
50
0
1
2
3
4
5
6
Vout
1.8V
1.5V
1.2V
1.0V
0.8V
OUTPUT CURRENT (A)
OUTPUT CURRENT (A)
Figure 4 - Efficiency vs Load Current for PTH12050L
Vin = 12 V (See Note B)
Figure 3 - Safe Operating Area for PTH12050L
Vin = 12 V, Output Voltage ≤ 1.8 V (See Note A)
Notes
Auto-track
1
2
Vin
3
4
C
in
100µF
(Required)
+
6
Vout
A
SOA curves represent the conditions at which internal components are
within the Artesyn derating guidelines.
B
Characteristic data has been developed from actual products tested at
25 °C. This data is considered typical data for the converter.
PTH12050
(Top View)
5
+
C
out
100µF
(Optional)
Inhibit
R
SET
0.5%, 0.1W
(Required)
GND
GND
Figure 5 -
Standard Application - All Models
File Name: pth12050.pdf Rev: 6 Nov 2006
12 Vin single output
DC-DC CONVERTERS
POLA Non-isolated
NEW Product
4
For the most current data and application support visit www.artesyn.com/powergroup/products.htm

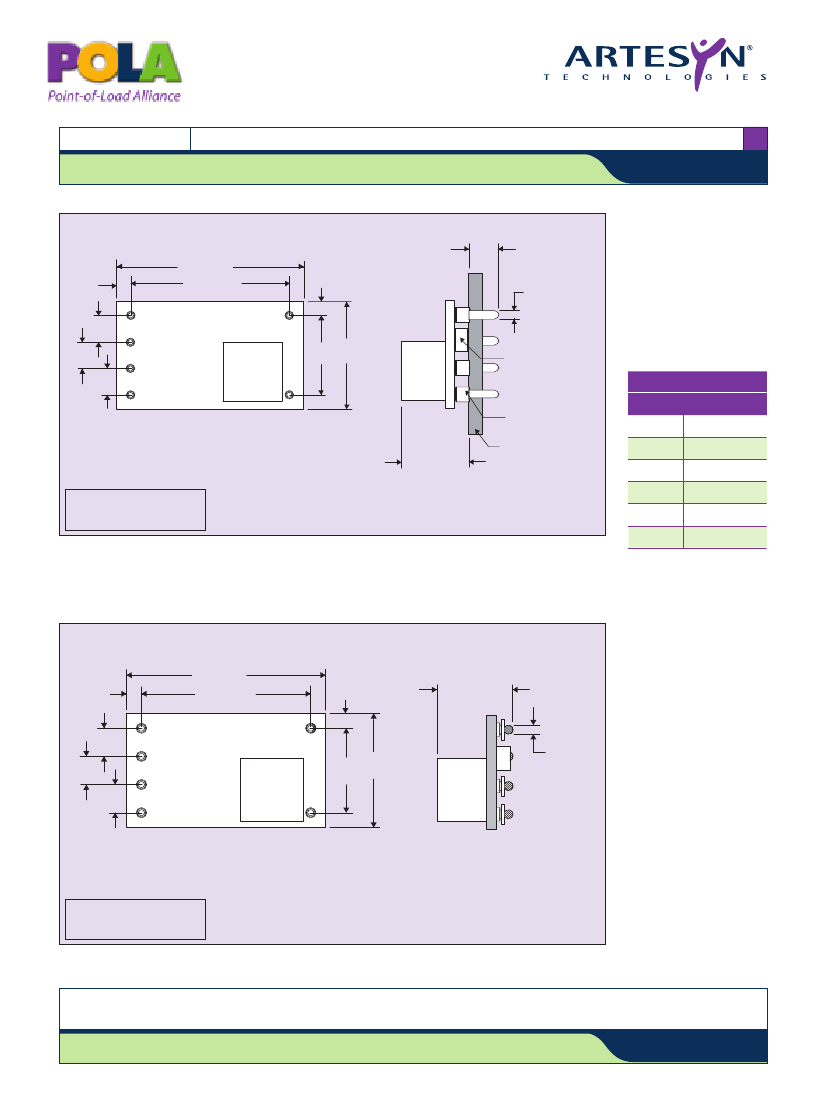

PTH12050
0.140
(3.55)
0.870 (22.10)
0.060
(1.52)
1
0.125
(3.18)
0.125
(3.18)
0.125
(3.18)
2
3
5
4
0.070 (1.78)
(Standoff Shoulder)
0.750 (19.06)
6
0.060
(1.52)
0.040 (1.02)
6 Places
0.375 0.495
(12.57)
(9.52)
Lowest Component
0.010 min. (0.25)
Bottom side Clearance
PIN CONNECTIONS
PIN NO.
FUNCTION
Ground
Track
Vin
Inhibit*
Vo adjust
Vout
TOP VIEW
0.335 (8.50)
MAX.
Dimensions in Inches (mm)
Tolerances (unless otherwise specified)
2 Places
±0.030
(±0.76)
3 Places
±0.010
(±0.25)
SIDE VIEW
1
2
3
4
5
6
Host Board
Figure 6 - Plated Through-Hole Mechanical Drawing
*Denotes negative logic:
Open = Normal operation
Ground = Function active
0.870 (22.10)
0.060
(1.52)
1
2
3
5
4
SIDE VIEW
0.750 (19.06)
0.060
(1.52)
6
0.495
0.375 (12.57)
(9.52)
Solder Ball
0.040 (1.02)
6 Places
0.335 (8.50)
max.*
*After solder reflow
on customer board
0.125
(3.18)
0.125
(3.18)
0.125
(3.18)
TOP VIEW
Dimensions in Inches (mm)
Tolerances (unless otherwise specified)
2 Places ±0.030 (±0.76)
3 Places ±0.010 (±0.25)
Figure 7 - Surface-Mount Mechanical Drawing
