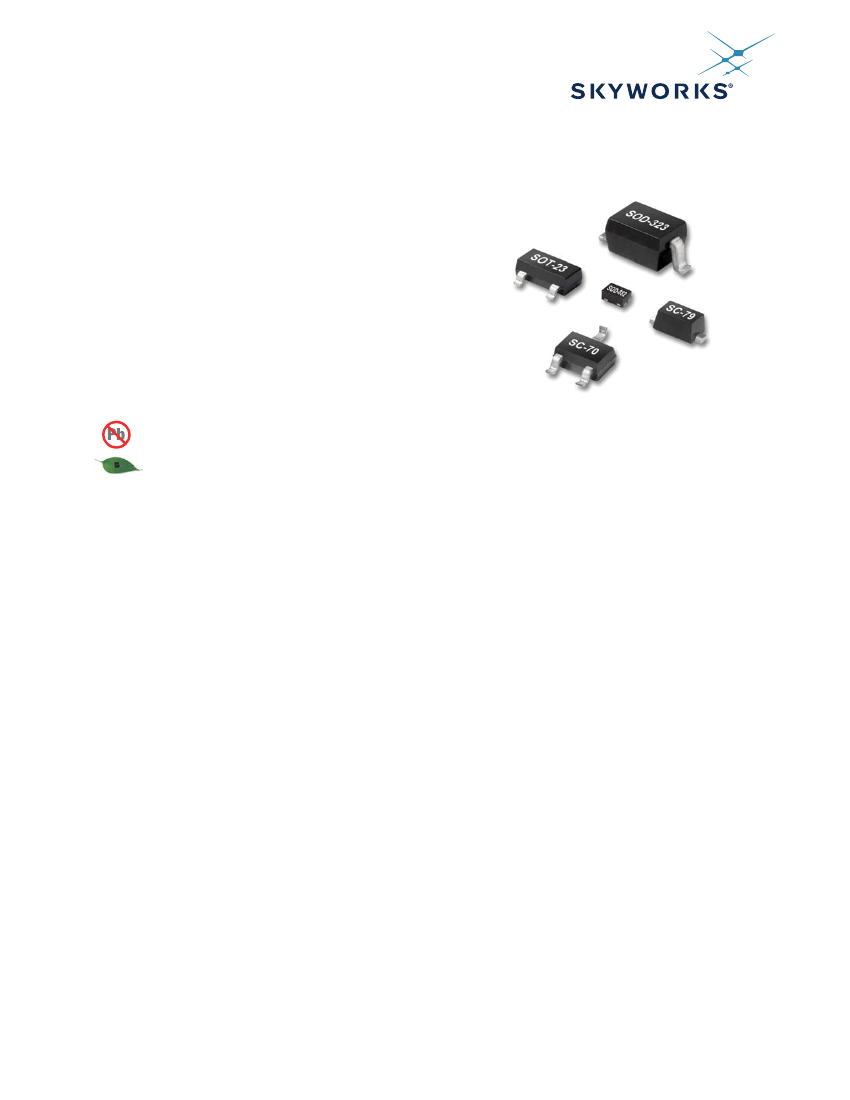

DATA SHEET • SMV123x VARACTORS
Electrical and Mechanical Specifications
The absolute maximum ratings of the SMV123x varactors are
provided in Table 2. Electrical specifications are provided in
Table 3. Typical capacitance values are listed in Table 4. Typical
performance characteristics of the SMV123x varactors are
illustrated in Figures 1 through 4.
The SPICE model for the SMV123x varactors is shown in Figure 5
and the associated model parameters are provided in Table 5.
Package dimensions are shown in Figures 6 to 14 (even
numbers), and tape and reel dimensions are provided in Figures 7
to 15 (odd numbers).
Package and Handling Information
Instructions on the shipping container label regarding exposure to
moisture after the container seal is broken must be followed.
Otherwise, problems related to moisture absorption may occur
when the part is subjected to high temperature during solder
assembly.
The SMV123x series of varactors are rated to Moisture Sensitivity
Level 1 (MSL1) at 260
C.
They can be used for lead or lead-free
soldering. For additional information, refer to the Skyworks
Application Note,
Solder Reflow Information,
document number
200164.
Care must be taken when attaching this product, whether it is
done manually or in a production solder reflow environment.
Production quantities of this product are shipped in a standard
tape and reel format.
Table 2. SMV123x Absolute Maximum Ratings
1
Parameter
Reverse voltage
Forward current
Power dissipation
Operating temperature
Storage temperature
Electrostatic discharge:
Human Body Model (HBM), Class 1B
at or below their nominal value. Exceeding any of the limits listed here may result in permanent damage to the device.
Symbol
V
R
I
F
P
DIS
T
OP
T
STG
ESD
Minimum
Maximum
15
20
250
Units
V
mA
mW
C
C
–55
–55
+125
+150
1000
V
1 Exposure to maximum rating conditions for extended periods may reduce device reliability. There is no damage to device with only one parameter set at the limit and all other parameters set
ESD HANDLING:
Although this device is designed to be as robust as possible, electrostatic discharge (ESD) can damage this device.
This device must be protected at all times from ESD when handling or transporting. Static charges may easily produce
potentials of several kilovolts on the human body or equipment, which can discharge without detection.
Industry-standard ESD handling precautions should be used at all times.
