1772-NM-63-20-FC-PM datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Optical fiber> 1772-NM-63-20-FC-PM

1772-NM-63-20-FC-PM: DescriptionTransmitter, FC/APC Connector, Butterfly, Panel Mount; CategoryWireless rf/communication Optical fiber; File Size339KB，6 Pages; ManufacturerEMCORE; Websitehttp://www.emcore.com/

Download Datasheet Parametric View All

1772-NM-63-20-FC-PM Overview

Transmitter, FC/APC Connector, Butterfly, Panel Mount

1772-NM-63-20-FC-PM Parametric

Parameter Name	Attribute value
package instruction	BUTTERFLY
Reach Compliance Code	unknown
body width	12.7 mm
body height	10.28 mm
Body length or diameter	20.82 mm
Built-in features	TEC
Communication standards	GR-468, OC-48
Connection Type	FC/APC CONNECTOR
Emitter/Detector Type	LASER DIODE
Fiber optic equipment types	TRANSMITTER
Fiber type	PMF, SMF
Installation features	PANEL MOUNT
Maximum operating temperature	65 °C
Minimum operating temperature	-20 °C
Nominal operating wavelength	1561 nm
Nominal optical power output	63 mW
Package form	BUTTERFLY
minimum return loss	40 dB
Maximum supply voltage	2.5 V
surface mount	NO
Transmission type	DIGITAL
Base Number Matches	1

Preview

Download Datasheet

View All

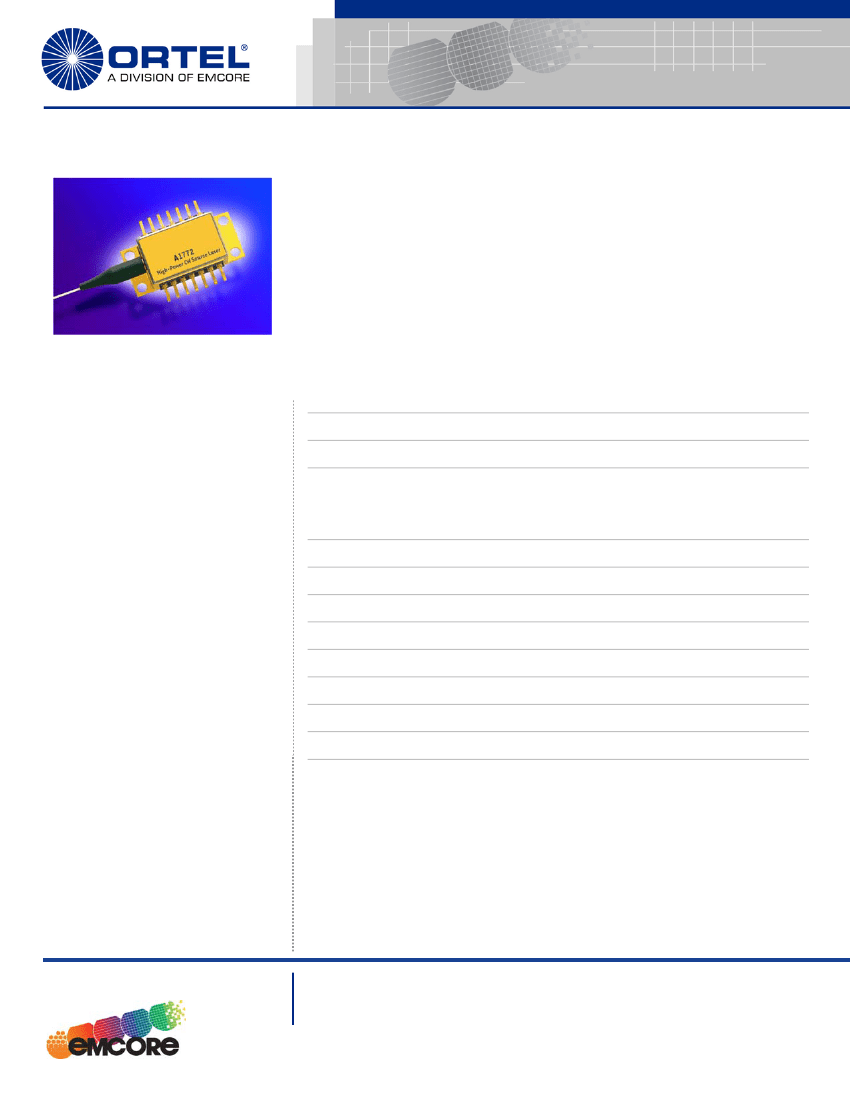

PRELIMINARY DATA SHEET

DECEMBER 30, 2005

Model 1772 DWDM High Power CW Source

Laser

The 1772 laser component is characterized for use as a CW optical

source in CATV and DWDM networks. The 1772 is dc-coupled with a

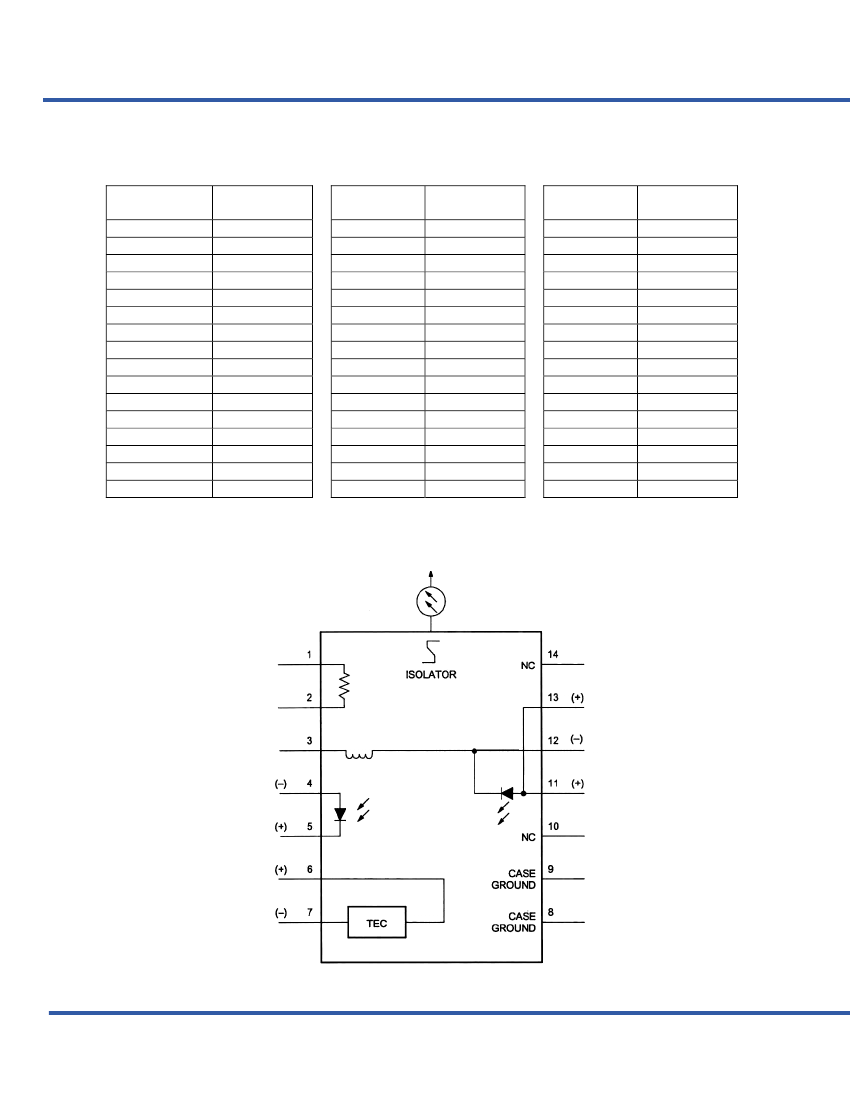

built-in TEC, thermistor, and monitor photodiode. The device is mounted

in a 14-pin, OC-48 pinout compatible butterfly package with the optical

isolator mounted on the TEC. The 1772 incorporates a high efficiency

coupling scheme to deliver 40 mW, 50 mW, and 63 mW of CW optical

power.

Performance Highlights

Applications

DWDM

CATV

Free space optics

Optical Output Power

Parameter

Operating Case Temperature

Wavelength

Threshold Current

Operating Current

RIN

RIN Through 65 km Fiber

SMSR

Polarization Extiction Ratio (PMF pigtail)

Optical Isolation

Optical Return Loss

See page 2 for specific test conditions.

Min

-20

Typ

See Page 4

Max

+65

Units

°C

350

-163

-157

dB/Hz

Features

40, 50, 63 mW optical output

power

OC-48 pinout compatible

Telcordia Technologies

GR-

468 compliant

PM fiber

-20°C to +65°C operating

temperature range

Monitor photodiode

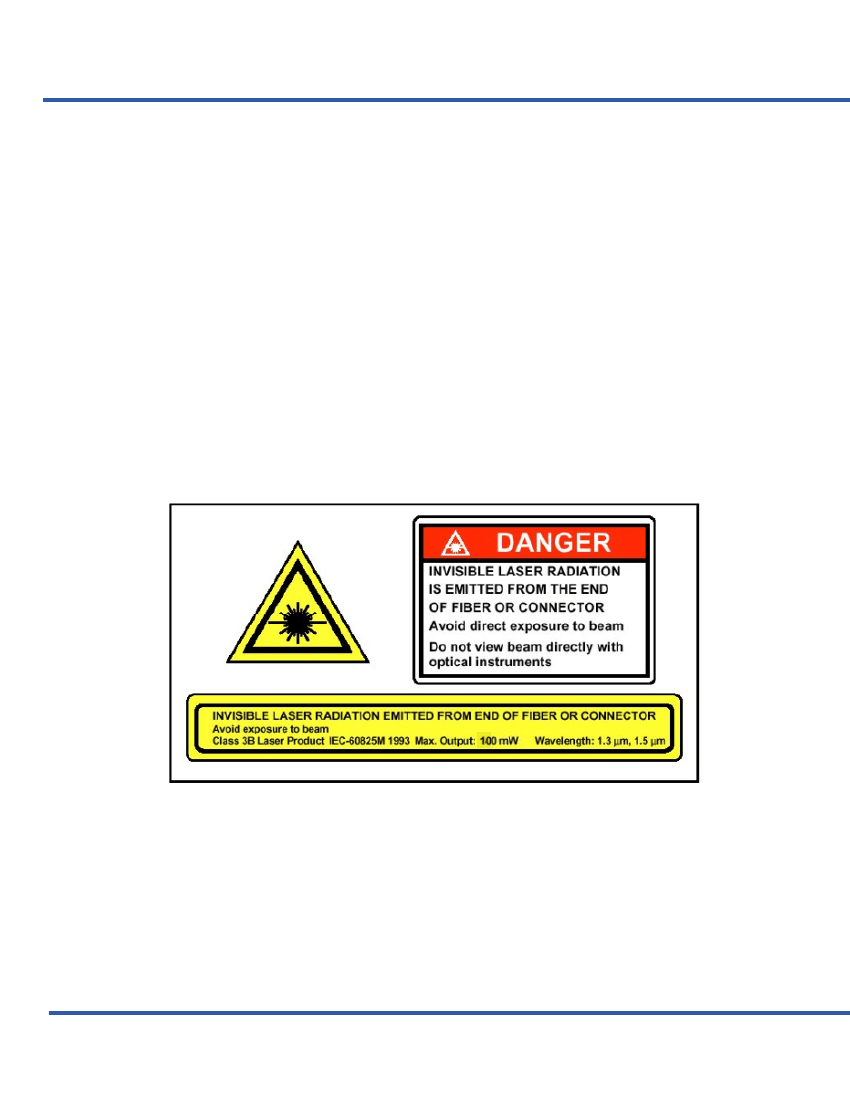

For more information on this and other products:

Contact Sales at Ortel 626-293-3400, or visit www.emcore.com.
