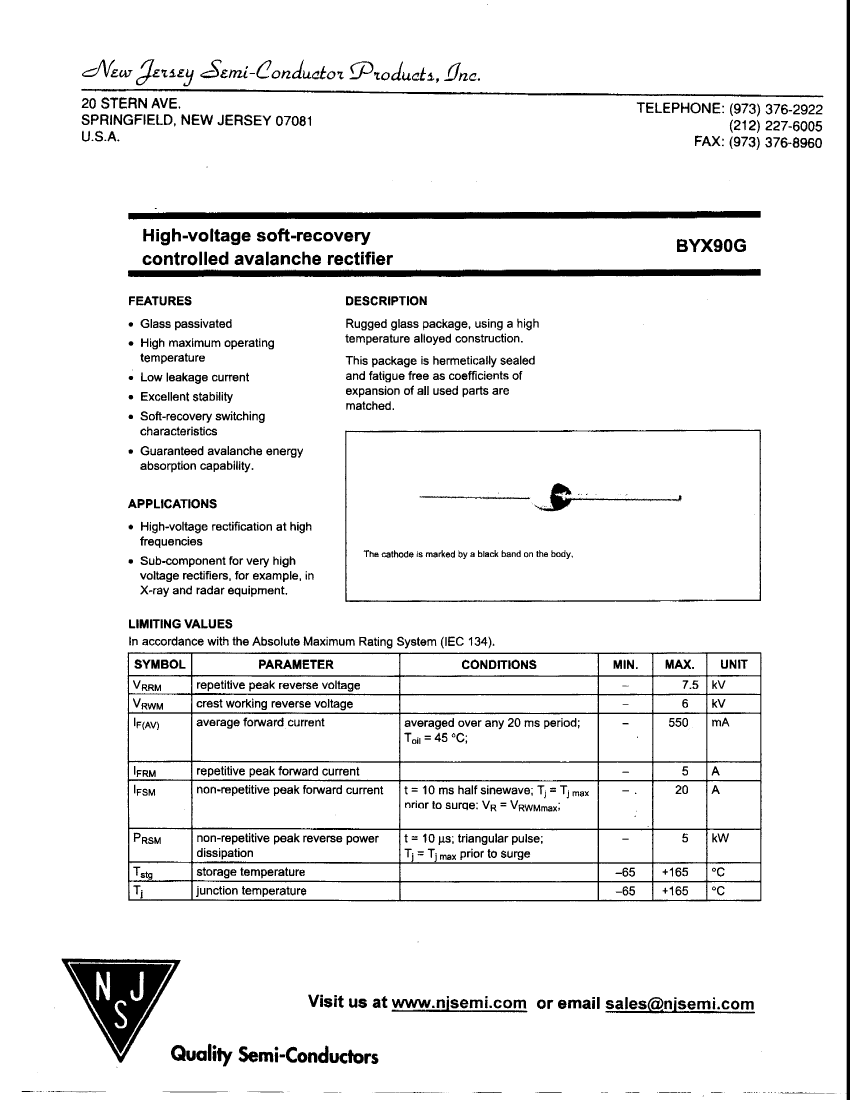

High-voltage soft-recovery
controlled avalanche rectifier
FEATURES
• Glass passivated
• High maximum operating
temperature
• Low leakage current
• Excellent stability
• Soft-recovery switching
characteristics
• Guaranteed avalanche energy
absorption capability.
APPLICATIONS
• High-voltage rectification at high
frequencies
• Sub-component for very high
voltage rectifiers, for example, in
X-ray and radar equipment.
The cathode is marked by a black band on the body.
BYX90G
DESCRIPTION
Rugged glass package, using a high
temperature alloyed construction.
This package is hermetically sealed
and fatigue free as coefficients of
expansion of all used parts are
matched.
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL
VRRM
VRWM
Ip(AV)
PARAMETER
repetitive peak reverse voltage
crest working reverse voltage
average forward current
CONDITIONS
MIN.
-
-
MAX.
7.5
6
550
UNIT
averaged over any 20 ms period;
Ton = 45 °C;
-
kV
kV
mA
IFRM
IFSM
repetitive peak forward current
non-repetitive peak forward current
t = 10 ms half sinewave; Tj = Tj
ma
x
nrior to surqe: V
R
= V
RWMmax
;
t = 10 ps; triangular pulse;
T
j = TJ max prior to surge
5
20
A
A
PRSM
Tstg
non-repetitive peak reverse power
dissipation
storage temperature
junction temperature
-
-65
-65
5
+165
+165
kW
°C
°C
Tj
Visit us at www.njsemi.com or email sales@nisemi.com
Quality Semi-Conductors
High-voltage soft-recovery
controlled avalanche rectifier

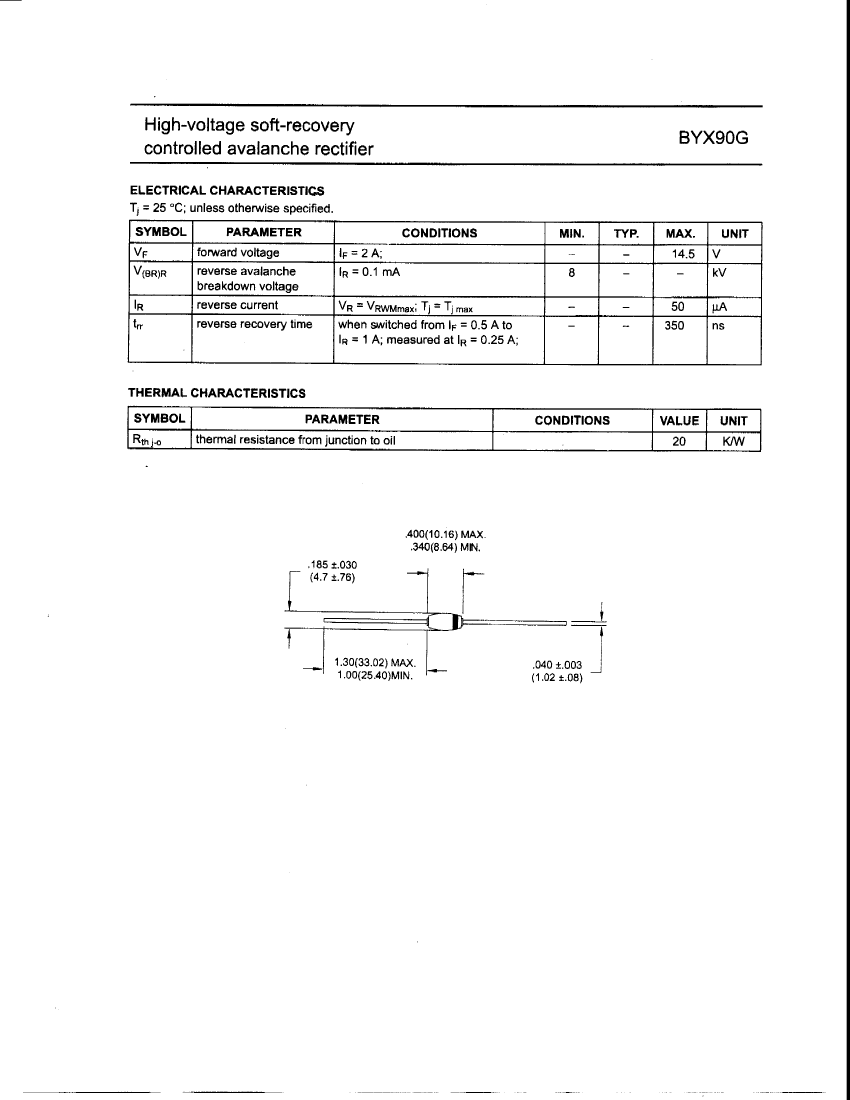

ELECTRICAL CHARACTERISTICS
TJ = 25 °C; unless otherwise specified.
SYMBOL
PARAMETER
forward voltage
reverse avalanche
breakdown voltage
reverse current
reverse recovery time
CONDITIONS
BYX90G
MIN.
-
8
-
-
TYP.
-
-
-
-
MAX.
14.5
-
50
350
UNIT
V
F
V(BR)R
IF = 2 A;
I
R
= 0.1 mA
VR = VRWMmaxi Tj = Tj max
V
kV
HA
ns
IR
trr
when switched from IF = 0.5 A to
IR = 1 A; measured at I
R
= 0.25 A;
THERMAL CHARACTERISTICS
SYMBOL
Rthj-o
PARAMETER
thermal resistance from junction to oil
CONDITIONS
VALUE
UNIT
20
K/W
.400(10.16) MAX.
.340(8.64) MIN.
.1851.030
(4.7 ±76)
1.30(33.02) MAX.
1.00(25.40)MIN.
.040 ±.003
(1.02 ±.08)
