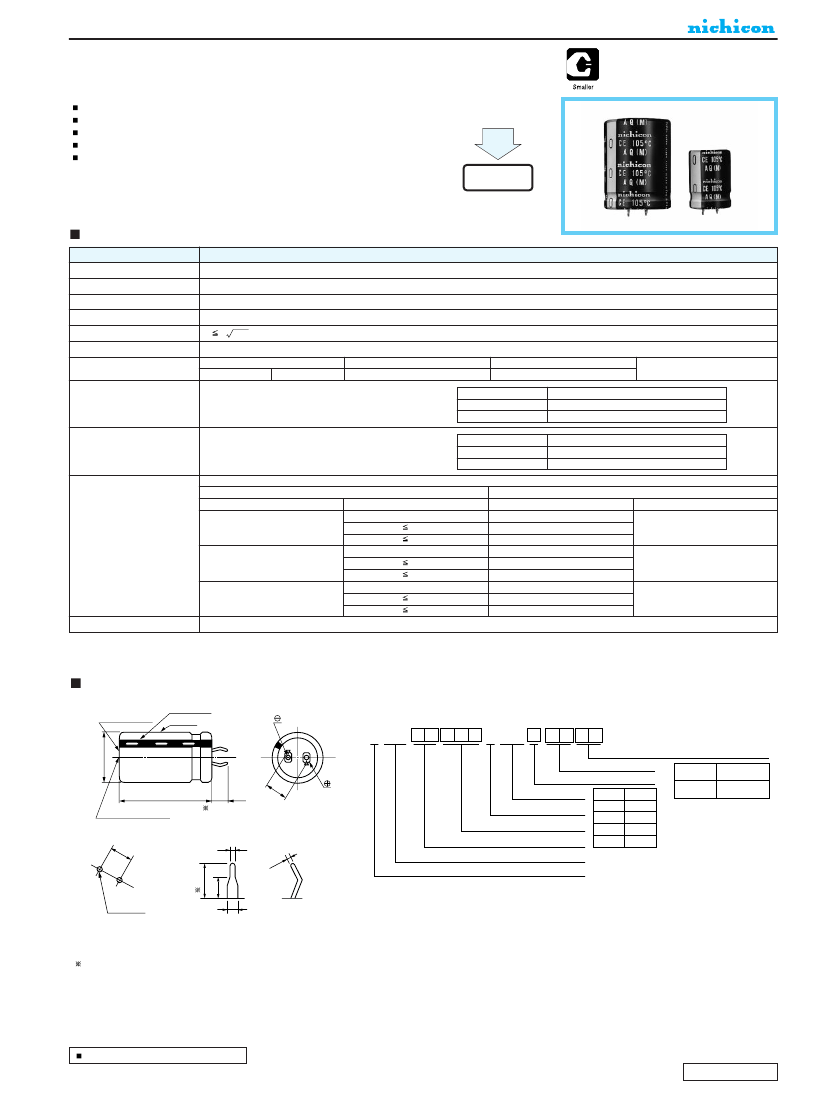

ALUMINUM ELECTROLYTIC CAPACITORS
AQ
Snap-in Terminal Type, Permissible Abnormal Voltage, Smaller-sized,
Wide Temperature Range
(692 type) series
Withstanding 2000 hours application of ripple current of 105
°C
.
Extended voltage range at 200V, 220V and 400V.
Smaller case sizes and higher ripple current than AK series.
Improved safety features for abnormally excessive voltage.
Ideally suited for the equipment used at voltage fluctuating area.
AK
Smaller
AQ
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
tan
δ
Stability at Low Temperature
–25
~ +105°C
Performance Characteristics
200
•
220V
•
400V
33 ~ 1500µF
± 20% at 120Hz, 20°C
I
3 CV
( µA) (After 5 minutes' application of rated voltage) [C : Rated Capacitance (µF),V : Voltage(V)]
200
•
220
8
Capacitance change
tan
δ
Leakage current
0.20MAX. 120Hz, 20°C
Rated voltage (V)
Impedance ratio Z—25°C/Z+20°C
400
8
Measurement frequency : 120Hz
Endurance
After an application of DC voltage (in the range of rated
DC voltage even after over-lapping the specified ripple
current) for 2000 hours at 105°C, capacitors meet
the characteristic requirements listed at right.
After leaving capacitors under no load at 105°C for 1000
hours, they meet the requirements listed at right.
Within ±20% of initial value
200% or less of initial specified value
Initial specified value or less
Within ±15% of initial value
150% or less of initial specified value
Initial specified value or less
Capacitance change
tan
δ
Leakage current
Shelf Life
Safety Performance
The pressure relief vent will operate in normal conditions, with no dangerous conditions such as flames, ignitions or dispersion of pieces of the capacitor and / or case.
Rating
Test conditions
Limited DC current
Test voltage
Voltage (V)
Rated Capacitance (µF)
4A
330
C < 330
200
5A
300VDC and 375VDC
330
C < 470
7A
470
C
< 470
330
C < 330
4A
220
330
C < 470
5A
320VDC and 405VDC
470
C
< 470
7A
330
C < 100
2A
400
100
C < 220
4A
500VDC and 600VDC
220
C
< 470
7A
Printed with white color letter on dark blue sleeve
Marking
Drawing
Bottom plate
(code BP only)
Polarity bar
Sleeve
Type numbering system (Example : 200V 680
µ
F)
1
2
3
4
5
6
7
8
9
10 11 12
13 14
15 16
L A Q 2 D 6 8 1 M HL A 4 0
φD
+1MAX.
Bottom Plate
Case length code
BP
code less
With Bottom
Plate
Without
Bottom Plate
10
L±
2
Case dia. code
Configuration
Capacitance tolerance (±20%)
Rated Capacitance (680µF)
φD
22
25
30
35
Code
Z
A
B
C
Pressure relief vent
4.0±0.5
10
±
0
.1
4.0±
0.5
0.8
+0.2
-0.1
0.8
.2
+0 .1
-0
Rated voltage (200V)
Series name
Type
2- 2
φ ±
0.1
1.5
(PC board hole dimensions)
+0.2
-0.1
2.5
(Terminal dimensions)
6.3±1mm length terminal is also available upon request.
Please refer page195 for schematic of dimensions.
Minimum order quantity : 50pcs.
Dimension table in next page.
CAT.8100R
