1N6642CSM-JQRS.DA

Description
0.3A, 75V, SILICON, SIGNAL DIODE, HERMETIC SEALED, CERAMIC, LCC1-3
CategoryDiscrete semiconductor    diode
File Size567KB,4 Pages
ManufacturerSEMELAB
Download Datasheet Parametric View All

1N6642CSM-JQRS.DA Overview

0.3A, 75V, SILICON, SIGNAL DIODE, HERMETIC SEALED, CERAMIC, LCC1-3

1N6642CSM-JQRS.DA Parametric

Parameter NameAttribute value
package instructionR-CDSO-N3
Contacts3
Reach Compliance Codeunknown
ECCN codeEAR99
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JESD-30 codeR-CDSO-N3
Number of components1
Number of terminals3
Maximum output current0.3 A
Package body materialCERAMIC, METAL-SEALED COFIRED
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Maximum power dissipation0.385 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage75 V
Maximum reverse recovery time0.005 µs
surface mountYES
Terminal formNO LEAD
Terminal locationDUAL
Base Number Matches1

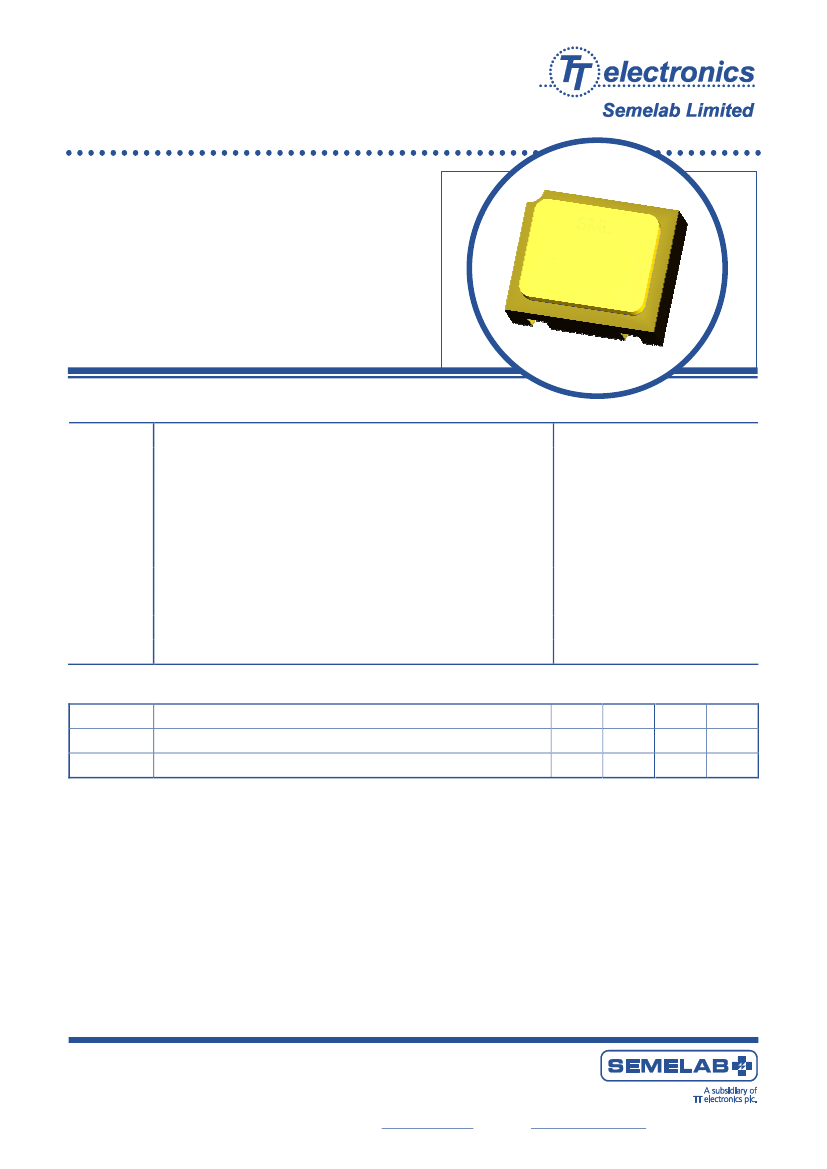

SILICON EPITAXIAL
PLANAR DIODE
1N6642CSM
Low Leakage
Fast Switching
Low Forward Voltage
Hermetic Ceramic Surface Mount Package
Suitable for general purpose, switching applications.
Screening Options Available
ABSOLUTE MAXIMUM RATINGS
(TA = 25°C unless otherwise stated)
VBR
VRWM
IO
IFSM
PD
(1)
(1)
Breakdown Voltage
Working Peak Reverse Voltage
Average Rectified Output Current, TA = 75°C
Surge Current, half sine wave, tp = 8.3ms
TA = 75°C
Total Power Dissipation at
Total Power Dissipation at
Junction Temperature Range
Storage Temperature Range
Derate Above 75°C
TSP = 75°C
Derate Above 75°C
PD
TJ
Tstg
100V
75V
300mA
2.5A
385mW
3.08mW/°C
1.25W
10mW/°C
-65 to +200°C
-65 to +200°C
THERMAL PROPERTIES
Symbols
R
θJA
(PCB)
R
θJSP
(1)
Parameters
Thermal Resistance, Junction To Ambient, On PCB
Thermal Resistance, Junction To Solder Pads
Min.
Typ.
Max.
325
100
Units
°C/W
°C/W
Notes
(1) PCB = FR4 – 0.0625 Inch (1.59mm), 1 Layer, 1.0-Oz Cu, horizontal, in still air.
R
θJA
with a defined PCB thermal resistance condition included, is measured at IO = 300mA.
Semelab Limited reserves the right to change test conditions, parameter limits and package dimensions without notice.
Information furnished by Semelab is believed to be both accurate and reliable at the time of going to press. However
Semelab assumes no responsibility for any errors or omissions discovered in its use. Semelab encourages customers to
verify that datasheets are current before placing orders.
Semelab Limited
Coventry Road, Lutterworth, Leicestershire, LE17 4JB
Telephone +44 (0) 1455 556565
Fax +44 (0) 1455 552612
Email:
sales@semelab-tt.com
Document Number 3588
Issue 2
Page 1 of 4
Website:
http://www.semelab-tt.com
