10056265-222ANPLF

Description
Card Edge Connector, 26 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, LEAD FREE
CategoryThe connector    The connector
File Size258KB,3 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

10056265-222ANPLF Overview

Card Edge Connector, 26 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, LEAD FREE

10056265-222ANPLF Parametric

Parameter NameAttribute value
Objectid1672148220
package instructionLEAD FREE
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL7.4
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationNICKEL PALLADIUM GOLD (30) OVER NICKEL
Contact completed and terminatedTIN (120) OVER NICKEL
Contact point genderFEMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch1 mm
Termination typeSURFACE MOUNT
Total number of contacts26
UL Flammability Code94V-0

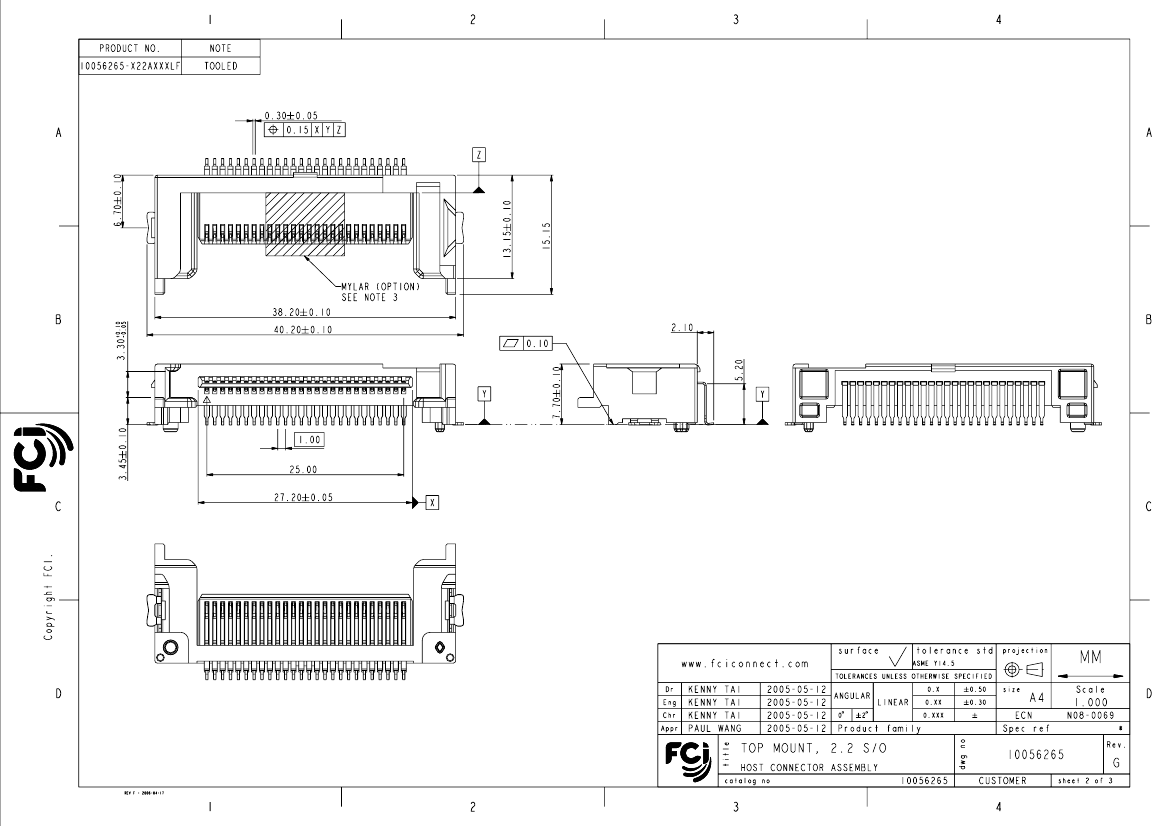

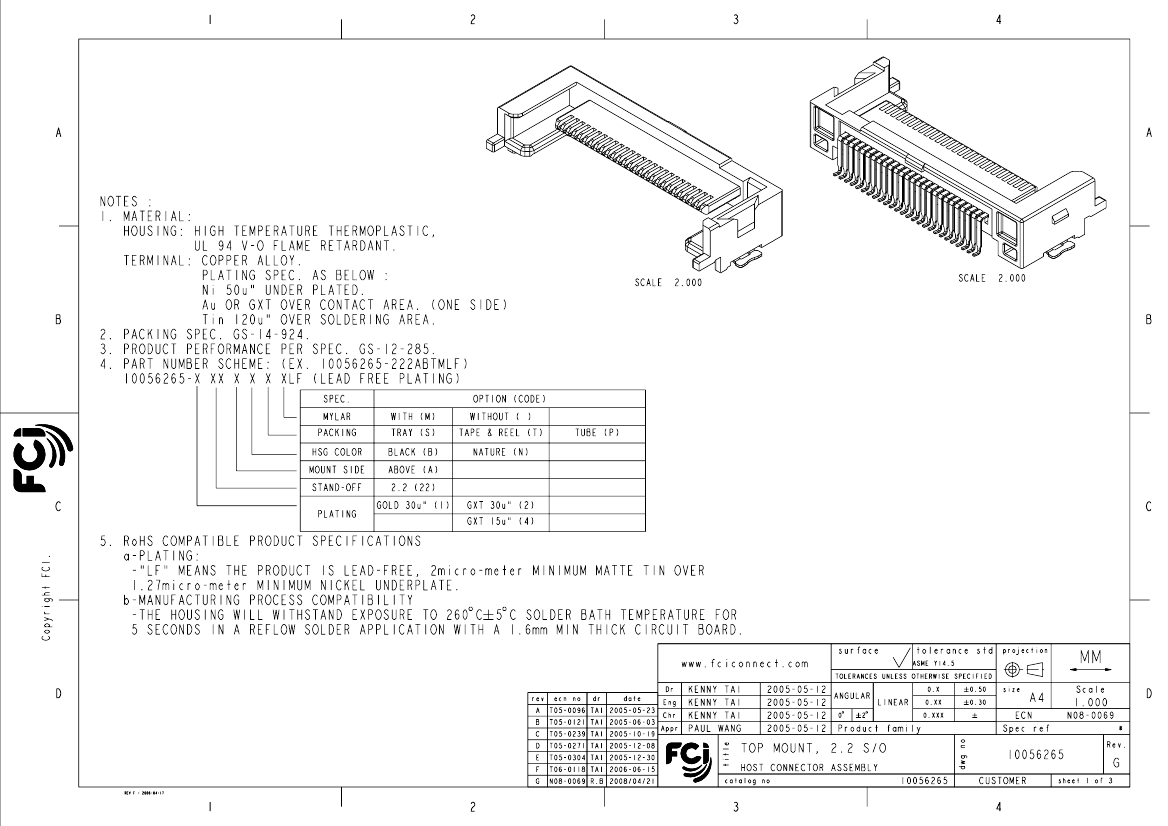

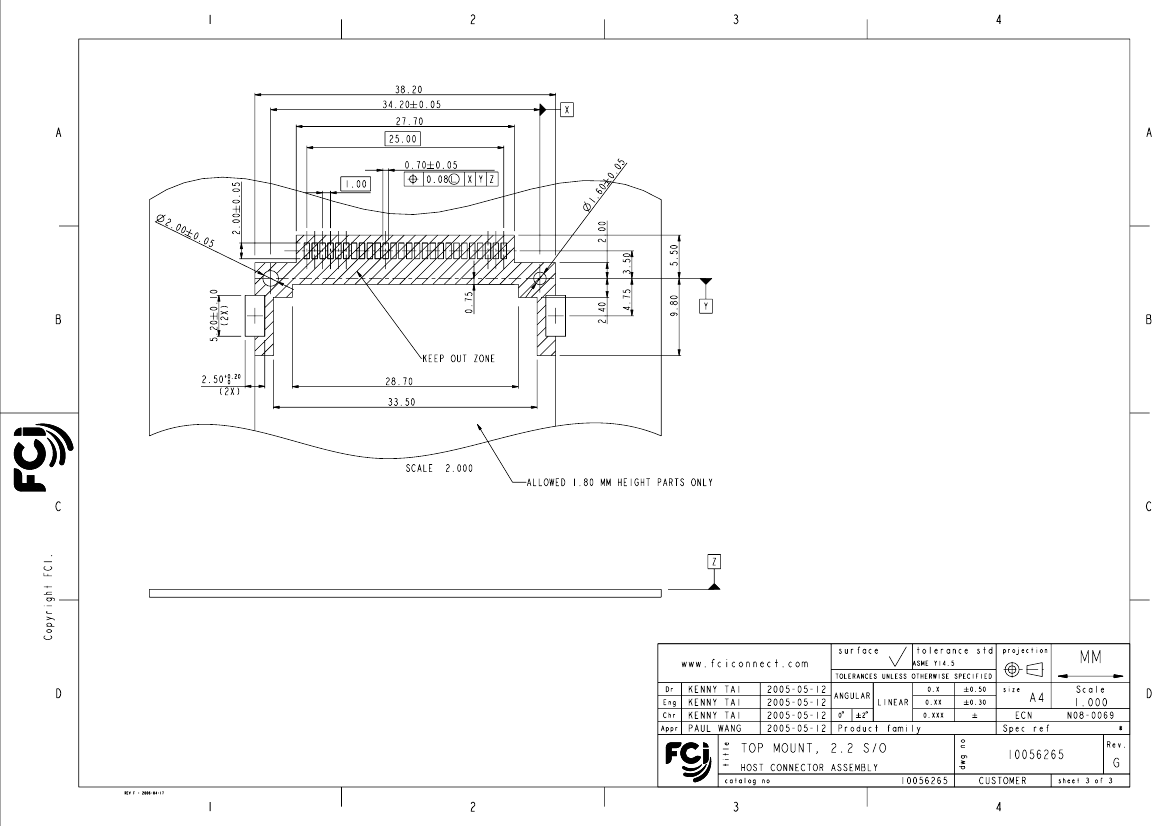

PDM: Rev:G
STATUS:
Released
Printed: Apr 30, 2008
.
