1MD08S33-01R datasheet, PDF - EEWORLD Datasheet

1MD08S33-01R: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,; CategoryThe connector The connector; File Size31KB，1 Pages; ManufacturerDelphi Connection Systems

Download Datasheet Parametric View All

1MD08S33-01R Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,

Parameter Name	Attribute value
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	1MD
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	16
UL Flammability Code	94V-0
Base Number Matches	1

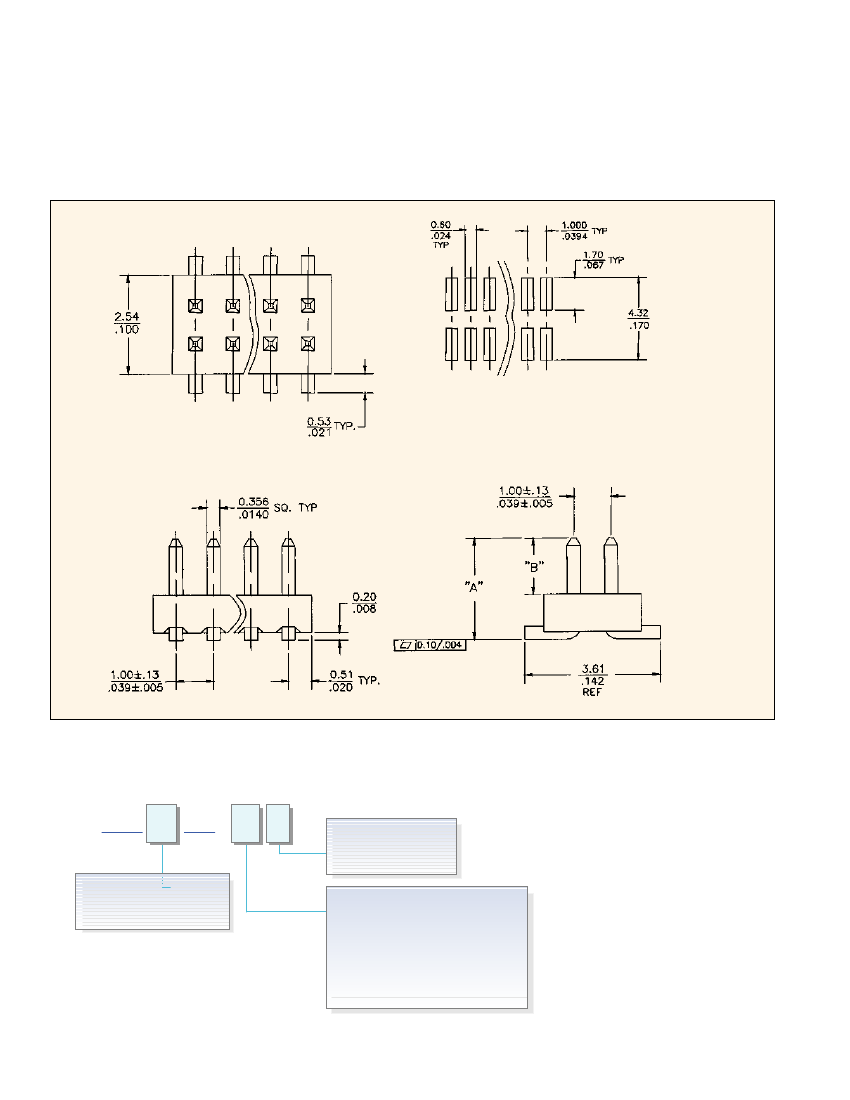

1mm Pitch

Headers & Receptacles

Headers

Recommended PCB Layout

Headers

Ordering Nomenclature

1MD 02 S33 - 01 R

Size:

No. of contacts/row

thru

= Tubes

= Tape and reel

01:

“A” = 2.70 [.106] overall ht.

“B” = 1.50 [.059] pin length

02:

“A” = 3.30 [.130] overall ht.

“B” = 2.11 [.083] pin length

03:

“A” = 4.04 [.159] overall ht.

“B” = 2.84 [.112] pin length

Dimensions shown are for reference only. Unless otherwise specified, dimensions are in millimeters and [inches].

Delphi Connection Systems • www.delphi.com/connect
