ROHS COMPLIANT

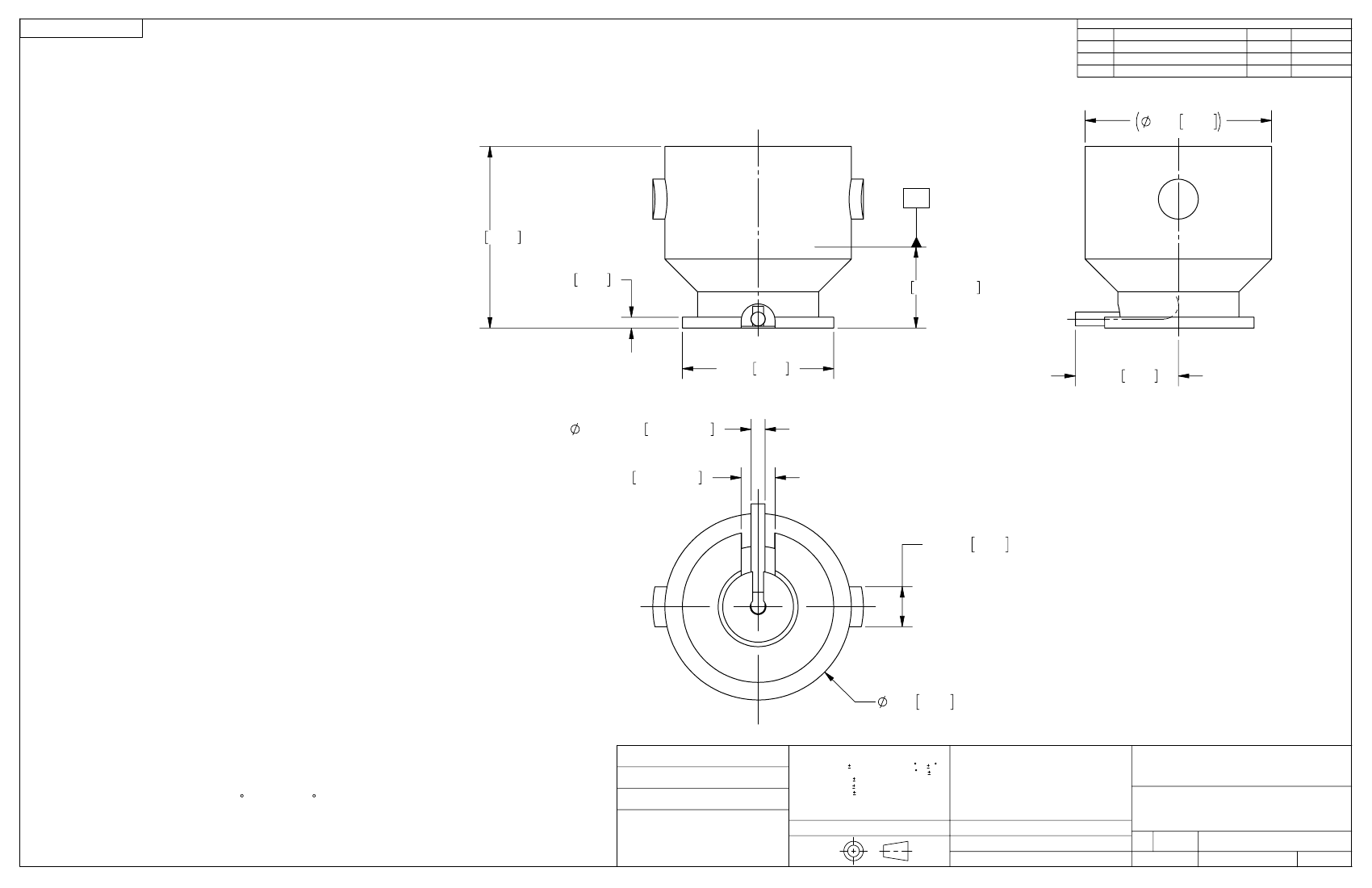

PRODUCT DATA DRAWING
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
NRN 38301
08/13
STW
.154 3.91
RP
.150 3.81
.009 0.23
.067±.001 1.70±0.03
.125 3.18
.085 2.16
NOTES:
1.
.012±.001 0.29±0.03
.028±.001 0.71±0.03
FOR RECOMMENDED FOOTPRINT TO YOUR SPECIFIC
PCB, CONTACT SV MICROWAVE SALES DEPARTMENT
(sales@svmicro.com, 561-840-1800)
MATERIAL:
BODY:
CONTACT:
INSULATOR:
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1
BRASS PER ASTM B16, ALLOY UNS No. C36000
TORLON 4203
2X .033 0.84
FINISH:
BODY & CONTACT:
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 1.27; OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
VSWR:
DWV:
OPERATING TEMP.:
ENGAGEMENT/
DISENGAGEMENT:
SMOOTH BORE:
50 OHMS
DC TO 20.0 GHz
1.20:1 DC TO 20.0 GHz
325 VRMS
-55 C TO +125 C
2.5 LBS MAX. ENGAGEMENT
1.5 LBS MIN. DISENGAGEMENT
MATERIAL:
FINISH:
.154 3.91
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
NHR 09/20/12
STW 08/20/13
STW 08/20/13
SMPM QB MALE SURFACE PCB
MOUNT WITH R/A CONTACT
SIZE CAGE CODE DWG. NO.
B
95077
3211-60112
SHEET 1 OF 1
SCALE: 4:1
