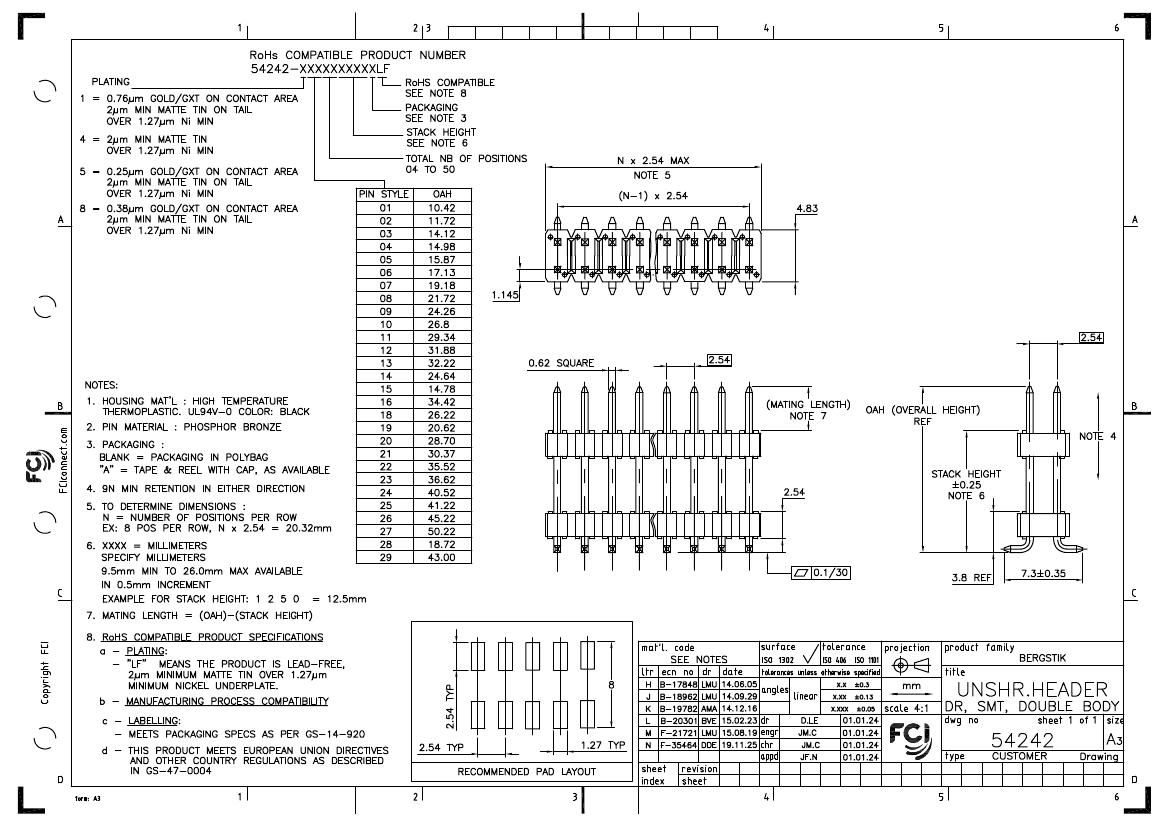

Board Stacking Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Objectid | 8077540447 |
| package instruction | ROHS COMPLIANT |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| YTEOL | 8.5 |
| body width | 0.169 inch |
| subject depth | 0.925 inch |
| body length | 1.4 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD STACKING CONNECTOR |
| Contact to complete cooperation | GOLD (30) OVER NICKEL (50)/GOLD FLASH OVER PALLADIUM NICKEL (30) |
| Contact completed and terminated | Matte Tin (Sn) - with Nickel (Ni) barrier |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | POLYETHYLENE |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -65 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 5.461 mm |
| Plating thickness | 30u inch |
| Rated current (signal) | 3 A |
| Guideline | UL, CSA |
| Terminal pitch | 2.54 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 14 |
| UL Flammability Code | 94V-0 |
