31207105 Overview

RIACON Pluggable Terminal Block, Type 207, 5 POLE 5MM

31207105 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	STANDARD: UL 94V-0, PA66
Fastening method	SCREW
Installation type	CONNECTOR
Number of layers	1
Rows	1
Number of channels	5
Rated voltage	500 V
safety certificate	CUL; SEV; UL
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Conductor cross section	2.5 mm2
Wire gauge	12 AWG
Base Number Matches	1

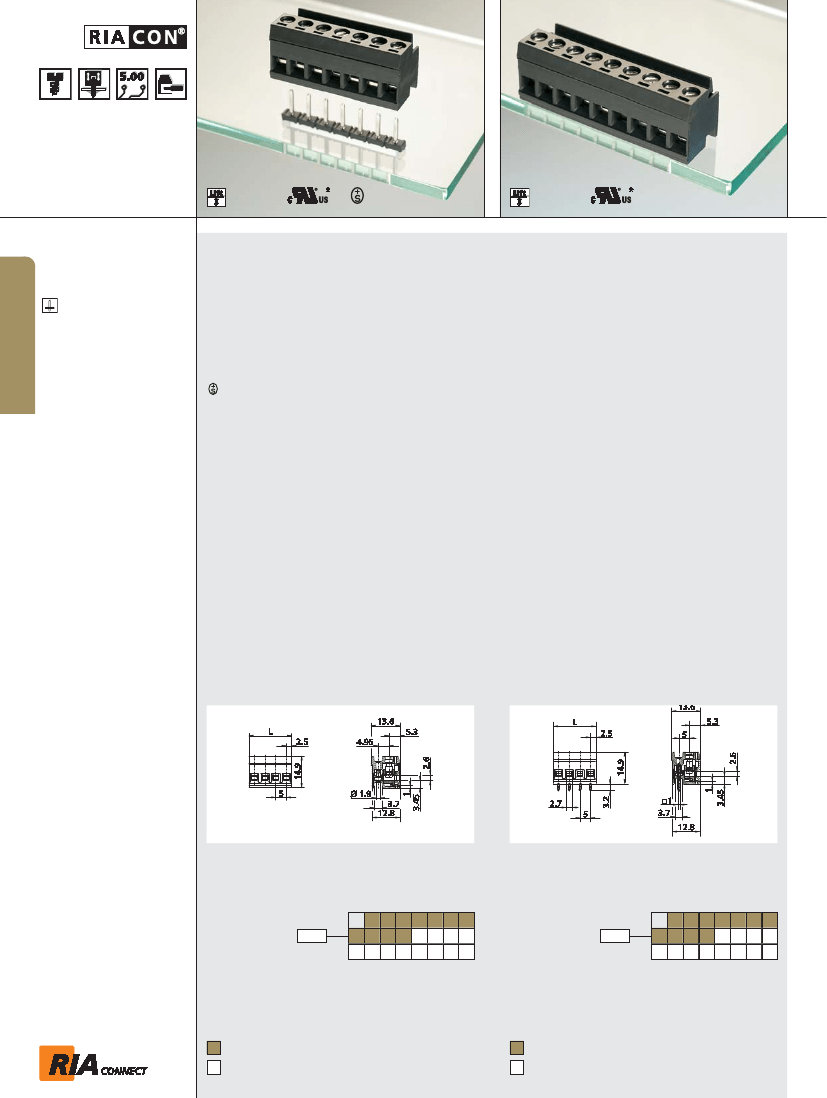

Preview

Download Datasheet

View All

Headers

Type 207

page 127

Screw type terminal block, pluggable, centerline 5 mm /

0.197 inches, wire entry perpendicular to plug

direction, lift system, contact system with integrated

wire protection

Type 208

Screw type terminal block, pluggable, centerline 5 mm /

0.197 inches, wire entry perpendicular to plug

direction, lift system, contact system with integrated

wire protection, factory inserted pins

Type 207

Type 048

Accessories

for

Type 207

and

Type 208

Coding pin

720159 short

720159 long

page 202

Mounting flange

750313 right

750314 left

page 200

Technical Data

0.08 - 2.5 mm² 250 V / 4 kV / 16 A

Insulation co-ordination according to EN 60664-1

Clearance and creepage distances min. 3.2 mm

Insulating material class

CTI 600

Overvoltage category

III

Pollution degree

Rated voltage

250

630

Rated test voltage

2.5

Protection category according

to IEC 529

IP20

Tightening torque UL

4.4 lb-in max.

Min. insul. strip length

6 mm

Pole size

2 - 24

Color

black

Technical Data

0.08 - 2.5 mm² 250 V / 4 kV / 15 A

Insulation co-ordination according to EN 60664-1

Clearance and creepage distances min. 3.2 mm

Insulating material class

CTI 600

Overvoltage category

III

Pollution degree

Rated voltage

250

630

Rated test voltage

2.5

Protection category according

to IEC 529

IP20

Tightening torque UL

4.4 lb-in max.

Min. insul. strip length

6 mm

Solder pin dimension

1.0 x 1.0 mm

Recommended pc board hole

dia.

Ø 1.5 mm

Solder pin length

3.2 mm

Pole size

2 - 24

Color

black

Dimensions in mm

1 mm = 0.0394 in.

Dimensions in mm

1 mm = 0.0394 in.

L = (pole size - 1) x centerline + 5 mm / 0.197 inches

Part numbers (P/N)

Type 207

centerline 5 mm / 0.197 inches

(information: page 56)

Complete the part number by

adding the pole size.

Part numbers (P/N)

Type 208

(information: page 56)

Complete the part number by

adding the pole size.

02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24

centerline 5 mm / 0.197 inches

02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24

P/N

312071

P/N

312081

* approval pending

Standard pole sizes

Available on demand. Minimum order quantity 5000

pieces per item.

Standard pole sizes

Available on demand. Minimum order quantity 5000

pieces per item.
