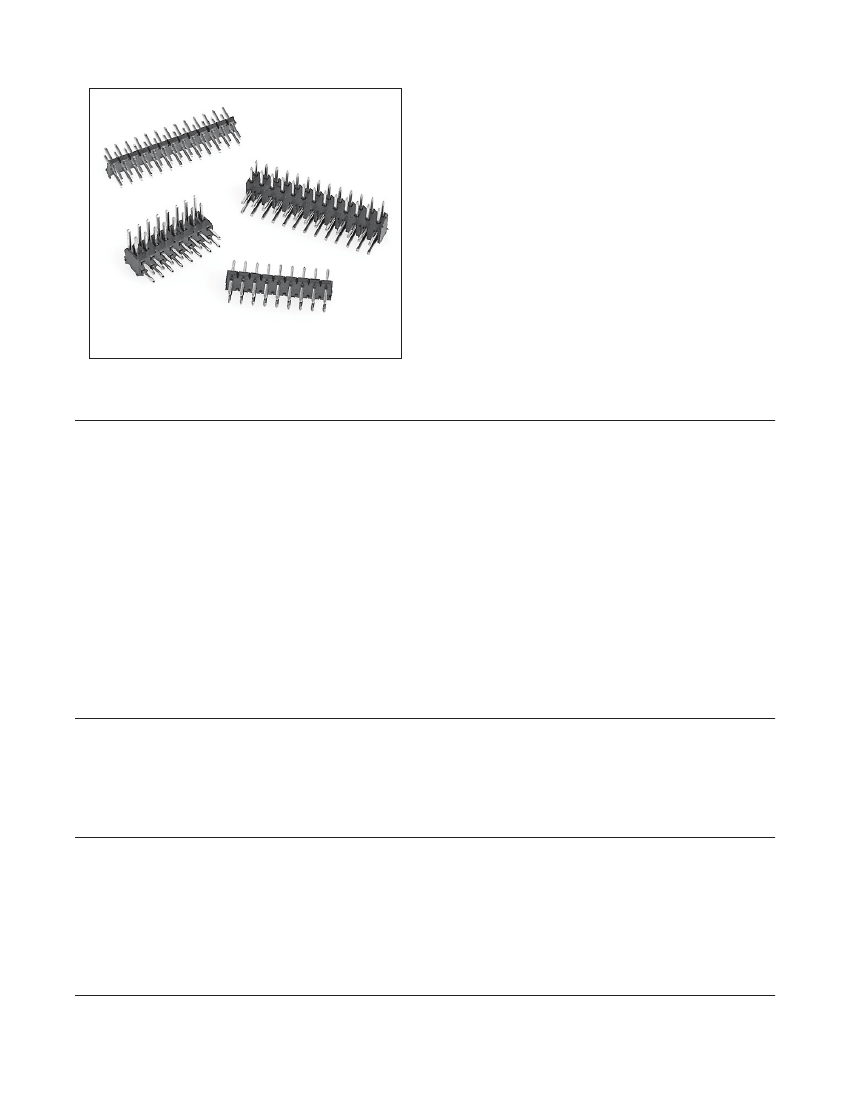

3M
™
Pin Strip Header
2 mm × 2 mm Solder Tail Straight & Right Angle, Surface Mount Straight
•
•
•
•
•
•
•
•
•
1512 Series
Industry standard compatible
High temperature dielectric
"No lead" wave and reflow solder compatible
Unique lengths available
Maximizes use of PC board space
Mates with boardmount and wiremount products
End stackable feature
Side stackable feature
Pin Strip Headers are available in tape and reel with
vacuum cap for automatic placement
RoHS Compliant.
See the Regulatory Information
Appendix (RIA) in the “RoHS compliance” section of
www.3M.com/Interconnects for compliance information
(RIA E1 & C1 apply)
TS-0808-F
Sheet 1 of 4
Date Modified: September 29, 2009
Physical
Insulation:
Material: High Temperature Thermoplastic (PCT or LCP)
Flammability: UL 94V-0
Color: Black
Contact:
Material: Copper Alloy
Plating:
Underplating: 100 μ" [ 2.54 μm ] Nickel
Wiping Area: 30 μ" [ 0.76 μm ] Gold
Solder Tails: 300 μ" [ 7.6 μm ] Matte Tin or 200 μ" Tin-Lead
Marking:
None
Electrical
Current Rating:
1.5 A
Insulation Resistance:
> 1 × 10
9
Ω
at 250 V
DC
Withstanding Voltage:
500 V
RMS
at Sea Level
Environmental
Temperature Rating:
-55°C to +105°C
Process Rating:
Maximum 260°C (per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pin Strip Header
2 mm × 2 mm Solder Tail Straight & Right Angle, Surface Mount Straight

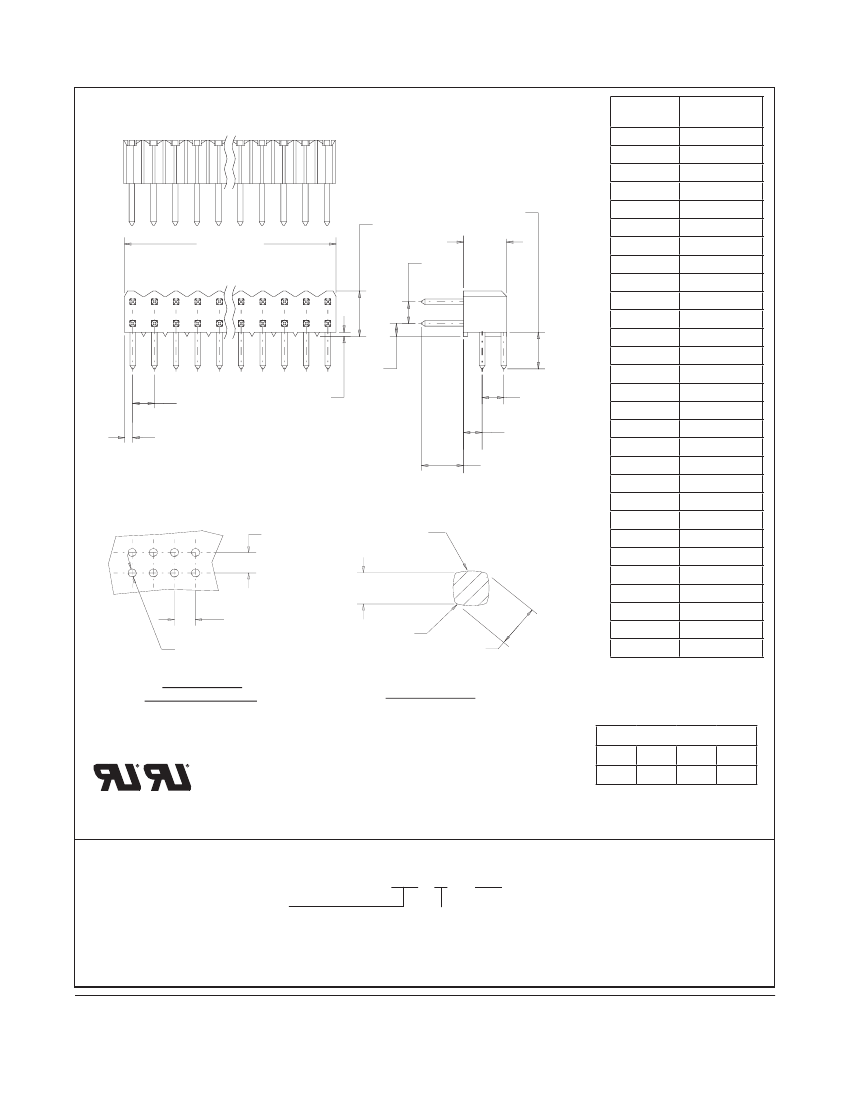

Straight
C +.000
-.020
.155
[3.94]
1512 Series
Contact
Quantity
04
06
08
10
12
14
Dimension C
.157
.238
.315
.394
.472
.551
.630
.709
.787
.866
.945
1.024
1.102
1.181
1.280
1.339
1.417
1.496
1.575
1.654
1.732
1.811
1.890
1.969
2.047
2.126
2.205
2.283
2.382
.03
[0.76]
.0787
[2.000]
.0787
[2.000
.059
[1.50]
16
18
20
22
24
26
.118
±
.010
A
±
.008
28
30
32
34
36
38
40
42
44
46
48
50
52
54
.009
±
.001
[0.23]
.0787
±
.003
[2.000]
R .040
[1.02]
4 Sides, Crown
.0204
±
.0003
[0.518]
.0787
±
.003
[2.000]
.032
±
.003
[0.81]
After Plating
R .0020
[0.050]
.0244
±
.0005
[0.620]
56
58
60
Recommended Mounting
Hole Pattern
Pin Cross Section
mm
[Inch]
Tolerance Unless Noted
.0
.00
±.01
.000
±.005
mm
±.1
C
[ ] Dimensions for Reference Only
Ordering Information
1512XX-8X22-XX
Contact Quantity
(See Table 1)
Pin Length
Dim ‘A'
3 = .130"
4 = .152"
Plating suffix:
RB = 30 μ" [.76 μm] Gold w/Matte Tin solder tails (App. E1 & C1 Apply)
TB = 30 μ" [.76 μm] Gold w/Tin-lead solder tails (App. E3 & C2 Apply)
TS-0808-F
Sheet 2 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pin Strip Header
2 mm × 2 mm Solder Tail Straight & Right Angle, Surface Mount Straight

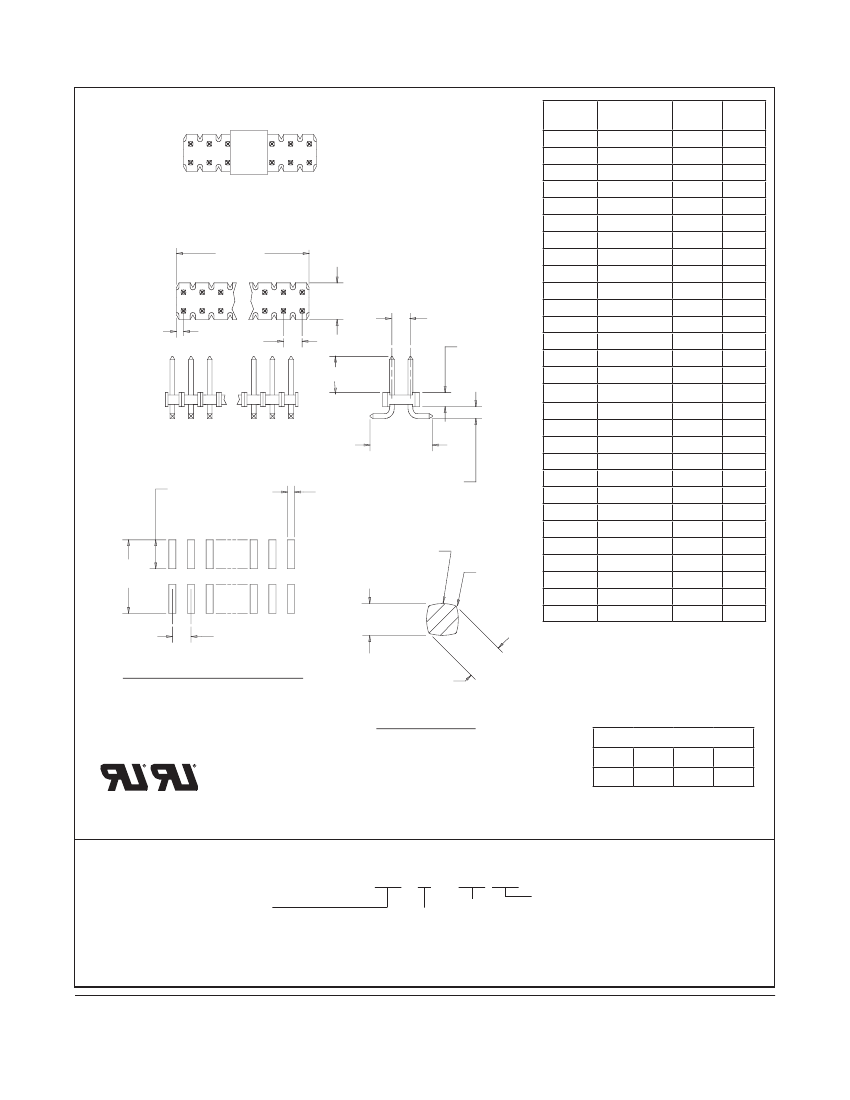

Right Angle
Contact
Quantity
04
06
08
10
.165
[4.19]
.0787
[2.000]
.118
±
.010
.157
[3.99]
1512 Series
Dimension C
.157
.238
.315
.394
.472
.551
.630
.709
.787
.866
.945
1.024
1.102
1.181
1.280
1.339
1.417
1.496
1.575
1.654
1.732
1.811
1.890
1.969
2.047
2.126
2.205
2.283
2.382
12
14
16
18
20
22
24
26
28
30
.0787
[2.000]
C +.000
-.020
.047
[1.19]
.0787
[2.000]
.029
[0.74]
.015
[0.38]
Standoff
32
34
36
38
40
42
44
46
48
50
52
54
56
58
.068
[1.73]
A
±
.008
.0787
±
.003
[2.000]
R .040
[1.02]
4 Sides, Crown
.0204
±
.0003
[0.518]
.0787
±
.003
[2.000]
.032
±
.003
[0.81]
After Plating
R .0020
[0.050]
.0244
±
.0005
[0.620]
60
Recommended
Mounting Hole Pattern
Pin Cross Section
mm
[Inch]
Tolerance Unless Noted
.0
.00
±.01
.000
±.005
mm
±.1
C
[ ] Dimensions for Reference Only
Ordering Information
1512XX-7X22-XX
Contact Quantity
(See Table 1)
Pin Length
Dim ‘A'
3 = .130"
4 = .152"
Plating suffix:
RB = 30 μ" [.76 μm] Gold w/Matte Tin solder tails (App. E1 & C1 Apply)
TB = 30 μ" [.76 μm] Gold w/Tin-lead solder tails (App. E3 & C2 Apply)
TS-0808-F
Sheet 3 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pin Strip Header
2 mm × 2 mm Solder Tail Straight & Right Angle, Surface Mount Straight
Contact
Quantity
Dimension C
1512 Series
Tape
Width
Order
Code
4
6
Example of vacuum cap on part
.139 [3.5]
.217 [5.5]
.374 [9.5]
.295 [7.5]
n/a
24 mm
24 mm
n/a
n/a
WB
n/a
10
12
14
8
C +.000
-.020
.155
[ 3.94 ]
.0787 [ 2.00 ]
.03
[ 0.8 ]
.0787
[ 2.00 ]
A
±
.008
.059
[ 1.50 ]
16
.531 [13.5]
.689 [17.5]
.611 [15.5]
.453 [11.5]
24 mm
WC
24 mm
WC
18
24 mm
WC
20
22
.768 [19.5]
32 mm
WC
24
.847 [21.5[
32 mm
WC
26
28
1.005 [25.5]
.925 [23.5]
44 mm
WC
44 mm
WD
30
1.083 [27.5]
44 mm
WD
32
34
36
38
1.162 [29.5]
1.320 [33.5
44 mm
WD
1.240 [31.5]
1.398 [35.5]
1.477 [37.5]
1.556 [39.5]
1.634 [41.5]
1.714 [43.5]
1.792 [45.5]
1.870 [47.5]
1.970 [49.5]
1.970 [49.5]
2.107 [53.5]
2.185 [55.5]
2.264 [57.5]
2.344 [59.5]
44 mm
WD
WE
WE
WE
WE
WE
WE
WF
WF
WF
WF
WF
WF
WF
56 mm
56 mm
56 mm
56 mm
56 mm
56 mm
72 mm
72 mm
72 mm
72 mm
72 mm
72 mm
72 mm
88 mm
88 mm
WD
.263
±
.02
[ 6.68 ]
.122 Typ
[ 3.10 ]
.030
[ 0.76 ]
.050
[ 1.27 ]
40
42
44
46
48
50
.310
[ 7.87 ]
R.040 [ 1.02 ]
4 Sides, Crown
52
R.0020
[ 0.05 ]
54
56
58
60
.0787
[ 2.00 ]
.0204
±
.0003
[ 0.518 ]
WG
WG
Recommended PCB Pad Layout
.0244
±
.0005
[ 0.620 ]
Notes: 1.Tape & reel include vacuum pick-up cap for
pick n place handling equipment.
2. Parts in tray packaging are supplied without
vacuum cap.
Pin Cross Section
mm
[Inch]
Tolerance Unless Noted
.0
.00
±.01
.000
±.005
mm
±.1
C
Note: Tape and Reel not available on all sizes, please call.
[ ] Dimensions for Reference Only
Ordering Information
1512XX-2X20-XX-XX
Contact Quantity
(See Table 1)
Pin Length
Dim ‘A'
3 = .130"
4 = .152"
Plating suffix:
RB = 30 μ" [.76 μm] Gold w/Matte Tin solder tails (App. E1 & C1 Apply)
TB = 30 μ" [.76 μm] Gold w/Tin-lead solder tails (App. E3 & C2 Apply)
TS-0808-F
Sheet 4 of 4
Packaging suffix:
Blank = Tray Packaging
WX = Tape & Reel Packaging
(see table 1)
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
the legal theory asserted.
3M Electronics Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
U.S.A.
1-800-225-5373
www.3m.com/interconnects
Please recycle. Printed in USA.
© 3M 2008. All rights reserved.
RIA-2217B-E
3M is a trademark of 3M Company.
