100-616-033D datasheet, PDF - EEWORLD Datasheet

100-616-033D: DescriptionBoard Euro Connector, 16 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle; CategoryThe connector The connector; File Size267KB，2 Pages; ManufacturerPANCON CONNECTORS

Download Datasheet Parametric View All

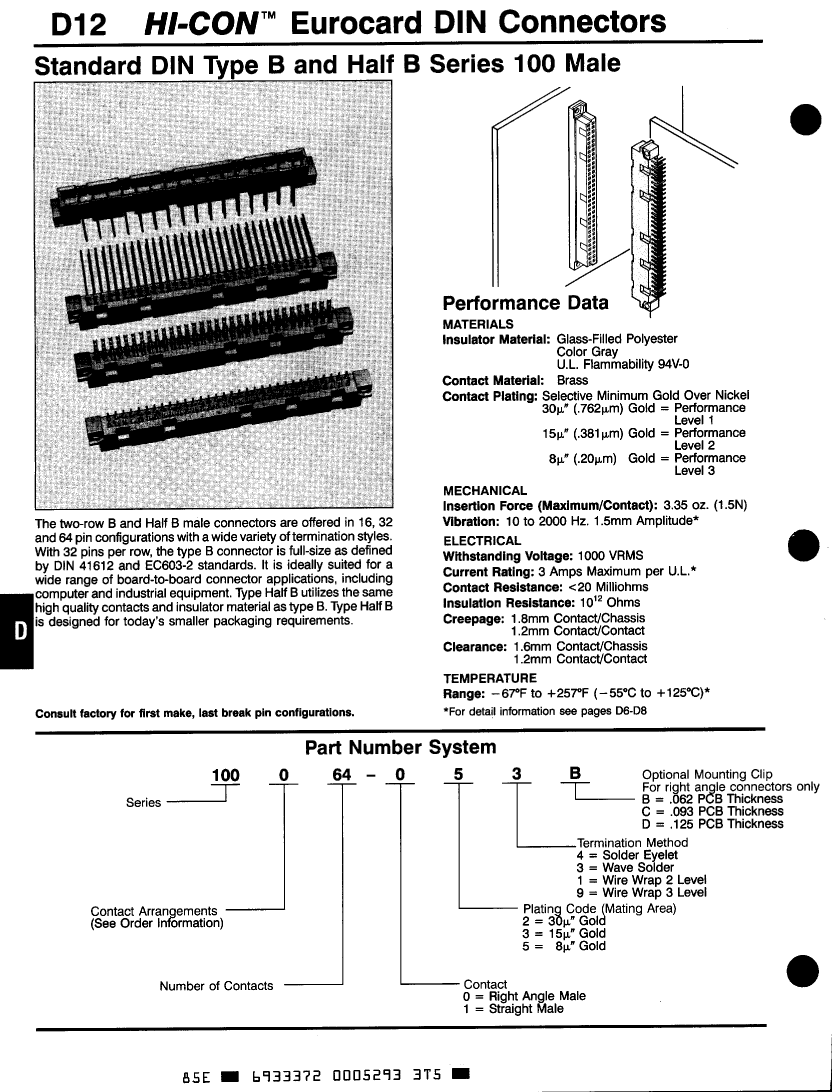

100-616-033D Overview

Board Euro Connector, 16 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Hole .099-.111, Gray Insulator, Receptacle

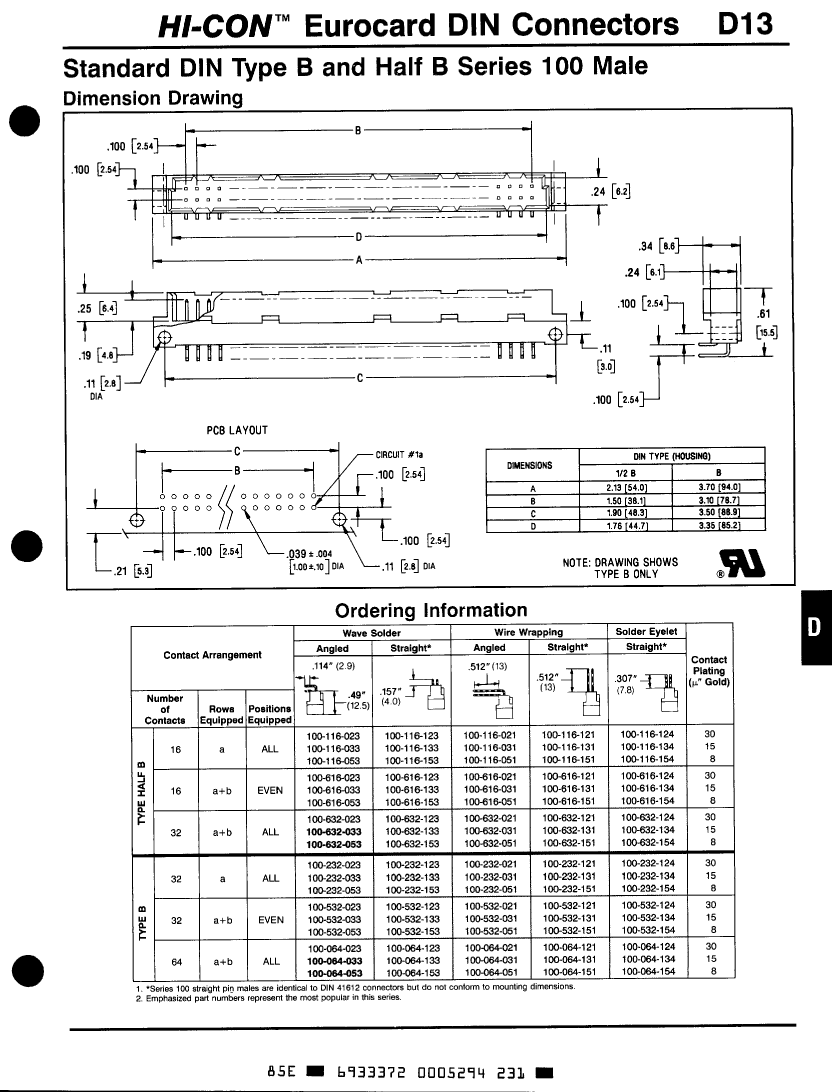

Parameter Name	Attribute value
Reach Compliance Code	unknown
body width	0.34 inch
subject depth	0.61 inch
body length	2.13 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
maximum insertion force	.9174 N
Insulation resistance	10000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	100
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	HOLE .099-.111
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B
PCB row number	2
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
Base Number Matches	1
