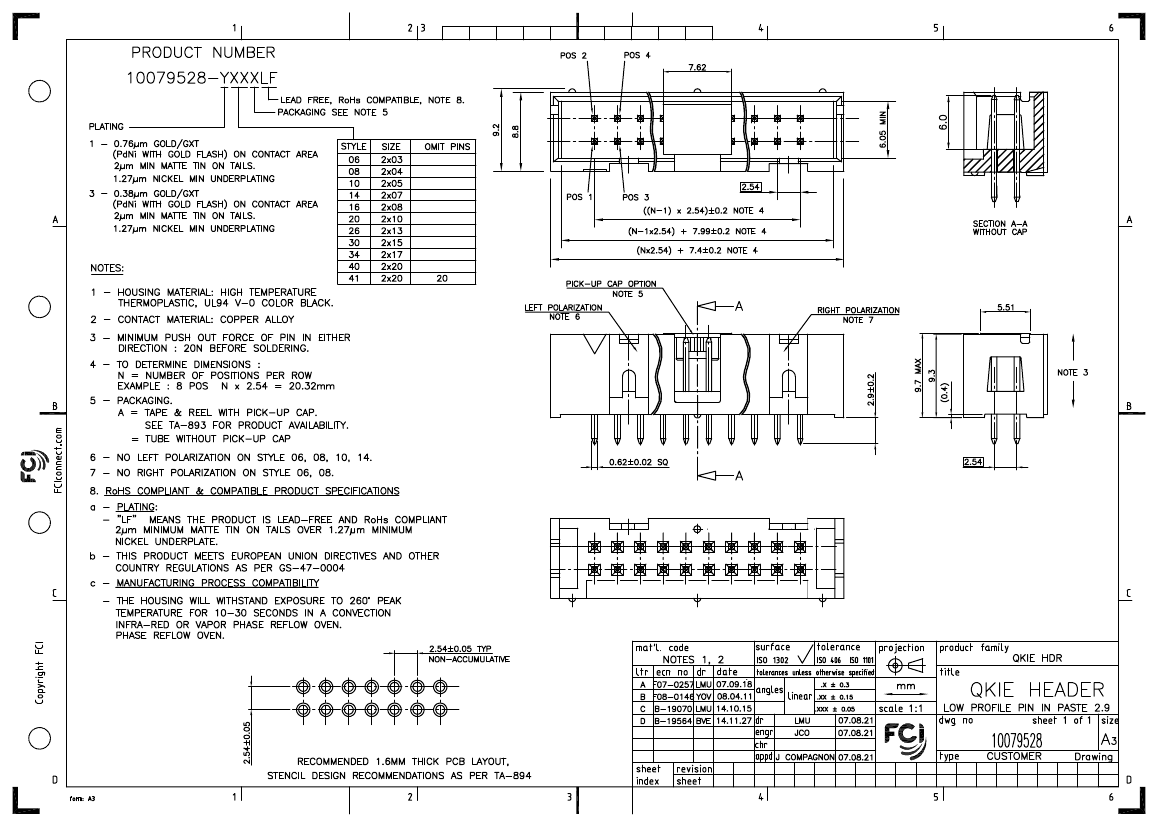

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| package instruction | ROHS COMPLIANT |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Factory Lead Time | 5 weeks 3 days |
| Other features | LOW PROFILE; POLARISED |
| body width | 0.362 inch |
| subject depth | 0.382 inch |
| body length | 2.291 inch |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD (30) OVER NICKEL/NICKEL PALLADIUM GOLD (30) OVER NICKEL |
| Contact completed and terminated | Matte Tin (Sn) - with Nickel (Ni) barrier |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| Insulator color | BLACK |
| insulator material | THERMOPLASTIC |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Manufacturer's serial number | 10079528 |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 30u inch |
| polarization key | GUIDE SLOT(S) |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.114 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 40 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 10079528-140LF | 10079528-108LF | 10079528-114LF | 10079528-134LF | 10079528-141LF | 10079528-130LF | |
|---|---|---|---|---|---|---|
| Description | Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT | Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT | Quickie® Shrouded Low Profile Header, Wire To Board, Vertical, Through Hole, Double Row, Pin In Paste, 14 Positions, 2.54mm (0.100in) Pitch. | Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, ROHS COMPLIANT | Quickie® Shrouded Low Profile Header, Wire To Board, Vertical, Through Hole, Double Row, Pin In Paste, 39 Positions, 2.54mm (0.100in) Pitch. | Quickie® Shrouded Low Profile Header, Wire To Board, Vertical, Through Hole, Double Row, Pin In Paste, 30 Positions, 2.54mm (0.100in) Pitch. |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to |
| package instruction | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| body width | 0.362 inch | 0.362 inch | 0.362 inch | 0.362 inch | 0.362 inch | 0.362 inch |
| subject depth | 0.382 inch | 0.382 inch | 0.382 inch | 0.382 inch | 0.382 inch | 0.382 inch |
| body length | 2.291 inch | 0.691 inch | 0.991 inch | 1.991 inch | 2.291 inch | 1.791 inch |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD (30) OVER NICKEL/NICKEL PALLADIUM GOLD (30) OVER NICKEL | GOLD (30) OVER NICKEL/NICKEL PALLADIUM GOLD (30) OVER NICKEL | GOLD (30) OVER NICKEL/NICKEL PALLADIUM GOLD (30) OVER NICKEL | GOLD (30) OVER NICKEL/NICKEL PALLADIUM GOLD (30) OVER NICKEL | GOLD (30) OVER NICKEL/NICKEL PALLADIUM GOLD (30) OVER NICKEL | GOLD (30) OVER NICKEL/GOLD FLASH (30) OVER PALLADIUM NICKEL |
| Contact completed and terminated | Matte Tin (Sn) - with Nickel (Ni) barrier | Matte Tin (Sn) - with Nickel (Ni) barrier | Matte Tin (Sn) - with Nickel (Ni) barrier | Matte Tin (Sn) - with Nickel (Ni) barrier | Matte Tin (Sn) - with Nickel (Ni) barrier | Matte Tin (Sn) - with Nickel (Ni) barrier |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO |
| Insulator color | BLACK | BLACK | BLACK | BLACK | BLACK | BLACK |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | POLYETHYLENE | THERMOPLASTIC | POLYETHYLENE | POLYETHYLENE |
| JESD-609 code | e3 | e3 | e3 | e3 | e3 | e3 |
| MIL compliance | NO | NO | NO | NO | NO | NO |
| Plug contact pitch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch |
| Match contact row spacing | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch |
| Mixed contacts | NO | NO | NO | NO | NO | NO |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 | 2 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Plating thickness | 30u inch | 30u inch | 29.92u inch | 30u inch | 30u inch | 30u inch |
| polarization key | GUIDE SLOT(S) | GUIDE SLOT(S) | POLARIZED HOUSING | GUIDE SLOT(S) | GUIDE SLOT | GUIDE SLOT(S) |
| Guideline | UL | UL | UL | UL | UL | UL |
| Terminal length | 0.114 inch | 0.114 inch | 0.114 inch | 0.114 inch | 0.114 inch | 0.114 inch |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 40 | 8 | 14 | 34 | 40 | 30 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Other features | LOW PROFILE; POLARISED | LOW PROFILE | SHROUDED | LOW PROFILE; POLARISED | LOW PROFILE; POLARISED | - |
| Manufacturer's serial number | 10079528 | 10079528 | - | 10079528 | - | 10079528 |
| reliability | COMMERCIAL | COMMERCIAL | - | COMMERCIAL | - | COMMERCIAL |
