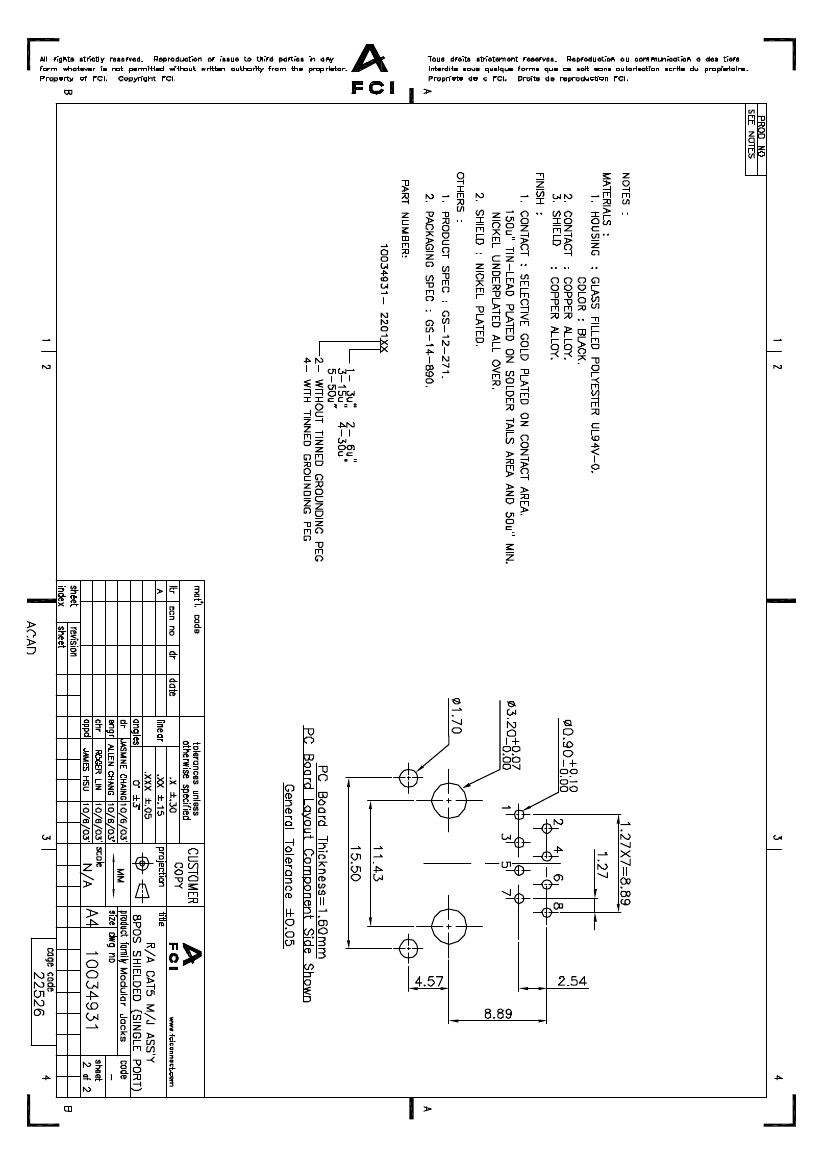

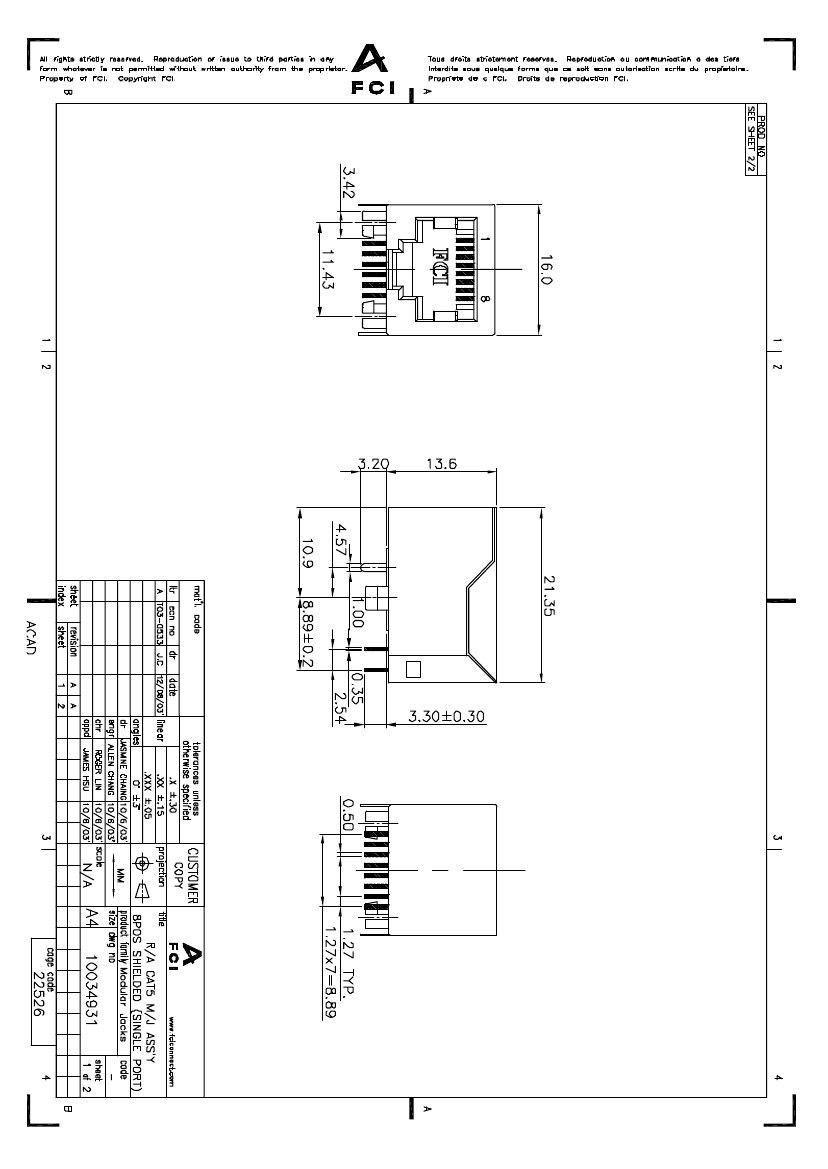

Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Board mount options | SPLIT BOARD LOCK |
| body width | 0.535 inch |
| subject depth | 0.841 inch |
| body length | 0.63 inch |
| Body/casing type | JACK |
| Connector type | TELECOM AND DATACOM CONNECTOR |
| Contact to complete cooperation | GOLD OVER NICKEL |
| Contact completed and terminated | TIN LEAD (150) OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| Contact resistance | 60 mΩ |
| Contact style | TELCOM, MODULAR |
| DIN compliance | NO |
| Dielectric withstand voltage | 1400VAC V |
| Durability | 750 Cycles |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 500000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED POLYESTER |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | 10034931 |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of ports | 1 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| Plating thickness | 30u inch |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell surface | NICKEL |
| Shell material | COPPER ALLOY |
| Terminal length | 0.13 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 8 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 10034931-220144 | 10034931-220122 | 10034931-220142 | 10034931-220141 | 10034931-220121 | 10034931-220123 | 10034931-220125 | 10034931-220143 | 10034931-220145 | 10034931-220124 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack | Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack | Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack | Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack | Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack | Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack | Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack | Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack | Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack | Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | - |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | - |
| ECCN code | EAR99 | EAR99 | EAR99 | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Board mount options | SPLIT BOARD LOCK | - | SPLIT BOARD LOCK | SPLIT BOARD LOCK | - | SPLIT BOARD LOCK | SPLIT BOARD LOCK | - | SPLIT BOARD LOCK | SPLIT BOARD LOCK |
| body width | 0.535 inch | - | 0.535 inch | 0.535 inch | - | 0.535 inch | 0.535 inch | - | 0.535 inch | 0.535 inch |
| subject depth | 0.841 inch | - | 0.841 inch | 0.841 inch | - | 0.841 inch | 0.841 inch | - | 0.841 inch | 0.841 inch |
| body length | 0.63 inch | - | 0.63 inch | 0.63 inch | - | 0.63 inch | 0.63 inch | - | 0.63 inch | 0.63 inch |
| Body/casing type | JACK | - | JACK | JACK | - | JACK | JACK | - | JACK | JACK |
| Connector type | TELECOM AND DATACOM CONNECTOR | - | TELECOM AND DATACOM CONNECTOR | TELECOM AND DATACOM CONNECTOR | - | TELECOM AND DATACOM CONNECTOR | TELECOM AND DATACOM CONNECTOR | - | TELECOM AND DATACOM CONNECTOR | TELECOM AND DATACOM CONNECTOR |
| Contact to complete cooperation | GOLD OVER NICKEL | - | GOLD OVER NICKEL | GOLD OVER NICKEL | - | GOLD OVER NICKEL | GOLD OVER NICKEL | - | GOLD OVER NICKEL | GOLD (30) OVER NICKEL |
| Contact completed and terminated | TIN LEAD (150) OVER NICKEL | - | TIN LEAD (150) OVER NICKEL | TIN LEAD (150) OVER NICKEL | - | TIN LEAD (150) OVER NICKEL | TIN LEAD (150) OVER NICKEL | - | TIN LEAD (150) OVER NICKEL | TIN LEAD (150) OVER NICKEL |
| Contact point gender | FEMALE | - | FEMALE | FEMALE | - | FEMALE | FEMALE | - | FEMALE | FEMALE |
| Contact material | COPPER ALLOY | - | COPPER ALLOY | COPPER ALLOY | - | COPPER ALLOY | COPPER ALLOY | - | COPPER ALLOY | COPPER ALLOY |
| Contact resistance | 60 mΩ | - | 60 mΩ | 60 mΩ | - | 60 mΩ | 60 mΩ | - | 60 mΩ | 60 mΩ |
| Contact style | TELCOM, MODULAR | - | TELCOM, MODULAR | TELCOM, MODULAR | - | TELCOM, MODULAR | TELCOM, MODULAR | - | TELCOM, MODULAR | TELCOM, MODULAR |
| DIN compliance | NO | - | NO | NO | - | NO | NO | - | NO | NO |
| Dielectric withstand voltage | 1400VAC V | - | 1400VAC V | 1400VAC V | - | 1400VAC V | 1400VAC V | - | 1400VAC V | 1400VAC V |
| Durability | 750 Cycles | - | 750 Cycles | 750 Cycles | - | 750 Cycles | 750 Cycles | - | 750 Cycles | 750 Cycles |
| empty shell | NO | - | NO | NO | - | NO | NO | - | NO | NO |
| Filter function | NO | - | NO | NO | - | NO | NO | - | NO | NO |
| IEC compliance | NO | - | NO | NO | - | NO | NO | - | NO | NO |
| Insulation resistance | 500000000 Ω | - | 500000000 Ω | 500000000 Ω | - | 500000000 Ω | 500000000 Ω | - | 500000000 Ω | 500000000 Ω |
| Insulator color | BLACK | - | BLACK | BLACK | - | BLACK | BLACK | - | BLACK | BLACK |
| insulator material | GLASS FILLED POLYESTER | - | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | - | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | - | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER |
| JESD-609 code | e0 | - | e0 | e0 | - | e0 | e0 | - | e0 | e0 |
| MIL compliance | NO | - | NO | NO | - | NO | NO | - | NO | NO |
| Manufacturer's serial number | 10034931 | - | 10034931 | 10034931 | - | 10034931 | 10034931 | - | 10034931 | 10034931 |
| Mixed contacts | NO | - | NO | NO | - | NO | NO | - | NO | NO |
| Installation option 1 | LOCKING | - | LOCKING | LOCKING | - | LOCKING | LOCKING | - | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | - | RIGHT ANGLE | RIGHT ANGLE | - | RIGHT ANGLE | RIGHT ANGLE | - | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | - | BOARD | BOARD | - | BOARD | BOARD | - | BOARD | BOARD |
| Number of ports | 1 | - | 1 | 1 | - | 1 | 1 | - | 1 | 1 |
| Maximum operating temperature | 70 °C | - | 70 °C | 70 °C | - | 70 °C | 70 °C | - | 70 °C | 70 °C |
| Minimum operating temperature | -40 °C | - | -40 °C | -40 °C | - | -40 °C | -40 °C | - | -40 °C | -40 °C |
| Options | GENERAL PURPOSE | - | GENERAL PURPOSE | GENERAL PURPOSE | - | GENERAL PURPOSE | GENERAL PURPOSE | - | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED | - | STAGGERED | STAGGERED | - | STAGGERED | STAGGERED | - | STAGGERED | STAGGERED |
| Plating thickness | 30u inch | - | 6u inch | 3u inch | - | 15u inch | 50u inch | - | 50u inch | 30u inch |
| Guideline | UL | - | UL | UL | - | UL | UL | - | UL | UL |
| reliability | COMMERCIAL | - | COMMERCIAL | COMMERCIAL | - | COMMERCIAL | COMMERCIAL | - | COMMERCIAL | COMMERCIAL |
| Shell surface | NICKEL | - | NICKEL | NICKEL | - | NICKEL | NICKEL | - | NICKEL | NICKEL |
| Shell material | COPPER ALLOY | - | COPPER ALLOY | COPPER ALLOY | - | COPPER ALLOY | COPPER ALLOY | - | COPPER ALLOY | COPPER ALLOY |
| Terminal length | 0.13 inch | - | 0.13 inch | 0.13 inch | - | 0.13 inch | 0.13 inch | - | 0.13 inch | 0.13 inch |
| Terminal pitch | 2.54 mm | - | 2.54 mm | 2.54 mm | - | 2.54 mm | 2.54 mm | - | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | - | SOLDER | SOLDER | - | SOLDER | SOLDER | - | SOLDER | SOLDER |
| Total number of contacts | 8 | - | 8 | 8 | - | 8 | 8 | - | 8 | 8 |
| UL Flammability Code | 94V-0 | - | 94V-0 | 94V-0 | - | 94V-0 | 94V-0 | - | 94V-0 | 94V-0 |
