1F110246-P04FST-AF: DescriptionBoard Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size68KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/; Environmental Compliance

Download Datasheet Parametric View All

1F110246-P04FST-AF Overview

Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Receptacle, LEAD FREE

1F110246-P04FST-AF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.622 inch
subject depth	0.669 inch
body length	0.472 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	45 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Manufacturer's serial number	1F
Plug contact pitch	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	24
UL Flammability Code	94V-0
Base Number Matches	1

1F110246-P04FST-AF Preview

Download Datasheet

View All

SPECIFICATIONS

FUTURE BUS CONNECTOR

1F Series

Header Press Fit Type

2.0mm Pitch

4 Row s

Mechanical

Contact Retention Force:

1.0Kg min.

Electrical

Voltage Rating:

750V

Current Rating:

1A

Contact Resistance:

45m

Ω

max.

Dielectrical Withstanding Voltage:

1000V

Insulation Resistance:

1000M

Ω

min.

Physical

Housing:

LCP, UL 94-0 rated, Ivory White

Contact:

Phosphor Bronze

Plating:

See “ORDERING INFORMATION”

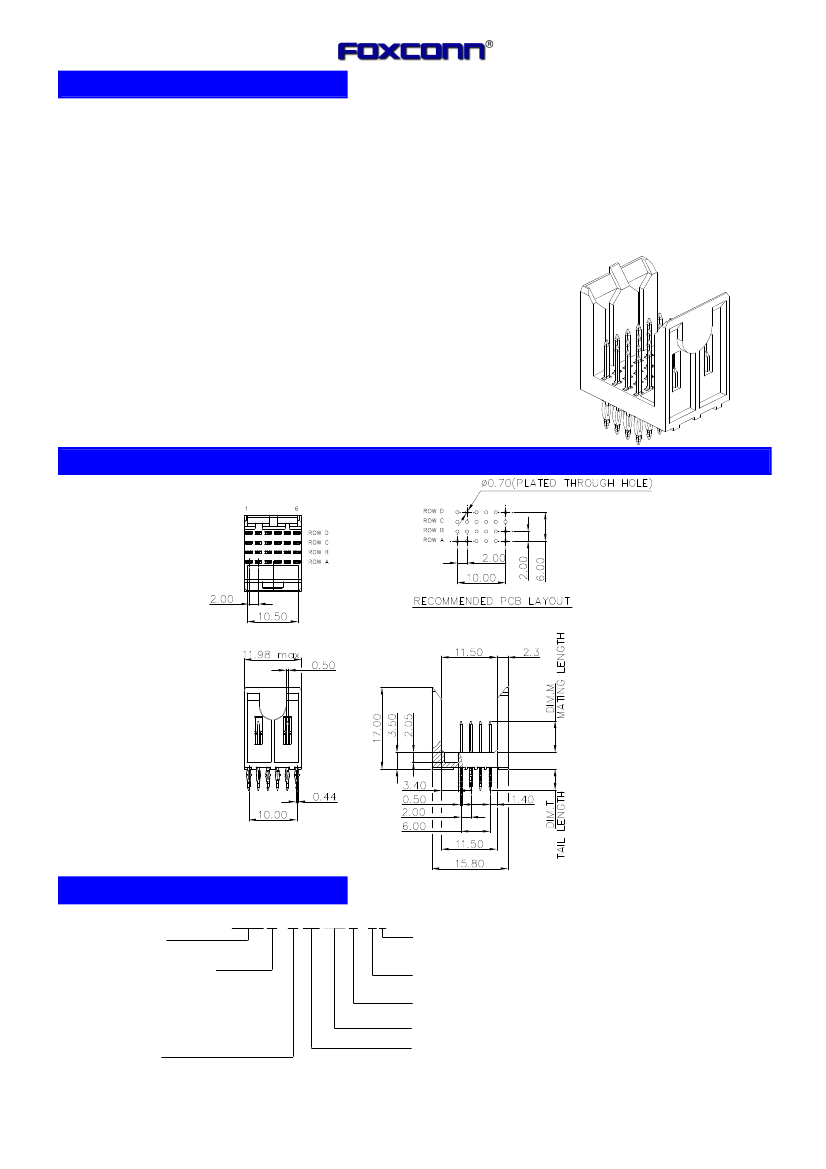

DRAWING

ORDERING I NF OR MATI ON

PRODUCT NO.: 1 F 1 1 0 2 4 * - P * * F S * - * *

POS. NO.:

024=024 pos.

Lead Free Code:

N=None

F=Lead Free

Mating Area Plating:

1=GOLD FLASH

3=0.76um(30u")MIN. GOLD PLATING

5=1.27um(50u")MIN. GOLD PLATING

6=0.25um(10u")MIN. GOLD PLATING

A=0.76um(30u")MIN. FPT PLATING,

0.25um(10u")MIN. GOLD INCLUDED

Package Type:

A=Tube

Extension Code:

N,T,L,M

BODY STYLE

Selective Pin Pattern

(Detail Please Refer To

Customer Drawing)

Tail Style:

P=Press Fit

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
