ROHS COMPLIANT
PRODUCT DATA DRAWING
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
B
DCN 42455
06/16
STW
1.042 26.45
.460 11.68
90°
.430 10.92
.437 11.10
1/4-36 UNS-2A
MATERIAL:
BODY,
WASHERS &
COUPLING NUT:
LOCK RING &
CONTACTS:
SPRING:
INSULATOR:
.250 ACROSS
FLATS
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1; OR ASTM A582
TYPE 303, COND A
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04
17-7 PH STAINLESS STEEL
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
FINISH:
BODY,
WASHERS &
COUPLING NUT:
CONTACTS:
PASSIVATED PER AMS-2700
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS .76, OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00003" MIN.
MATERIAL:
FINISH:
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
50 OHMS
DC TO 12.4 GHz.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994

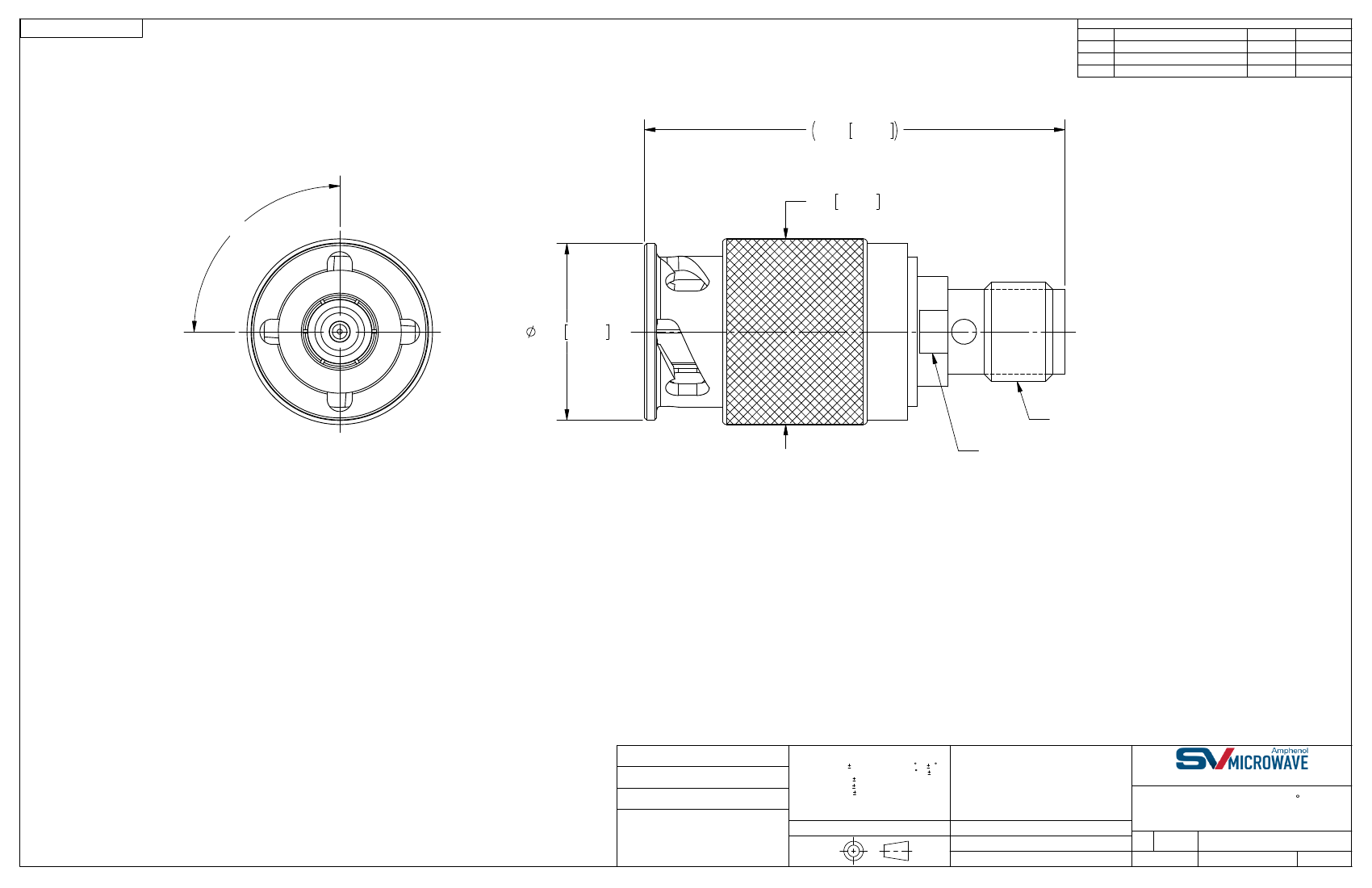

SMA JACK TO 90
ZMA PLUG ADAPTER
95077
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
VMJ 12/03/98
JM 12/04/98
JM 12/04/98
SIZE CAGE CODE DWG. NO.
B
SF1122-6031
SHEET 1 OF 1
SCALE: 5:1
