L177DC37SST3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> L177DC37SST3

L177DC37SST3: DescriptionD Subminiature Connector, 37 Contact(s), Female, Screw Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size8MB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

L177DC37SST3 Overview

D Subminiature Connector, 37 Contact(s), Female, Screw Terminal, ROHS COMPLIANT

L177DC37SST3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-24308
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	BRONZE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED THREMOPLASTIC
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	D-ST
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Termination type	SCREW
Total number of contacts	37
UL Flammability Code	94V-0
Base Number Matches	1

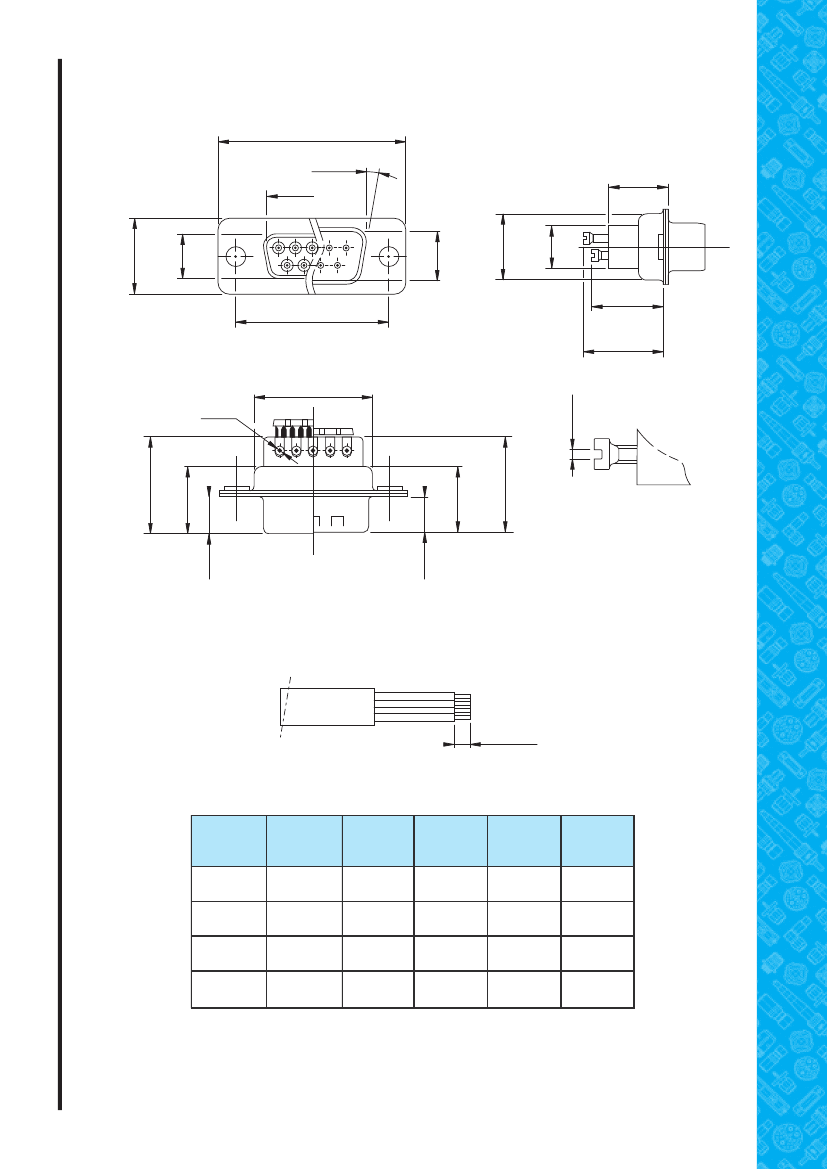

Preview

Download Datasheet

View All

D-ST

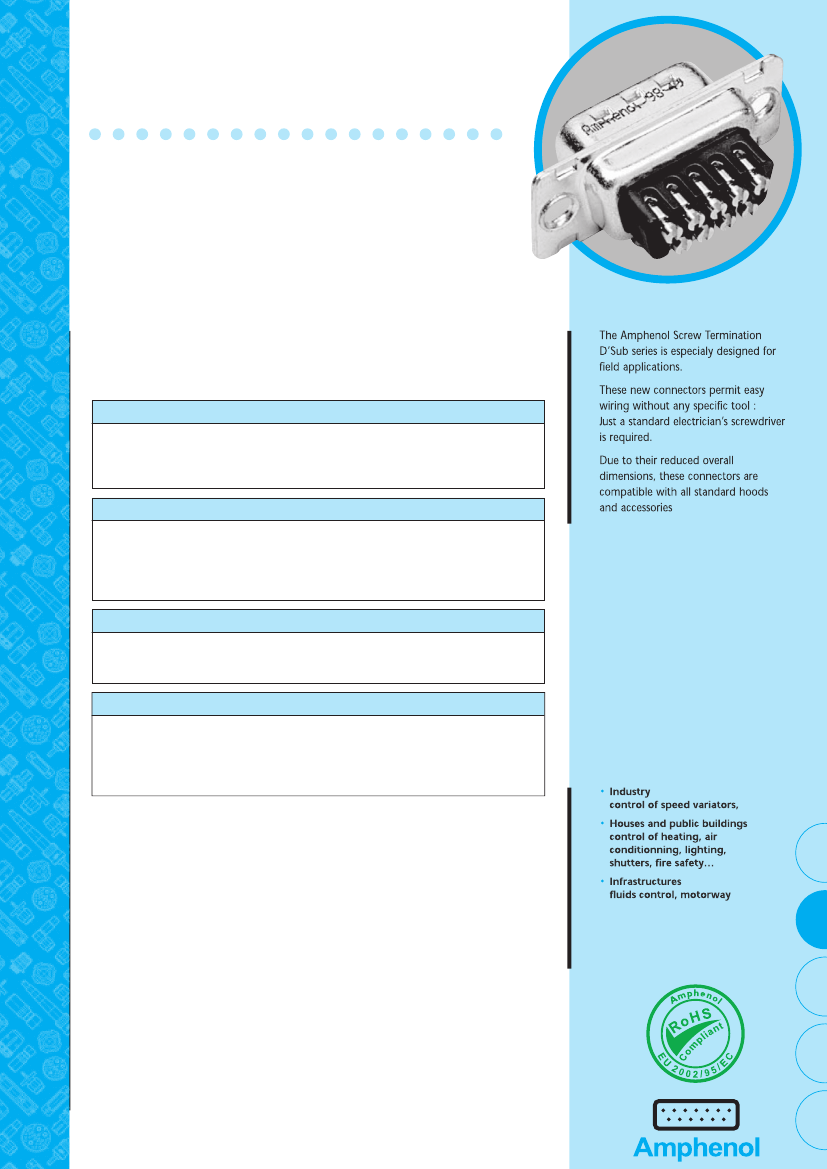

Screw Termination D’Sub series

CHARACTERISTICS

DESCRIPTION

• Connectors according to: MIL C24308 - NFC 93425-HE5

Materials and platings

Shells

Insulator

Contacts

Steel, Tin plated

Glass filled thermoplastic, UL 94V-0

Machined brass for plug full gold

Machined bronze for socket, full gold

Electrical Data

Current rating

Voltage rating

Withstanding voltage

Insulation resistance

Contact resistance

7,5 A max

300 V RMS at 50 Hz

1000 V RMS at 50 Hz

> 5000 MΩ at 500 V DC

< 5 mΩ

Climatic Data

Operating temperature

Damp heat

Salt spray

- 55°C to + 85°C, peak at 125°C

21 days (40°C - 95% HR)

48 hours

Mechanical Data

Cable type

Cable gage

Screw torque

Mating cycles

Solid or stranded

0.75 mm max ( AWG 18 ) - For

bigger wire, please consult factory

0.05 mN max

100 (class II) or 500 (class I)

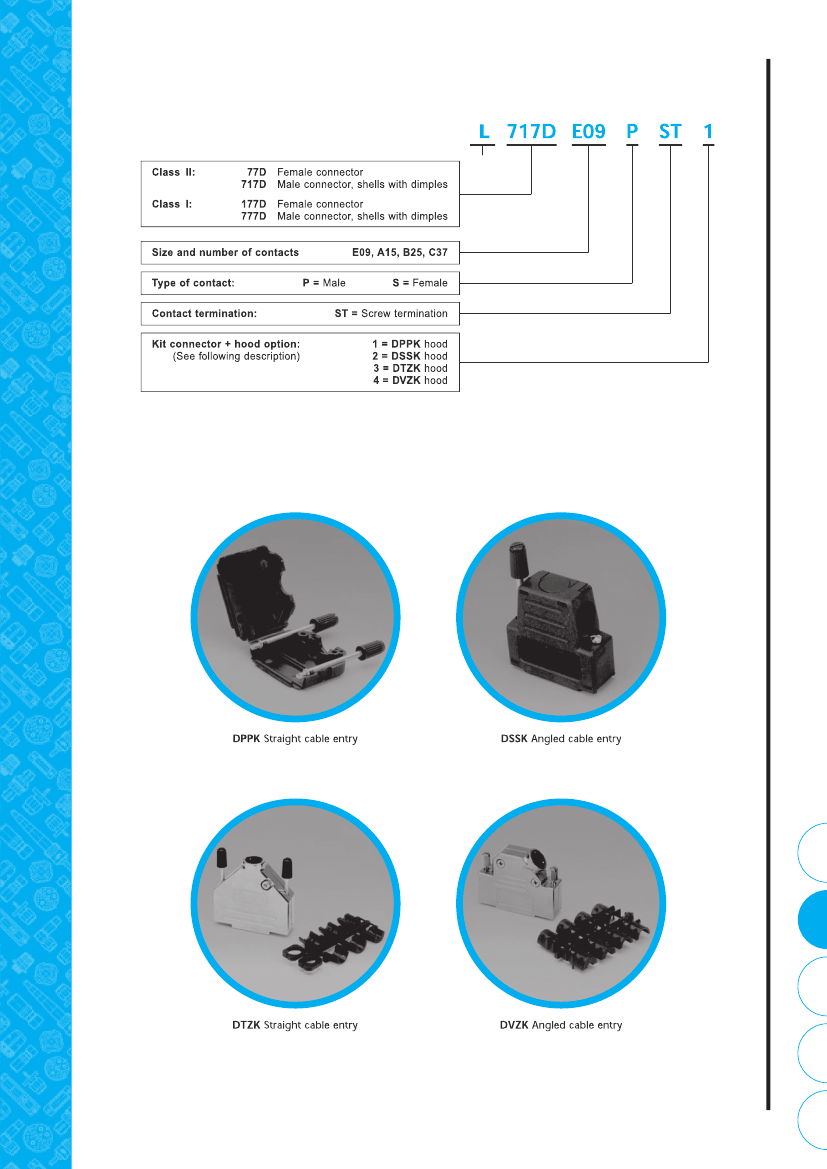

Simplify

Your cable

assemblies!

APPLICATIONS
