1F221501-P3010N-AN datasheet, PDF

Datasheet> All Categories > The connector> The connector> 1F221501-P3010N-AN

1F221501-P3010N-AN: DescriptionBoard Connector, 150 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle,; CategoryThe connector The connector; File Size97KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

1F221501-P3010N-AN Overview

Board Connector, 150 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle,

1F221501-P3010N-AN Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	1F
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	150
UL Flammability Code	94V-0
Base Number Matches	1

1F221501-P3010N-AN Preview

Download Datasheet

View All

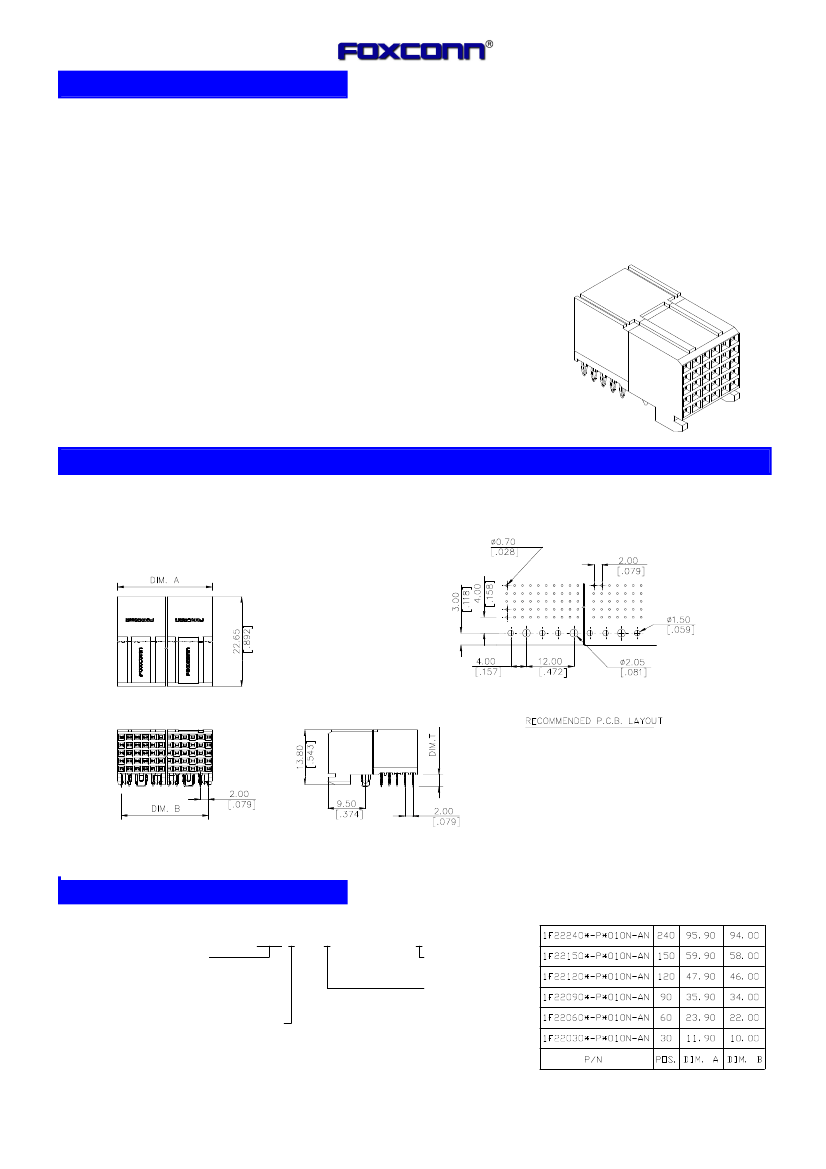

SPECIFICATIONS

FUTURE BUS CONNECTOR

1F Series,

Rec. Pr ess Fit Type

2.0mm Pitch

5Row s

Mechanical

Contact Retention Force:

0.50Kg min.

Electrical

Voltage Rating:

750V

Current Rating:

Contact Resistance:

55m

Ω

max.

Dielectrical Withstanding Voltage:

1000V

Insulation Resistance:

1000M

Ω

min.

Physical

Housing:

LCP, UL 94-0, Ivory White

Contact:

Phosphor Bronze

Plating:

See “ORDERING INFORMATION”

DRAWING

第Ⅳ區

ORDERING I NF OR MATI ON

PRODUCT NO.: 1 F 2 2 * * * * - P * 0 1 0 N - A *

POS. NO.

030: 30 POS.

060: 60 POS.

090: 90 POS.

120: 120 POS.

150: 150 POS.

240: 240 POS.

LEAD FREE CODE

N: NONE

F: LEAD FREE PLATING

TAIL LENGTH (T)

1: 2.95mm

2: 2.73mm

3: 3.53mm

MATING AREA PLATING

1: GOLD FLASH

3: 0.76um(30u")MIN. GOLD PLATING

5: 1.27um(50u")MIN. GOLD PLATING

6: 0.25um(10u")MIN. GOLD PLATING

A: 0.76um(30u")MIN. FPT PLATING

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
