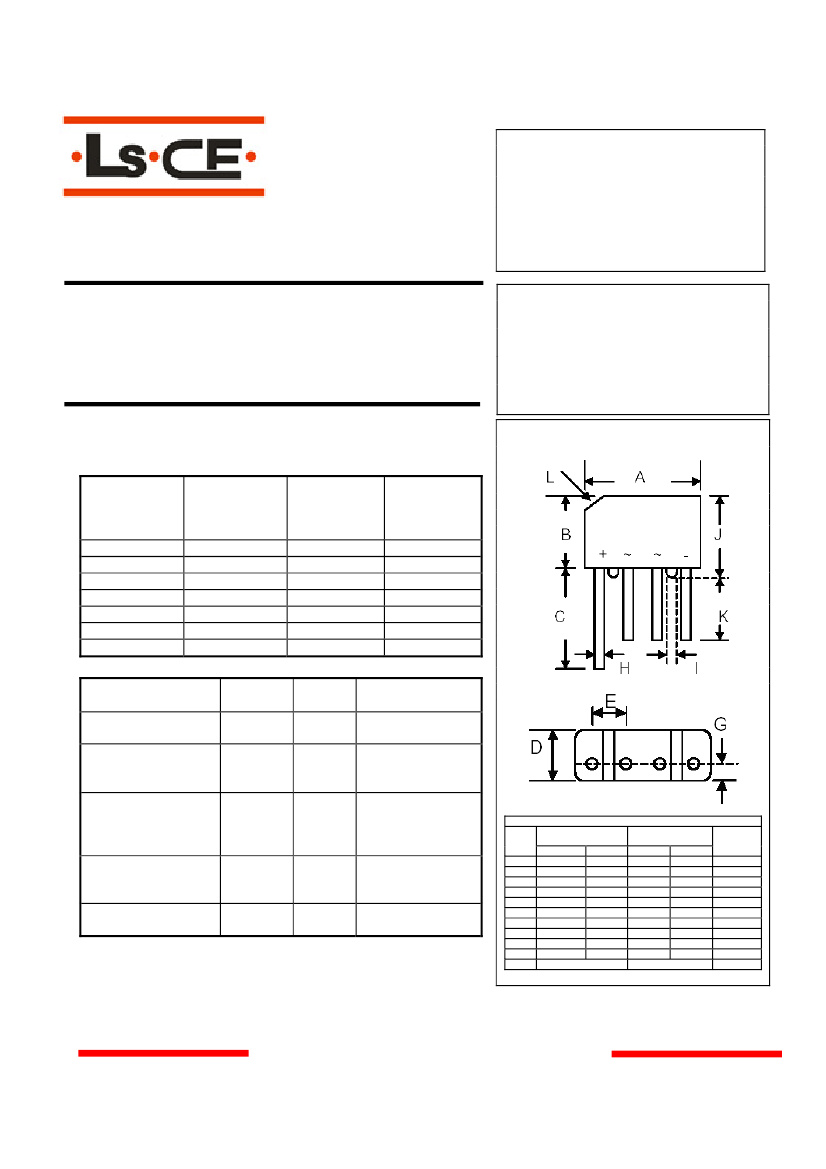

KBP2005

THRU

KBP210

2.0

Amp Glass

Passivated Bridge

Rectifier

50 to 1000 Volts

KBP

Features

•

Glass Passivated Die Construction

Low Forward Voltage Drop

Ideal for Printed Circuit Boards

High Surge Current Capability

•

Maximum Ratings

Operating Temperature: -55°C to +150°C

Storage Temperature: -55°C to +150°C

Maximum

Recurrent

Peak Reverse

Voltage

50V

100V

200V

400V

600V

800V

1000V

Maximum

RMS Voltage

35V

70V

140V

280V

420V

560V

700V

Maximum DC

Blocking

Voltage

50V

100V

200V

400V

600V

800V

1000V

Part Number

KBP2005

KBP201

KBP202

KBP204

KBP206

KBP208

KBP210

Electrical Characteristics @ 25°C Unless Otherwise Specified

Average Forward

I

F(AV)

2.0A

T

a

= 50°C

Current

Note1

Peak Forward Surge

I

FSM

50A

8.3ms, half sine

Current

Maximum

Forward

I

F

= 1.5A per

V

F

Voltage Drop Per

element;

1.1V

Element

T

J

= 25°C

Maximum DC

Reverse Current At

I

R

T

a

= 25°C

10µA

Rated DC Blocking

0.5mA T

a

= 100°C

Voltage

Typical Junction

Measured at

Capacitance per

Cj

15PF

1MHZ,

element

VR=4V(DC)

Typical Thermal

Rthja

28 K/W

Note2

Resistance

Note: 1. Leads maintained at ambient temp. at a distance of 9.5mm

from the case

2. Mounted on PC board with 12mm

2

copper pad

DIMENSIONS

INCHES

MIN

MAX

.559

.60

.42

.46

.60

---

.168

.20

.142

.161

.085

.105

.03

.034

.06

---

.46

.50

---

3.2*45

0

Typ.

MM

MIN

MAX

14.22

15.24

10.67

11.68

15.2

---

4.30

5.08

3.60

4.10

2.16

2.67

0.76

0.86

1.52

---

11.68

12.70

12.7

---

3.2*45

0

Typ.

DIM

A

B

C

D

E

G

H

I

J

K

L

www.cnelectr.com
