Complement to KB Pushbuttons
TYPICAL INDICATOR ORDERING EXAMPLE
KB Indicators
FF
KB
SHAPES
02
K
W01
LAMPS
12
CAP TYPES & COLORS
Solid Cap: Lens/Filter Colors
BB
CB
CC
EB
White/White
Red/White
Red/Red
Yellow/White
FB
FF
GB
GG
Bushing Mounting
01
02
03
04
05
06
Square
Round
Rectangular
Square
Round
Rectangular
Incandescent Lamp used w/Solid Cap
05
12
5-volt
12-volt
Green/White
Green/Green
Blue/White
Blue/Blue
Snap-in Mounting
Incandescent or Neon Lamp
used with Insert Cap
05
12
01
5-volt
12-volt
110-volt Neon
Insert Cap: Lens/Filter Colors
JB
JC
JE
*
JF
*
JG
Clear/White
Clear/Red
Clear/Yellow
Clear/Green
Clear/Blue
* JF & JG not suitable with neon.
HOUSING
K
Black only
Bright LED used with Cap for LED
Colors
5C
Red
Resistor
No Code
05
12
24
No Resistor
5-volt
12-volt
24-volt
LED Cap: Lens/Diffuser Colors
AB
JB
JC
JD
JF
Square Spot Illuminated
Black Cap/White Window
Clear/White
Clear/Red
Clear/Amber
Clear/Green
LED Cap: Lens/Diffuser Colors
JB
Clear/White
TERMINALS
W01
Silver Solder Lug
5D
Amber
5F
Green
Super Bright LED used w/Cap for LED
6B
6F
6G
White
Green
Blue
DESCRIPTION FOR TYPICAL
ORDERING EXAMPLE
12-volt Incandescent Lamp
Solid Cap with Green Lens
and Green Filter
Black Housing
Round with Bushing Mounting
KB02KW01-12-FF
Silver Solder Lug Terminals
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
Complement to KB Pushbuttons

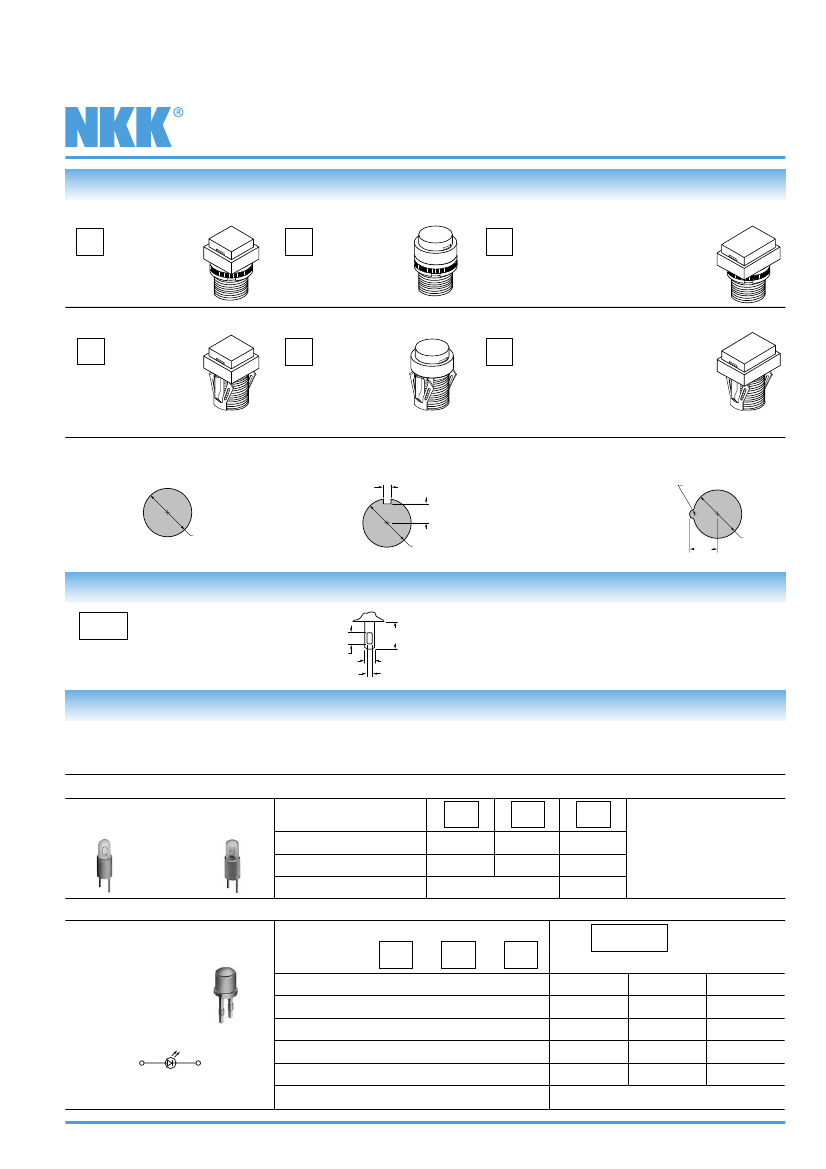

SHAPES & MOUNTING TYPES
Bushing Mounting
KB Indicators
01
.551” (14mm)
Square
02
.551” (14mm)
Round
03
.551” x .728” (14mm x 18.5mm)
Rectangular
Snap-in Mounting
04
.551” (14mm)
Square
05
.551” (14mm)
Round
06
.551” x .728” (14mm x 18.5mm)
Rectangular
The bezel is an integral part of the indicator body.
Bushing Mounting
Without
Keyway
Panel Thickness:
.020” ~ .315”
(0.5 ~ 8mm)
Panel Cutouts
(1.8)
.071
(4.9)
.193
(12.3) Dia
.484
Snap-in Mounting
(1.2) R
.047
(12.3) Dia
.484
With
Keyway
Panel Thickness:
.039” ~ .138”
(1.0 ~ 3.5mm)
(6.8)
.268
(12.3) Dia
.484
TERMINALS
W01
Silver Solder Lug
(2.0)
.079
(1.0)
.039
(5.0)
.197
(1.8)
.071
Thk = (0.2)
.008
LAMP COLORS & SPECIFICATIONS
The electrical specifications shown are determined at a basic temperature of 25°C.
If the source voltage exceeds the rated voltage,a ballast resistor is required.
The ballast resistor calculation and more lamp detail are shown in the Supplement section.
Incandescent & Neon Lamps
AT611
Incandescent
AT615
Neon
05
Voltage
Current
V
I
Hours
Red
Color Codes
5V AC
115mA
12
12V AC
60mA
01
110V AC
1.5mA
10,000
Recommended Resistors
for Neon:
33K ohms for 110V AC;
100K ohms for 220V AC
T-1 Bi-pin
Endurance
7,000 average
Amber
Green
Bright LED without Resistor
AT635
LEDs are colored
in OFF state.
5C
5D
5F
I
FM
I
F
V
F
V
RM
∆I
F
No Code
Red
30mA
20mA
1.9V
5V
0.42mA/°C
No Resistor
Green
30mA
20mA
2.1V
5V
0.42mA/°C
Amber
30mA
20mA
2.0V
5V
0.29mA/°C
–25° ~ +50°C
Forward Peak Current
Continuous Forward Current
Forward Voltage
Reverse Peak Voltage
Current Reduction Rate Above 25°C
Ambient Temperature Range
(+)
(-)
T-1
1
⁄
2
Bi-pin
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
Complement to KB Pushbuttons

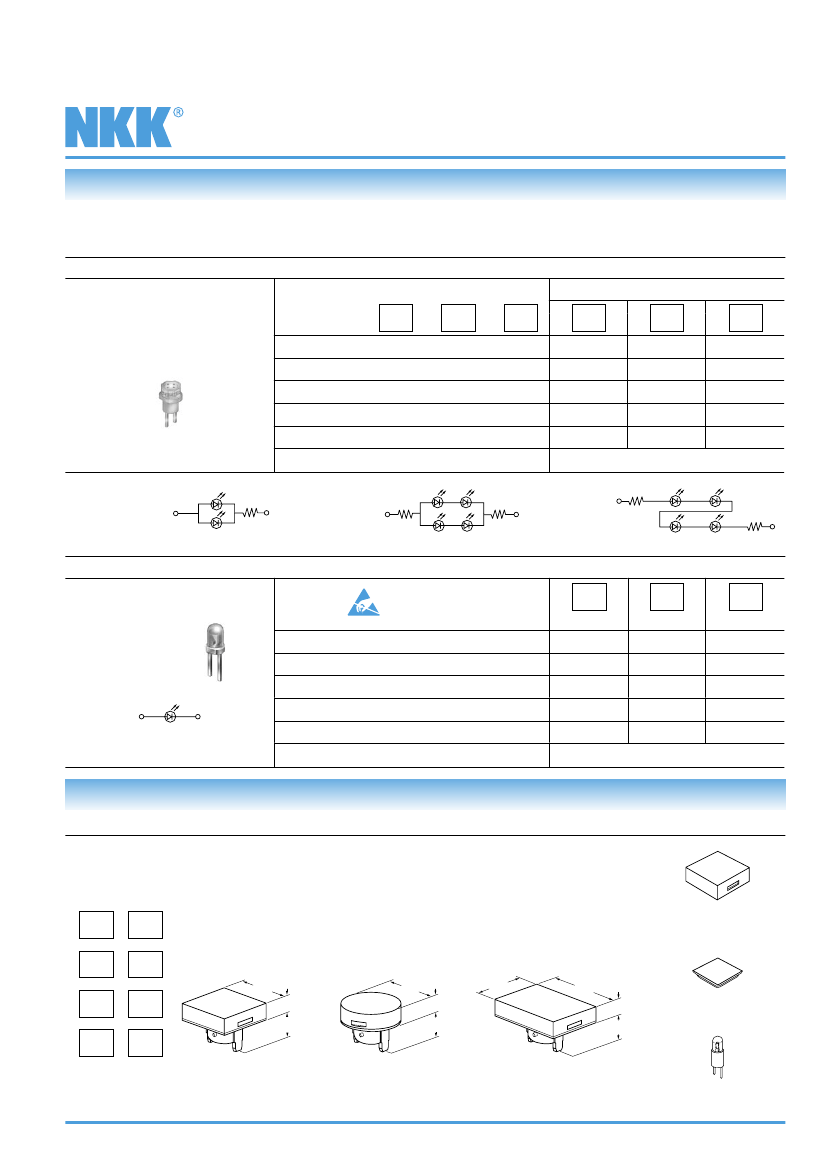

LAMP COLORS & SPECIFICATIONS
KB Indicators
The electrical specifications shown are determined at a basic temperature of 25°C.
If the source voltage exceeds the rated voltage,a ballast resistor is required.
The ballast resistor calculation and more lamp detail are shown in the Supplement section.
Bright LED with Resistor
AT634
LEDs are colored
in OFF state.
Color Codes:
Red
Amber
Green
Resistor Codes
5C
5D
5F
I
FM
I
F
V
F
V
RM
∆I
F
05
—
25mA
5V
4V
—
12
—
20mA
12V
8V
—
–25° ~ +50°C
24
—
10mA
24V
16V
—
Forward Peak Current
Continuous Forward Current
Forward Voltage
Reverse Peak Voltage
Current Reduction Rate Above 25°C
Ambient Temperature Range
AT634
12-volt
(+)
4-element
with 2 Resistors
Super Bright Single Element LED
T-1
1
⁄
4
Bi-pin
AT634
5-volt
2-element
with 1 Resistor
(+)
(-)
(-)
AT634
(+)
24-volt
4-element
with 2 Resistors
(-)
AT625G Blue
AT631B White
AT632F Green
Electrostatic
Sensitive Devices
Attention
6B
Color
I
FM
I
F
V
F
V
RM
∆I
F
White
30mA
20mA
3.6V
5V
0.50mA/°C
6F
Green
30mA
20mA
3.5V
5V
0.50mA/°C
–25° ~ +50°C
6G
Blue
30mA
20mA
3.6V
5V
0.50mA/°C
Forward Peak Current
Continuous Forward Current
Forward Voltage
Reverse Peak Voltage
Current Reduction Rate Above 25°C
Ambient Temperature Range
(+)
(-)
T-1 Bi-pin

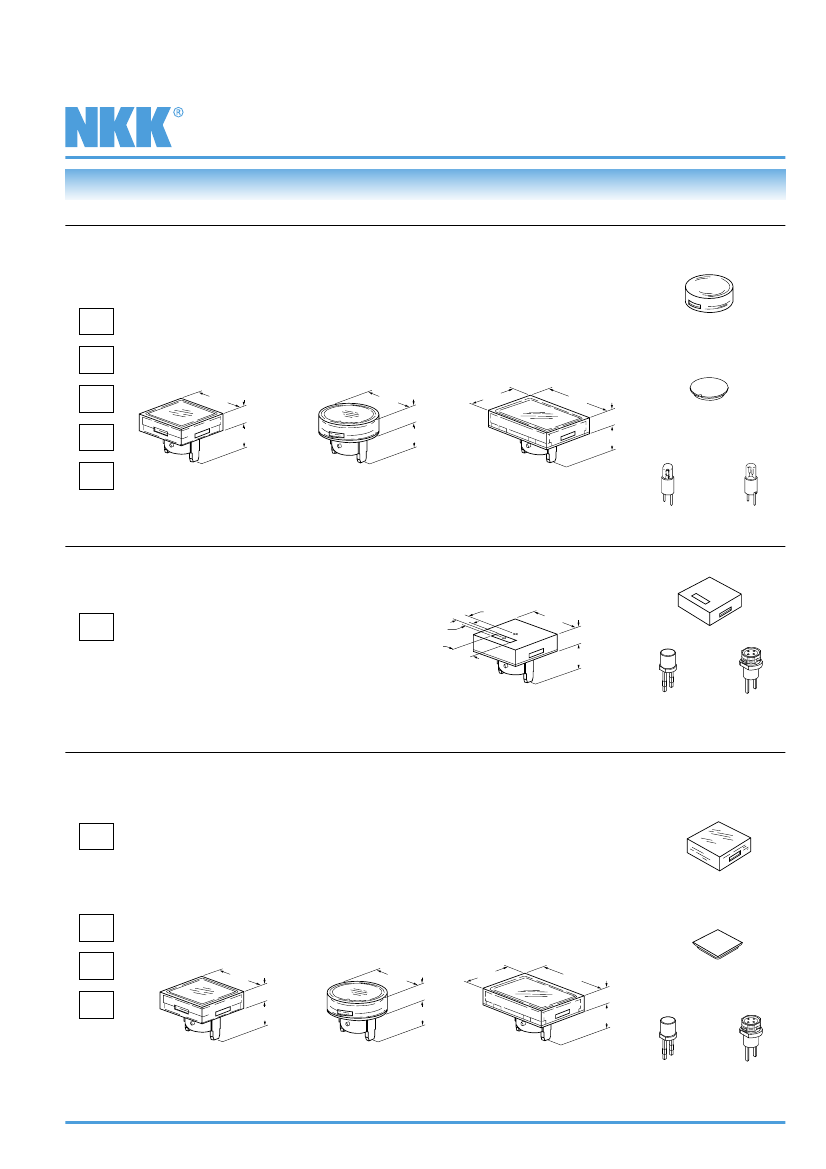

CAP TYPES & COLOR COMBINATIONS
Color Codes:
B
White
C
Red
E
Yellow
F
Green
G
Blue
J
Clear
Solid Cap for Incandescent Lamp
Lens/Filter Colors Available:
AT485
Square
AT486
Round
AT4021
Rectangular
Translucent Colored Lens
BB
CB
CC
EB
FB
FF
GB
GG
(11.6) Sq
.457
(4.5)
.177
(6.2)
.244
(11.6) Dia
.457
(4.5)
.177
(6.2)
.244
(11.6)
.457
(16.1)
.634
(4.5)
.177
(6.3)
.248
Translucent Colored Filter
Material: Polycarbonate
Finish: Glossy
Lamp AT611
03-07
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
Complement to KB Pushbuttons
CAP TYPES & COLOR COMBINATIONS
Color Codes:
A
Black
B
White
C
Red
D
Amber
E
Yellow
KB Indicators
G
Blue
J
Clear
F
Green
Insert Cap for Incandescent or Neon Lamp
Lens/Filter Colors Available:
JB
JC
JE
JF
JG
AT487
Square
AT488
Round
AT4022
Rectangular
Transparent Clear Lens
(11.6) Sq
.457
(4.5)
.177
(11.6) Dia
.457
(4.5)
.177
(6.2)
.244
(11.6)
.457
(16.1)
.634
(4.5)
.177
(6.3)
.248
(6.2)
.244
Translucent Colored Filter
JF and JG not suitable
with neon lamp.
Material: Polycarbonate
Finish: Glossy
Lamp AT611
Lamp AT615
Spot Illuminated Cap for Bright LED without Resistor or with Resistor
Cap/Window Colors Available:
AB
Opaque Black Cap with
Translucent White Window
for Spot Illumination
AT4051
Square
(3.0)
.118
(1.8)
.071
(5.0)
.197
(11.6) Sq
.457
(4.6)
.181
(6.2)
.244
Material: Polycarbonate
Finish: Matte
Bright LED
AT635
Bright LED
AT634
Cap for Bright LED without Resistor or LED with Resistor
Lens/Diffuser Colors Available:
(AT4133, 4132, 4134 white diffusers; AT4158, 4160, 4159 colored diffusers)
JB
AT4133
Square
AT4132
Round
AT4160
AT4134
Rectangular
AT4159
Transparent Clear Lens
JC
JD
JF
AT4158
(11.6) Sq
.457
(4.5)
.177
(11.6) Dia
.457
(4.5)
.177
(6.2)
.244
(11.6)
.457
(16.1)
.634
(4.5)
.177
(6.3)
.248
Translucent Diffuser
(6.2)
.244
Material: Polycarbonate
Finish: Glossy
Bright LED
AT635
Bright LED
AT634
03-07
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
Complement to KB Pushbuttons

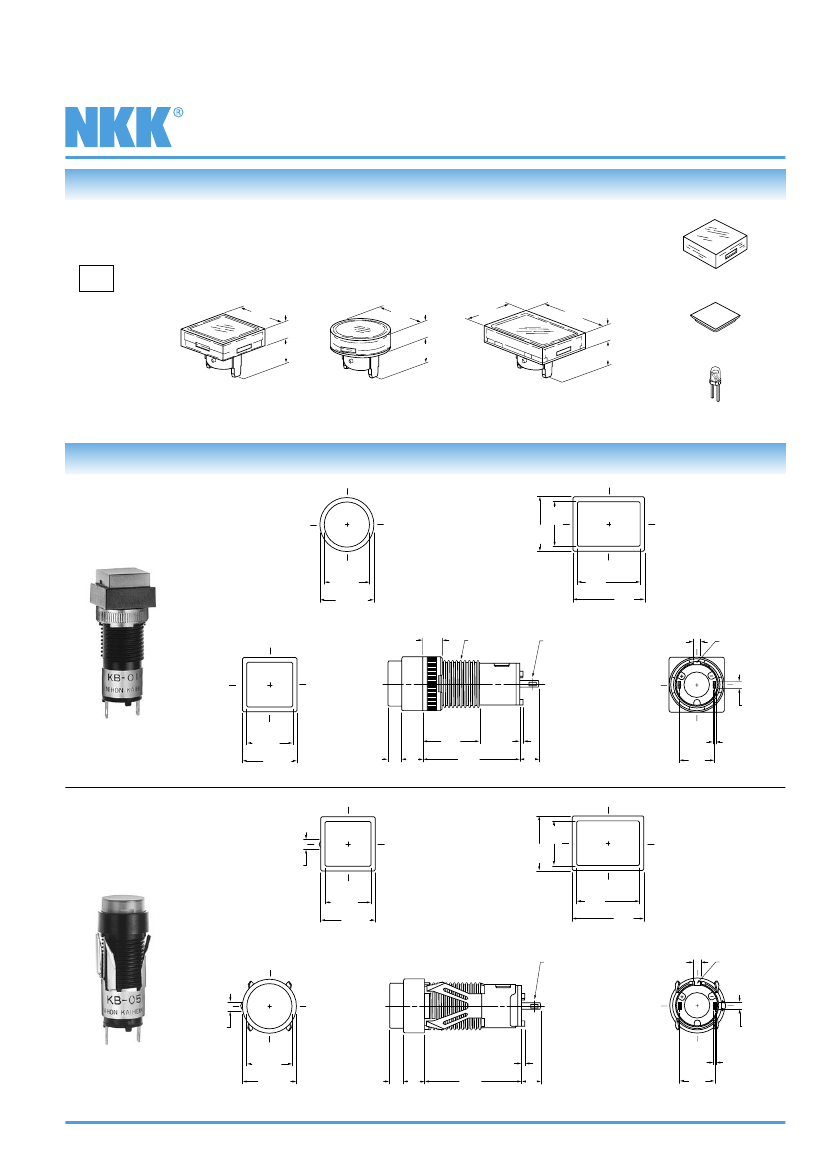

CAP TYPES & COLOR COMBINATIONS
Cap for Super Bright LED
Lens/Diffuser
Colors Available:
KB Indicators
JB
Clear Lens
White Diffuser
AT4133
Square
(11.6) Sq
.457
(4.5)
.177
AT4132
Round
(11.6) Dia
.457
(4.5)
.177
(6.2)
.244
(11.6)
.457
AT4134
Rectangular
(16.1)
.634
(4.5)
.177
(6.3)
.248
Translucent Clear Lens
(6.2)
.244
Translucent White Diffuser
Material: Polycarbonate
Finish: Glossy
Super Bright LEDs
AT625, AT631, AT632
TYPICAL SWITCH DIMENSIONS
Bushing Mount
(11.6)
.457
(14.0)
.551
(11.6) Dia
.457
(14.0) Dia
.551
(16.1)
.634
(18.5)
.728
(5.0)
.197
M12 P1
(1.0) x (2.0) Typ
.039 x .079
(1.8)
.071
Keyway
(1.8) Typ
.071
(11.6) Sq
.457
(14.0) Sq
.551
(14.2)
.559
(3.5)
.138
(5.3)
.209
(24.7)
.972
(1.0)
.039
(5.0)
.197
(9.0)
.354
(0.2) Typ
.008
KB01KW01-05-GG
Snap-in Mount
(11.6)
.457
(14.0)
.551
(2.3)
.090
(11.6) Sq
.457
(14.0) Sq
.551
(16.1)
.634
(18.5)
.728
(1.0) x (2.0) Typ
.039 x .079
(1.8)
.071
Keyway
(2.3)
.090
(11.6) Dia
.457
(14.0) Dia
.551
(1.0)
.039
(3.5)
.138
(5.3)
.209
(24.7)
.972
(5.0)
.197
(9.0)
.354
(1.8) Typ
.071
(0.2) Typ
.008
KB05KW01-05-FF
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
03-07
