1,2,3,5019 datasheet, PDF - EEWORLD Datasheet

1,2,3,5019: DescriptionBoard Connector, 176 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size1MB，10 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

1,2,3,5019 Overview

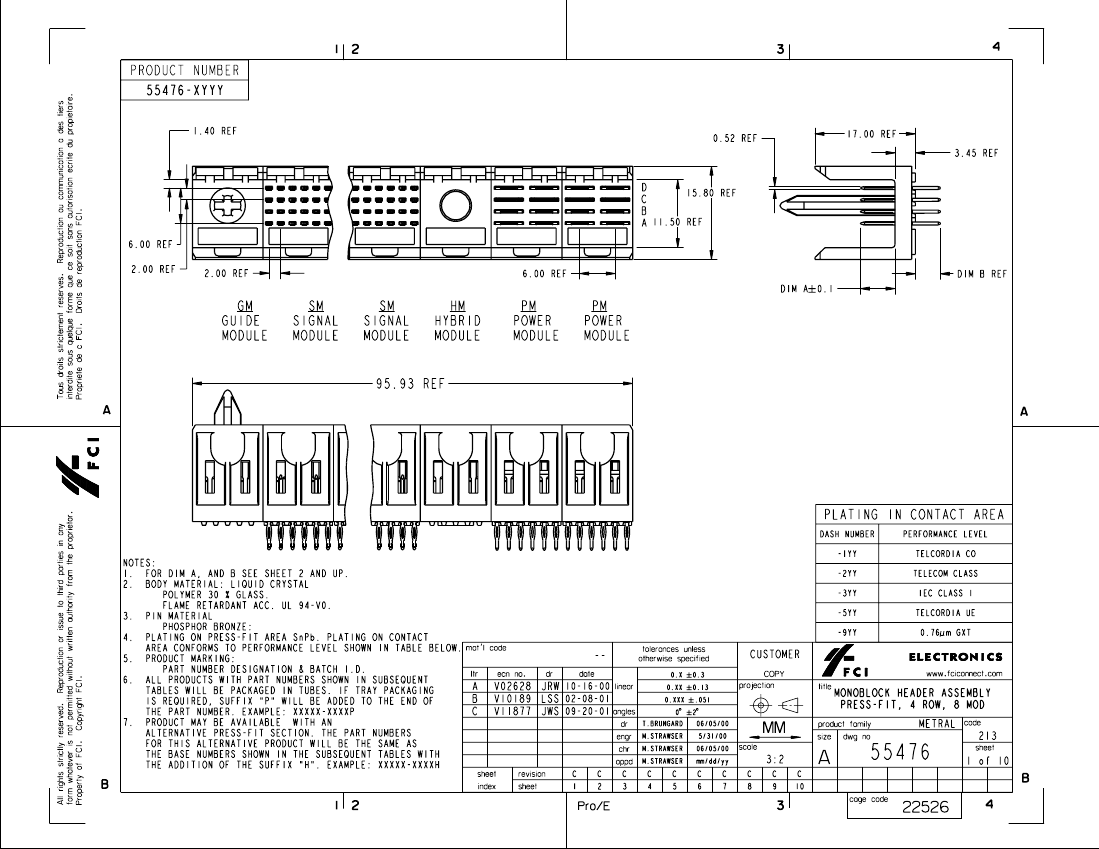

Board Connector, 176 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.00 MM
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	55476
Mixed contacts	YES
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	176
UL Flammability Code	94V-0
Base Number Matches	1

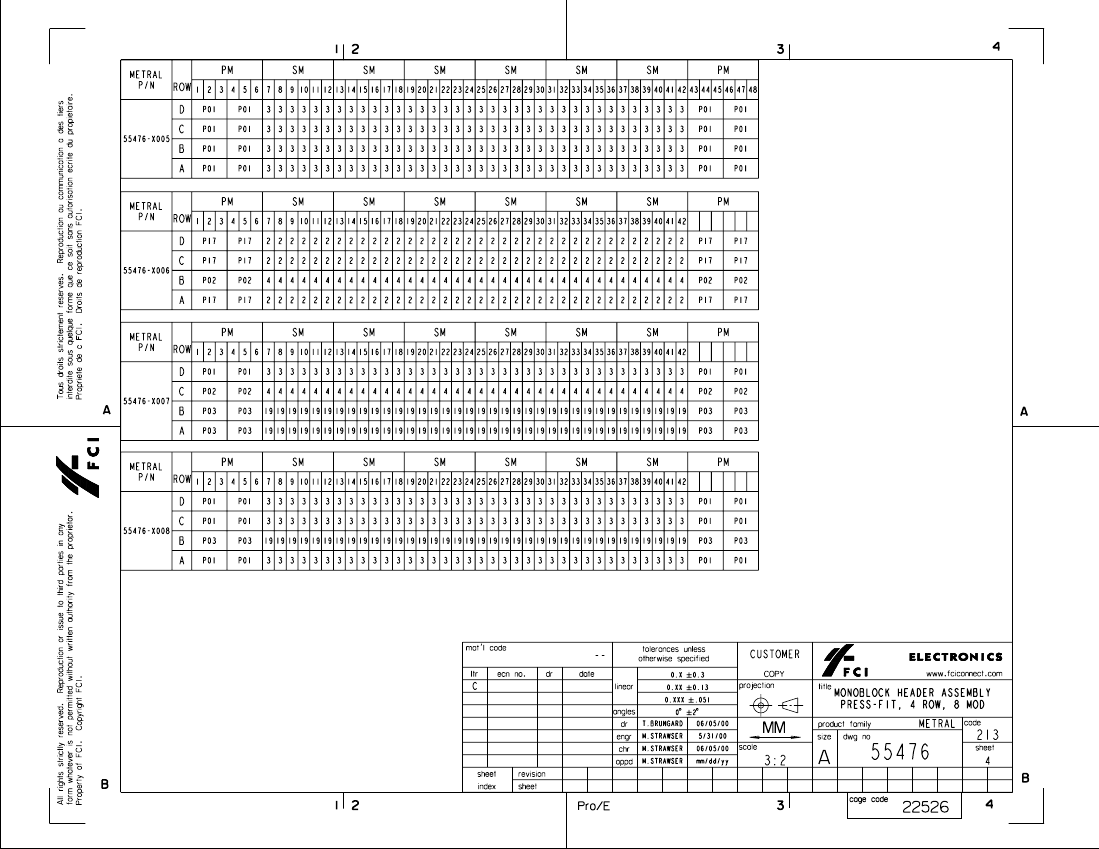

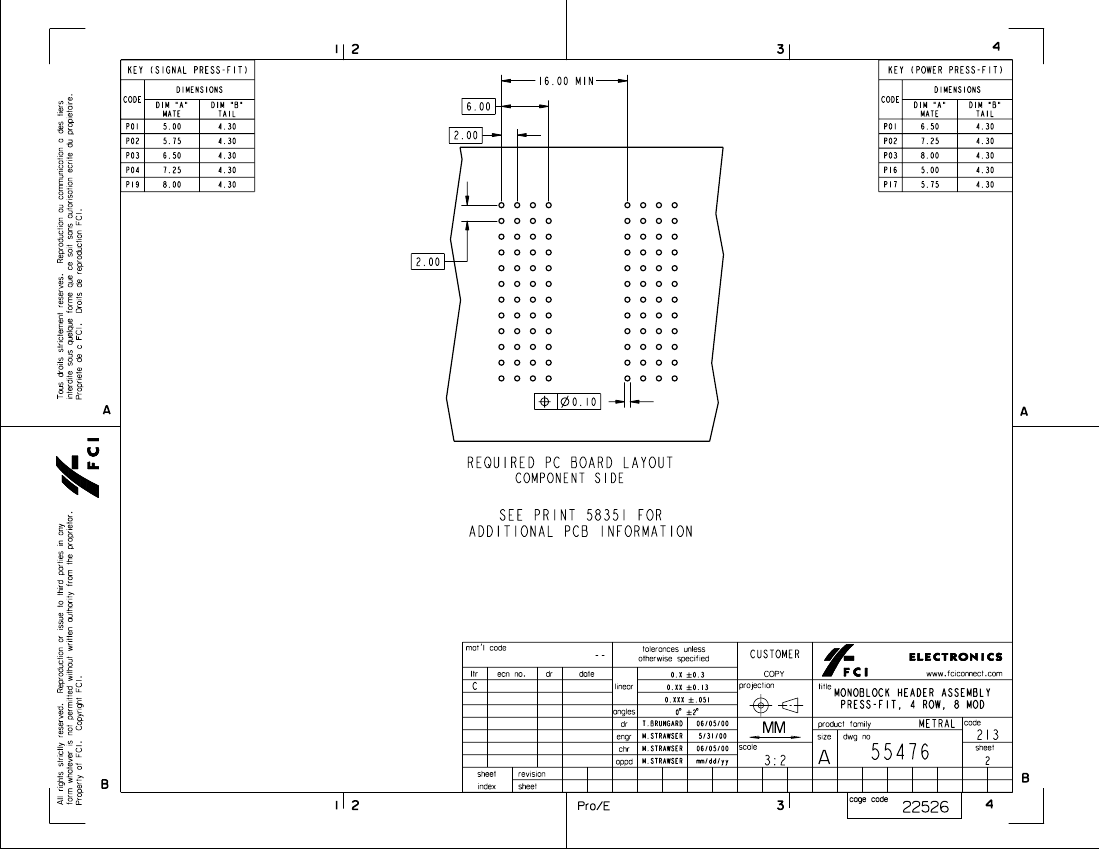

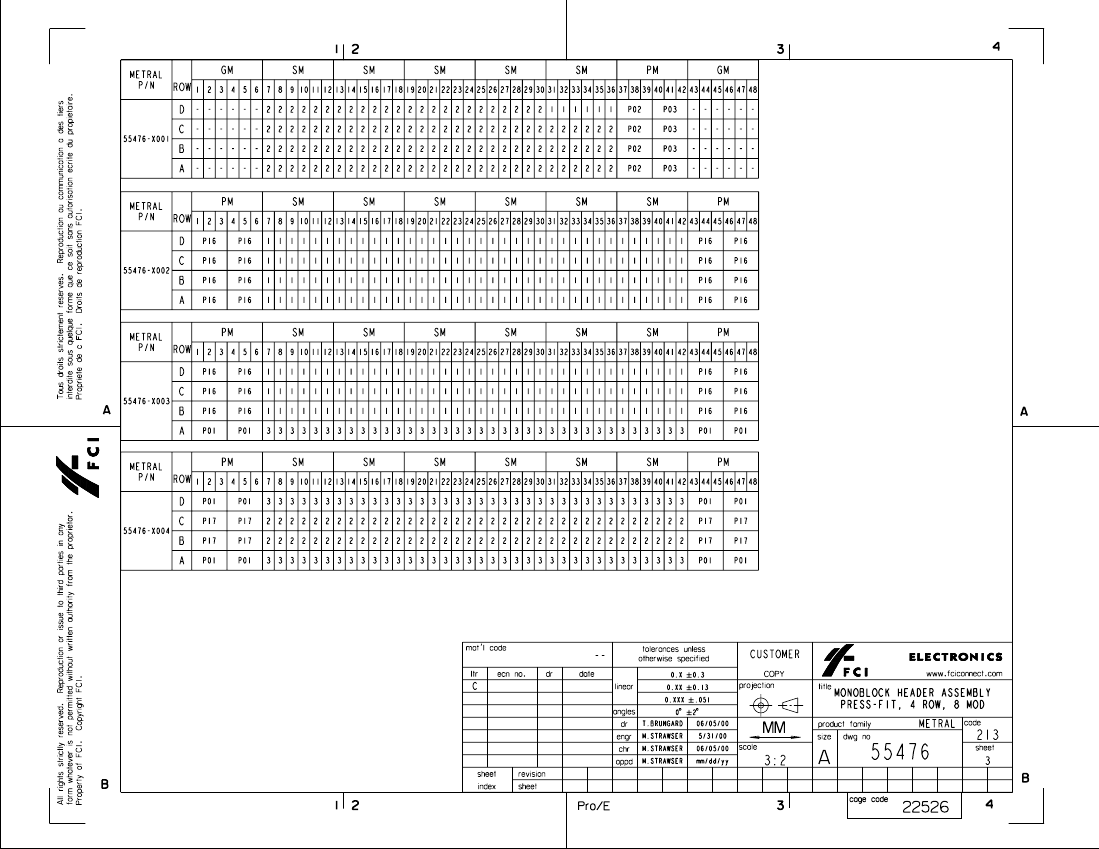

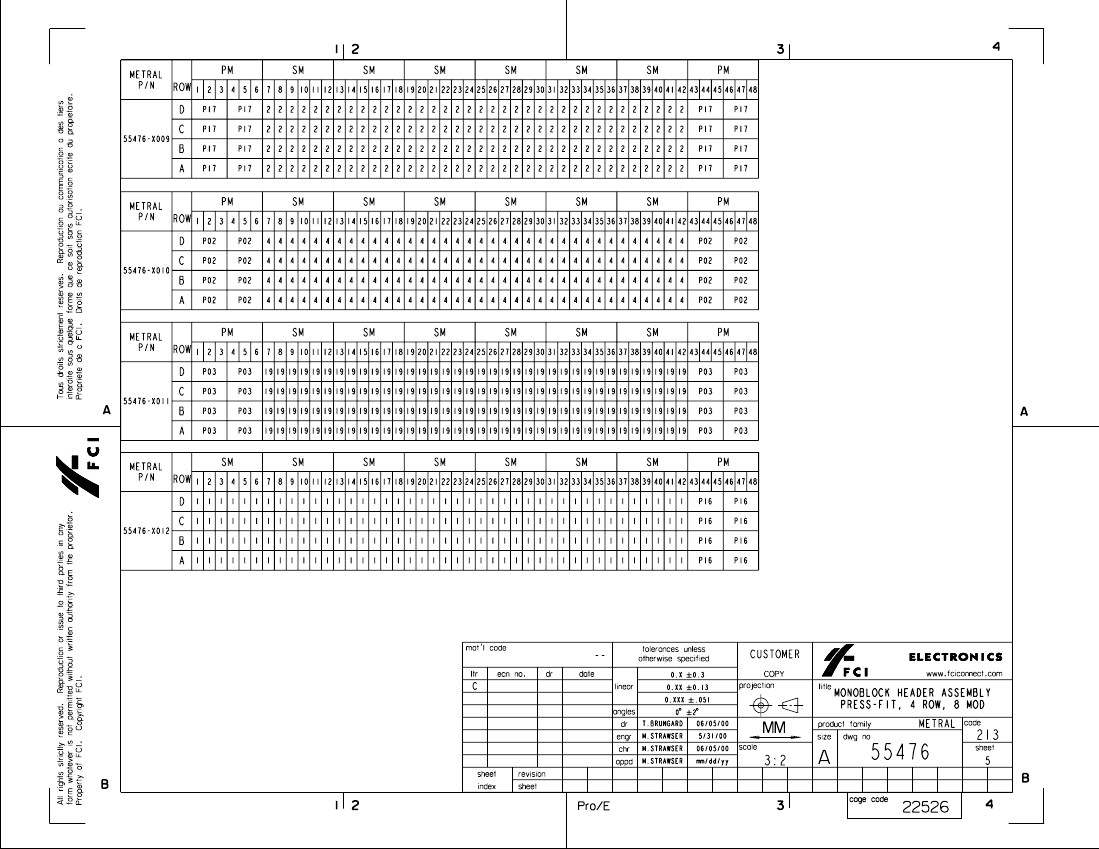

PDM: Rev:C

STATUS:

Released

Printed: Apr 23, 2005

.
