1-745967-3: DescriptionCONNECTOR,D-SHELL,PCB MNT,PLUG,25 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,#4-40; CategoryThe connector The connector; File Size173KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1-745967-3 Overview

CONNECTOR,D-SHELL,PCB MNT,PLUG,25 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,#4-40

1-745967-3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
body width	0.494 inch
body length	2.09 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
MIL compliance	YES
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	ROUND STANDOFF
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Guideline	UL, CSA
reliability	MIL-C-24308
Shell surface	TIN
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	25
Base Number Matches	1

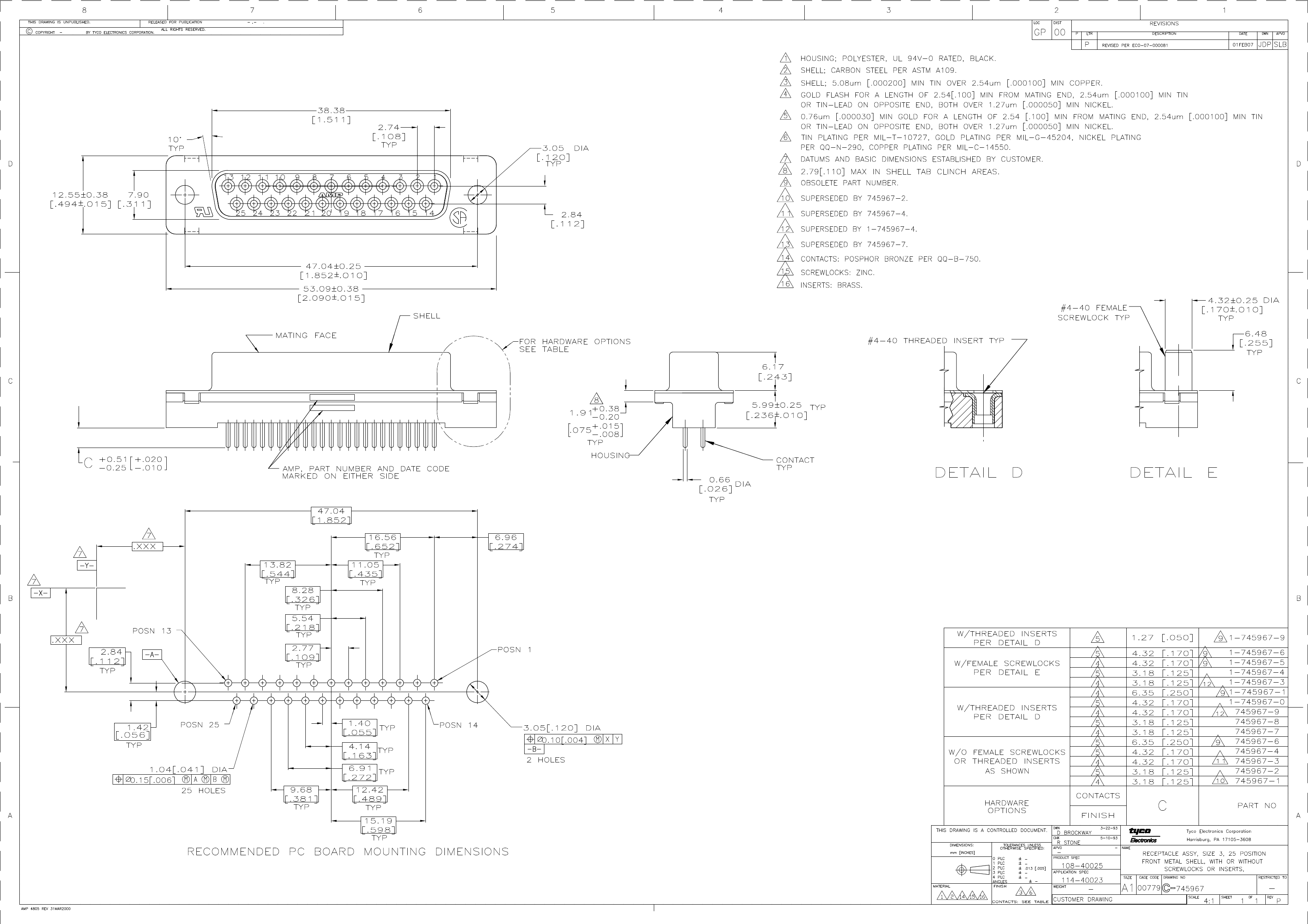

Preview

Download Datasheet

View All

1-745967-3 Related Products

	1-745967-3	1-745967-1	1-745967-9	745967-1	745967-3	745967-6	745967-9
Description	CONNECTOR,D-SHELL,PCB MNT,PLUG,25 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,#4-40	CONNECTOR,D-SHELL,PCB MNT,PLUG,25 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,#4-40	25 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR,D-SHELL,PCB MNT,PLUG,25 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,HOLE .112-.124	CONNECTOR,D-SHELL,PCB MNT,PLUG,25 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,HOLE .112-.124	CONNECTOR, 25 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR,D-SHELL,PCB MNT,PLUG,25 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,#4-40
Reach Compliance Code	unknow	unknow	unknown	unknown	unknown	unknown	unknown
Body/casing type	PLUG	PLUG	RECEPTACLE	PLUG	PLUG	RECEPTACLE	PLUG
Contact to complete cooperation	AU ON NI	AU ON NI	GOLD (30) OVER NICKEL	AU ON NI	AU ON NI	GOLD (30) OVER NICKEL	AU ON NI
Contact completed and terminated	GOLD	GOLD	TIN (100)/TIN LEAD OVER NICKEL	GOLD	GOLD	TIN (100)/TIN LEAD OVER NICKEL	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE
insulator material	THERMOPLASTIC	THERMOPLASTIC	POLYESTER	THERMOPLASTIC	THERMOPLASTIC	POLYESTER	THERMOPLASTIC
MIL compliance	YES	YES	NO	YES	YES	NO	YES
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	CARBON STEEL	STEEL	STEEL	CARBON STEEL	STEEL
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	25	25	25	25	25	25	25
body width	0.494 inch	0.494 inch	-	0.494 inch	0.494 inch	-	0.494 inch
body length	2.09 inch	2.09 inch	-	2.09 inch	2.09 inch	-	2.09 inch
contact mode	STAGGERED	STAGGERED	-	STAGGERED	STAGGERED	-	STAGGERED
Contact resistance	15 mΩ	15 mΩ	-	15 mΩ	15 mΩ	-	15 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	-	RND PIN-SKT	RND PIN-SKT	-	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	-	1000VAC V	1000VAC V	-	1000VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	-	5000000000 Ω	5000000000 Ω	-	5000000000 Ω
Insulator color	BLACK	BLACK	-	BLACK	BLACK	-	BLACK
Plug contact pitch	0.109 inch	0.109 inch	-	0.109 inch	0.109 inch	-	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	-	0.112 inch	0.112 inch	-	0.112 inch
Installation option 1	#4-40	#4-40	-	HOLE .112-.124	HOLE .112-.124	-	#4-40
Installation method	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	-	STRAIGHT
PCB row number	2	2	-	2	2	-	2
Number of rows loaded	2	2	-	2	2	-	2
PCB contact pattern	STAGGERED	STAGGERED	-	STAGGERED	STAGGERED	-	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	-	2.8448 mm	2.8448 mm	-	2.8448 mm
Plating thickness	FLASH inch	FLASH inch	-	FLASH inch	FLASH inch	-	FLASH inch
Guideline	UL, CSA	UL, CSA	-	UL, CSA	UL, CSA	-	UL, CSA
reliability	MIL-C-24308	MIL-C-24308	-	MIL-C-24308	MIL-C-24308	-	MIL-C-24308
Terminal length	0.125 inch	0.25 inch	-	0.125 inch	0.17 inch	-	0.17 inch
Terminal pitch	2.7686 mm	2.7686 mm	-	2.7686 mm	2.7686 mm	-	2.7686 mm
Base Number Matches	1	1	-	1	1	1	1
