10069524-202000 datasheet, PDF

10069524-202000: DescriptionBoard Stacking Connector, 200 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size373KB，6 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

10069524-202000 Overview

Board Stacking Connector, 200 Contact(s), 2 Row(s), Female, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, Receptacle,

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
Factory Lead Time	11 weeks 1 day
Other features	POLARIZED
Board mount options	PEG
body width	0.268 inch
subject depth	0.303 inch
body length	0.858 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (8) OVER NICKEL (50)
Contact completed and terminated	TIN LEAD OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	50 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	700VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	10069524
Plug contact pitch	0.031 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.3942 mm
Plating thickness	8u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.8 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	200
UL Flammability Code	94V-0
Base Number Matches	1

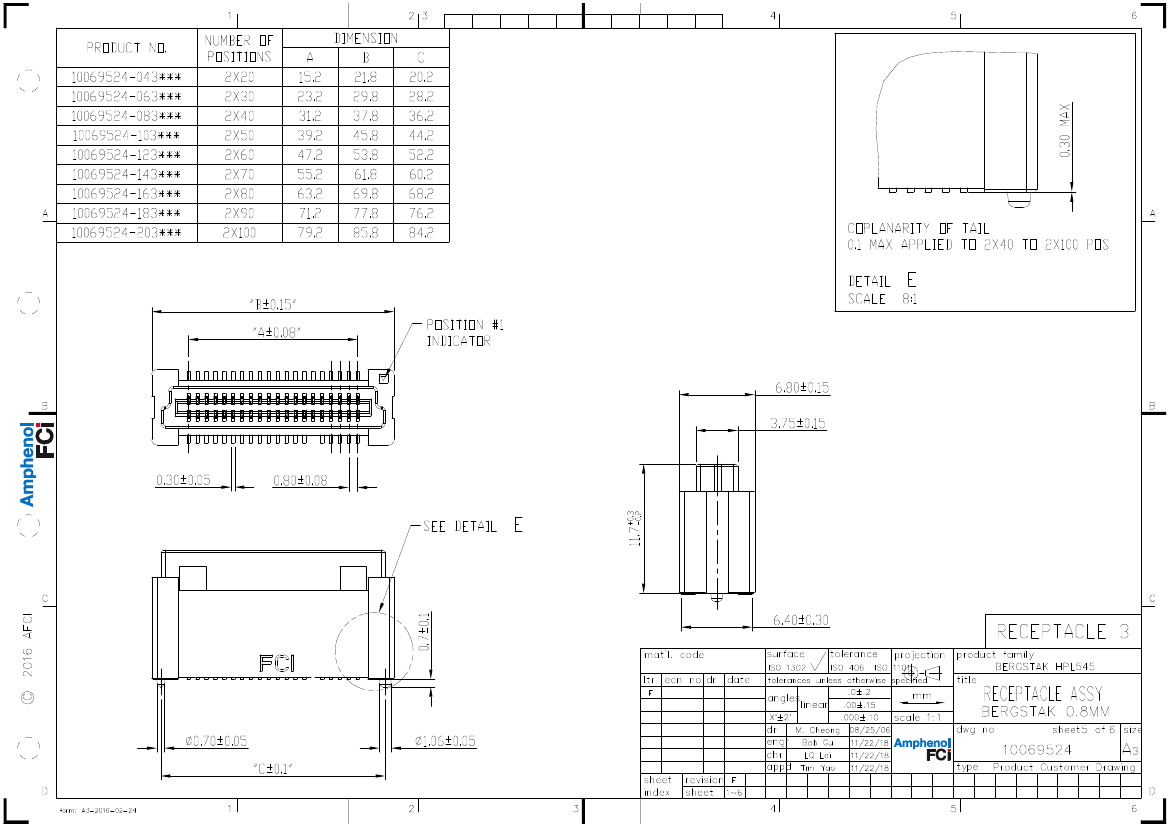

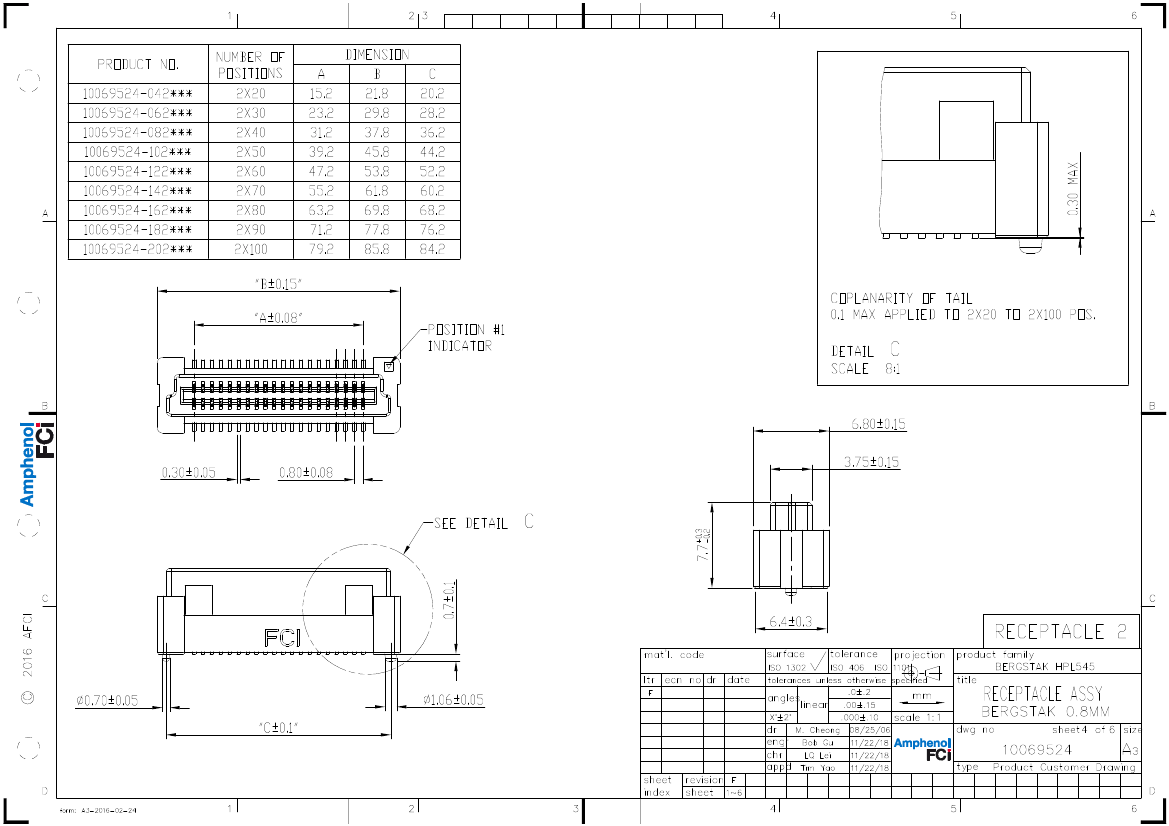

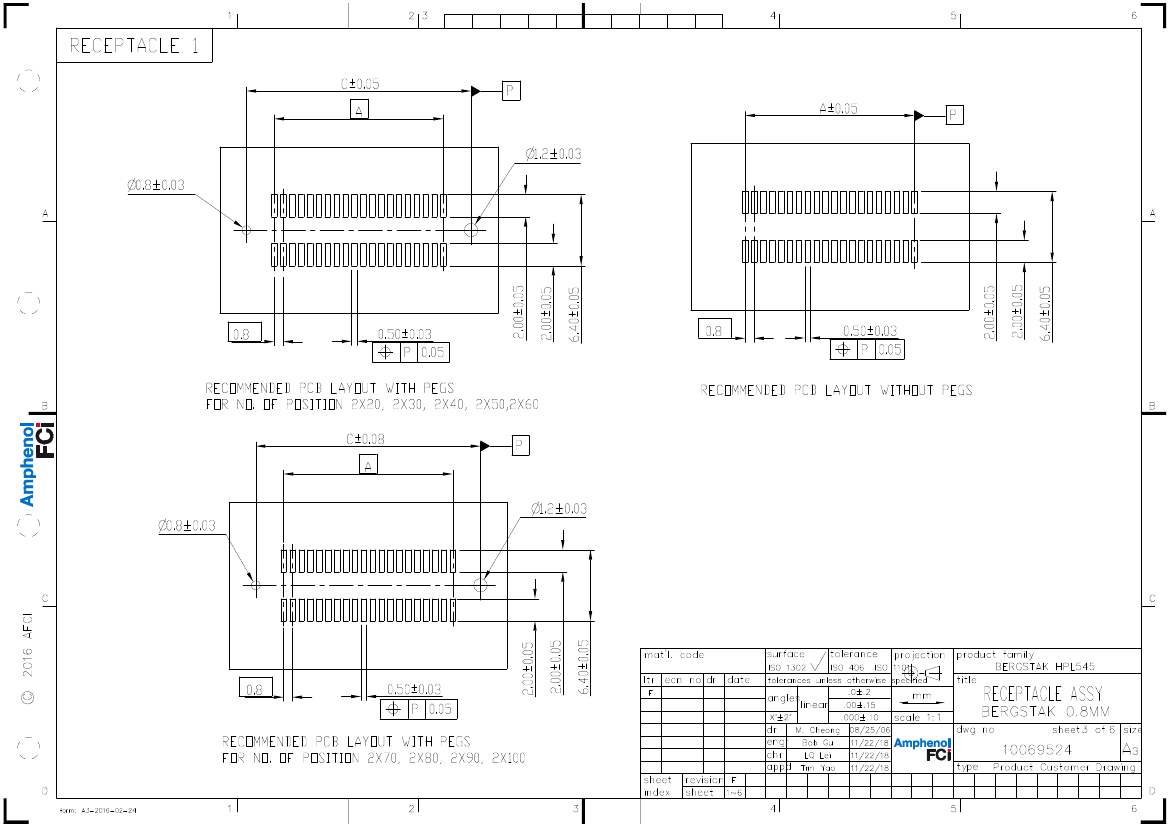

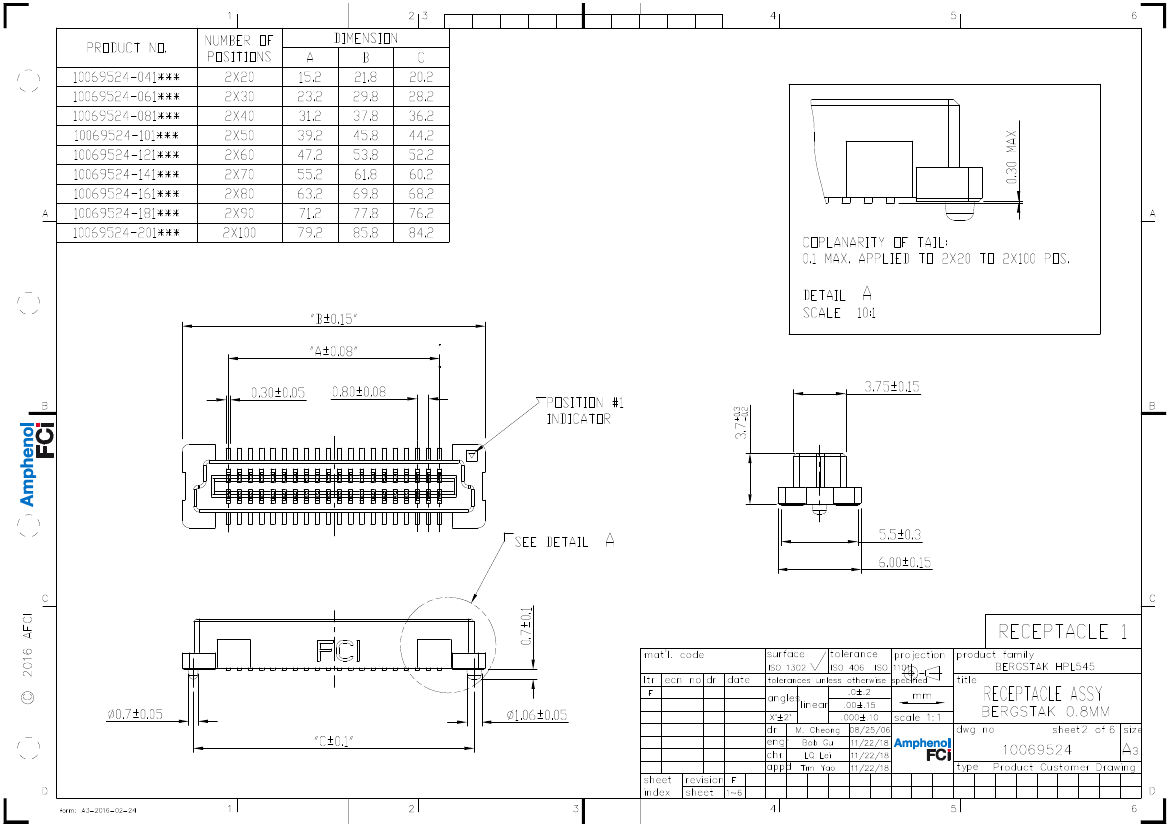

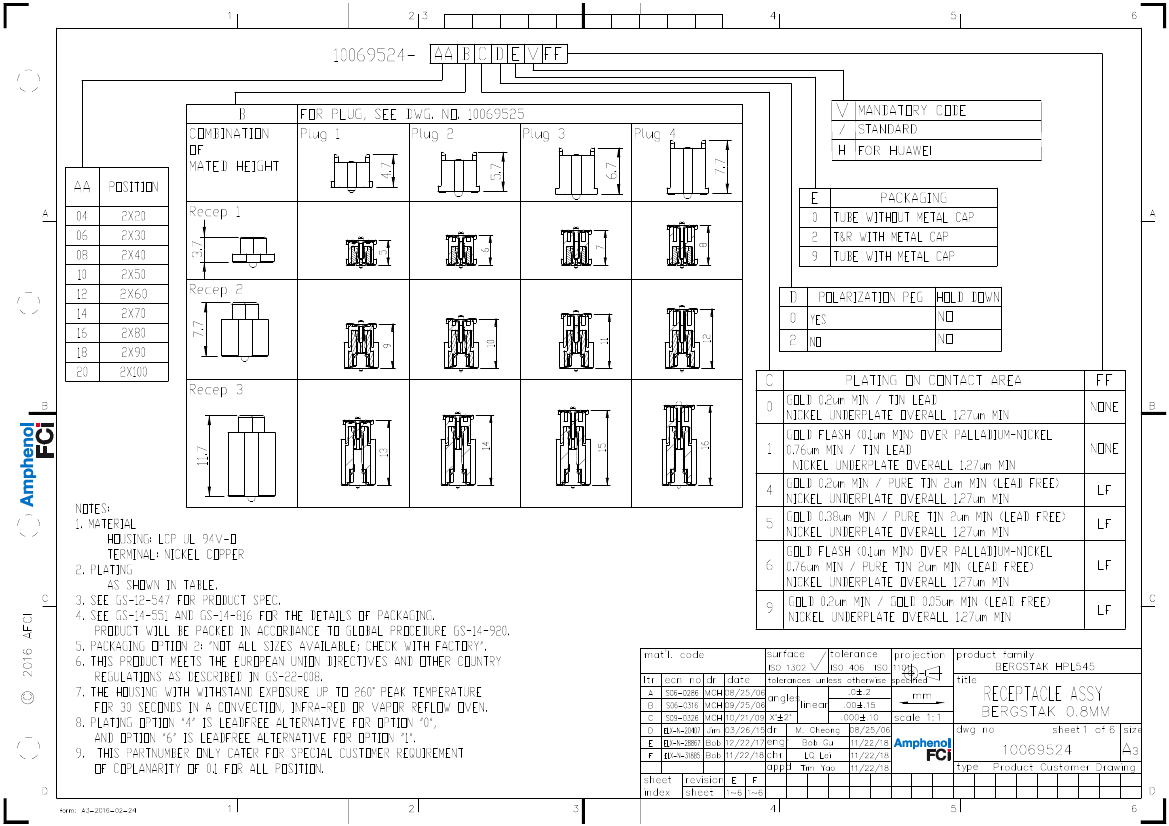

PDS: Rev :F

STATUS:Released

Printed: Nov 30, 2018
