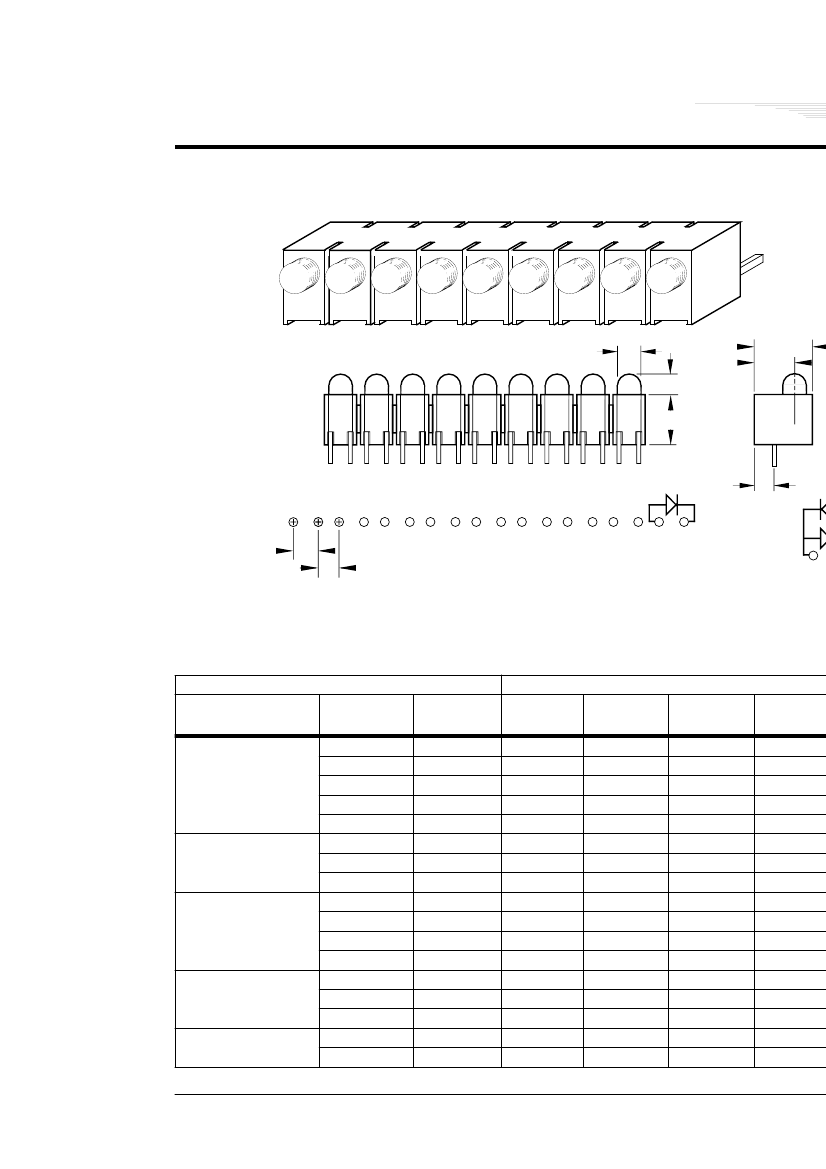

T-1, (3-mm) Round, PCB Mount
Direct View Array, J61XS Series
The J61XS is a T-1 size indicator array designed for direct viewing and can be CMOS driven to save components. The L
on 4.57 mm(0.18") centers. The J61XS can be supplied with the desired lamps preassembled from 1 to 9 sections lon
J619S) This series provides easier handling in multiple lamp applications, and can be supplied with any combination o
series can also be supplied with pinout reversed from that shown by adding “-RL” to the order code of the part number.
1
2
3
...
...
...
...
...
X
3 typ
2.5±.5
7.4
5.08
6.35
2.54
ref
LED 1
+ –
(typ for single color)
2.54(0.10)
2.03(0.08)
typ
typ
Specify part desired as follows:
J61XS/Order Code LED1 + Order Code LED 2 + ... + Order Code LED X
For example:
“J618S/4H+4G” designates an assembly with 4 red LEDs followed by 4 green LEDs.
“J618S/(4H+4G)-RL” designates the same assembly with all pins reversed.
Green
Anode
(typ for b
ORDER CODE AND INFORMATION (ALL RATINGS AT 25°C AMBIENT)
LED Lamp
Epoxy & Type
Color
Order Code
Peak
λ
(nm)
639
575
591
Typical Characteristics
Vf
(V)
@If=20mA
1.8
1.7
1.85
Iv
(mcd)
@If= 2 mA
4.0
2.5
4.0
2
Θ
1/2
(Deg)
50
60
45
Red
TInted Diffused
Green
Yellow
I
G
Y
* Specifications subject to change without notice. Dimensions are in mm±0.25 unless stated otherwise.
IDEA, Inc., 1351 Titan Way, Brea, CA 92821 Ph:714-525-3302, 800-LED-IDEA; Fax: 714-525-3304 Catalog 995A
