10036803-002 datasheet, PDF - EEWORLD Datasheet

10036803-002: DescriptionBoard Connector, 25 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size267KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

10036803-002 Overview

Board Connector, 25 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 10.16 MM
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	10036803
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

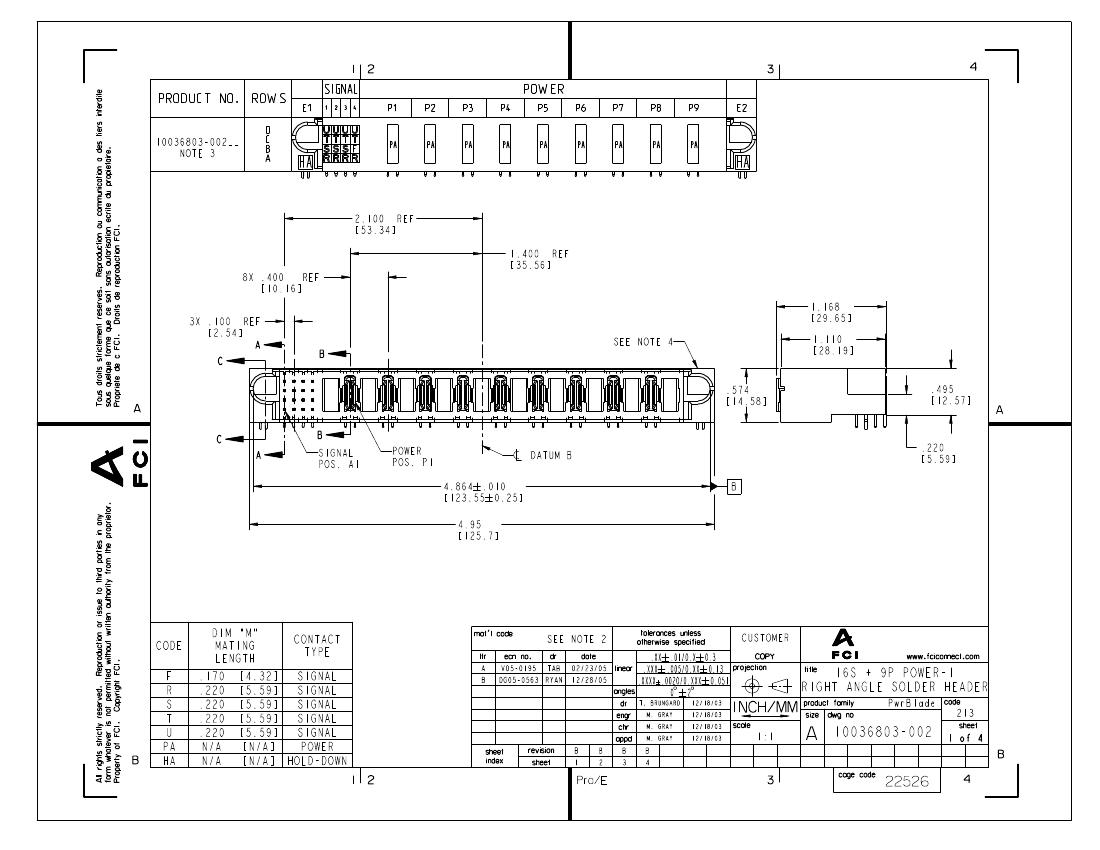

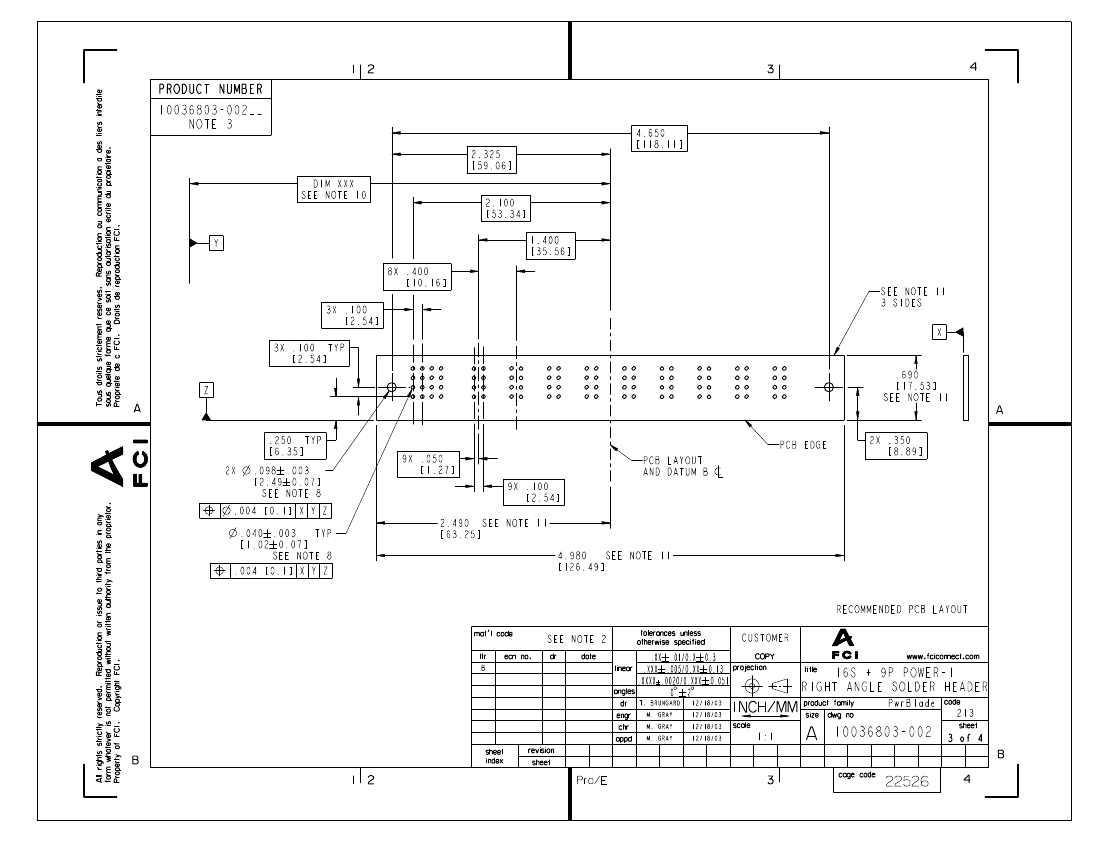

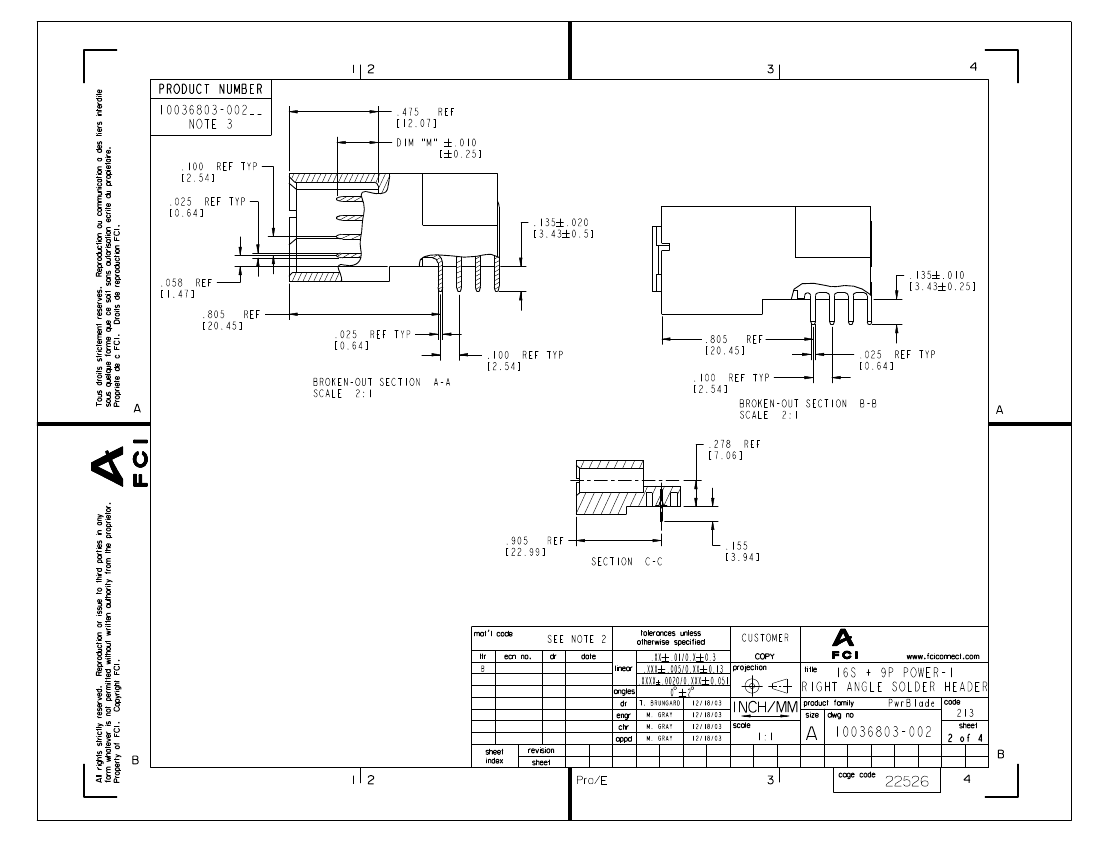

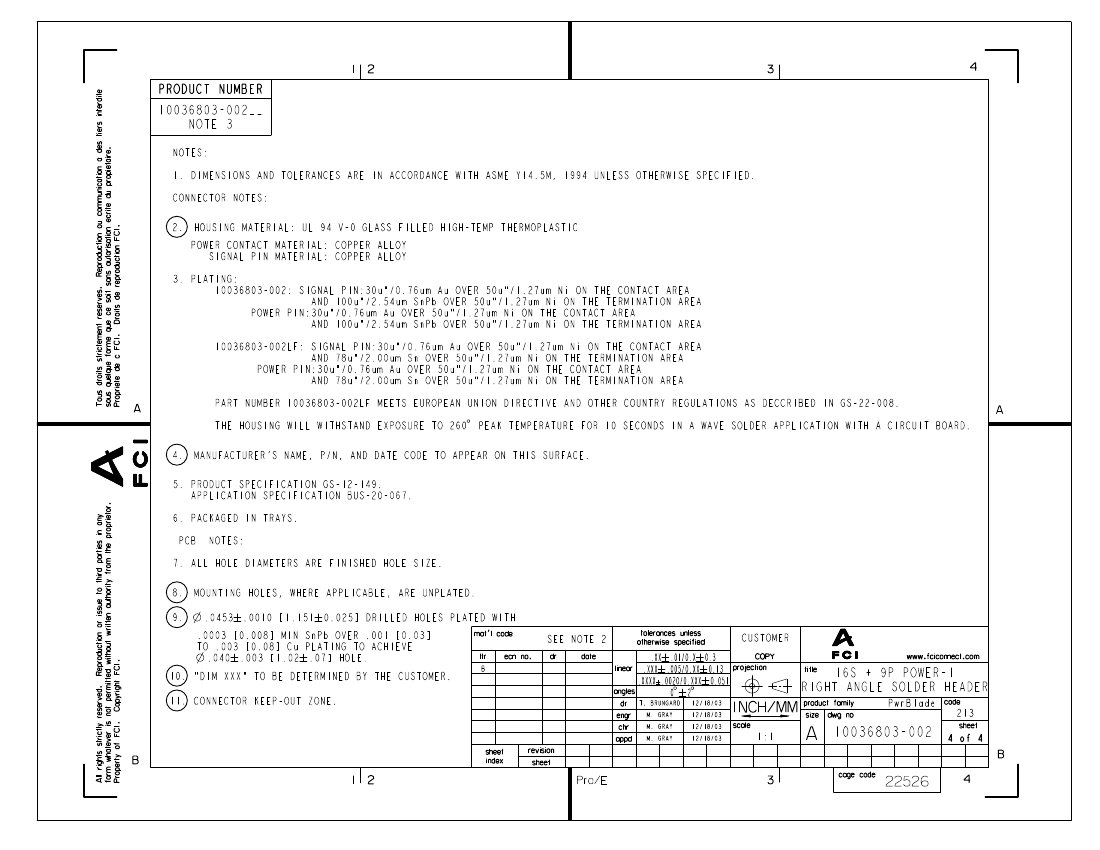

PDM: Rev:B

STATUS:

Released

Printed: Oct 08, 2006

	10036803-002	10036803-002LF
Description	Board Connector, 25 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 25 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE
Is it lead-free?	Contains lead	Lead free
Is it Rohs certified?	incompatible	conform to
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 10.16 MM	TERMINAL PITCH FOR POWER CONTACTS: 10.16 MM
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD (100) OVER NICKEL	TIN (78) OVER NICKEL
Contact point gender	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e0	e3
MIL compliance	NO	NO
Manufacturer's serial number	10036803	10036803
Mixed contacts	YES	YES
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of rows loaded	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	25	25
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
