J123F1C12VDC: DescriptionCIT SWITCH; File Size162KB，2 Pages; ManufacturerCIT; Websitehttp://www.citswitch.com/

Download Datasheet View All

J123F1C12VDC Overview

CIT SWITCH

Preview

Download Datasheet

View All

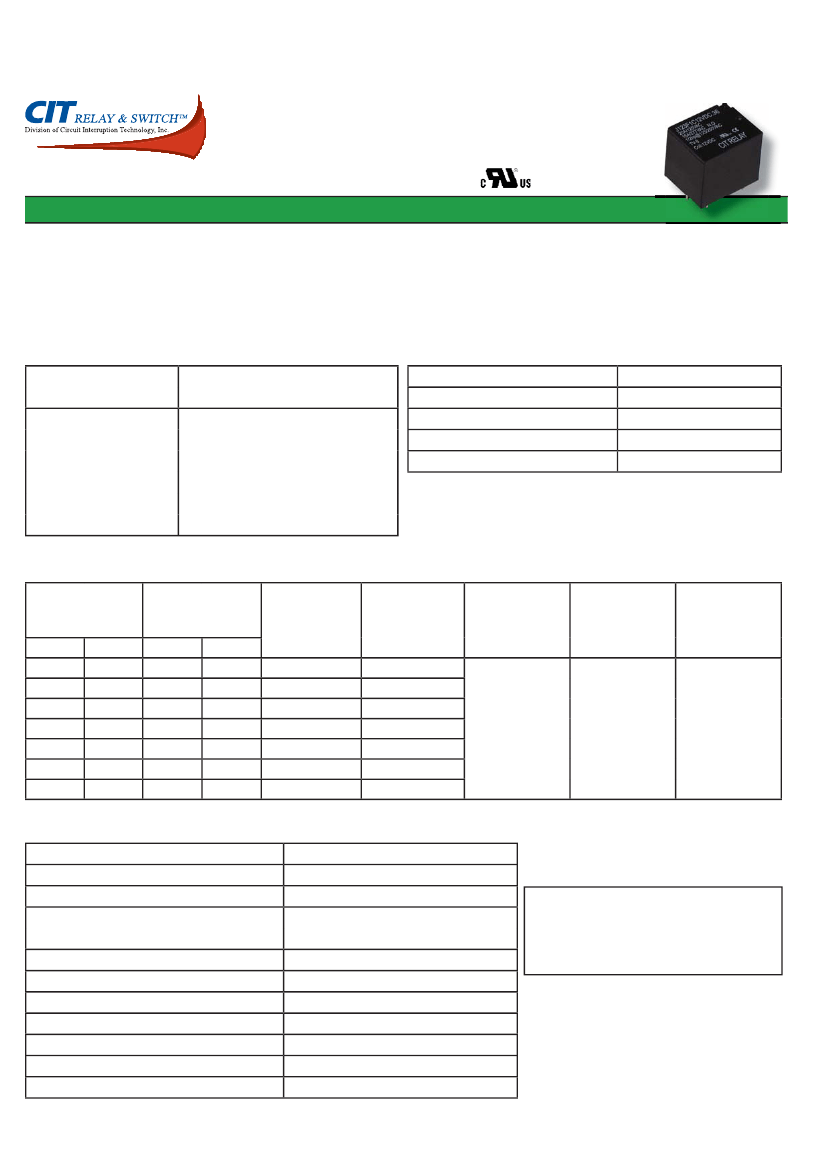

J123F

Features

•

RoHS Compliant

19.5 x 16.1 x 17.1 mm

UL F class rated standard

Small size and light weight

Capable of handling 1000W lamp loads

Designed to withstand high inrush loads (100A)

E197852

Contact Data

Contact Arrangement

Contact Rating

1A = SPST N.O.

1C = SPDT

20A @ 125VAC

16A @ 277VAC

10A @ 250VAC

TV-8, 12VAC

1hp @ 125/250 N.O.

1/2hp @ 125/250 N.C.

Contact Resistance

Contact Material

Maximum Switching Power

Maximum Switching Voltage

Maximum Switching Current

< 50 milliohms initial

AgSnO

500W, 4500VA

380VAC, 110VDC

20A

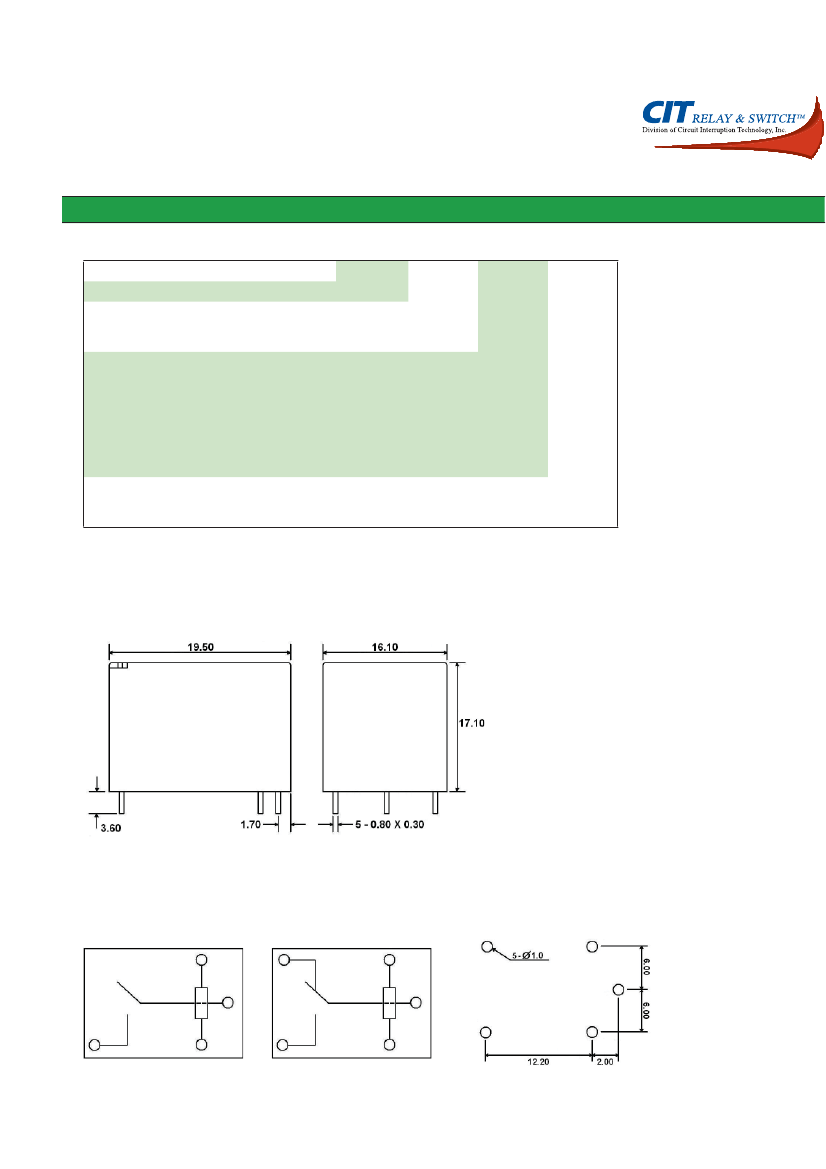

Dimensions shown in mm. Dimensions are shown for reference purposes only.

Coil Data

Coil Voltage

VDC

Rated

Max

3.9

6.5

7.8

11.7

15.6

31.2

62.4

Coil Resistance

Ω

+/- 10%

.36W

100

225

400

1600

6400

.45W

180

320

1280

5120

Pick Up Voltage Release Voltage

VDC (max)

VDC (min)

75% of rated

voltage

2.25

3.75

4.50

6.75

9.00

18.00

36.00

10% of rated

voltage

1.2

2.4

4.8

.36

.45

Coil Power

Operate Time

Release Time

General Data

Electrical Life @ rated load

Mechanical Life

Insulation Resistance

Dielectric Strength, Coil to Contact

Contact to Contact

Shock Resistance

Vibration Resistance

Terminal (Copper Alloy) Strength

Operating Temperature

Storage Temperature

Solderability

Weight

www.citrelay.com

phone - 763.535.2339

fax - 763.535.2194

100K cycles, typical

10M cycles, typical

100M

Ω

min. @ 500VDC

2500V rms min. @ sea level

1500V rms min. @ sea level

100m/s

for 11 ms

1.50mm double amplitude 10~40Hz

10N

-55

C to +125

-55

C to +155

260

C for 5 s

10g

Caution

1. The use of any coil voltage less than the

rated coil voltage may compromise the

operation of the relay.

Speciﬁcations and availability subject to change without notice.
