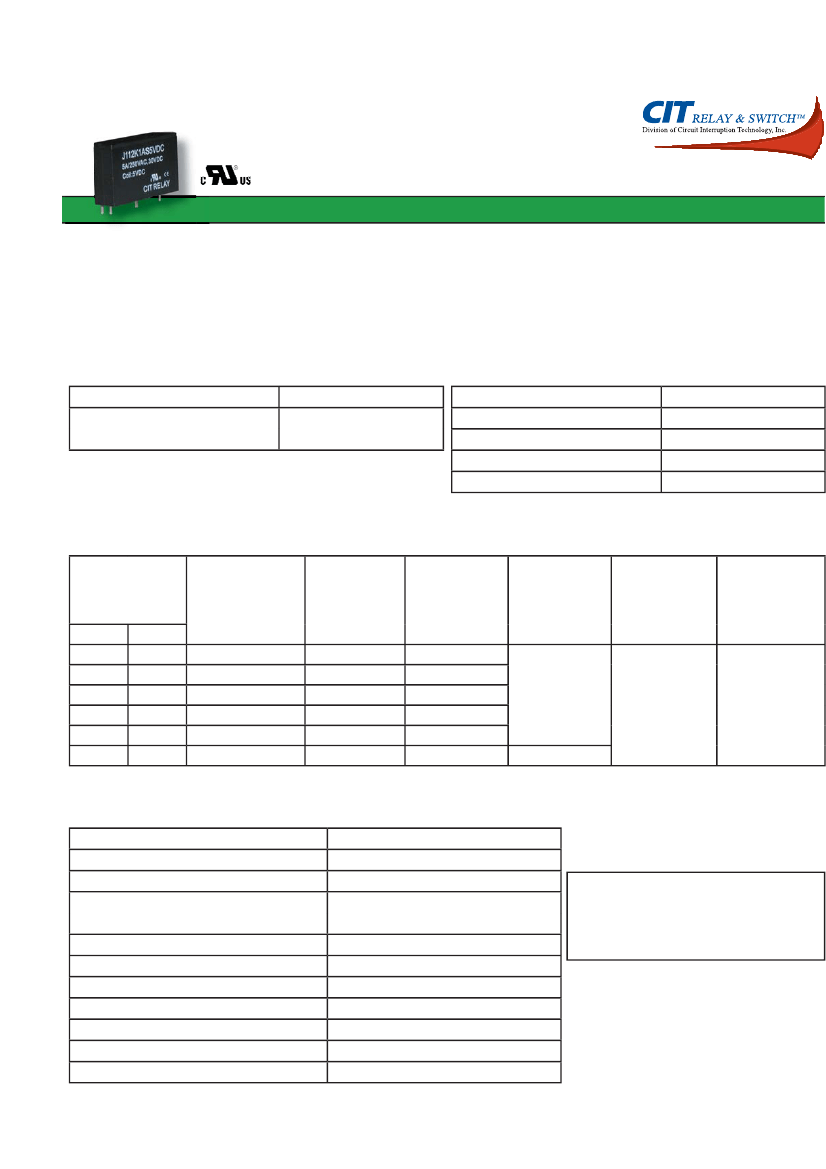

RoHS Compliant
E197851
20.2 x 5.3 x 12.8 mm
J112
Features
•
•
•
•
Low power consumption .12W
Ultra light weight
Narrow width for high density mounting
UL/CUL certified
Contact Data
Contact Arrangement
Contact Rating
Specifications and availability subject to change without notice.
1A = SPST N.O.
5A @ 250VAC Resistive
5A @ 30VDC Resistive
Contact Resistance
Contact Material
Maximum Switching Power
Maximum Switching Voltage
Maximum Switching Current
< 50 milliohms initial
AgSnO
2
150W, 1250VA
250VAC, 110VDC
5A
Coil Data
Coil Voltage
VDC
Coil Resistance
Ω
+/- 10%
Pick Up Voltage Release Voltage
VDC (max)
VDC (min)
75% of rated
voltage
208
300
675
1200
2700
3200
3.75
4.50
6.75
9.00
13.50
18.00
10% of rated
voltage
.5
.6
.9
1.2
1.8
2.4
.18
.12
10
5
Coil Power
W
Operate Time
ms
Release Time
ms
Rated
5
6
9
12
18
24
Max
6.5
7.8
11.7
15.6
23.4
31.2
Dimensions shown in mm. Dimensions are shown for reference purposes only.
General Data
Electrical Life @ rated load
Mechanical Life
Insulation Resistance
Dielectric Strength, Coil to Contact
Contact to Contact
Shock Resistance
Vibration Resistance
Terminal (Copper Alloy) Strength
Operating Temperature
Storage Temperature
Solderability
Weight
100K cycles, typical
10M cycles, typical
100M
Ω
min. @ 500VDC
2000V rms min. @ sea level
1000V rms min. @ sea level
100m/s
2
for 11 ms
1.50mm double amplitude 10~40Hz
5N
-40
o
C to +85
o
C
-40
o
C to +155
o
C
260
o
C for 5 s
3g
Caution
1. The use of any coil voltage less than the
rated coil voltage may compromise the
operation of the relay.
www.citrelay.com
phone - 763.535.2339
fax - 763.535.2194
J112
Ordering Information
1. Series
J112
J112K
2. Contact Arrangement
1A = SPST N.O.
3. Sealing Option
S = Sealed
4. Contact Voltage
5VDC
6VDC
9VDC
12VDC
18VDC
24VDC
J112
1A
S
12VDC
Dimensions shown in mm. Dimensions are shown for reference purposes only.

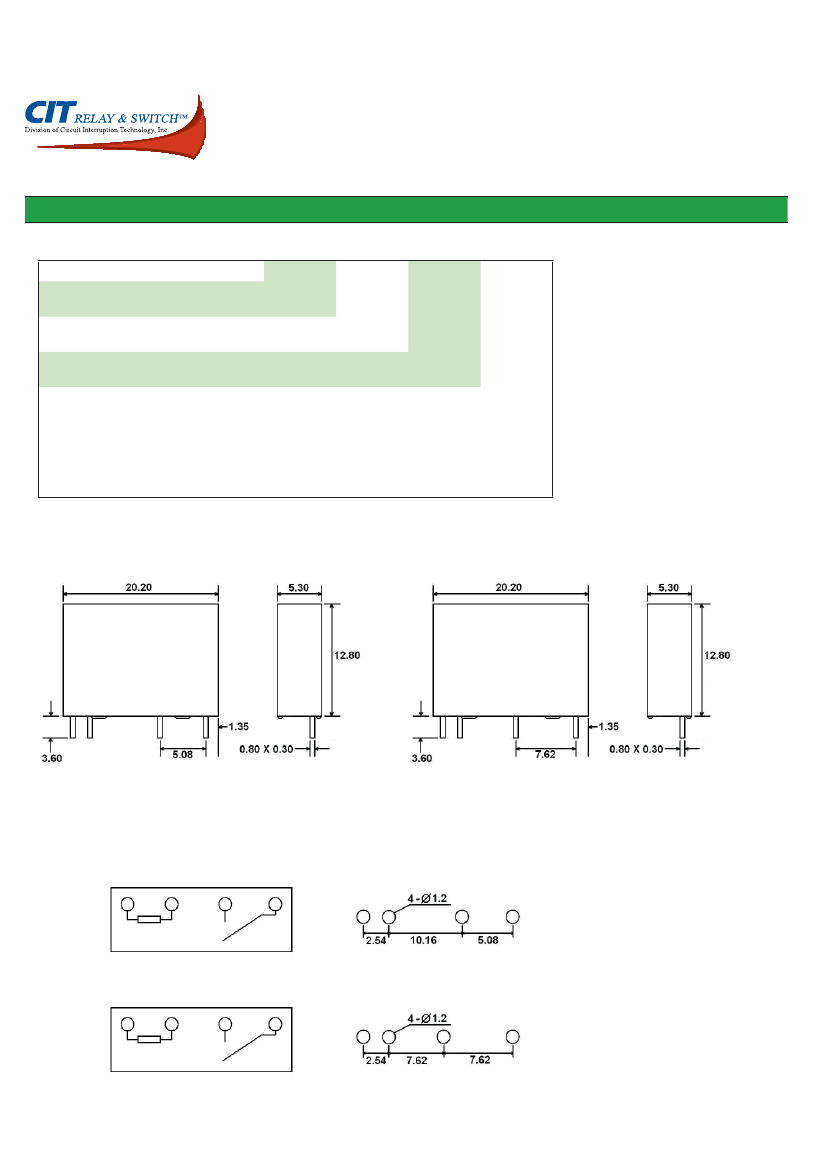

Dimensions
Units = mm
J112
J112K
Schematics & PC Layouts
Bottom Views
J112
Specifications and availability subject to change without notice.
1A
J112K
1A
www.citrelay.com
phone - 763.535.2339
fax - 763.535.2194
