Part Number

Search

10104999-M0E-10CLF

Description
Board Connector, 96 Contact(s), Male, Straight, Press Fit Terminal, Locking, Gray Insulator
CategoryThe connector    The connector
File Size4MB,8 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

10104999-M0E-10CLF Overview

Board Connector, 96 Contact(s), Male, Straight, Press Fit Terminal, Locking, Gray Insulator

10104999-M0E-10CLF Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
body width1.398 inch
subject depth0.528 inch
body length0.646 inch
Connector typeBOARD CONNECTOR
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeSTAGGERED
Contact resistance55 mΩ
Contact styleBLADE PIN-SKT
maximum insertion force.6394 N
Insulation resistance1000000000 Ω
Insulator colorGRAY
insulator materialTHERMOPLASTIC
Manufacturer's serial number10104999
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB contact patternSTAGGERED
polarization keyPOLARIZED HOUSING
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.051 inch
Termination typePRESS FIT
Total number of contacts96
Evacuation force-minimum value.14734 N
Base Number Matches1

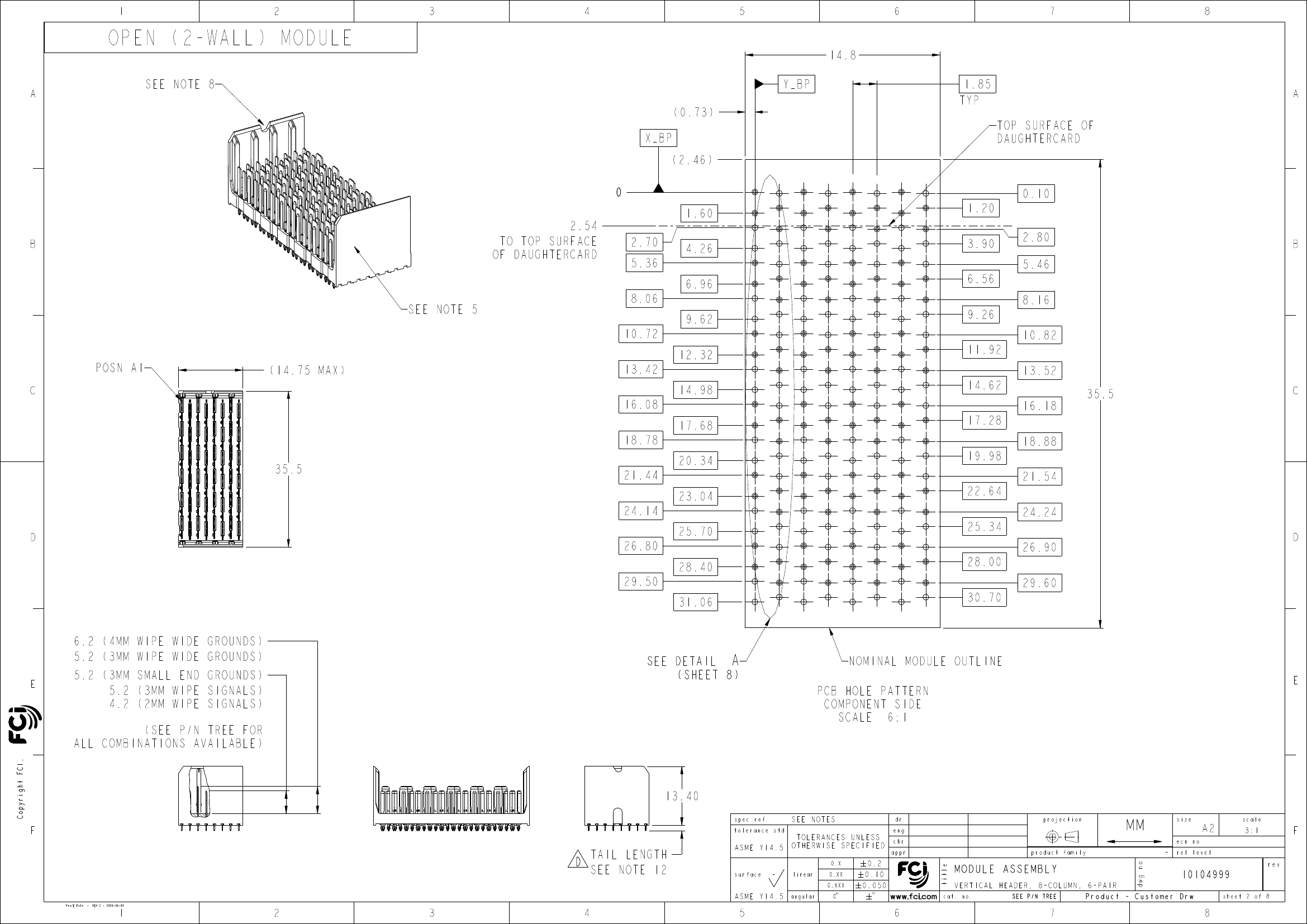

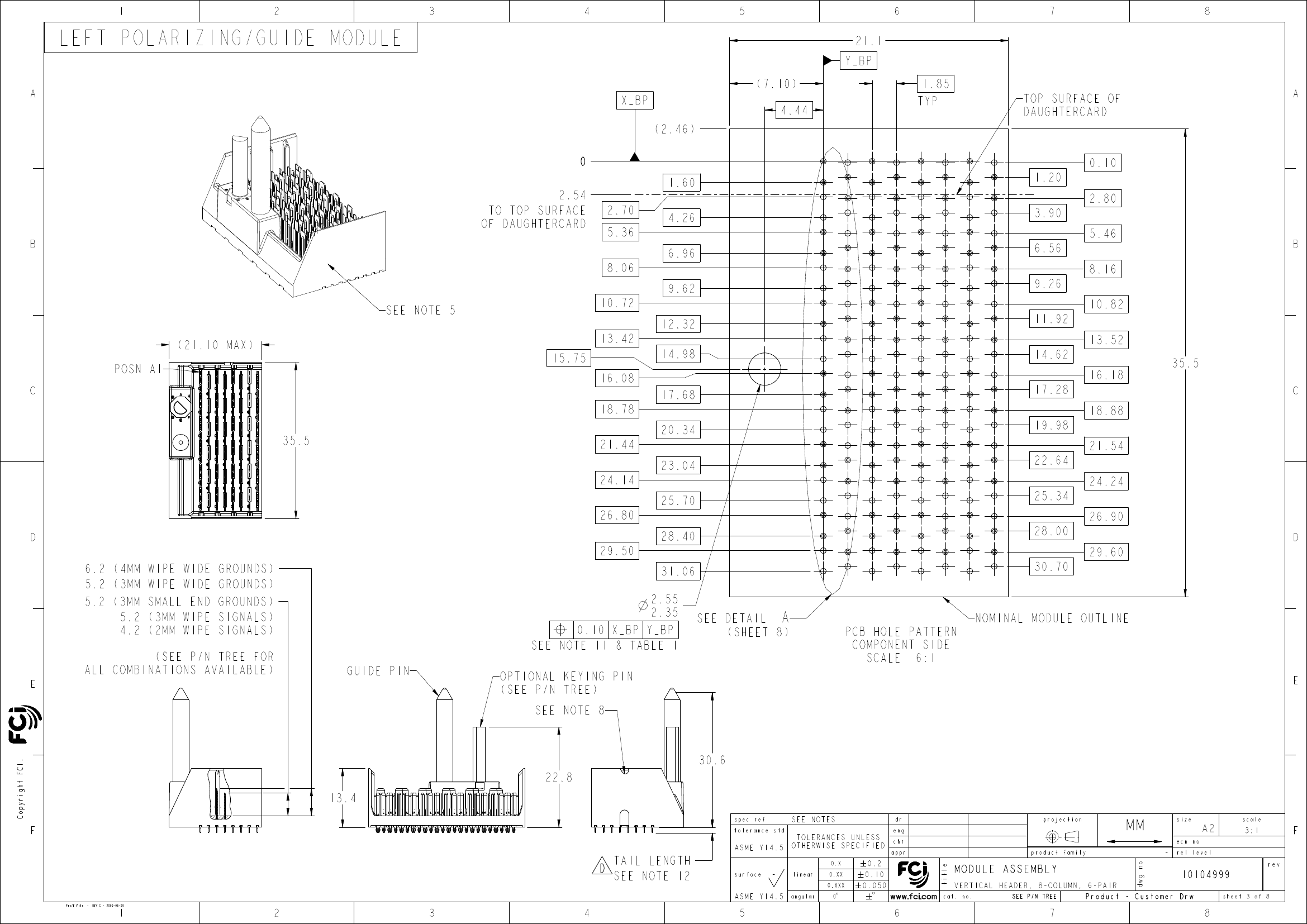

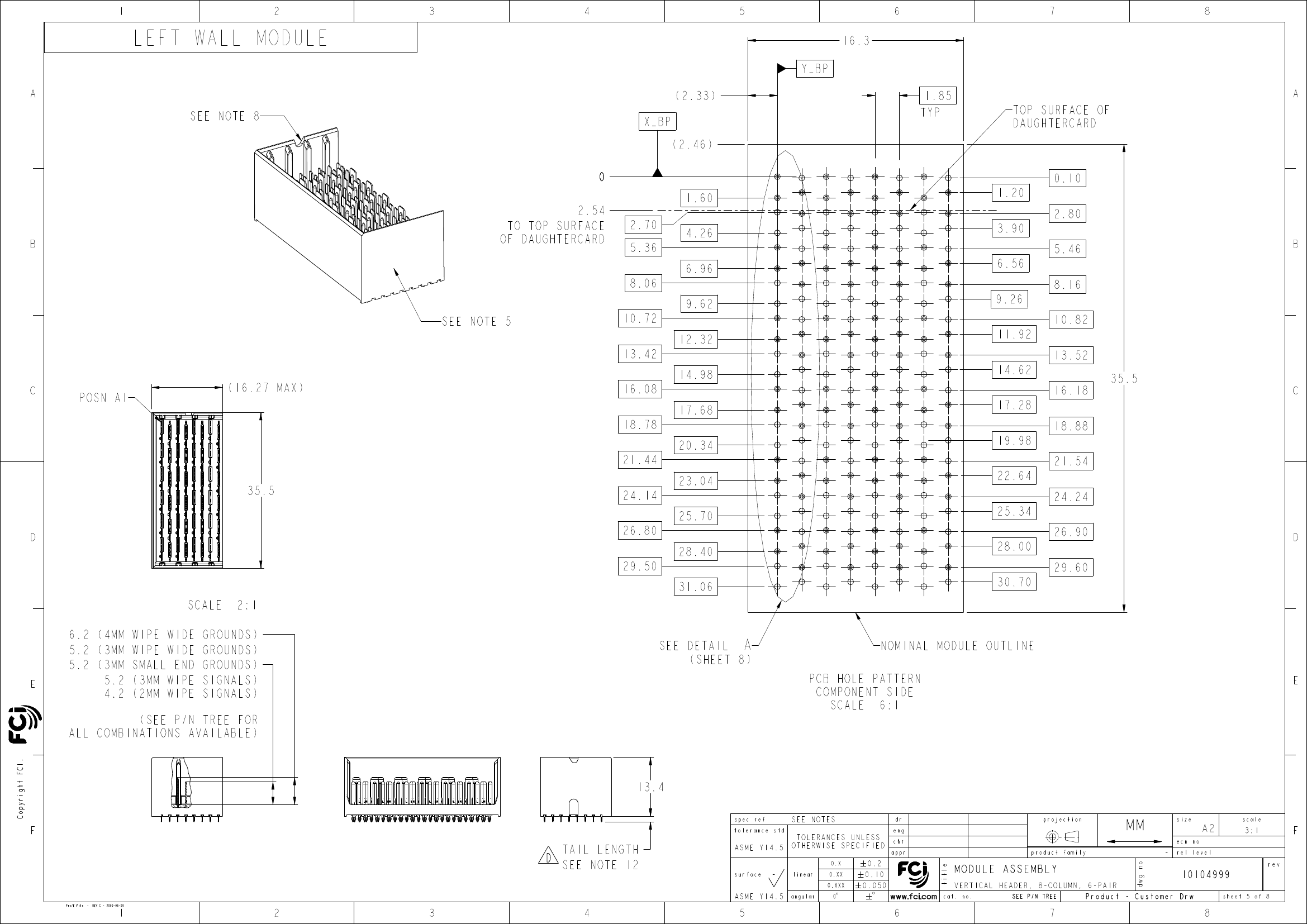

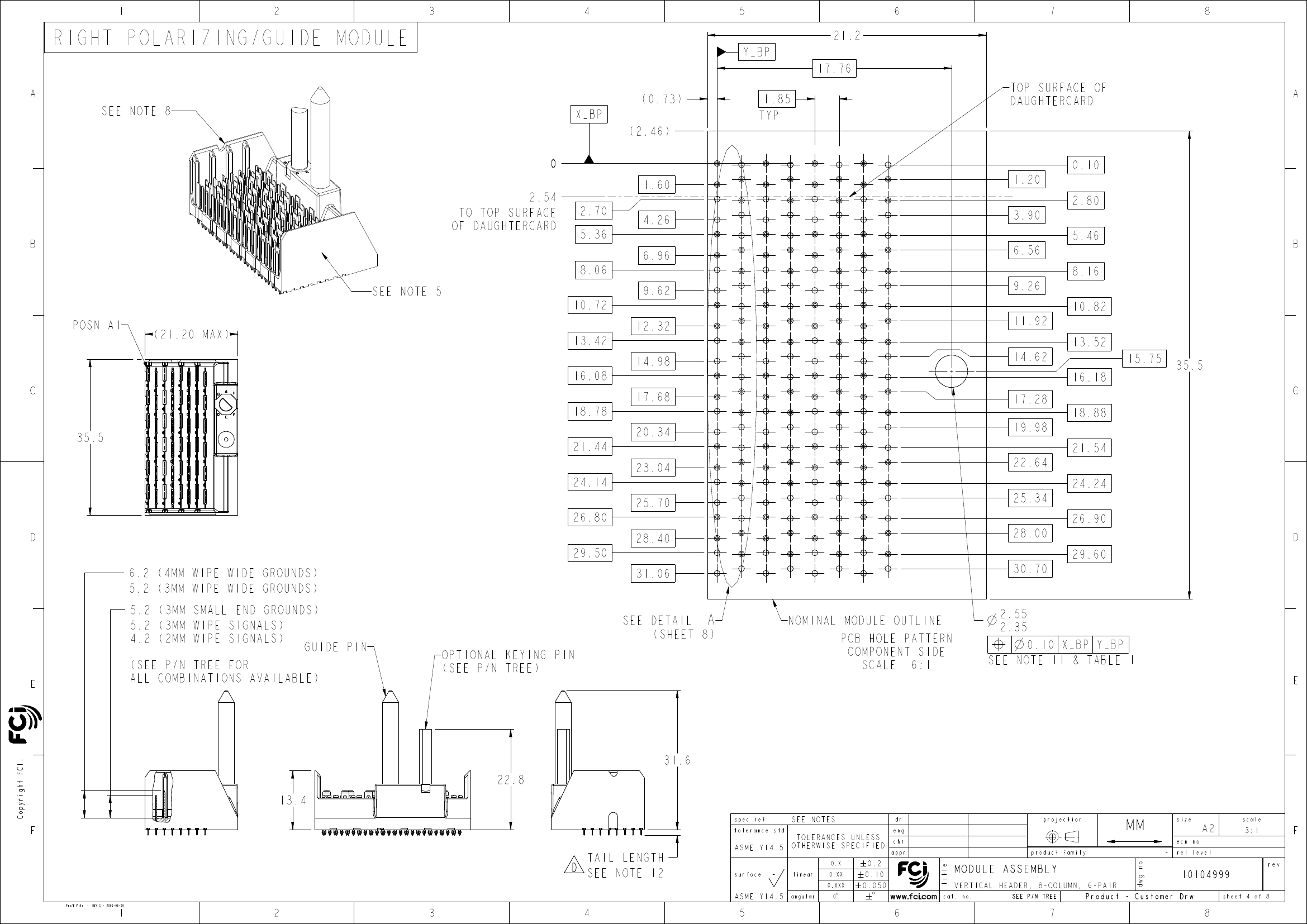

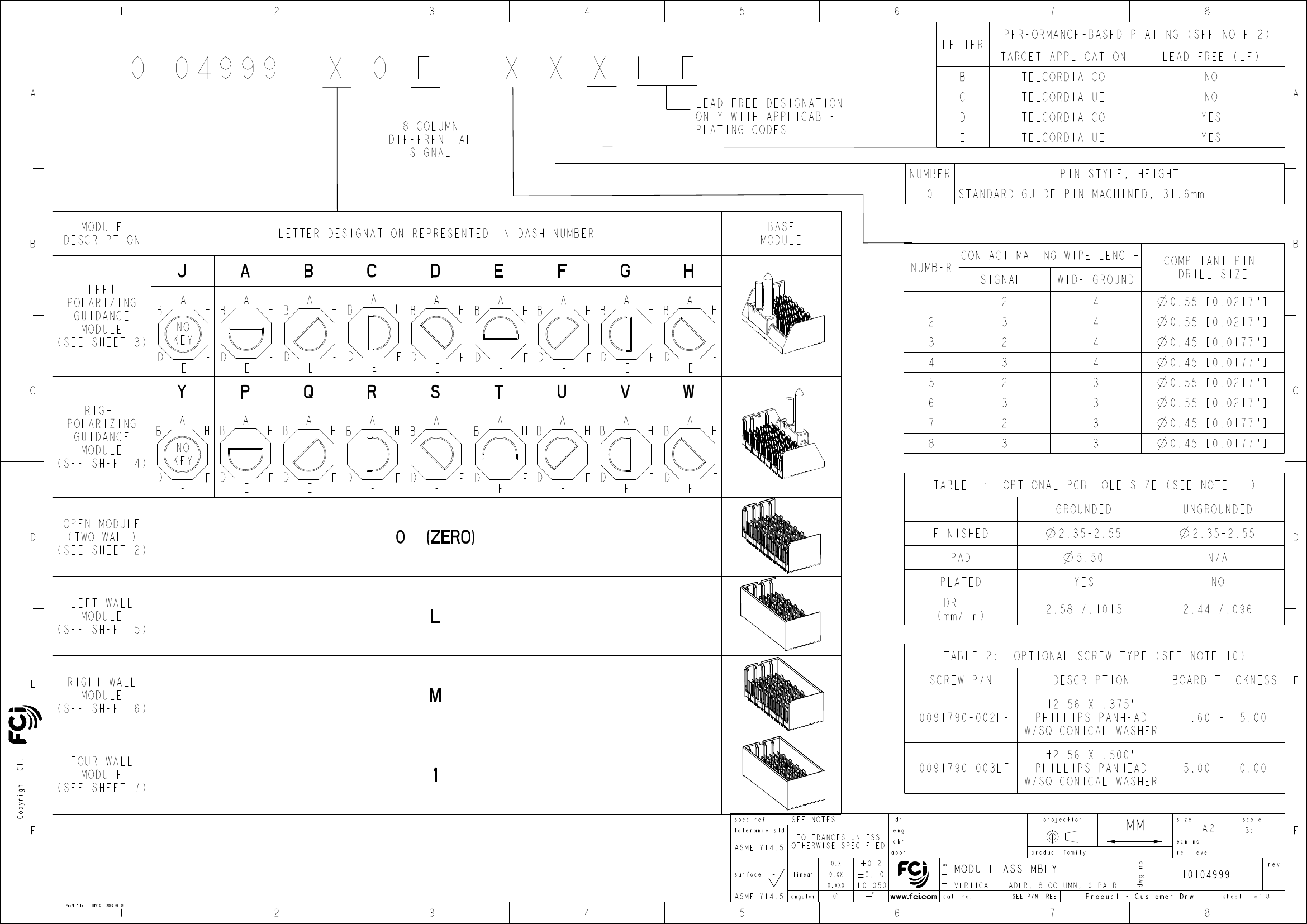

Kok-Hoe Lee
Sandar Soe
-
Chen-Hong Tan
2010/06/24
2014/10/02
-
2014/12/10
ELX-S-18843-1
Released
D
PDS: Rev :D
STATUS:Released
Printed: Dec 10, 2014
