50FXFH13 datasheet, PDF - EEWORLD Datasheet

50FXFH13: Description50 A, 3300 V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size111KB，2 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

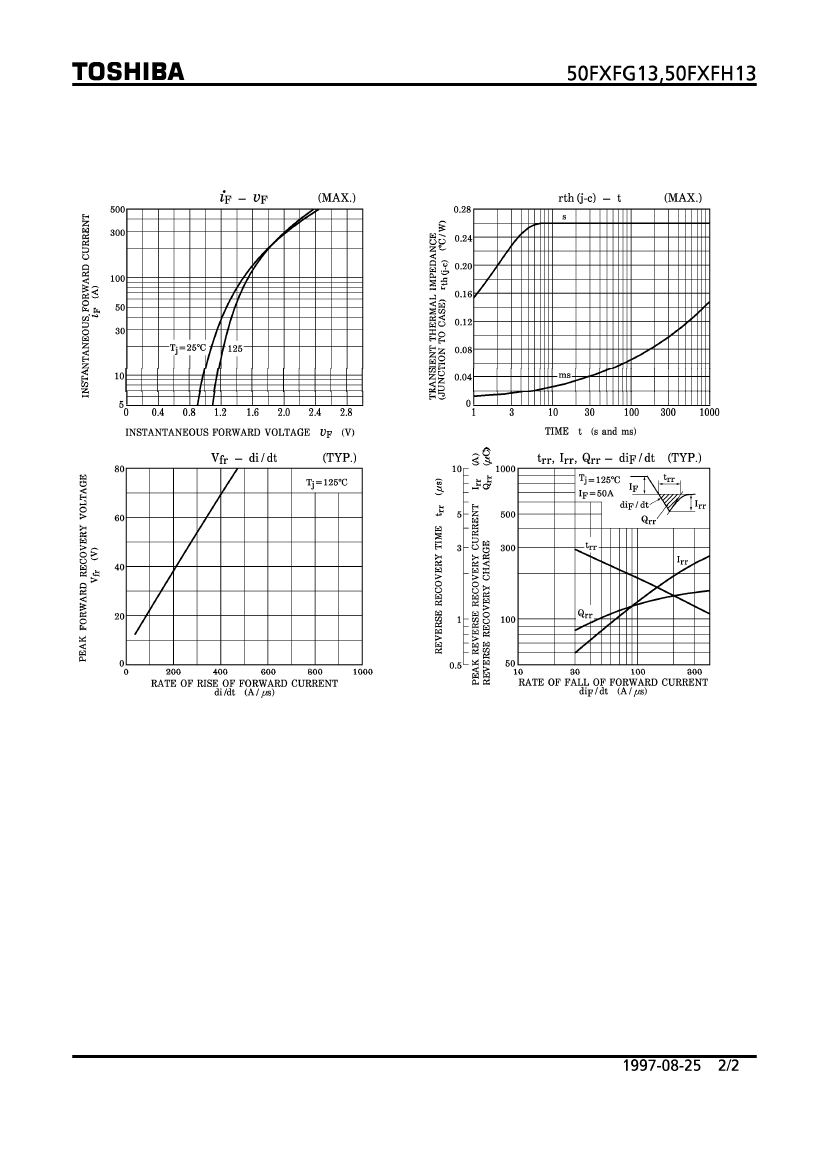

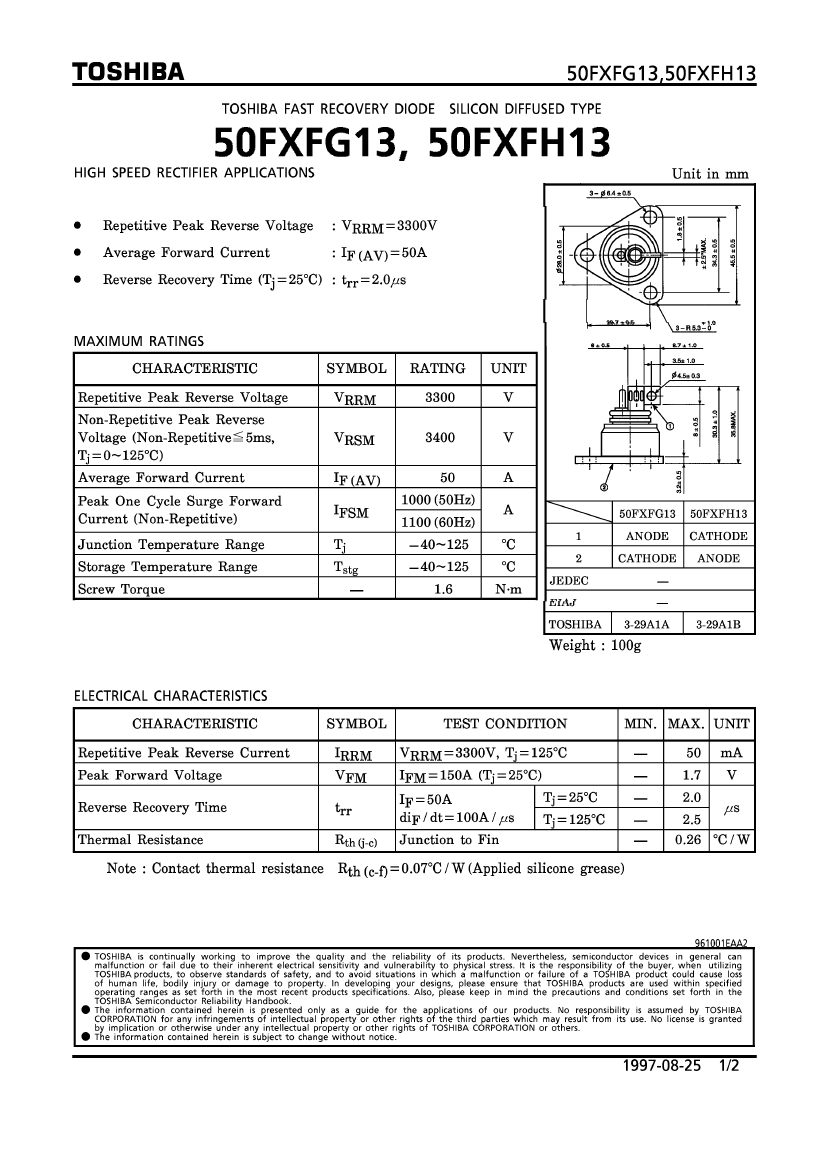

50FXFH13 Overview

50 A, 3300 V, SILICON, RECTIFIER DIODE

Parameter Name	Attribute value
package instruction	O-XUFM-D1
Contacts	2
Manufacturer packaging code	3-29A1B
Reach Compliance Code	unknow
ECCN code	EAR99
application	FAST RECOVERY
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V
JESD-30 code	O-XUFM-D1
Maximum non-repetitive peak forward current	1100 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current	50 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	3300 V
Maximum reverse recovery time	2 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

	50FXFH13	50FXFG13
Description	50 A, 3300 V, SILICON, RECTIFIER DIODE	50 A, 3300 V, SILICON, RECTIFIER DIODE
package instruction	O-XUFM-D1	O-XUFM-D1
Contacts	2	2
Manufacturer packaging code	3-29A1B	3-29A1A
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
application	FAST RECOVERY	FAST RECOVERY
Shell connection	ANODE	CATHODE
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V	1.7 V
JESD-30 code	O-XUFM-D1	O-XUFM-D1
Maximum non-repetitive peak forward current	1100 A	1100 A
Number of components	1	1
Phase	1	1
Number of terminals	1	1
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output current	50 A	50 A
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	3300 V	3300 V
Maximum reverse recovery time	2 µs	2 µs
surface mount	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER
Base Number Matches	1	1
