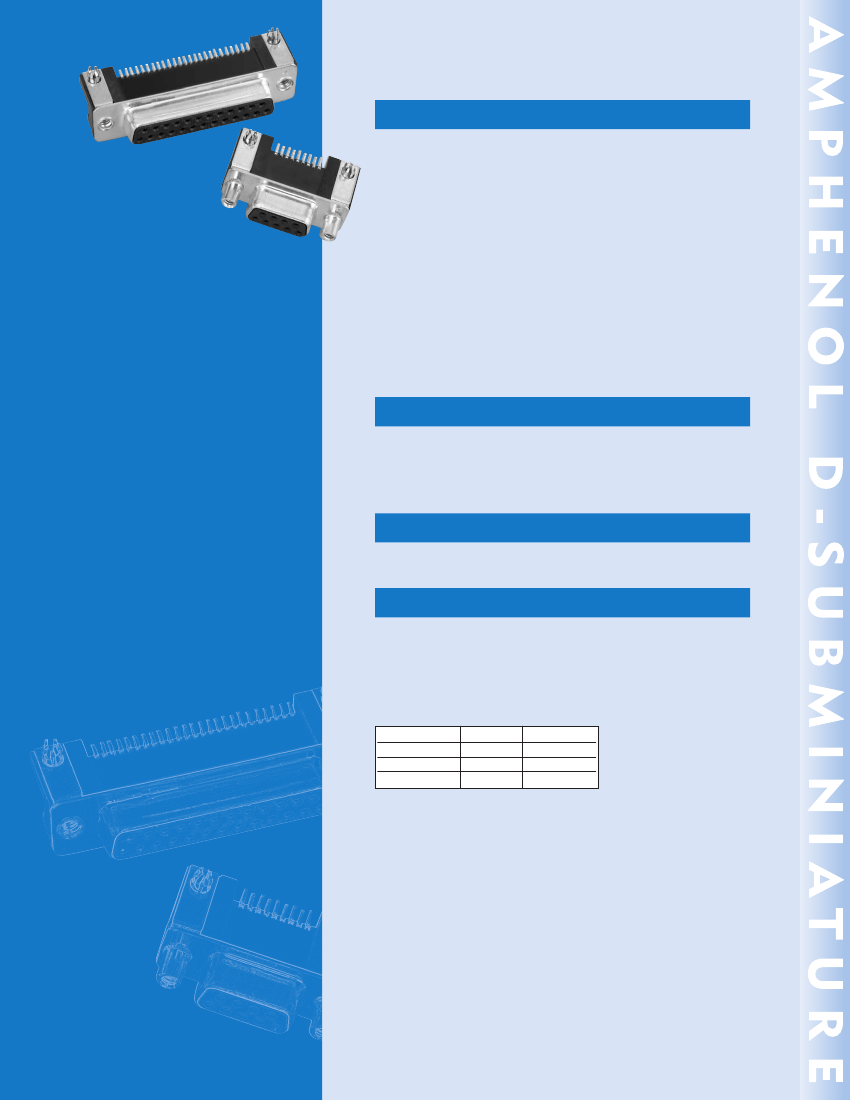

SM2 S
ERIES
S
PECIFICATIONS
:
M
ATERIALS
Shells
Insulator
AND
Stamped And Formed Contacts
Surface Mount Connectors
P
LATINGS
The new Amphenol SMT
D-Sub is offered in right angle,
receptacle with brackets,
as an industry standard
for I / O connections.
New boardlock features:
-LIF (Low Insertion Force)
boardlock especially designed
to be fully compatible with
pick and place equipment.
-ZeFo (Zero Insertion Force)
boardlock has been designed so
that once placed and expanded,
secures the connector in place.
Steel with tin plating
High temperature (peak at 500°F [260°C])
glass-filled thermoplastic, UL 94V- 0
Socket Contact
Stamped and formed brass, selected
gold in mating area; 100µ" (2.54µm)
min. tin-lead on termination area, with entire contact
under-plated 50µ" (1.27µm) min. nickel
Rear Insert
Brass, 118µ" up to 197µ" (3µm up to 5µm)
tinned over nickel 78µ" to 118µ" (2µm up to 3µm)
Boardlock
Tin-lead plating 157µ" up to 236µ" (4µm up to 6µm)
over nickel 78µ" up to 118µ" (2µm up to 3µm)
Insertion force: Low Insertion Force = LIF (bronze)
Zero Insertion Force = ZeFo (brass)
Screwlock
Brass, 236µ" up to 394µ" (6µm up to 10µm)
tinned over nickel 78µ" up to 118µ" (2µm up to 3µm)
Grounding
Grounding strap: brass, (4µ" up to 6µ")
(0.10µm up to 0.15µm) tin-lead plating over nickel
78µ" up to 118µ" (2µm up to 3µm)
E
LECTRICAL
D
ATA
Current Rating
Voltage Rating
Withstanding Voltage
Insulation Resistance
Contact Resistance
3A
300V AC/ rms 50Hz
1000V AC/ rms 50Hz for one minute
5000MΩ
10 mΩ max.
C
LIMATIC
D
ATA
Operating Temperature
Damp Heat
185°F (85°C), peak at 221°F (105°C)
56 days 221°F (105°C) - 95% RH
M
ECHANICAL
D
ATA
Applications
• Industrial
• Telecom
• Any industry standard
I / O connections
Single Contact Insertion Force
Single Contact Withdrawal Force
LIF Boardlock
Coplanarity of Contacts
Mating and Unmating Force
Unit:
N
No. of Contacts
9 (size E)
15 (size A)
25 (size B)
Mate (max.)
30
50
83
Unmate (min.)
3.5
4.5
8.0
1.2N < F < 2.5N
0.4N min.
8N max. per connector
.008" (0.2) max.
T
ELEPHONE
: (416) 754-5656
F
AX
: (416) 754-8668 E-M
AIL
:
SALES
@
AMPHENOLCANADA
.
COM
5

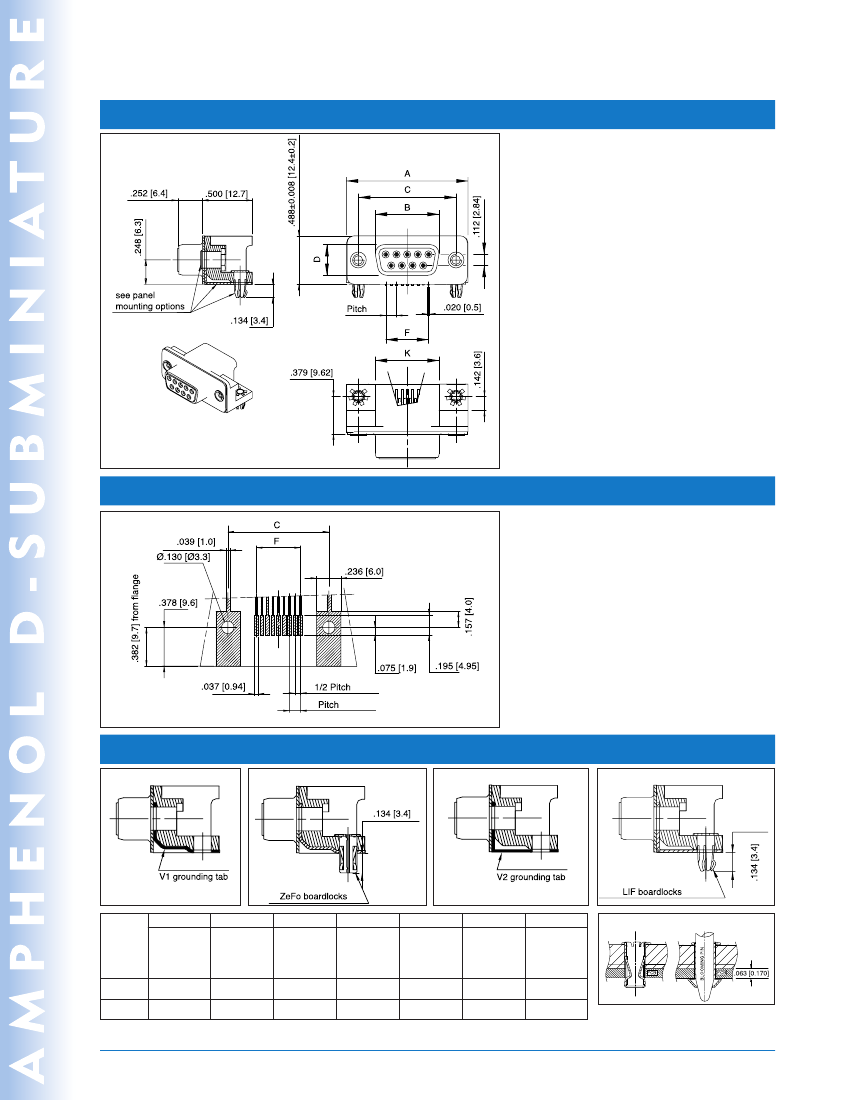

SM2 S
ERIES
Stamped And Formed Contacts
Surface Mount Connectors
F
LANGE
A
CCESSORIES

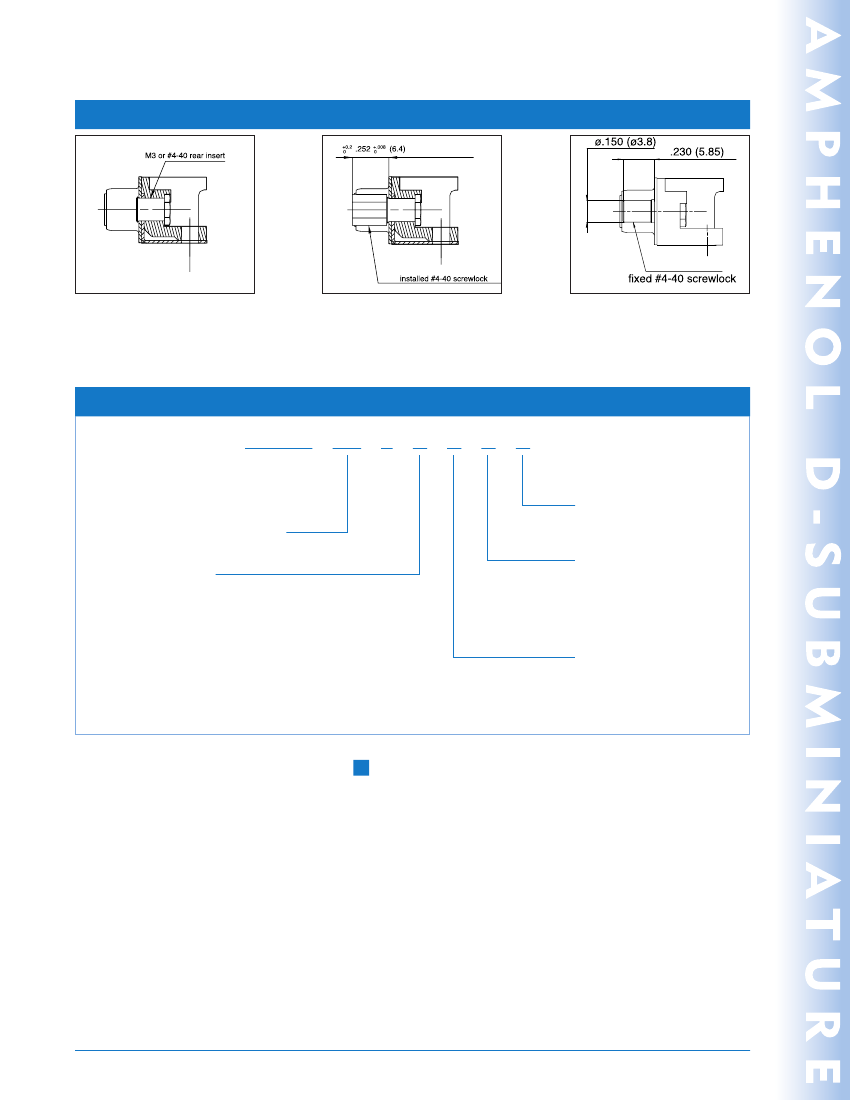

Threaded Rear
1/2
Installed Front Female
5
Fixed Front Female
6
O
RDERING
I
NFORMATION
17SM2 - XX - S - X - X - X - X
Configuration :
09
15
25
Packaging:
R
reel (9 Pos only, 100/reel)
T
tube
Contact plating:
1
7.9µ" (0.2µm Au)
2
15.7µ" (0.4µm Au)
3
19.7µ" (0.5µm Au)
4
31.5µ" (0.8µm Au)
6
50µ" (1.27µm Au)
Mounting options:
1
rear insert 4-40
2
rear insert M3
5
installed front screwlock 4-40
6
fixed front screwlock 4-40
SOCKET ONLY
Board locks / grounding tab:
1
V1 grounding tab +ZeFo
boardlocks (PCB = .062 [1.6])
4
ZeFo boardlocks only
(PCB = .062 [1.6])
7
V1 grounding tab only
8
no grounding tab and no boardlocks
B
V2 grounding tab + LIF boardlocks
(PCB = .062 [1.6])
: Standard options
T
ELEPHONE
: (416) 754-5656 F
AX
: (416) 754-8668 E-M
AIL
:
SALES
@
AMPHENOLCANADA
.
COM
7
