17SM2-15-S-1-6-1-T datasheet, PDF

Datasheet> All Categories > The connector> The connector> 17SM2-15-S-1-6-1-T

17SM2-15-S-1-6-1-T: Description15 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SURFACE MOUNT, RECEPTACLE; CategoryThe connector The connector; File Size1MB，193 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

17SM2-15-S-1-6-1-T Overview

15 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SURFACE MOUNT, RECEPTACLE

17SM2-15-S-1-6-1-T Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (8) OVER NICKEL
Contact completed and terminated	GOLD (8)
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
insulator material	GLASS FILLED POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SM2
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	SURFACE MOUNT
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

SM2 S

ERIES

PECIFICATIONS

ATERIALS

Shells

Insulator

AND

Stamped And Formed Contacts

Surface Mount Connectors

LATINGS

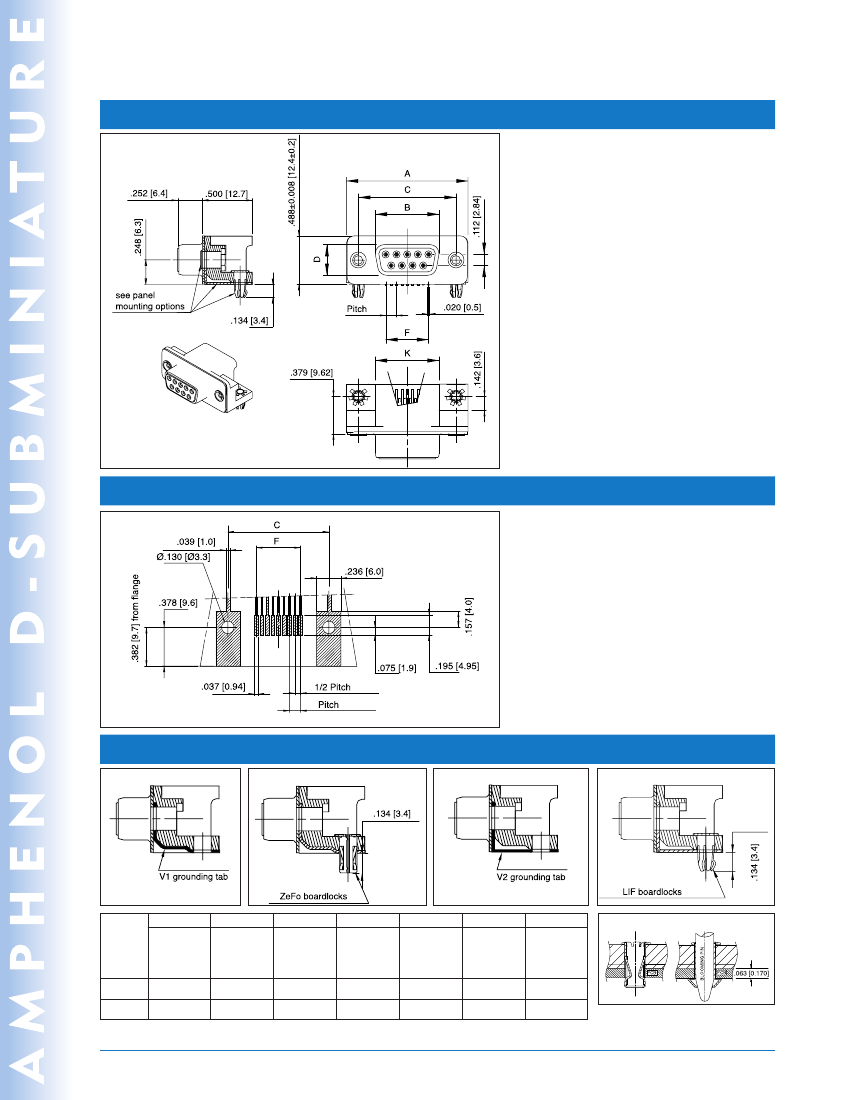

The new Amphenol SMT

D-Sub is offered in right angle,

receptacle with brackets,

as an industry standard

for I / O connections.

New boardlock features:

-LIF (Low Insertion Force)

boardlock especially designed

to be fully compatible with

pick and place equipment.

-ZeFo (Zero Insertion Force)

boardlock has been designed so

that once placed and expanded,

secures the connector in place.

Steel with tin plating

High temperature (peak at 500°F [260°C])

glass-ﬁlled thermoplastic, UL 94V- 0

Socket Contact

Stamped and formed brass, selected

gold in mating area; 100µ" (2.54µm)

min. tin-lead on termination area, with entire contact

under-plated 50µ" (1.27µm) min. nickel

Rear Insert

Brass, 118µ" up to 197µ" (3µm up to 5µm)

tinned over nickel 78µ" to 118µ" (2µm up to 3µm)

Boardlock

Tin-lead plating 157µ" up to 236µ" (4µm up to 6µm)

over nickel 78µ" up to 118µ" (2µm up to 3µm)

Insertion force: Low Insertion Force = LIF (bronze)

Zero Insertion Force = ZeFo (brass)

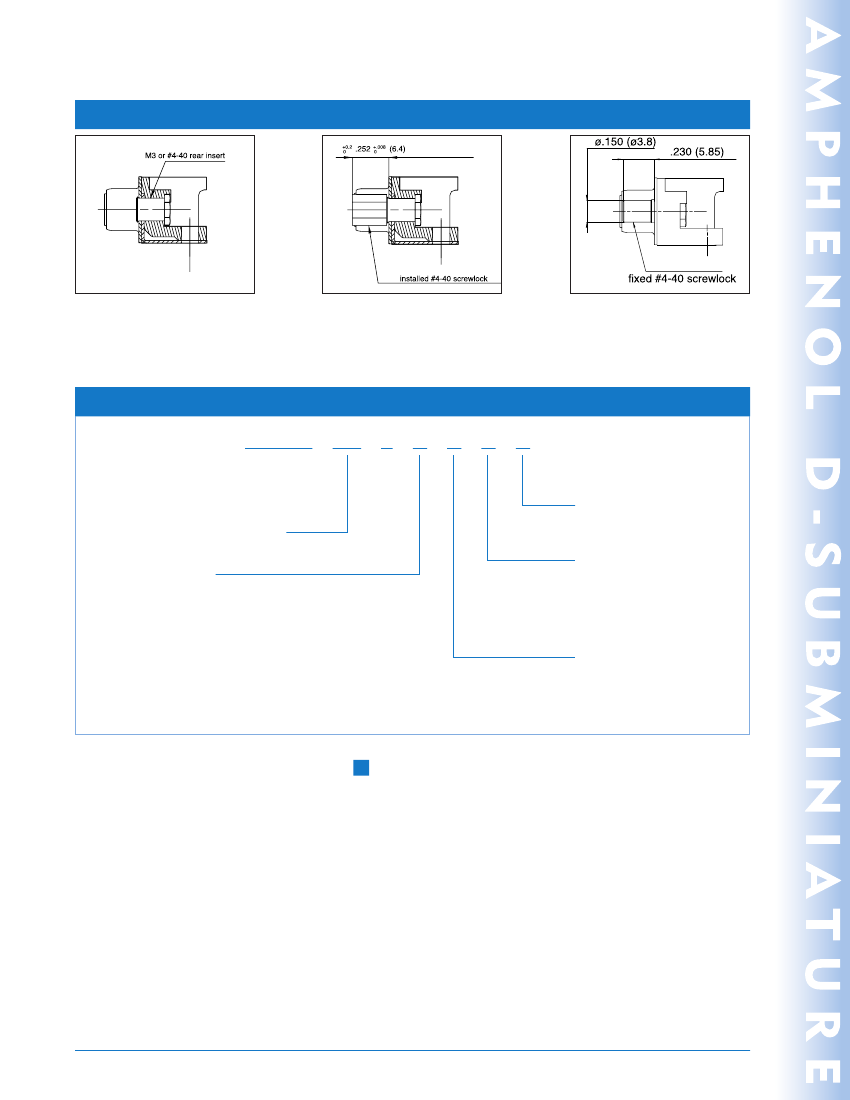

Screwlock

Brass, 236µ" up to 394µ" (6µm up to 10µm)

tinned over nickel 78µ" up to 118µ" (2µm up to 3µm)

Grounding

Grounding strap: brass, (4µ" up to 6µ")

(0.10µm up to 0.15µm) tin-lead plating over nickel

78µ" up to 118µ" (2µm up to 3µm)

LECTRICAL

ATA

Current Rating

Voltage Rating

Withstanding Voltage

Insulation Resistance

Contact Resistance

300V AC/ rms 50Hz

1000V AC/ rms 50Hz for one minute

5000MΩ

10 mΩ max.

LIMATIC

ATA

Operating Temperature

Damp Heat

185°F (85°C), peak at 221°F (105°C)

56 days 221°F (105°C) - 95% RH

ECHANICAL

ATA

Applications

• Industrial

• Telecom

• Any industry standard

I / O connections

Single Contact Insertion Force

Single Contact Withdrawal Force

LIF Boardlock

Coplanarity of Contacts

Mating and Unmating Force

Unit:

No. of Contacts

9 (size E)

15 (size A)

25 (size B)

Mate (max.)

Unmate (min.)

3.5

4.5

8.0

1.2N < F < 2.5N

0.4N min.

8N max. per connector

.008" (0.2) max.

ELEPHONE

: (416) 754-5656

: (416) 754-8668 E-M

AIL

SALES

AMPHENOLCANADA

COM
