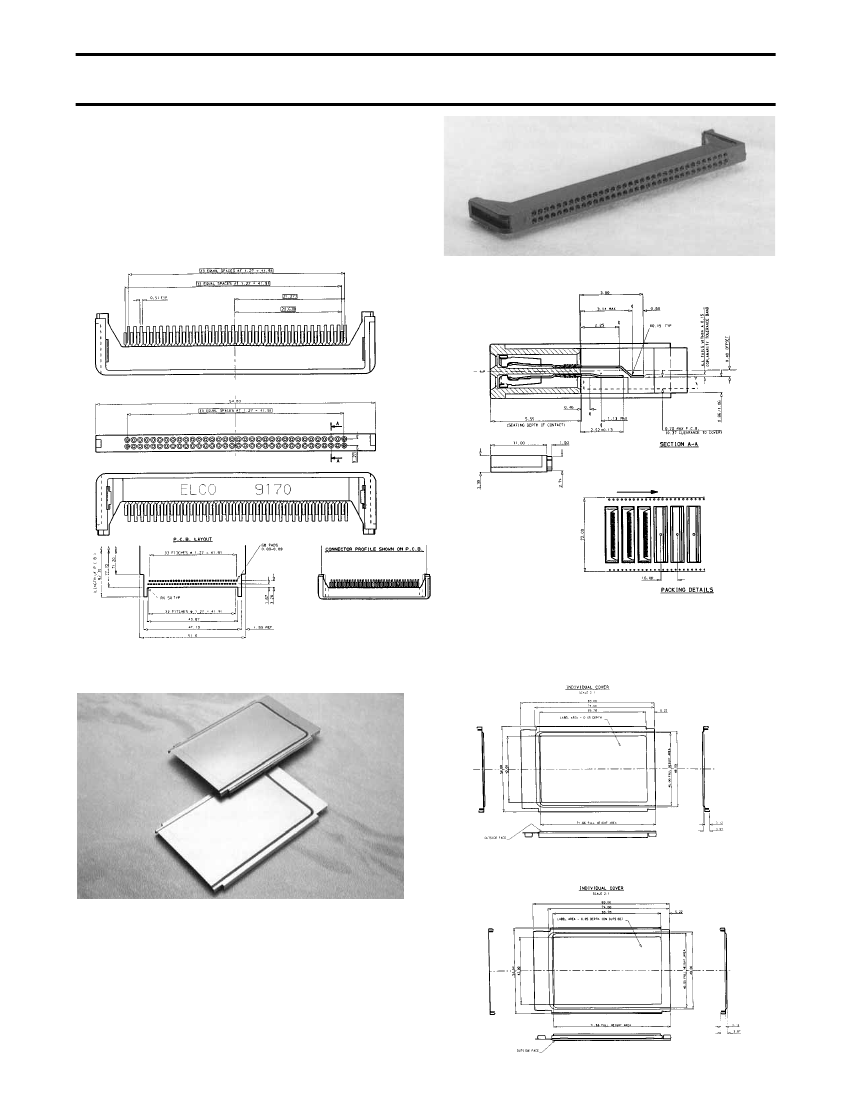

Frameless Type II Kit
PCB Board
ELCO

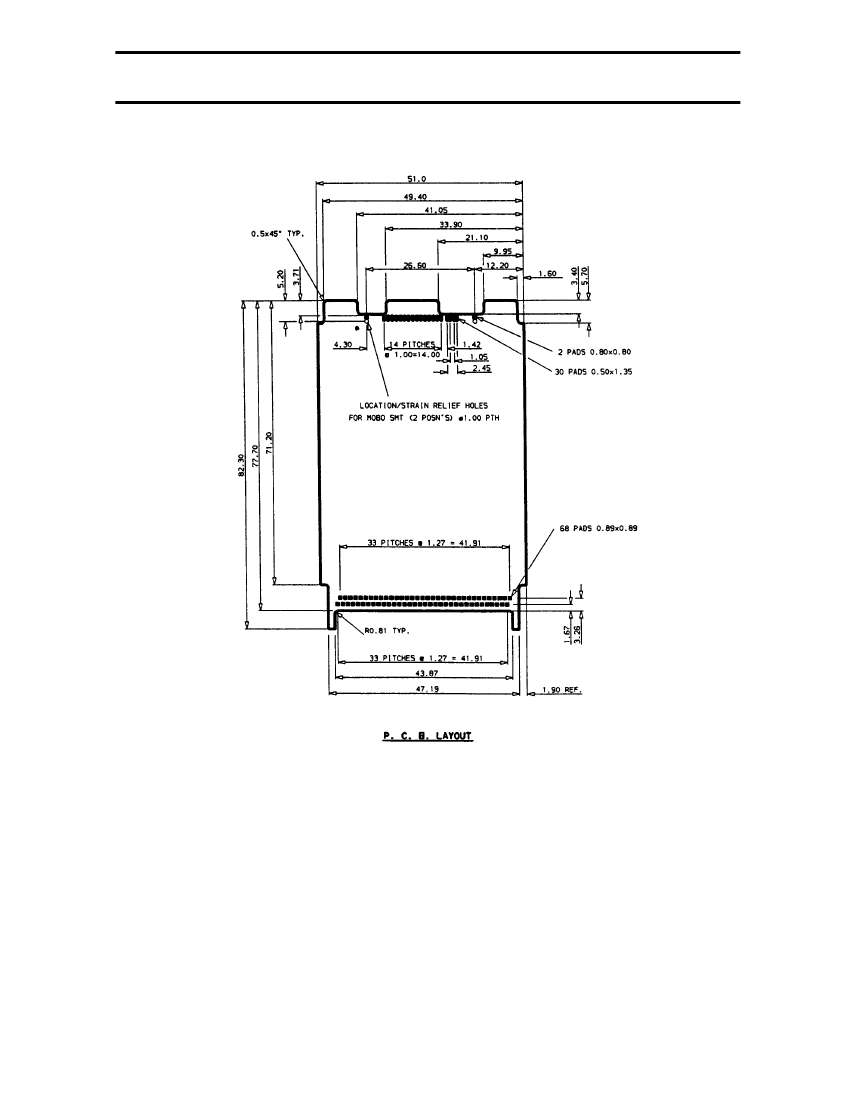

PCB space for components: 3878mm
2
Assembly Instructions
The product has a dedicated cartesian robotics system, to reduce OEM cycle time.
Please consult your local AVX sales office or distributor for further details.

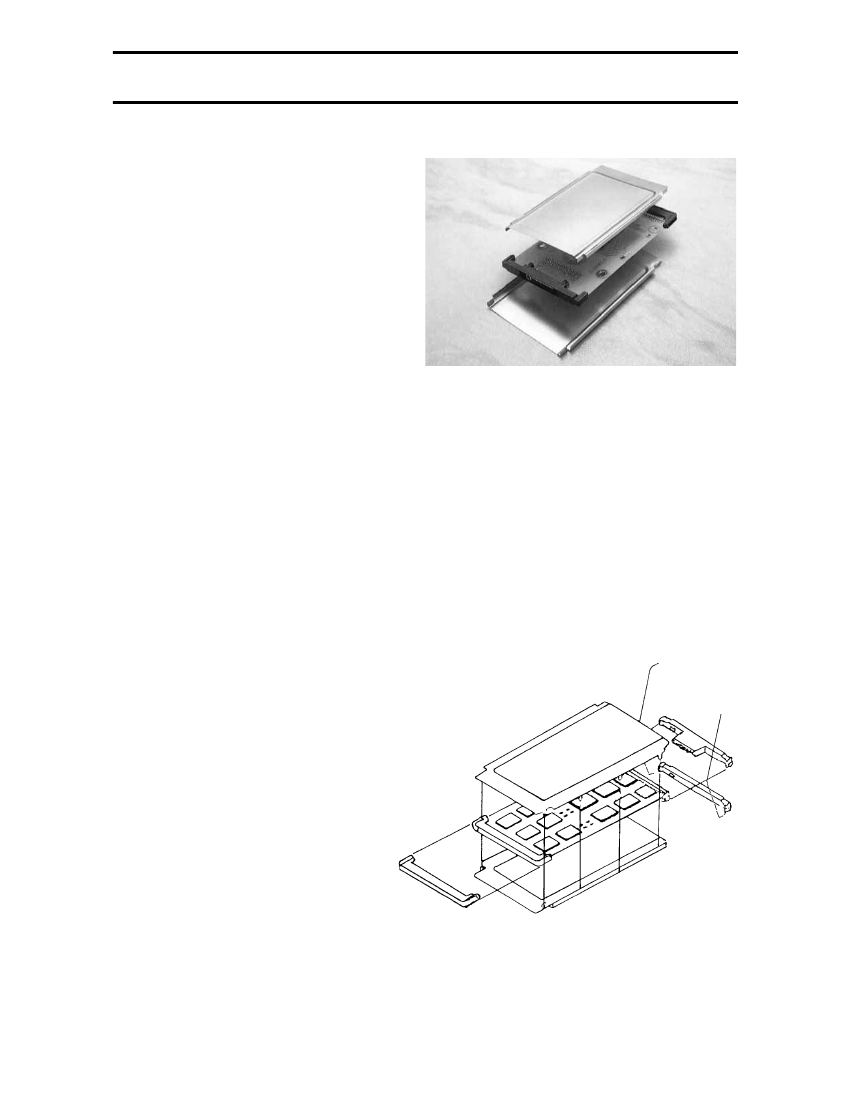

For Manual Assembly
1. Assemble the 68 position and I/O connectors to the Printed Circuit Board.
2. Place the assembled Printed Circuit Board/Connectors onto the lower cover.
(Cover tabs aligned with the slots on the connectors.)
3. Place upper cover over the assembled Printed Circuit Board/Connectors.
(Cover tabs aligned with the slots on the connectors.)
4. Push home the complete assembly with a
Press Tool.
*Please consult your local AVX sales office or distributor for further details.
Frameless Type II Kit
Features and Benefits
•
Greatest PCB
#
spacing available in the
market* allowing design engineer to
compact more electronics components
onto the PCB board.
•
Kit is designed for Robotics Assembly
to reduce OEM Cycle time
•
Dedicated Cartesian robotic system is
available
•
Top/Bottom cover has a unique
patented Interlocking mechanism,
which offers a Robust construction
(Patent pending)
•
Kit is tamper proof
•
Connector Retention brackets double
as a Grounding contact thus saving
space on the PCB Board
•
Covers interconnection also provides
excellent RF shielding
•
All connectors can be pre-assembled
to allow reflow solder assembly
•
All connectors are self supporting to
PCB (ie. they do not require support
tooling during reflow soldering)
•

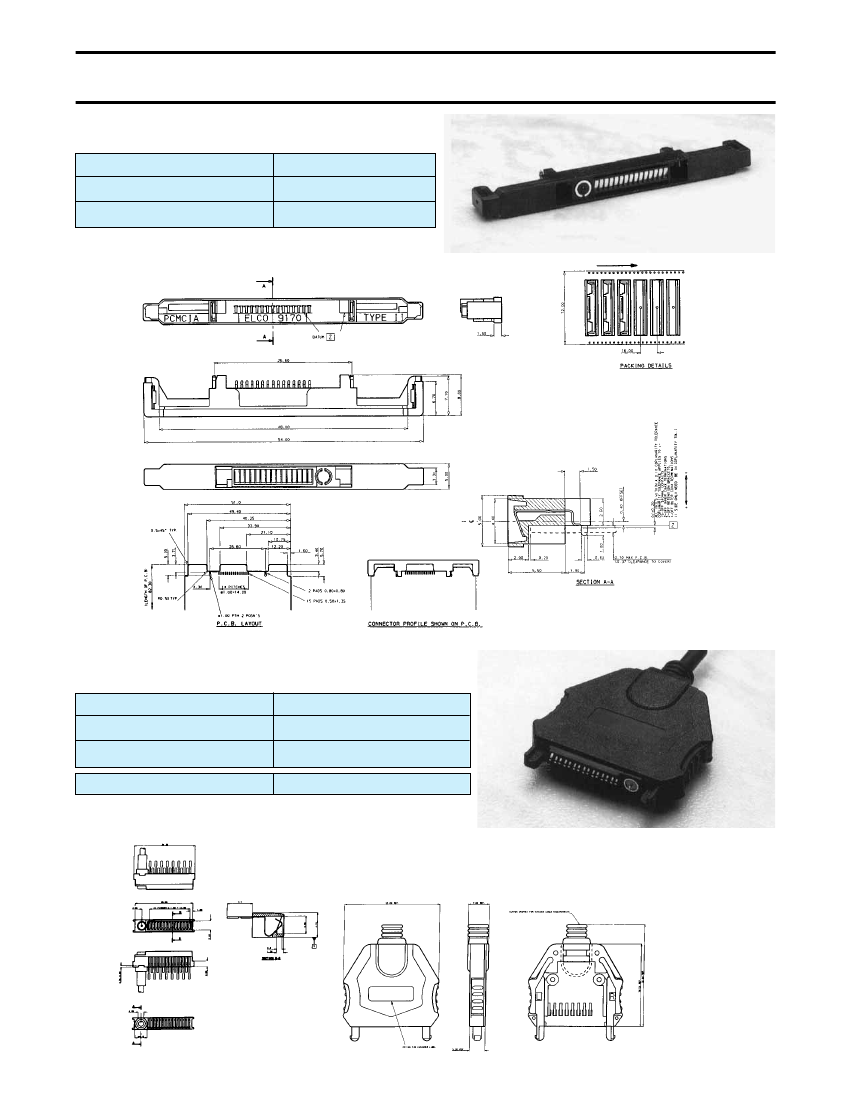

Complete I/O connection system is
available
•
Dedicated I/O connector offered with
options of with/without Co-axial
contacts or Blank I/O
•
Reliable pin/socket design offers above
industry standard performance
•
Conforms to PCMCIA specification
•
All products manufacture to QS9000,
CSA, UL standards
•
Custom flexibility can be offered
*Accurate at the time of going to press
ELCO
NOTICE: Specifications are subject to change without notice. Contact your nearest ELCO Sales Office for the latest specifi-
cations. All statements, information and data given herein are believed to be accurate and reliable, but are presented without
guarantee, warranty, or responsibility of any kind, expressed or implied. Statements or suggestions concerning possible use
of our products are made without representation or warranty that any such use is free of patent infringement and are not rec-
ommendations to infringe any patent. The user should not assume that all safety measures are indicated or that other mea-
sures may not be required. Specifications are typical and may not apply to all applications.
#
NB: PCB is not supplied with the kit
