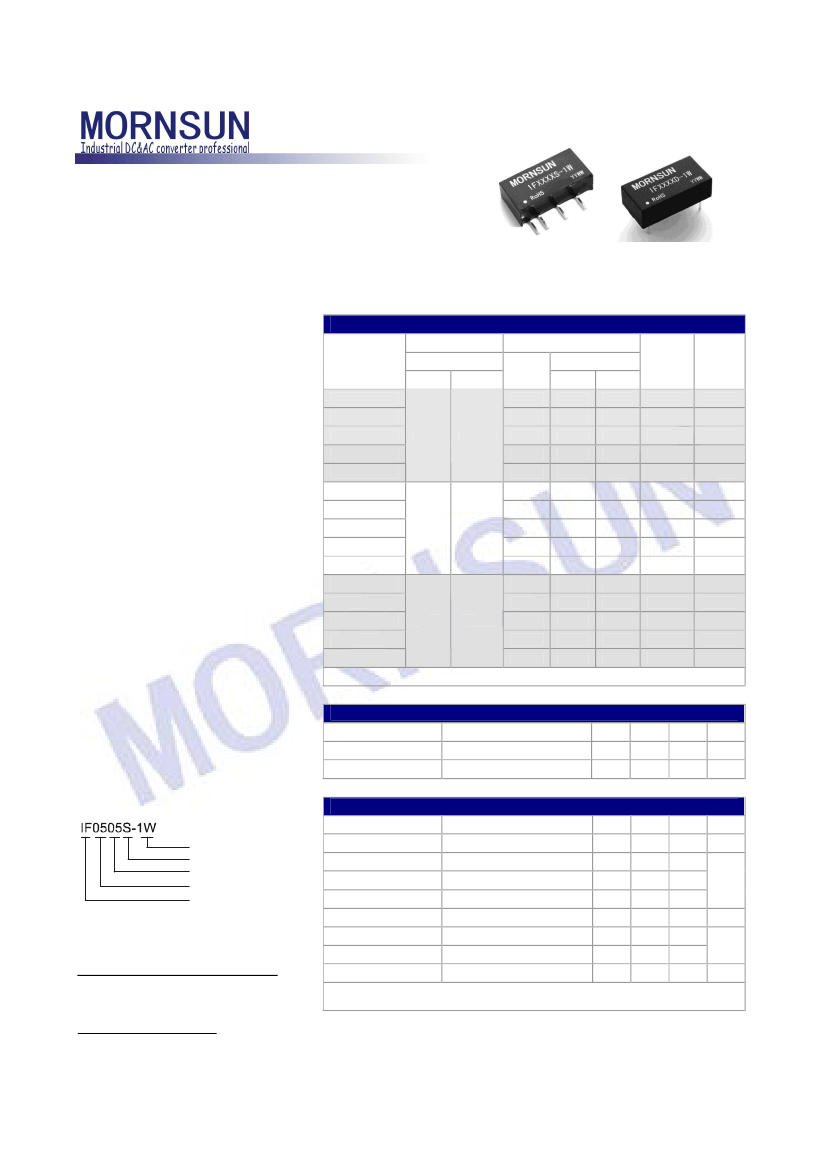

IF_S-1W/ IF_D-1W Series
1W, FIXED INPUT ISOLATED & REGULATED
SINGLE OUTPUT MINIATURE SIP/DIP PACKAGE
multi-country patent protection
RoHS
FEATURES
●
SIP/DIP Package
●
3KVDC Isolation
●
Temperature Range: -40°C to +85°C
●
Industry Standard Pinout
●
No Heat sink Required
●
No External Component Required
●
PCB Mounting
●
RoHS Compliance
●
Short Circuit Protection
PRODUCT PROGRAM
Input
Part
Number
IF0505S/D-W75
IF0505S/D-1W
IF0509S/D-1W
IF0512S/D-1W
IF0515S/D-1W
IF1205S/D-W75
IF1205S/D-1W
5
4.75-5.25
Voltage (VDC)
Nominal
Range
Voltage
(VDC)
5
5
9
12
15
5
5
12
11.4-12.6
9
12
15
5
5
24
22.8-25.2
9
12
15
Output
Current (mA)
Max
150
200
111
83
67
150
200
111
83
67
150
200
111
83
67
Min
15
20
12
9
7
15
20
12
9
7
15
20
12
9
7
68
66
70
72
73
68
67
71
73
74
68
67
72
73
74
SIP/DIP
SIP/DIP
SIP/DIP
SIP/DIP
SIP/DIP
SIP/DIP
SIP/DIP
SIP/DIP
SIP/DIP
SIP/DIP
SIP/DIP
SIP/DIP
SIP/DIP
SIP/DIP
SIP/DIP
Efficiency Package
(%, Typ)
Style
APPLICATIONS
The IF_S(D)-1W Series are specially designed
for applications where a single power supply is
highly isolated from the input power supply in a
distributed power supply system on a circuit
board.
These products apply to:
1) Where the voltage of the input power supply
is fixed (voltage variation
≤±5%);
2) Where isolation is necessary between input
and output (isolation voltage
≤3000VDC);
3) Where the regulation of the output voltage
and
the
output
ripple
and
noise
are
demanding.
IF1209S/D-1W
IF1212S/D-1W
IF1215S/D-1W
IF2405S/D-W75
IF2405S/D-1W
IF2409S/D-1W
IF2412S/D-1W
IF2415S/D-1W
Note: The IF_S(D)-W25 Series also available in our company.
ISOLATION SPECIFICATIONS
Item
Isolation voltage
Isolation resistance
Test condition
Tested for 1 minute
Test at 500VDC
Min
3000
1000
Typ
Max
Units
VDC
MΩ
MODEL SELECTION
Rated Power
Package Style
Output Voltage
Input Voltage
Product Series
OUTPUT SPECIFICATIONS
Item
Output power
Line regulation
Load regulation
For Vin change of
±5%
10% to 100% full load
Test condition
Min
0.1
Typ
Max
1
±0.25
±1
±3
0.03
10
50
100
20
100
KHz
%/°C
mVp-p
%
Units
W
Output voltage accuracy 100% full load
Temperature drift
Output ripple*
Output noise*
100% full load
20MKHz bandwidth
20MKHz bandwidth
Full load, nominal input voltage
MORNSUN Science& Technology co.,Ltd
.
Address: 2th floor 6th building, Huangzhou Industrial
District, Guangzhou, China
Tel: 86-20-38601850
Fax:86-20-38601272
Http://www.mornsun-power.com
Switching frequency
*
Test ripple and noise by
“parallel
cable” method. See detailed operation instructions at Testing of
Power Converter section, application notes.
Note:
1.All specifications measured at TA=25°C, humidity<75%, nominal input voltage and rated output load
unless otherwise specified.
2.See below recommended circuits for more details.
MORNSUN reserves the copyright
Specifications subject to change without notice.
IF_S(D)-1W
A/0-2008
Page 1 of 2

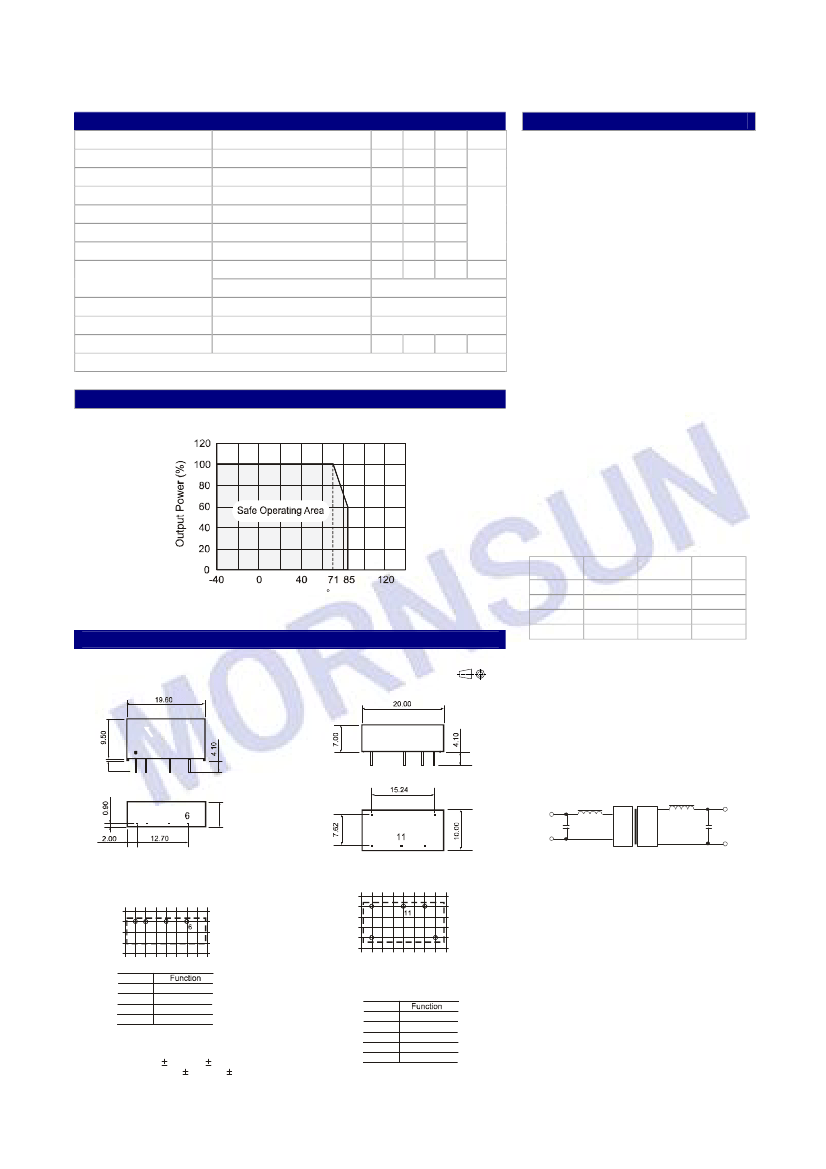

COMMON SPECIFICATION
Item
Storage humidity range
No-load power consumption
Storage humidity range
Operating temp. range
Temp. rise at full load
Lead temperature
Short circuit protection
Cooling
Case material
MTBF
1.5mm from case for 10 seconds
IFXX05S/D-1W*
Others
-55
-40
15
10
125
85
25
300
1
Continuous
Free air convection
Plastic (UL94-V0)
3500
K hours
S
°C
Test condition
Min
Typ Max
95
Units
%
APPLICATION NOTE
Requirement On Output Load
To ensure this module can operate efficiently
and reliably, a minimum load is specified for this
kind of DC/DC converter in addition to a
maximum
load
(namely
full
load).
During
operation, make sure the specified range of input
voltage is not exceeded, the minimum output load
is
not less than 10%
of the full load, and that this
product should
never be operated under no
load!
If the actual output power is very small,
please connect a resistor with proper resistance
at the output end in parallel to increase the load,
or use our company’s products with a lower rated
output power (IF_S(D)
–W25
Series).
Filtering
*
Supply voltage must be discontinued at the end of short circuit duration.
TYPICAL CHARECTERISTICS
Temperature Derating Graph
In some circuits which are sensitive to noise
and ripple, a filtering capacitor may be added to
the DC/DC output end and input end to reduce
the noise and ripple. However, the capacitance of
the output filter capacitor must proper. If the
capacitance is too big, a startup problem might
arise. For every channel of output, providing the
safe and reliable operation is ensured, the
greatest capacitance of its filter capacitor refer to
(Table 1).
EXTERNAL CAPACITOR TABLE (TABLE 1)
Vin
(VDC)
5
12
24
-
Cin
(uF)
4.7
2.2
1
-
Vout
(VDC)
5
9
12
15
Cout
(uF)
10
4.7
2.2
1
Operating Temp.(
C
)
OUTLINE DIMENSIONS& RECOMMENDED FOOTPRINT
First Angle Projection
IFXXXXS-1W SIP Package
(0.7 72)
(0.3 74)
(0 .27 6)
It’s not recommended to connect any external capacitor
in the application field with less than 0.5 watt output.
To get an extrem ely low ripple, an
“LC”
filtering
network may be connected to the input and
output ends of the DC/DC converter, which may
(0. 161)
IFXXXXD-1W DIP Package
(0.787)
produce a more significant filtering effect. It
should also be noted that the inductance and the
frequency of the
“LC”
filtering network should be
staggered with the DC/DC frequency to avoid
mutual interference (Figure 1).
0.50
(0.020)
(0.03 5)
(0.60)
(0 .30 )
(0.3 94)
(0.161 )
(Side View)
6.00
(0. 236 )
L
L
1 2
4
(Bottom View)
Vin
1
14
9
7
C
+Vo
DC DC
(Figure 1)
C
GND
(0.079)
(0.5 00)
0V
RECOMMENDED FOOT PRINT
Top
view,grid:2.54*2.54mm(0.1*0.1inch) ,
diameter:1.00mm(0.039inch)
14
1
2
4
1
9
7
Overload Protection
Under normal operating conditions, the output
circuit of these products has no protection against
over-current and short-circuits. The simplest
method is to connect a self-recovery fuse in
series at the input end or add a circuit breaker to
the circuit.
FOOTPRINT DETAILS
Pin
1
7
9
11
14
GND
NC
+Vo
0V
Vin
FO OT PRINT DETAILS
Pin
1
Vin
GND
2
4
0V
+Vo
6
When the environment temperature is higher
than 71°C, the product output power should
be less then 60% of the rated power.
No parallel connection or plug and play.
Note:
Unit:mm( inch)
Pin section :0.50*0.30mm(0.020*0.012inch)
Pin tolerances: 0.10mm( 0.0 04inch)
General tolerances: 0.25mm( 0.010inch)
MORNSUN reserves the copyright
Specifications subject to change without notice.
IF_S(D)-1W
A/0-2008
Page 2 of 2
