164GB-0518 datasheet, PDF - EEWORLD Datasheet

164GB-0518: DescriptionCircular Connector, 6 Contact(s), Stainless Steel, Female, Solder Terminal,; CategoryThe connector The connector; File Size114KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

164GB-0518 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	164GB-0518	-	-	View	Buy Now

Circular Connector, 6 Contact(s), Stainless Steel, Female, Solder Terminal,

Parameter Name	Attribute value
Reach Compliance Code	unknown
Back shell type	SOLID
subject depth	0.796 inch
Connector type	Other Circular Connectors
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Filter function	NO
Mixed contacts	NO
Installation type	CABLE AND PANEL
Maximum operating temperature	90 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Shell material	STAINLESS STEEL
Termination type	SOLDER
Total number of contacts	6
Base Number Matches	1

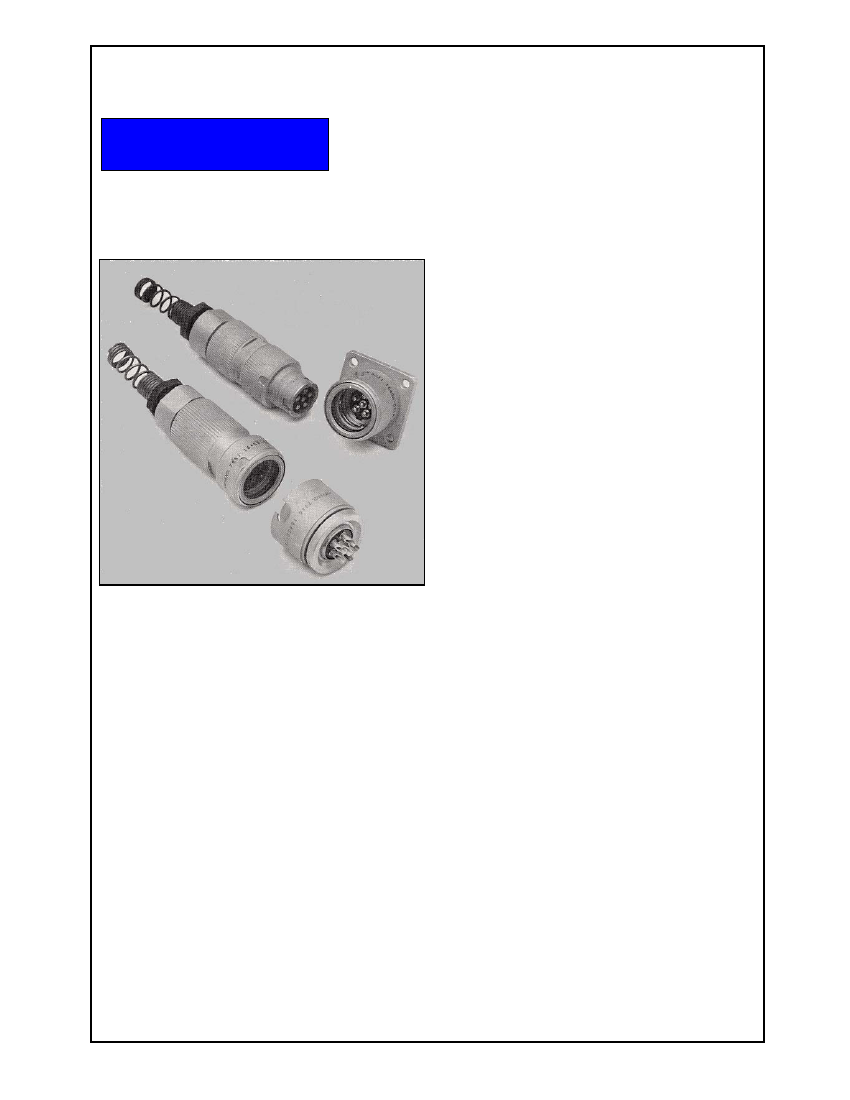

Amphenol

164GB Series

Medium Density Circular

Environmental Connectors

with Butt Contacts

164GB Series Connectors have 6 fixed butt

connectors with solder bucket terminations

and high endurance ball bearing couplings.

The connectors are capable of up to 3,000

engagements and separations without any

degradation in performance.

The range includes cable to cable, cable to panel, and unit to panel connector styles, all

fitted with self-cleaning spring loaded butt contacts.

Mating is by means of three-recessed “J” bayonet slots, offset to prevent mismating on the

male shells and three positional matching spring-loaded ball bearings on the female shell.

In addition, the unit to panel styles can be fitted with a heavy-duty shroud which provides

increased mating protection.

Shell material is stainless steel with a sandblasted passivated finish.

The free plugs have black anodised back fittings and stainless steel cable support springs.

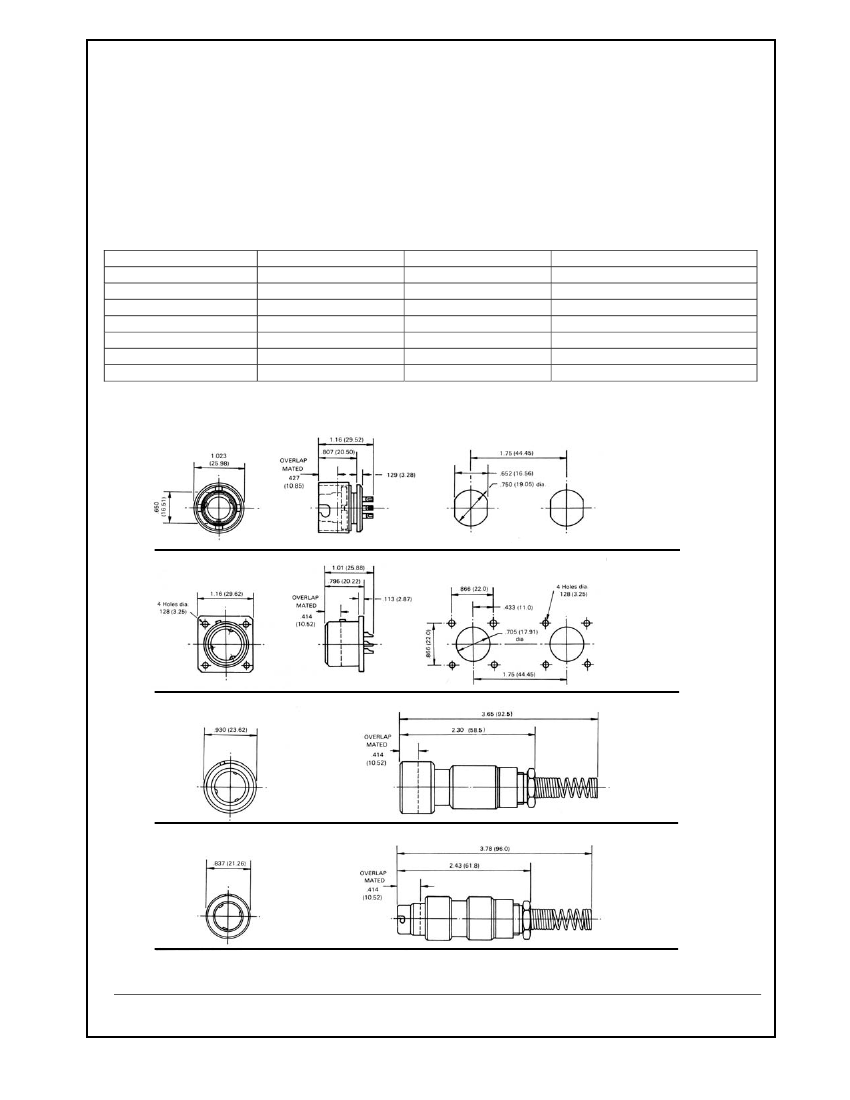

Amphenol

	164GB-0518	164GB-0513	164GB-0514	164GB-0515	164GB-0516	164GB-0519
Description	Circular Connector, 6 Contact(s), Stainless Steel, Female, Solder Terminal,	Circular Connector, 6 Contact(s), Stainless Steel, Male, Plug	Circular Connector, 6 Contact(s), Stainless Steel, Female, Receptacle	Circular Connector, 6 Contact(s), Stainless Steel, Female, Solder Terminal, Plug,	Circular Connector, 6 Contact(s), Stainless Steel, Male, Solder Terminal, Plug,	Circular Connector, 6 Contact(s), Stainless Steel, Male, Solder Terminal,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Back shell type	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID
Connector type	Other Circular Connectors	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	Other Circular Connectors	Other Circular Connectors
Contact point gender	FEMALE	MALE	FEMALE	FEMALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL
Total number of contacts	6	6	6	6	6	6
Base Number Matches	1	1	1	1	1	1
Coupling type	BAYONET	-	-	SNAP	BAYONET	BAYONET
Installation type	CABLE AND PANEL	-	-	CABLE	CABLE	CABLE AND PANEL
Termination type	SOLDER	-	-	SOLDER	CRIMP	SOLDER
Body/casing type	-	PLUG	RECEPTACLE	PLUG	PLUG	-
