10034542-20033 datasheet, PDF - EEWORLD Datasheet

10034542-20033: DescriptionCard Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal,; CategoryThe connector The connector; File Size266KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

10034542-20033 Overview

Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal,

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	TIN (100) OVER NICKEL (50)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	10034542
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	PRESS FIT
Total number of contacts	240
UL Flammability Code	94V-0
Base Number Matches	1

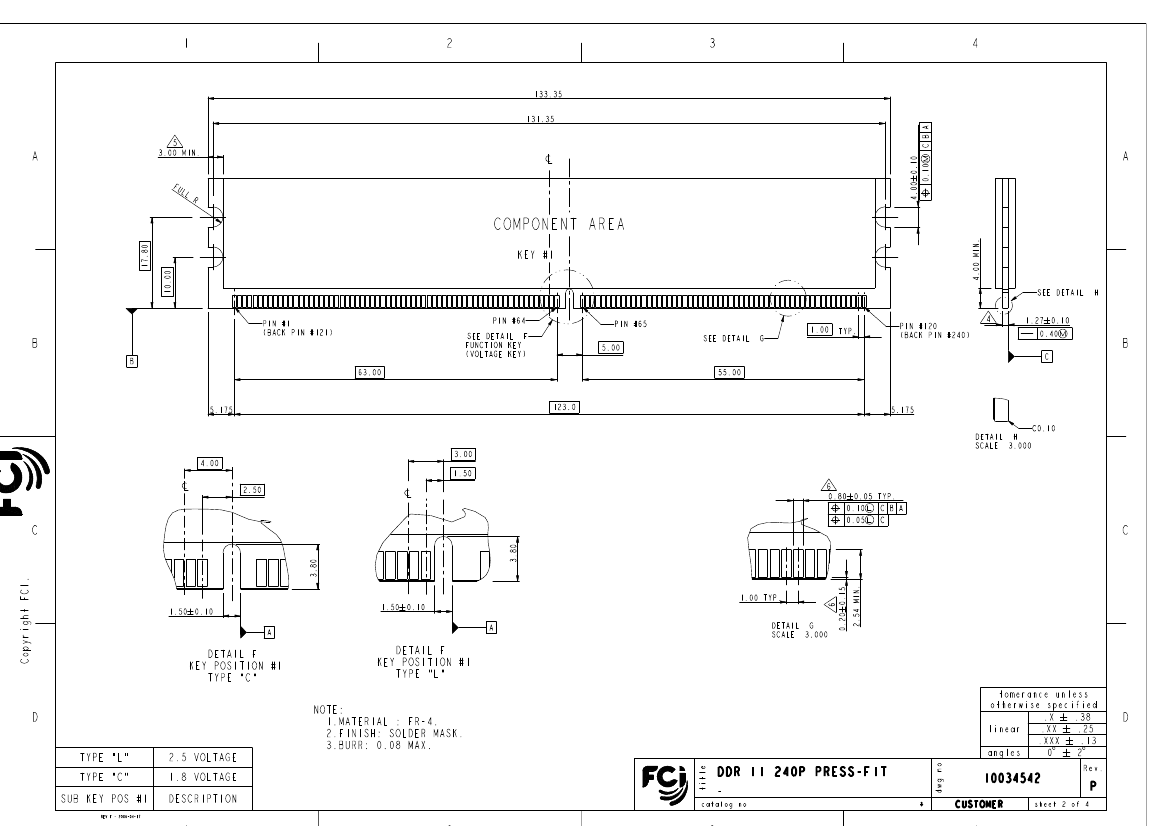

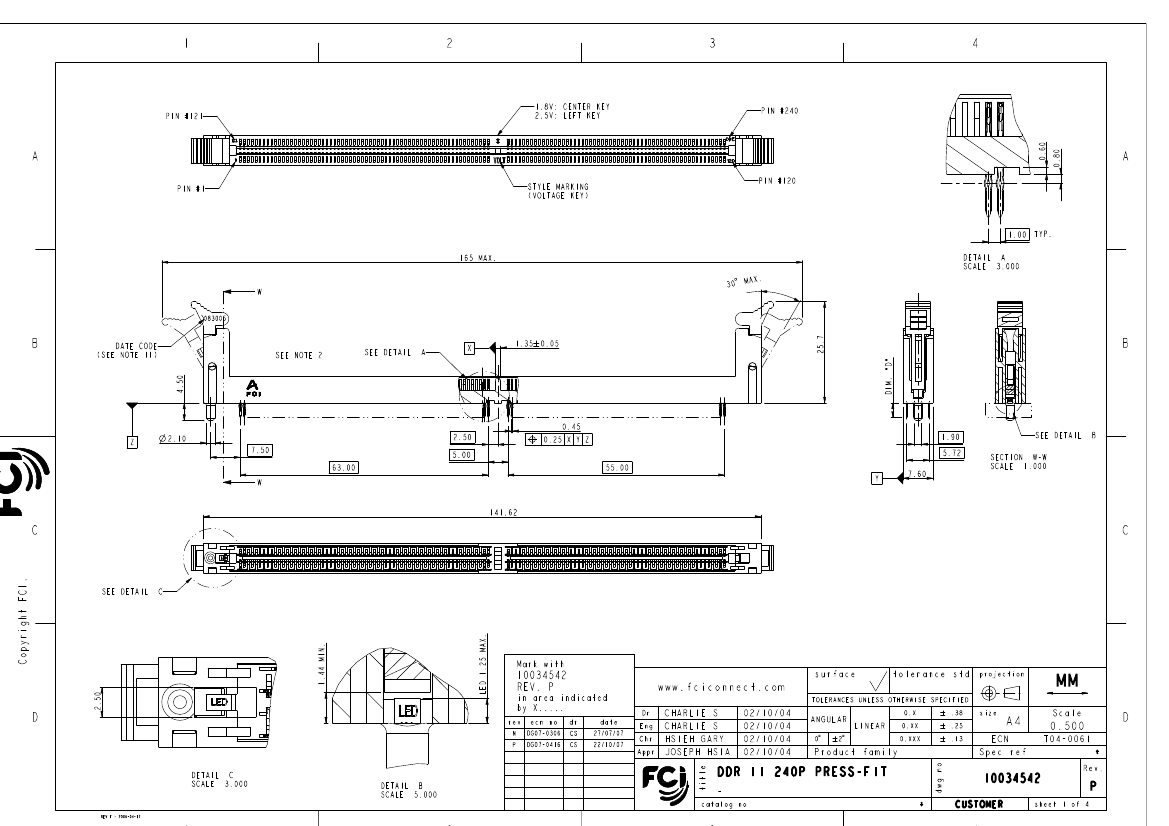

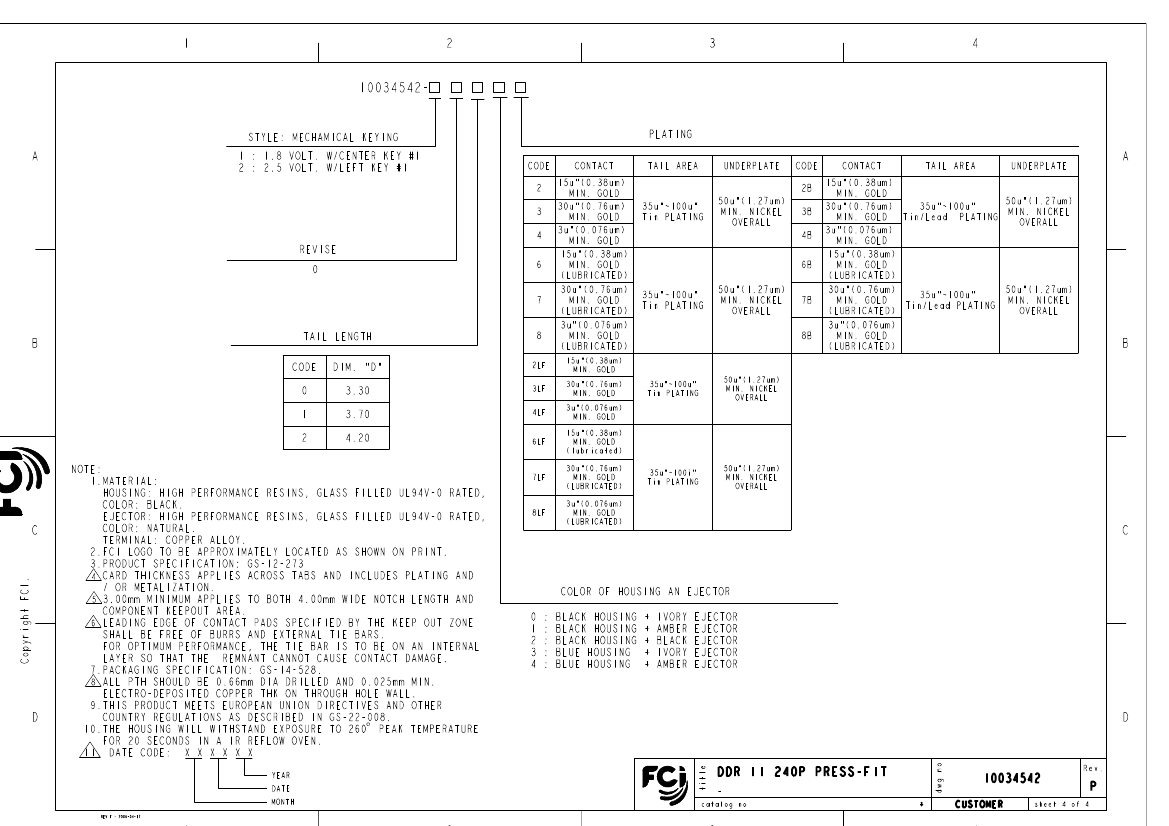

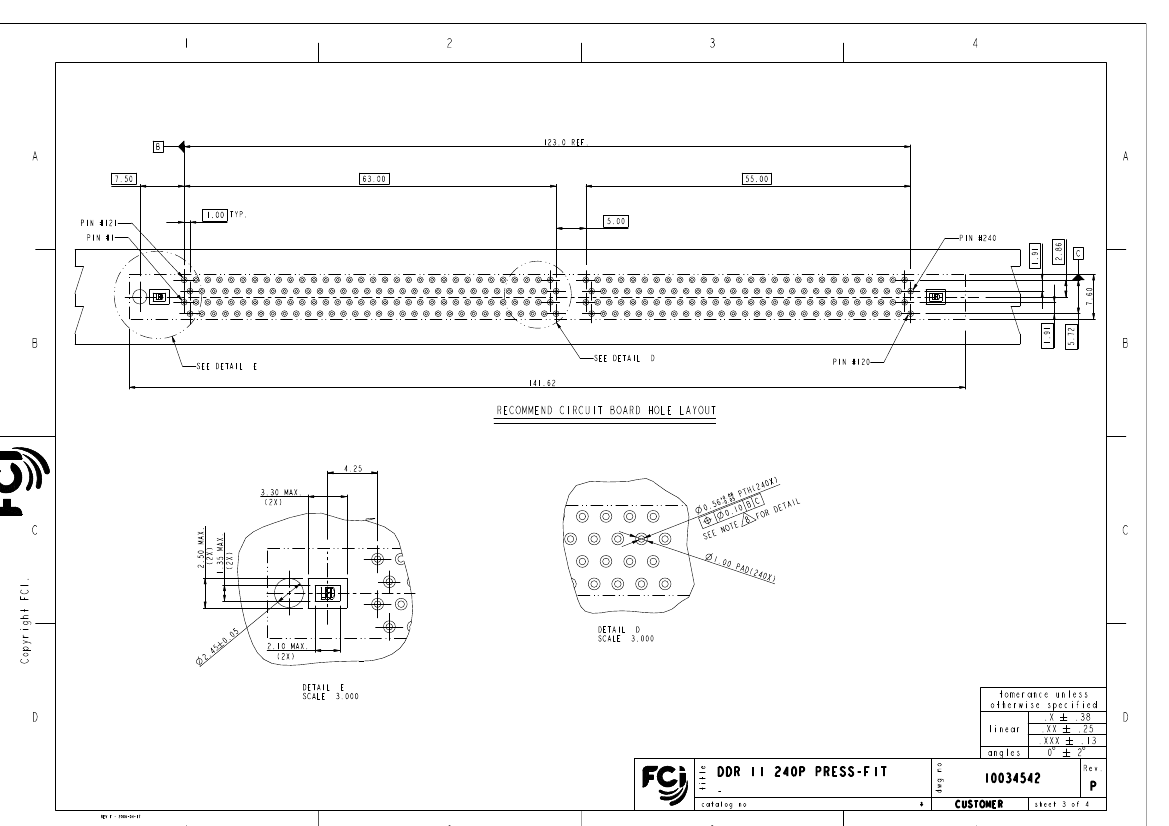

PDM: Rev:P

STATUS:

Released

Printed: Jul 28, 2010

.
