H HiTRON
AC/DC EXTERNAL WALLMOUNT ADAPTER 2-BLADE AND
EUROPEAN AC PLUG SINGLE OUTPUT 5-10 WATTS LOW LEAKAGE
& GREEN POWER SWITCHING POWER SUPPLIES HLG10 SERIES
FEATURES:
VERY SMALL & COMPACT IN SIZE
LOW LEAKAGE & LOW WAITING POWER
EMI MEET EN 55022/FCC CLASS B
MEET USA, JAPAN & EUROPEAN SAFETY
STANDARDS
CE MARKING COMPLIANCE
SPECIFICATION
INPUT SPECIFICATION
Input Voltage:
90-264Vac typical.
Input Connector:
WM1(USA)/WM3 (Euro-Stecker)/
WM5(UK)
Input Frequency:
50/60Hz.
Inrush Current:
3.371Arms@230Vac/50Hz.
Input Current:
0.2A@115Vac, 0.09A@230Vac.
Dielectric Withstand:
Meet IEC 60950-1.
EMI:
Meet CISPR EN 55022/FCC Class B.
Hold-up Time:
11.2mS@115Vac, 70.4mS@230Vac typ.
Green Power:
0.2W @132Vac, 0.25W@264Vac typical.
Leakage Current:
IEC 60950-1 Touch Current 0.02mA.
OUTPUT SPECIFICATION
Output Voltage:
See Ratings Chart.
Output Current:
See Ratings Chart.
Output Wattage:
5-10 Watts typical.
Output Connector:
Optional.
Line Regulation:
1.0 % typical.
Load Regulation:
± 5 % typical.
Noise & Ripple:
1% typical peak to peak.
OVP:
Built-in. (Zener).
Overload Protection (OLP):
Fully protected against output overload and short circuit.
OLP set at about 125-150% rating output wattage.
Consult the factory for OLP setting.
GENERAL SPECIFICATION
Efficiency:
71-75% typical.
Switching Frequency:
60 KHz.
Circuit Topology:
PWM IC Fixed Flyback Circuit.
Transient Response:
Output voltage returns in less than
1mS following a 25% load change.
Safety Standard:
Meet UL60950-1 Class II.
Power Density:
0.93-1.86 Watts/Cubic inch.
Operating Temperature:
0 to +25/35/40°C
without derating. (various with output voltage)
Storage Temperature: -20
to +85°C.
Temperature Coefficient:
0.04%/°C typical.
Cooling:
Free air convection.
Construction:
Impact resistant plastic enclosure case
wallmount format.
NOTE: (1) All measurements are at nominal input, full load, and +25°C unless otherwise specified.
(2) Load regulation is measured at 115Vac or 230Vac in percentage to indicate the change in output voltage as the load is varied from half load to full load (±%).
(3) The exact obtainable load regulation depends upon the output cord selected and load current. Upper data are for 6 ft. (2 m) cord AWG#18 wires.
(4) Due to requests in market and advances in technology, specifications subject to change without notice.
For the details of safety approval, please consult the factory.
-5-
OUTPUT VOLTAGE/CURRENT RATINGS CHART
Output Voltage from 3.3-9.0Volts, Output DC 2.5-1.1Amps, Maximum Output 10.3Watts.
DEFINED OUTPUT VOLTAGE (Vdc)
3.3Vdc
≤
Any Voltage
≤
9.0Vdc
OUTPUT VOLTAGE (Vdc) / CURRENT (A)
3.3-4.0V/2.5-2.1A,
5.0-5.9V/2.0-1.7A,
7.0-7.9V/1.4-1.2A,
4.1-4.9V/2.1-2.0A,
6.0-6.9V/1.6-1.4A,
8.0-9.0V/1.2-1.1A.
Note: Refer to the upper Chart or consult factory for the exact Model No. and V/A ratings.
SINGLE OUTPUT
(Model No. for example.)
MODEL NO.
HLG10-330250-1
HLG10-330250-3
HLG10-500200-1
HLG10-500200-5
HLG10-515200-1
HLG10-515200-3
HLG10-515200-5
HLG10-600160-1
HLG10-600160-3
HLG10-900110-3
HLG10-900110-5
HLG10-515100-1(I)
HLG10-515200-1(I)
AC PLUG
WM1
WM3
WM1
WM5
WM1
WM3
WM5
WM1
WM3
WM3
WM5
WM1
WM1
O/P VOLTAGE
3.30Vdc
3.30Vdc
5.00Vdc
5.00Vdc
5.15Vdc
5.15Vdc
5.15Vdc
6.00Vdc
6.00Vdc
9.00Vdc
9.00Vdc
5.15Vdc
5.15Vdc
O/P CURRENT
Min.
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
Typ.
2.5A
2.5A
2.0A
2.0A
2.0A
2.0A
2.0A
1.6A
1.6A
1.1A
1.1A
1.0A
2.0A
Max.
2.5A
2.5A
2.0A
2.0A
2.0A
2.0A
2.0A
1.6A
1.6A
1.1A
1.1A
1.0A
2.0A
Peak
2.5A
2.5A
2.0A
2.0A
2.0A
2.0A
2.0A
1.6A
1.6A
1.1A
1.1A
1.0A
2.0A
Remark:
Models can be followed by a suffix (I) to indicate an additional input choke.

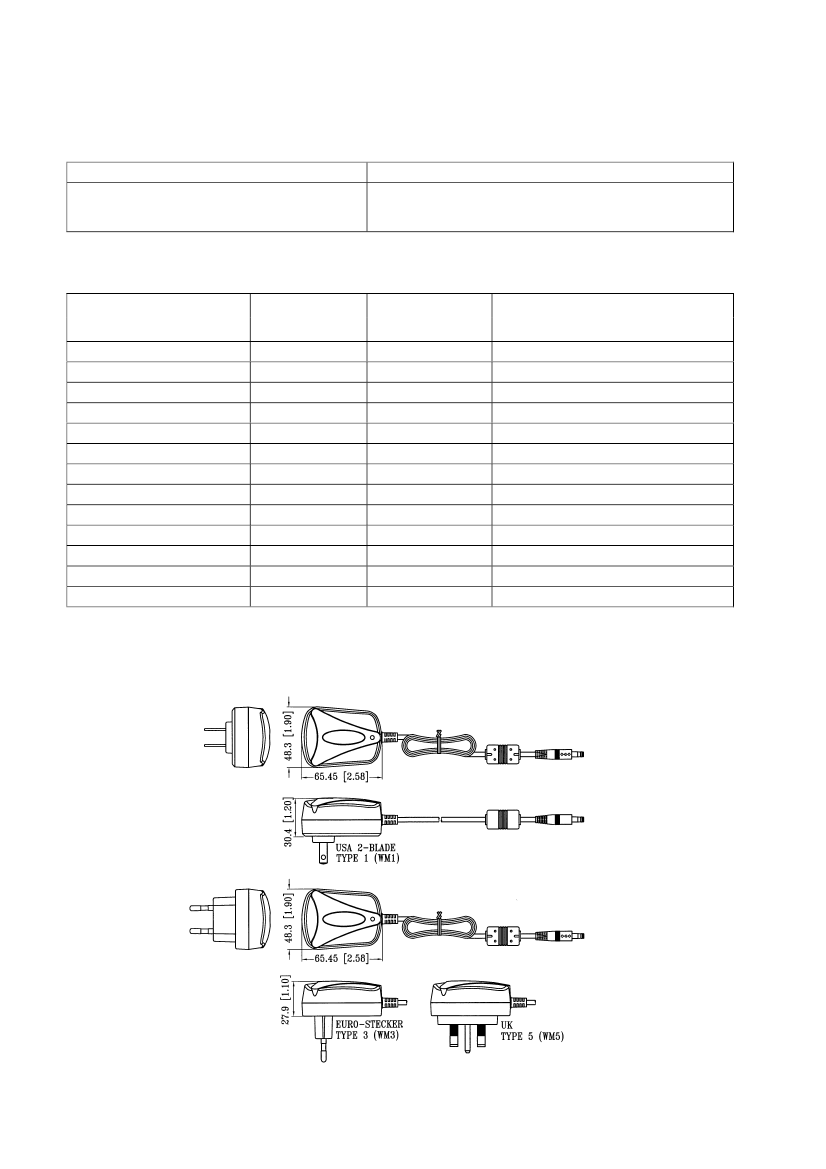

MECHANICAL DIMENSIONS:
MM [INCHES]
WEIGHT:
133.6g(4.71Oz.)
-6-
