31-5538-10RFX datasheet, PDF - EEWORLD Datasheet

31-5538-10RFX: DescriptionRF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size123KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

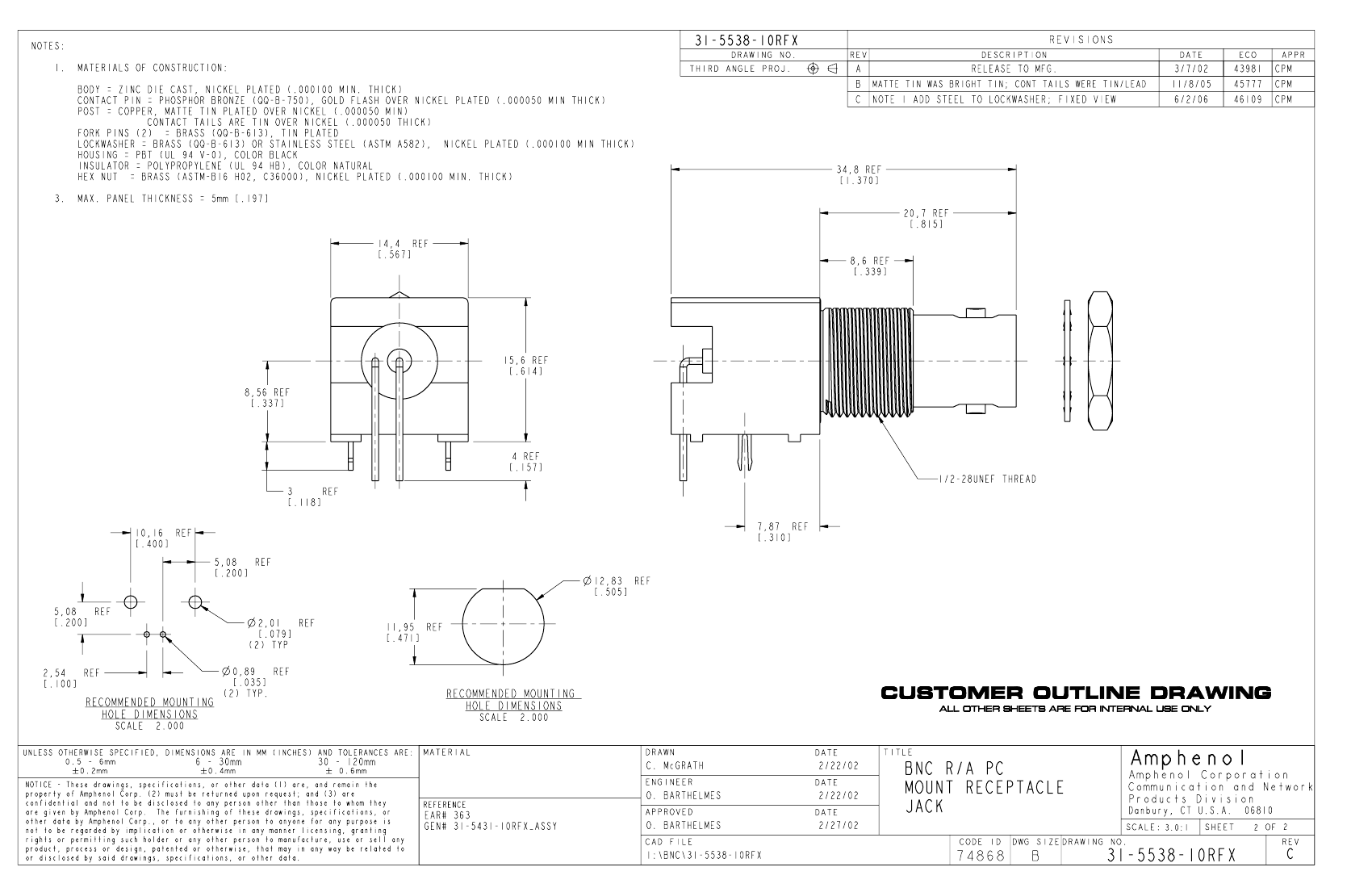

31-5538-10RFX Overview

RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle

Parameter Name	Attribute value
Objectid	1919020258
Reach Compliance Code	unknown
YTEOL	7.57
Other features	INSERTION LOSS MAX AT 3 GHZ
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	MATTE TIN/TIN OVER NICKEL
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.2 dB
insulator material	POLYTETRAFLUOROETHYLENE
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.35

	31-5538-10RFX
Description	RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle
Objectid	1919020258
Reach Compliance Code	unknown
YTEOL	7.57
Other features	INSERTION LOSS MAX AT 3 GHZ
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	MATTE TIN/TIN OVER NICKEL
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.2 dB
insulator material	POLYTETRAFLUOROETHYLENE
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.35
