174683-5: DescriptionCONNECTOR,D-SHELL,PCB MNT,RECEPT,34 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL; CategoryThe connector The connector; File Size47KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

174683-5 Overview

CONNECTOR,D-SHELL,PCB MNT,RECEPT,34 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL

174683-5 Parametric

Parameter Name	Attribute value
Objectid	300072032
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.287 inch
subject depth	0.165 inch
body length	1.24 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	8u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	34

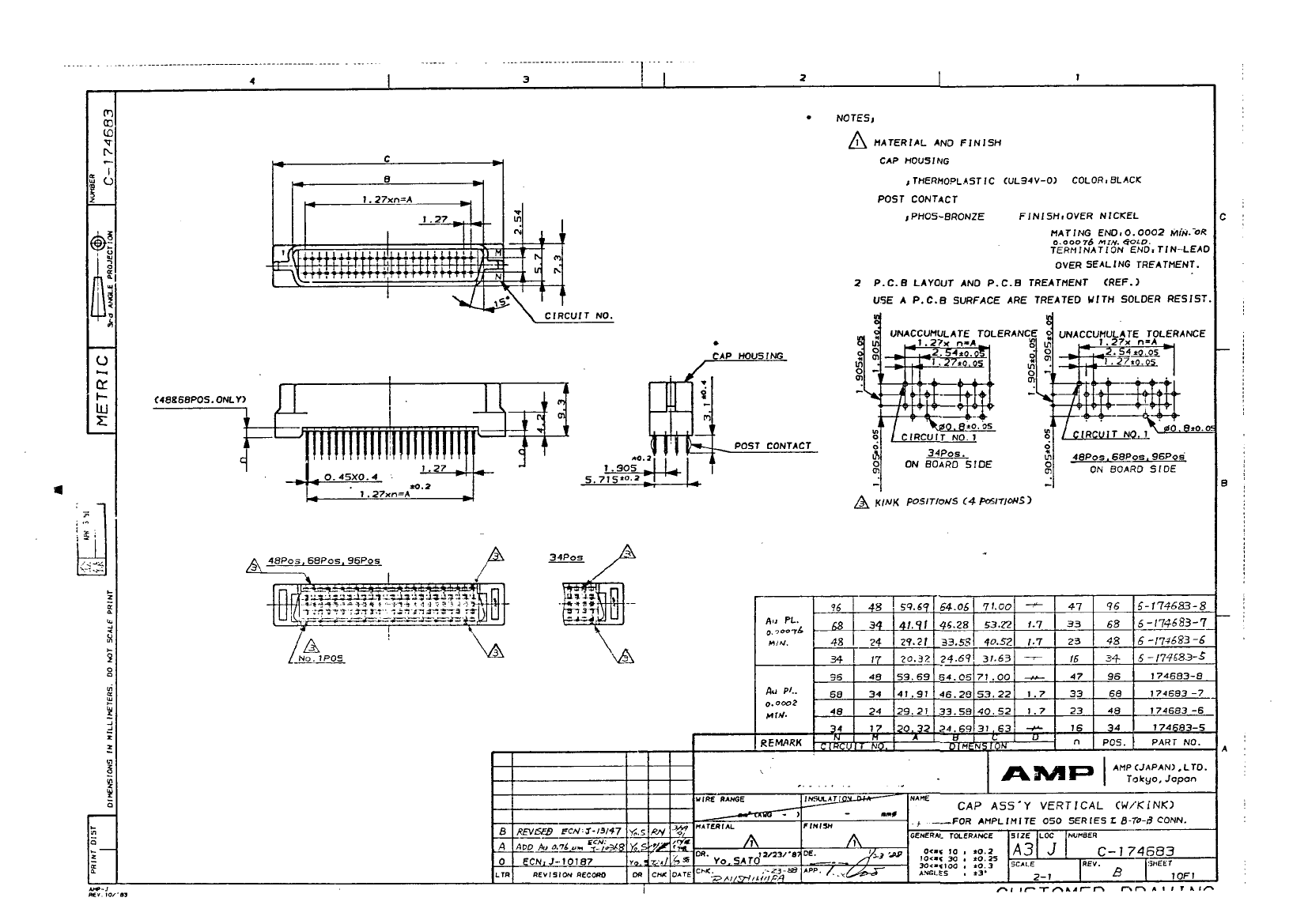

Preview

Download Datasheet

View All

174683-5 Related Products

	174683-5	6-174683-5	6-174683-6	174683-6	6-174683-8
Description	CONNECTOR,D-SHELL,PCB MNT,RECEPT,34 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL	CONNECTOR,D-SHELL,PCB MNT,RECEPT,34 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL	CONNECTOR,D-SHELL,PCB MNT,RECEPT,48 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL	CONNECTOR,D-SHELL,PCB MNT,RECEPT,48 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL	CONNECTOR,D-SHELL,PCB MNT,RECEPT,96 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL
Objectid	300072032	300072036	300072037	300072033	300072039
Reach Compliance Code	unknown	unknown	unknown	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.287 inch	0.287 inch	0.287 inch	0.287 inch	0.287 inch
subject depth	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch
body length	1.24 inch	1.24 inch	1.59 inch	1.59 inch	2.8 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	4	4	4	4	4
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm
Plating thickness	8u inch	30u inch	30u inch	8u inch	30u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.122 inch	0.122 inch	0.122 inch	0.122 inch	0.122 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	34	34	48	48	96
Contact completed and terminated	GOLD	GOLD	GOLD	-	-
