HF Series
High Frequency and
High Power Reed Relays
DESCRIPTION
High voltage RF Reed Relays use a patented coil
encapsulation, external electrostatic shields, and
magnetic shields. For this series we use a special
copper-plated Form A switch with a breakdown
voltage up to 10 kVDC. The contacts are suitable
for carrying current up to 3 Amps (5 Amps available)
at 30MHz.
FEATURES
•
Normally open contacts (Normally closed
contacts are available)
•
5 Amps available
APPLICATIONS
•
Radio frequency technology
•
Antenna tuning units
•
Transmit / receive requirements

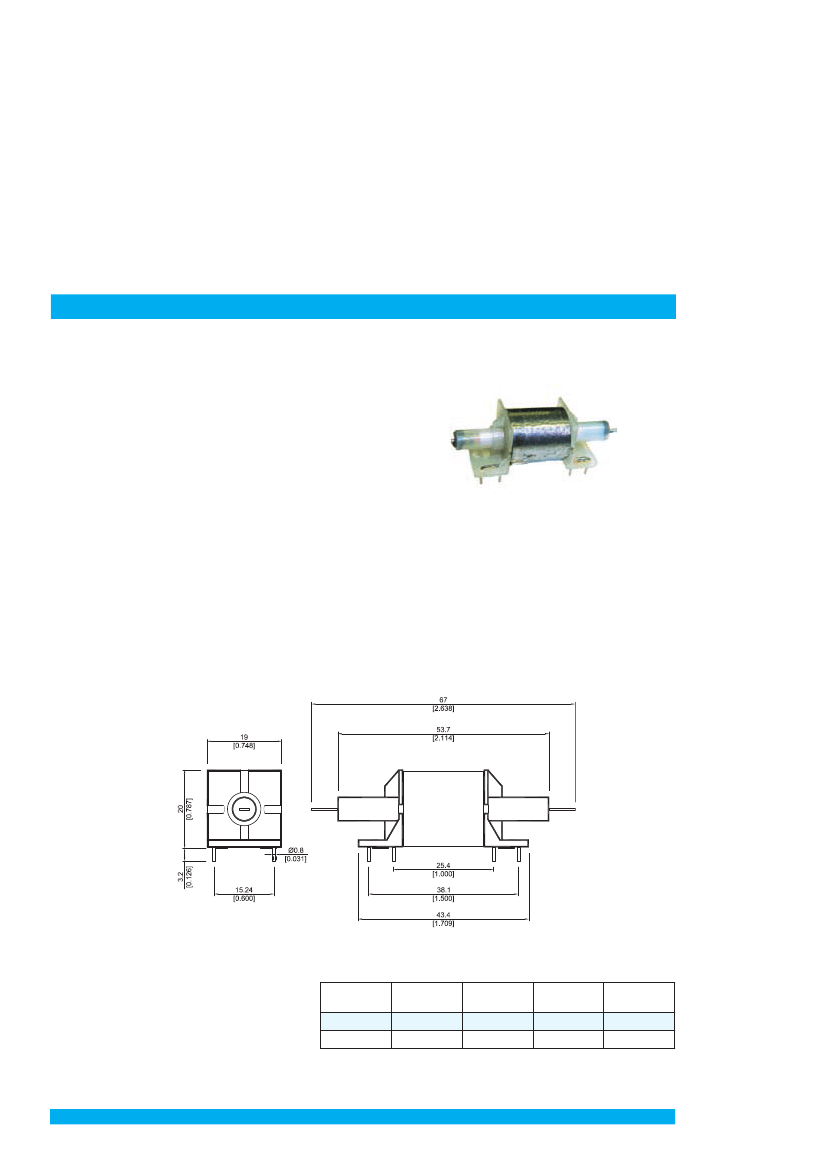

DIMENSIONS
All dimensions in mm [inches]
ORDER INFORMATION
Part Number Example
HF05 - 1A54 - 6
05
is the nominal voltage
1A
is the contact form
6
is the breakdown voltage (6 kVDC)
Series
HF
Options
Nominal
Voltage
XX -
05, 12, 24
Contact
Form
XX
A, B
Switch
Model
54 -
Pin Out
X
5, 6, 7, 8, 9
www.meder.com
Europe # ++49-(0)7733-94870, USA # 800-870-5385
297
HF Series
High Frequency and
High Power Reed Relays
MEDER electronic
COIL DATA
Contact
Form
Switch
Model
Coil
Voltage
VDC
Nom.
5
Max.
7.5
16
30
7.5
16
30
Min.
36
225
900
27
153
612
Coil
Resistance
Pull-in
Voltage
VDC
Max.
44
275
1100
33
187
748
Max.
3.5
8.4
16.8
3.5
8.4
16.8
Drop-out
Volage
VDC
Min.
0.75
1.8
3.6
0.75
1.8
3.6
Nominal
Coil Power
mW
Typ.
625
575
575
835
850
850
All Data
at 20 °C
Ω
Typ.
40
250
1000
30
170
680
1A
54
1B **
12
24
5
12
24
* The pull-in / drop-out voltage and coil resistance will change at rate of 0.4% per °C.
** Re-closure of Form B may occur if the max. coil voltage is exceeded. Coil polarity on Form B must be observed. Pin five
is positive.
PIN OUT
www.meder.com
298
Europe # ++49-(0)7733-94870, USA # 800-870-5385
MEDER electronic
HF Series
High Frequency and
High Power Reed Relays
RELAY DATA
All Data at 20° C
Contact Ratings
Switching Power
Switch Model -->
Contact Form -->
Conditions
Any DC combination of V & A not
to exceed their individual max.‘s
1 MHz to 30 MHz
1 MHz to 30 MHz
1 MHz to 30 MHz
w/ 0.5 V & 10mA
Measured w/ 0.5V & 50mA 1.5
ms after closure
Across contacts
Contact to coil
Coil to shield
Across contacts
Contact to coil
Coil to shield
Measured w/ 100 % overdrive
Measured w/ no coil suppression
Across contacts
Contact to coil
Coil to shield
Switch 54
Form A / B
Min.
Typ.
Max.
25
Unit
W
Switching Voltage
Switching Current
Carry Current
Static Contact Resistance
Dynamic Contact Resistance
Insulation Resistance across
Contacts
Breakdown Voltage across
Contact
Operation Time incl. Bounce
Release Time
Capacitance
Life Expectancies
Switching 5 V - 10 mA
500
1.5
5.0
150
200
10
10
10
10
10
10
*
10
0.5
V
A
A
mΩ
Ω
kVDC
3.0
1.0
2.5
10
20
ms
ms
pF
DC only & <10 pF stray cap.
50
10
6
Cycles
For other load requirements please see our life test section on P. 152.
Environmental Data
Shock Resistance
Vibration Resistance
Ambient Temperature
Stock Temperature
Soldering Temperature
1/2 sinus wave duration 11 ms
From 10 - 2000 Hz
10°C/ minute max. allowable
10°C/ minute max. allowable
5 sec.
-40
-40v
50
20
85
105
260
g
g
o
C
C
C
o
o
www.meder.com
Europe # ++49-(0)7733-94870, USA # 800-870-5385
299
