HES34-240150: DescriptionAC/DC EXTERNAL DESKTOP ADAPTER UNIVERSAL INPUT SINGLE OUTPUT 25-36 WATTS SWITCHING POWER SUPPLIES; File Size134KB，2 Pages; ManufacturerHitron; Websitehttp://www.hitron-e.com/

Download Datasheet Compare View All

HES34-240150 Overview

AC/DC EXTERNAL DESKTOP ADAPTER UNIVERSAL INPUT SINGLE OUTPUT 25-36 WATTS SWITCHING POWER SUPPLIES

Preview

Download Datasheet

View All

H HiTRON

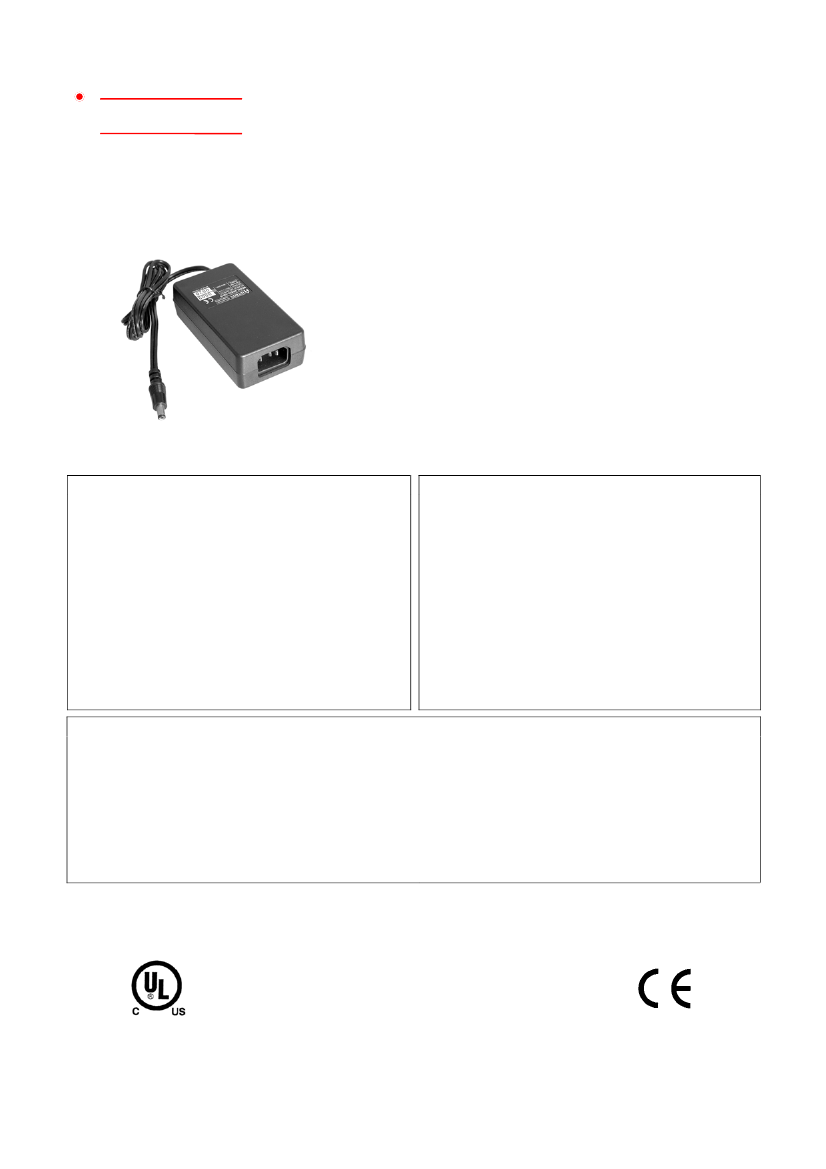

AC/DC EXTERNAL DESKTOP ADAPTER UNIVERSAL INPUT

SINGLE OUTPUT 25-36 WATTS SWITCHING POWER SUPPLIES

HES34 SERIES

FEATURES

UNIVERSAL AC INPUT

DESKTOP IEC320 AC RECEPTACLE

MEET UNIVERSAL SAFETY STANDARDS

EMI MEET EN 55022 / FCC CLASS B

CE MARKING COMPLIANCE

SPECIFICATION

INPUT SPECIFICATION

Input Voltage:

90-264Vac typical.

Input Connector:

IEC320-3P DT7 type

AC inlet receptacle.

Input Frequency:

47-63Hz.

Inrush Current:

35A max. @264Vac or less than

30A @230Vac by adding thermister.

Input Current:

0.65A @115Vac typical.

0.3A @230Vac typical.

Dielectric Withstand:

Meet IEC60950.

EMI:

Meet EN 55022 / FCC Class B.

Hold-up Time:

17mS @115Vac typical.

68mS typ. @230Vac typical.

OUTPUT SPECIFICATION

Output Voltage:

See Ratings Chart.

Output Current:

See Ratings Chart.

Output Wattage:

25-36Watts typical.

Output Connector & Cord:

Optional.

Line Regulation:

0.1% typical.

Load Regulation:

±1.5-3.0% typical.

Noise & Ripple:

1.0% typical peak to peak.

OVP:

Built-in, by Zener diode clamping.

Adjustability:

Factory set.

Overload Protection (OLP):

Fully protected against output overload and short circuit.

OLP set at about 125-150% rating output wattage.

Consult the factory for OLP setting.

GENERAL SPECIFICATION

Efficiency:

80-85% typical.

Switching Frequency:

Approximate 73K Hz.

Circuit Topology:

Fixed Frequency Flyback circuit.

Transient Response:

Output voltage returns in less than

3mS following a 25% load change.

Safety Standard:

Meet UL1950/ EN60950, Class I.

Power Density:

2.70 Watts / Cubic inch.

Operating Temperature:

0 to +25/35/40°C

without derating. (various with output voltage)

Storage Temperature:

-20°C to +85°C.

Temperature coefficient:

0.04% /°C.

Cooling:

Free air convection.

Construction:

Impact resistant thermo-plastic

enclosure case.

Desktop Format.

NOTE: (1) All measurements are at nominal input, full load, and +25°C unless otherwise specified.

(2) Load regulation is measured at 115Vac or 230Vac in percentage indicate the change in output voltage as the load varied from half load to full load(±%)

(3) The exact obtainable load regulation depends upon the output cord selected and load current. Upper data are for 6 ft. (2 m) cord AWG#18 wires.

(4) Due to requests in market and advances in technology, specifications subject to change without notice

For the details of safety approval, please consult the factory.
